Programming systems
deserve a theory too!

Tomas Petricek, Charles University, Prague

tomas@tomasp.net
https://tomasp.net
@tomasp.net

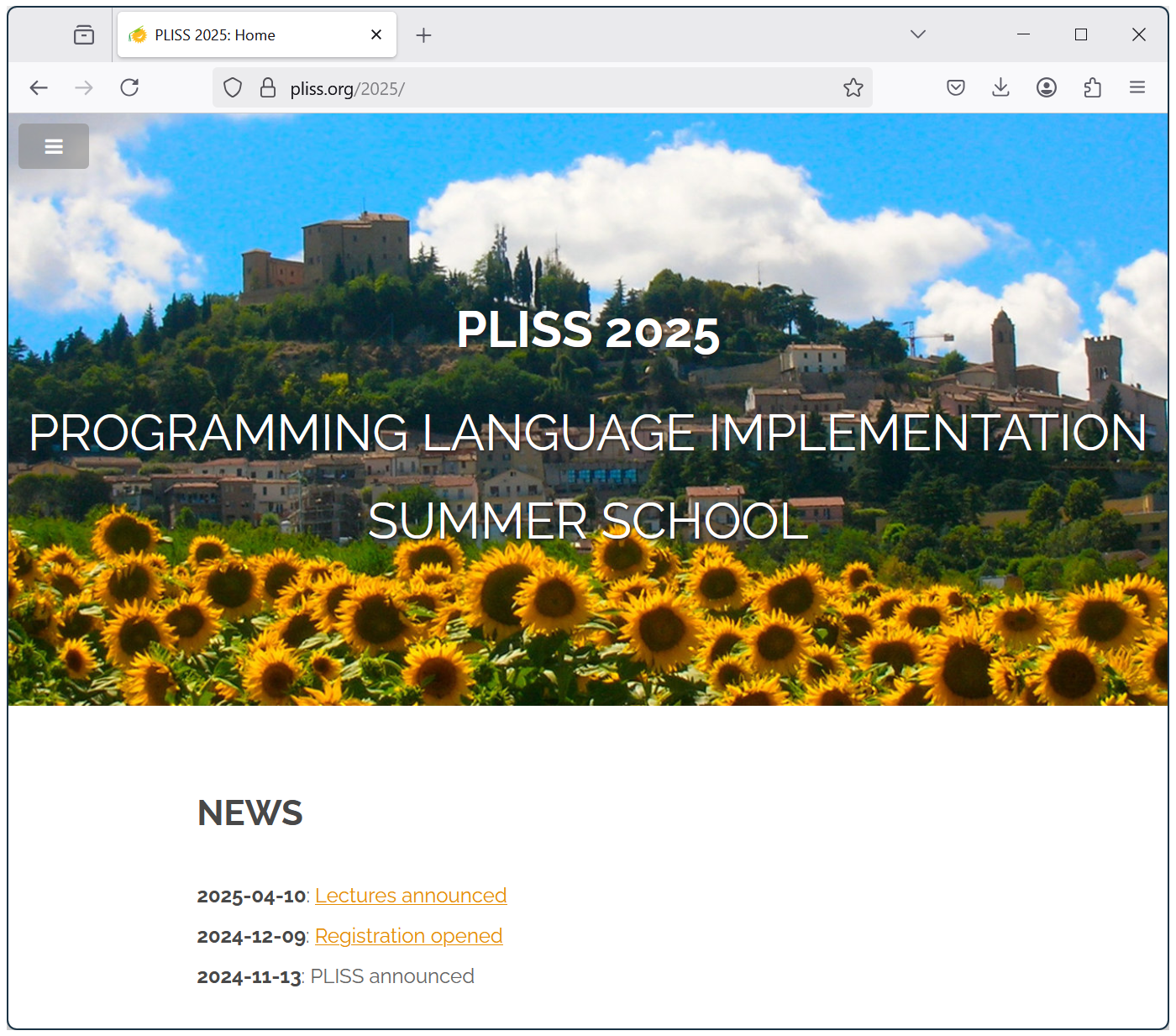

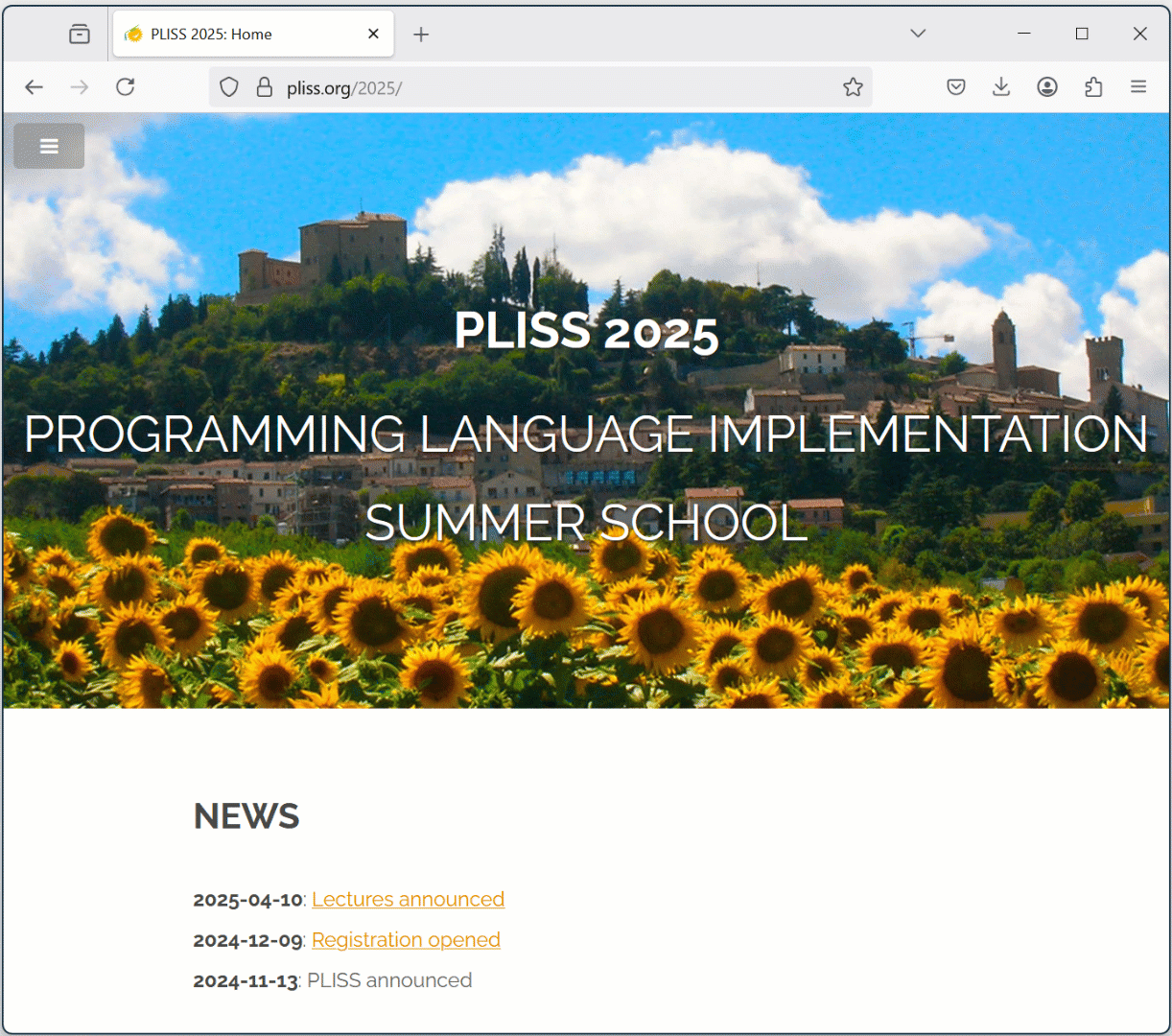

The name of this summer school
is so 1990s!

The browser makes this easy to fix.

Silly joke?

1990s not arbitrary!

Systems to languages paradigm shift

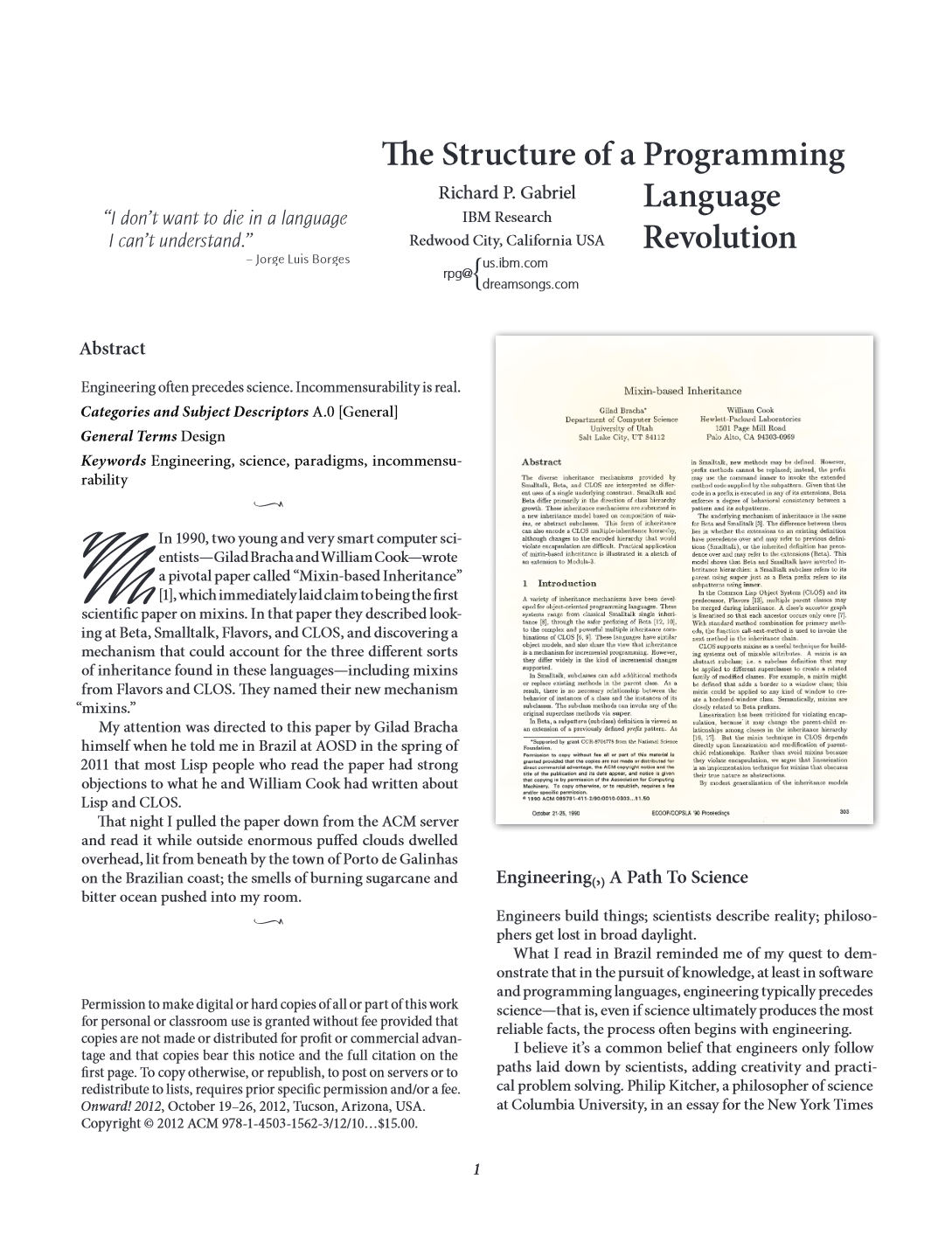

The Structure of a Programming Language Revolution (Gabriel, 2012)

Browser not arbitrary!

Good programming system to learn from
Empowering users & malleability (almost)

Programming systems

Scientific paradigm shift

Programming Languages

Programming is
writing code

Formal semantics, implementation, paradigms, types

We know how
to study this!

Programming Systems

Interacting with a stateful system

Feedback, liveness, interactive user interfaces

But how do we
study this?

Paradigm shift in the 1990s

Scientific paradigm shifts

Described by Thomas Kuhn in 1962
Paradigms are incommensurable
Old concepts stop making any sense

From systems to languages

Described by Richard Gabriel in 2012
From CLOS and Flavors to mixins
From running system to code
From state & interaction to semantics

Demo

Not what you'd expect at PLISS

History of programming

What we see depends
on how we look!

Poorly language? Interesting system?

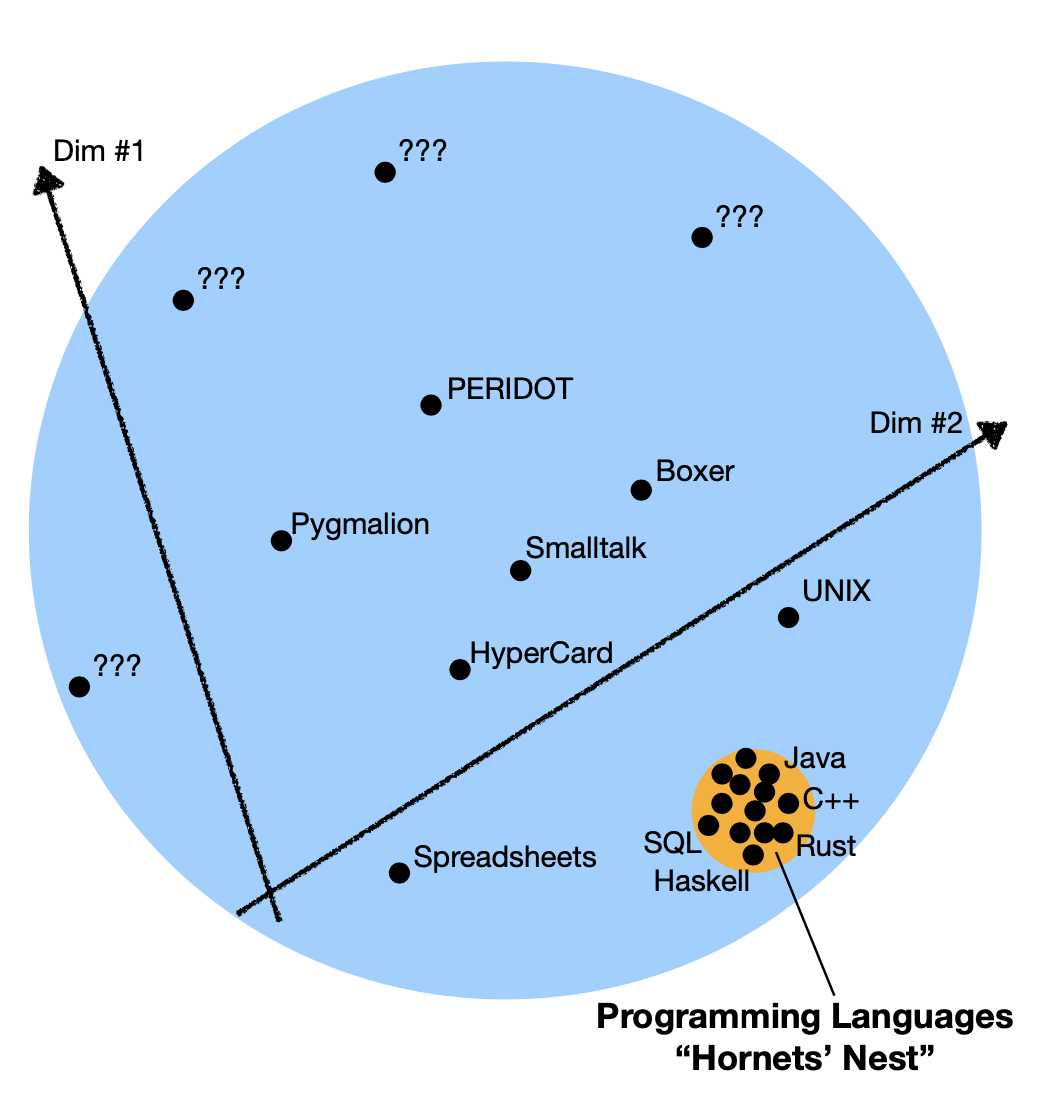

Technical dimensions

Qualitative systems analysis

Technical dimensions

What is a dimension

Captures a property of a system
Covers old and new systems
Defines a range of values

Using the framework

Identify gaps in design space
Characterise new and old systems
Qualitative comparison of systems

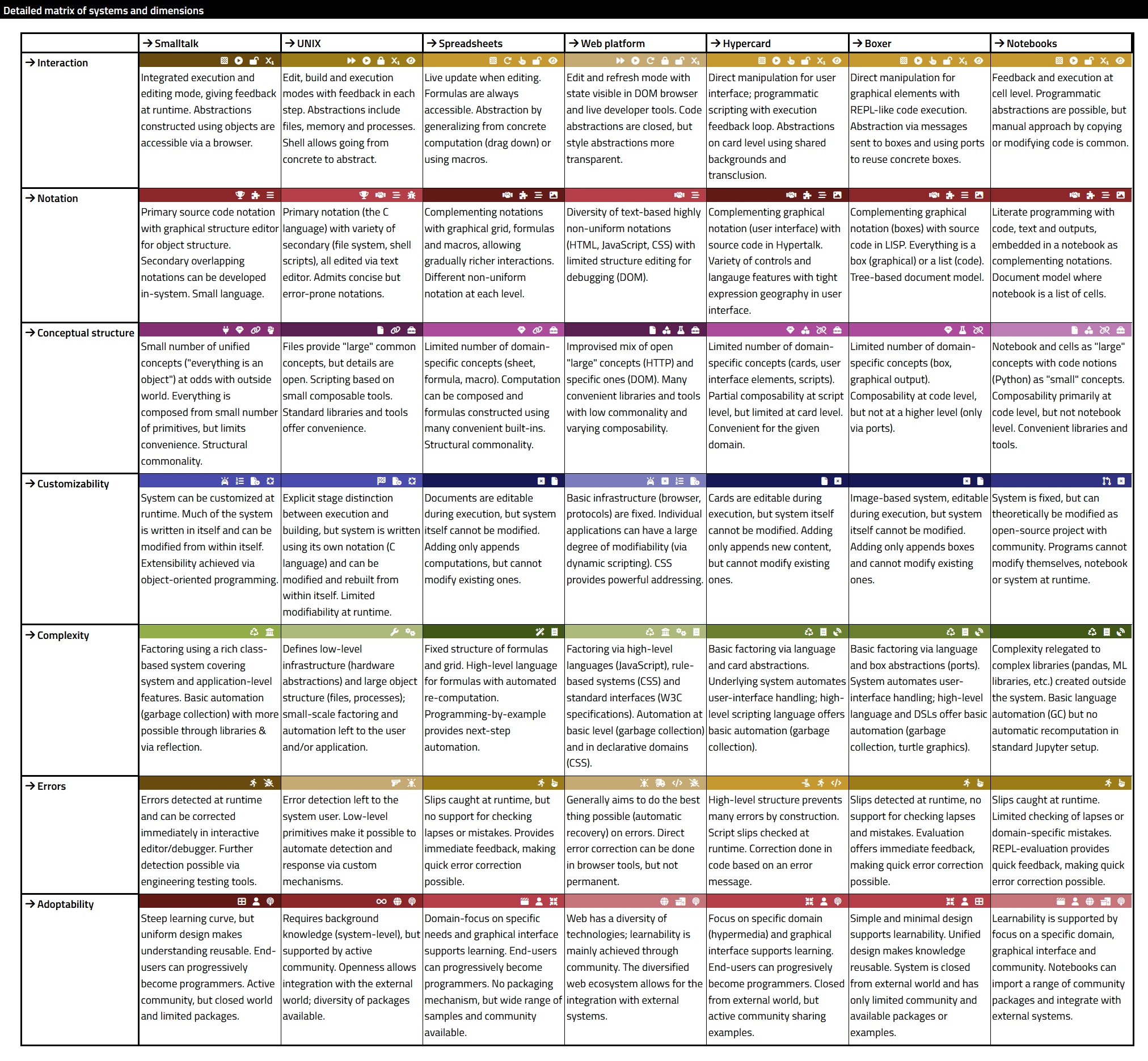

Technical dimensions catalogue

Analysis of:

LISP machines, UNIX, Web, Hypercard, Spreadsheets, Haskell, Boxer, Dark, etc.

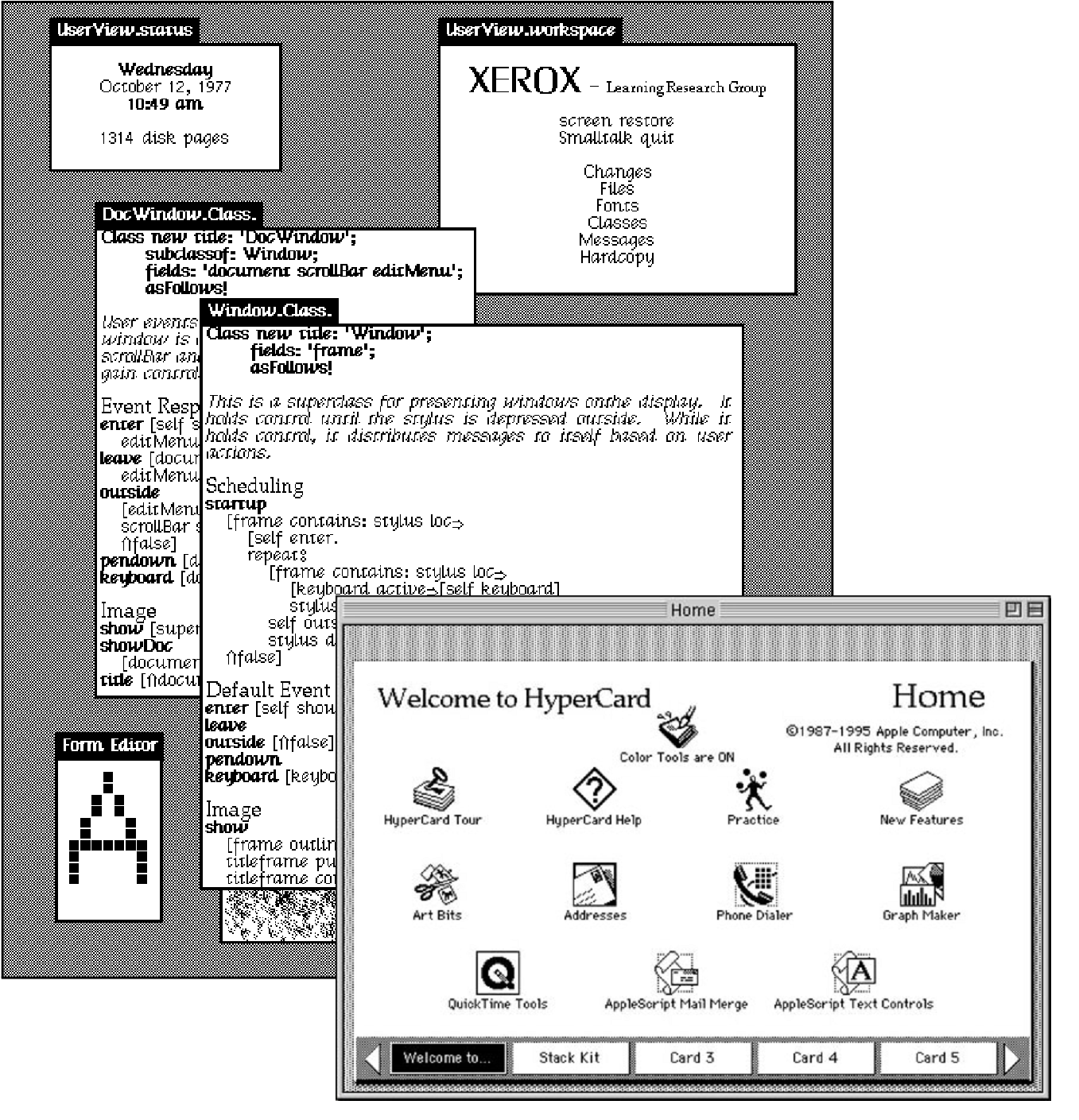

Good old programming systems

Technical dimensions analysis

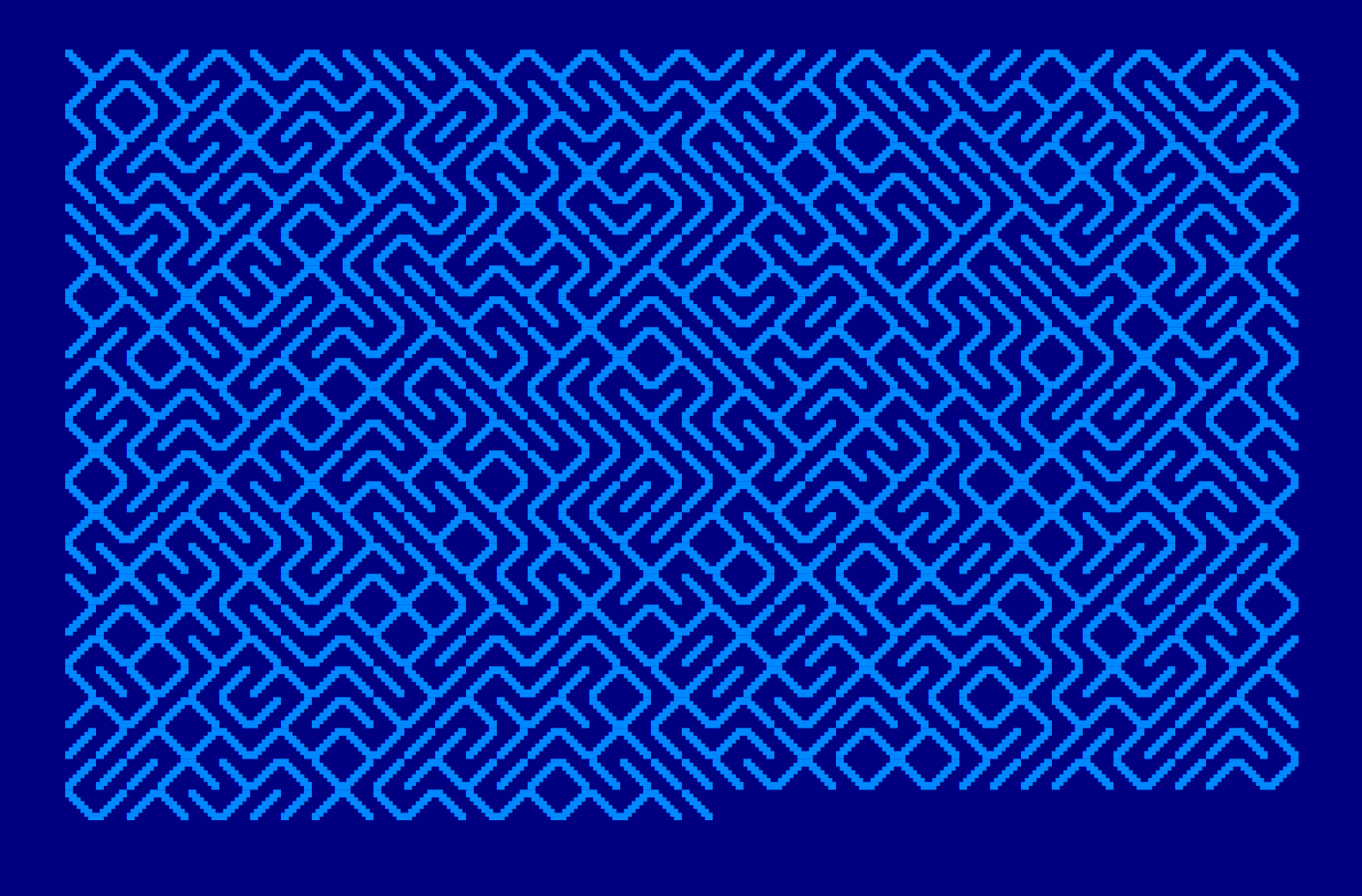

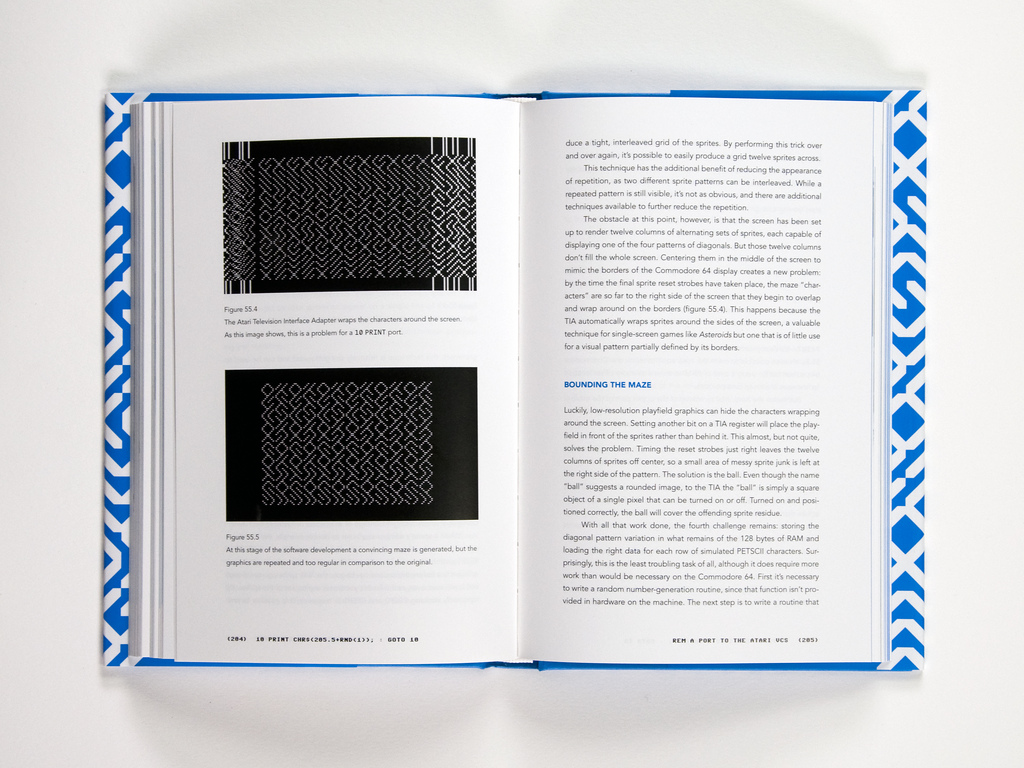

Commodore 64 BASIC

Modes of interaction

Terminal works as both REPL
and structure code editor

Factoring of complexity

Simple but experts can use POKE and SYS

Learnability

Simple unstructured language
Demos distributed as source in magazines

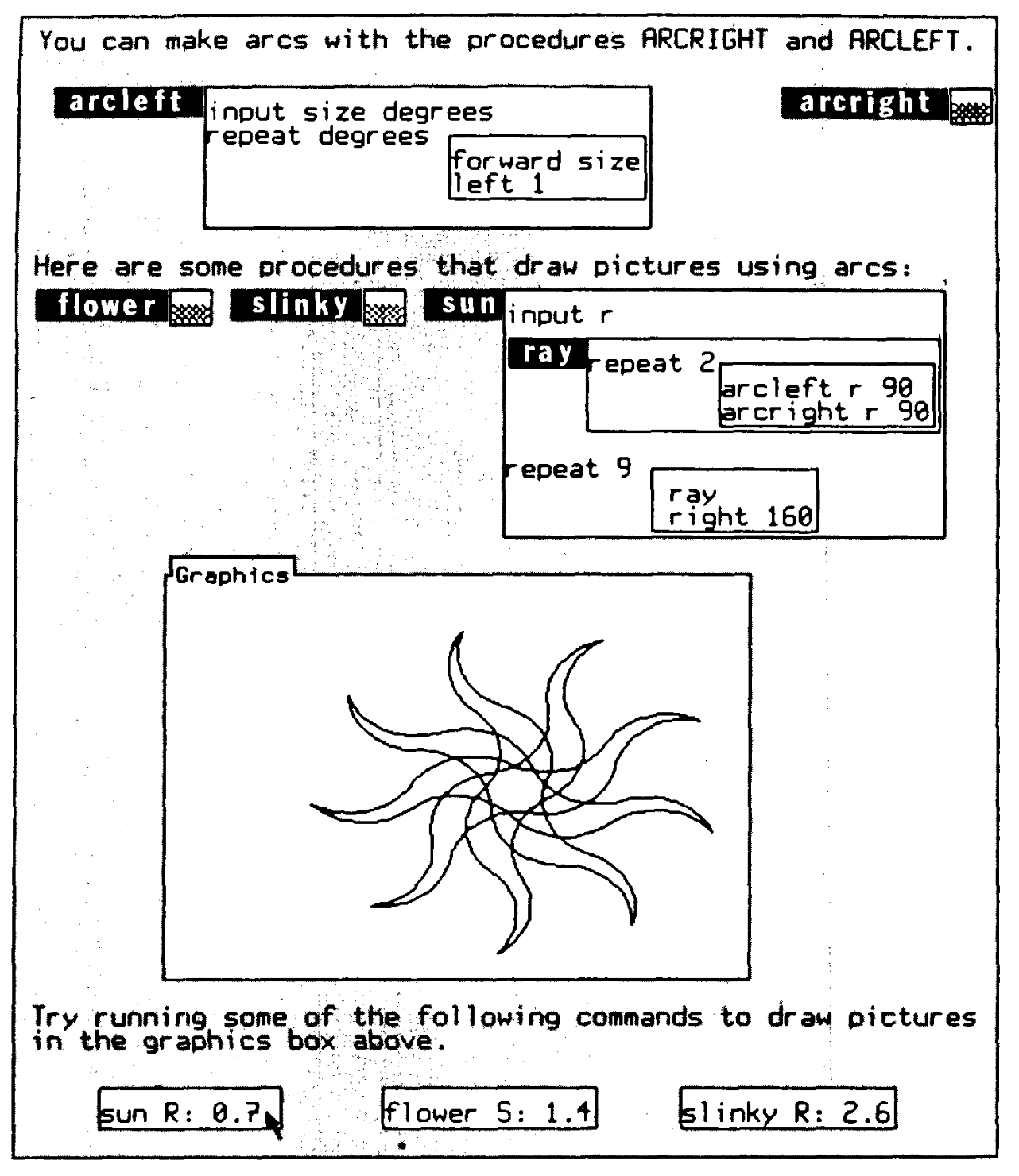

Boxer: A reconstructible computational medium

Explicit structure
Code represented as boxes
User interface is boxes

Abstraction construction Start concrete & generalize

Naive realism (extra)
What you see is what there is

Demo

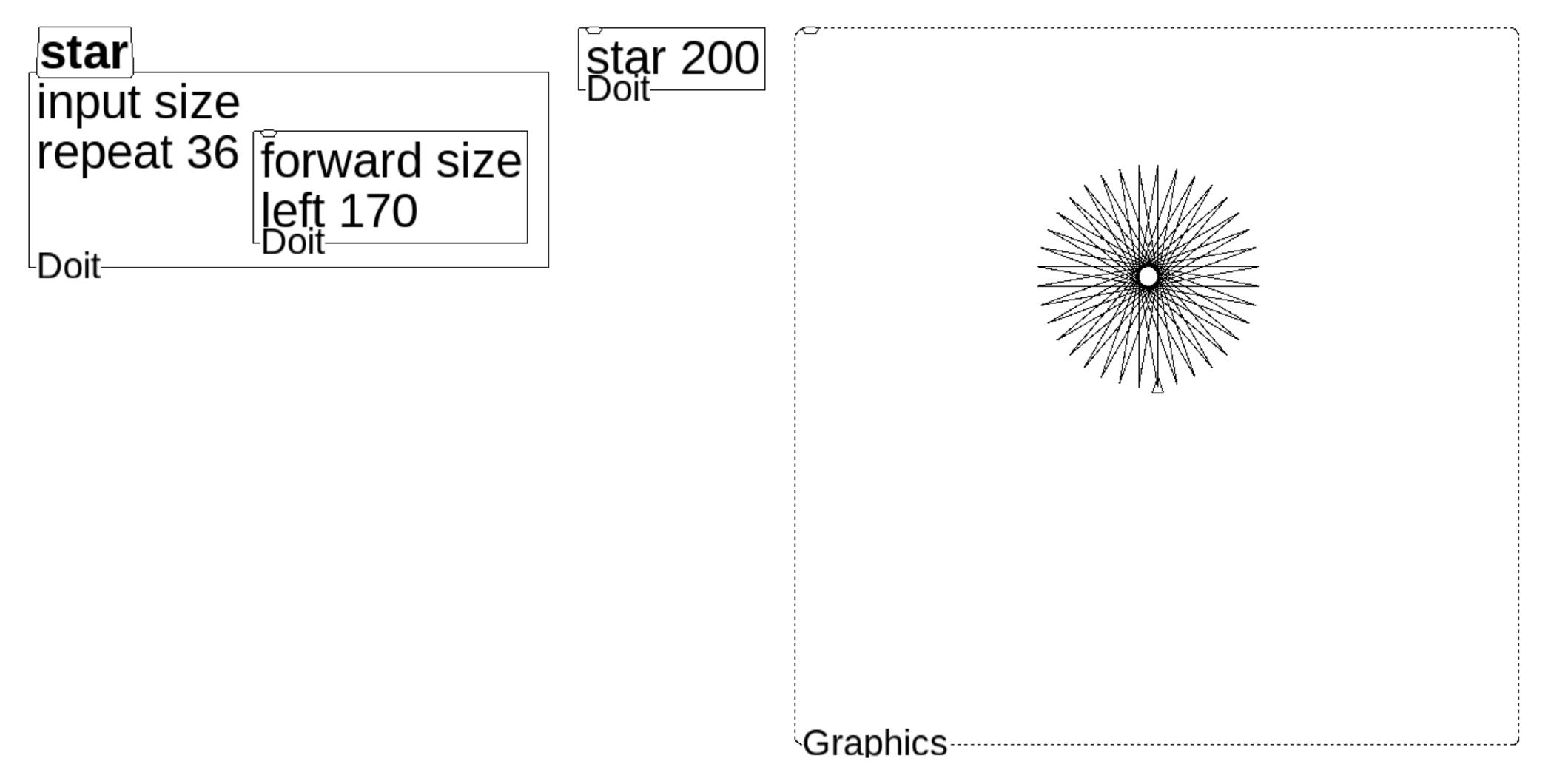

Boxer Sunrise by Steven Githens

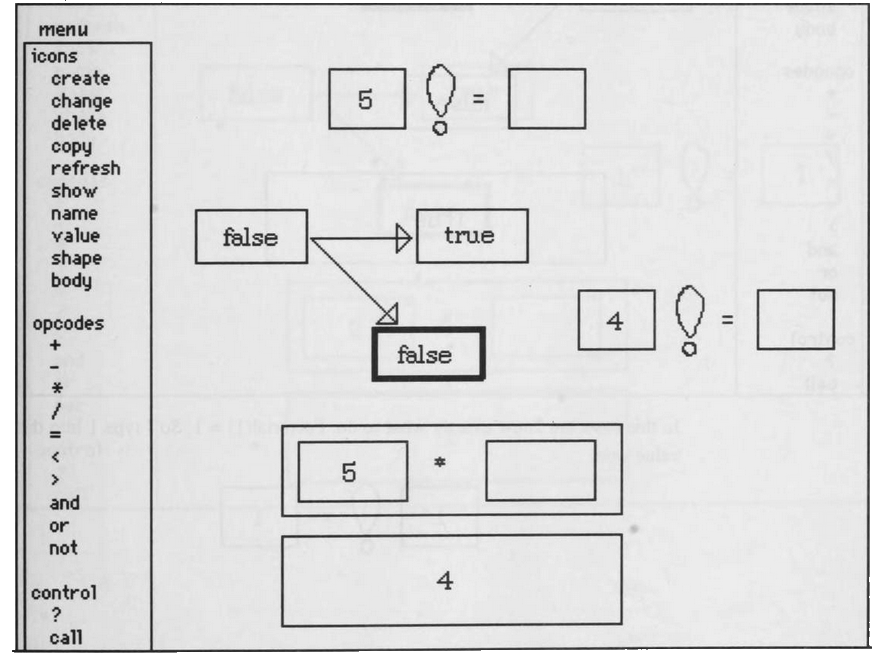

Pygmalion: a creative programming environment

Feedback loops
See result of interacting
with icons immediately

Abstraction construction
Directly manipulate concrete values to define computation

Demo

Pygmalion-like by Adrian Habusta

Methodology

Programming systems research

Learning from past systems

What's cool about C64 BASIC?

Oriented around code interactions
Simple with options for experts (POKE)
Poor engineering in a poor language!

Complementary science

Advocated by Hasok Chang
Do (serious) history to recover ideas
Lost due paradigm shifts in science
Even more powerful for computing!

Making scientific claims

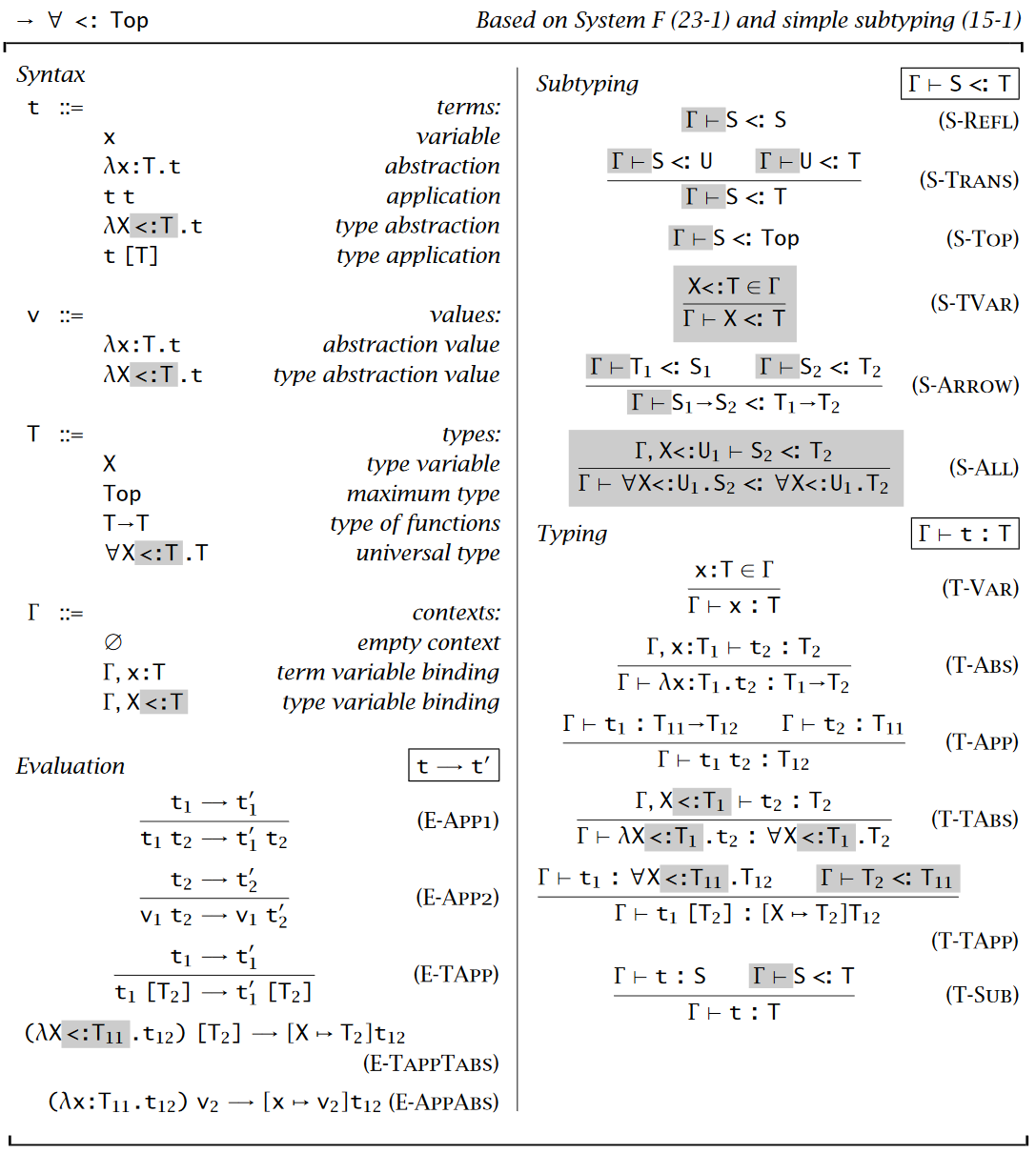

Programming language theory

Formal proofs, about tiny models

Empirical evaluation

Performance, in controlled environment

User studies and case studies

Usability or flexibility, in specific scenarios

Tiny systems

Experience of using and building a system, on a tiny scale

Conceptual structure?
Potential of the design?
Technical dimensions?

Denicek

Exploring the design space

User experiences

Difficult to implement in existing systems!

Local-first collaborative editing
Programming by demonstration
Incremental recomputation
Schema change control

Denicek design ideas

Document representation

Data are just document nodes
Formulas are just document nodes

Edit operations

Editing data - modify the document
Adding formulas - modify the document!
User interaction - edits behind the scene
Code evaluation - edits behind the scene!

Demo

Implementing counter using Denicek

Merging edits

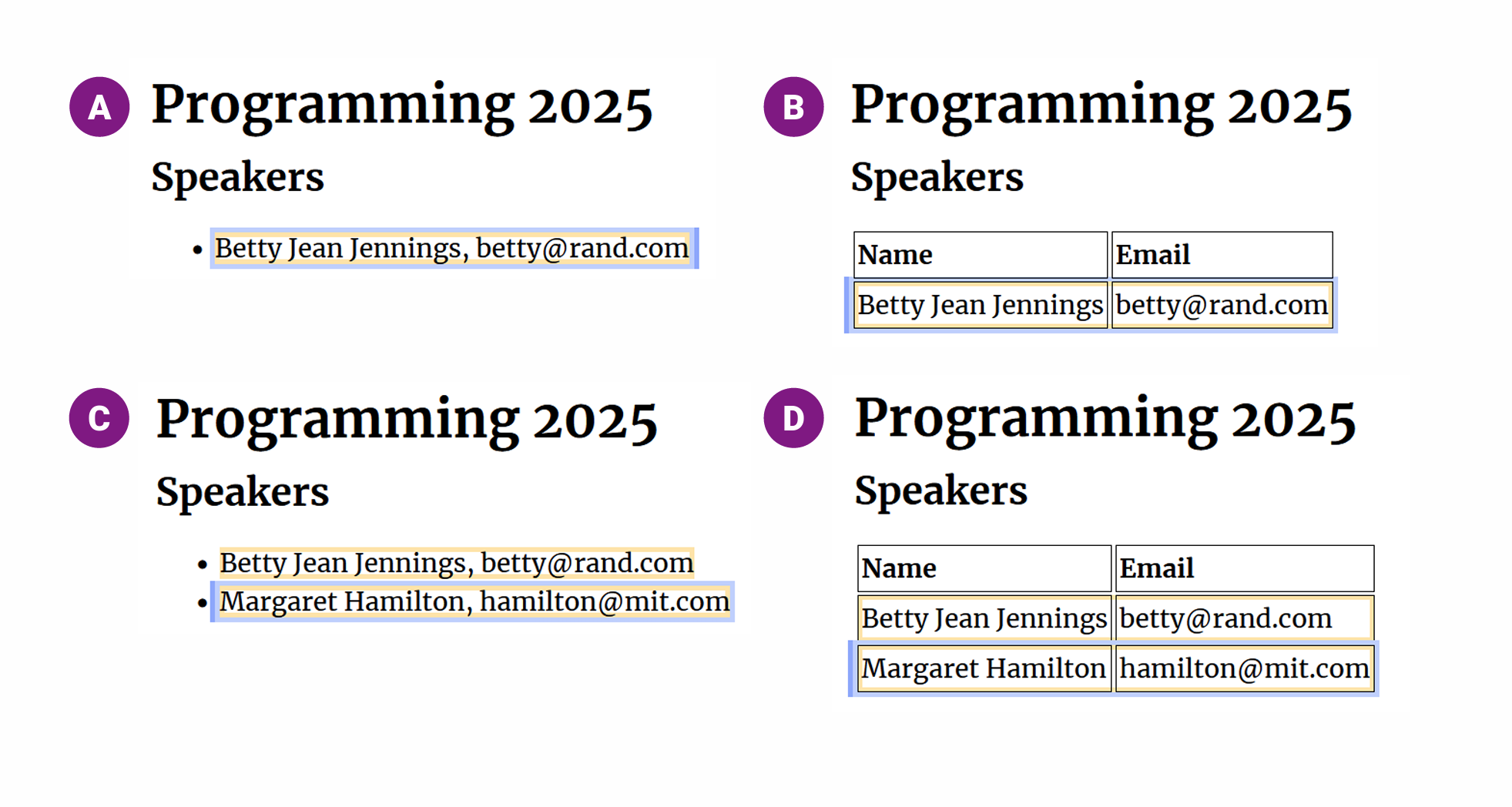

Collaborative editing
Two users edit document
Try to reconcile edits!

Operational transform
Given concurrent \(e_1\) and \(e_2\), compute \(e_2'\) respecting \(e_1\), producing sequence \(e_1, e_2'\).

Demo

Collaborative document editing

Unreasonable effectiveness of merging

Local-first collaborative editing
Merging edits from concurrent users
Programming by demonstration
Replay recorded edits using merging
Incremental recomputation
Invalidate conflicting evaluated edits
Schema change control
Keeping formulas in sync with schema

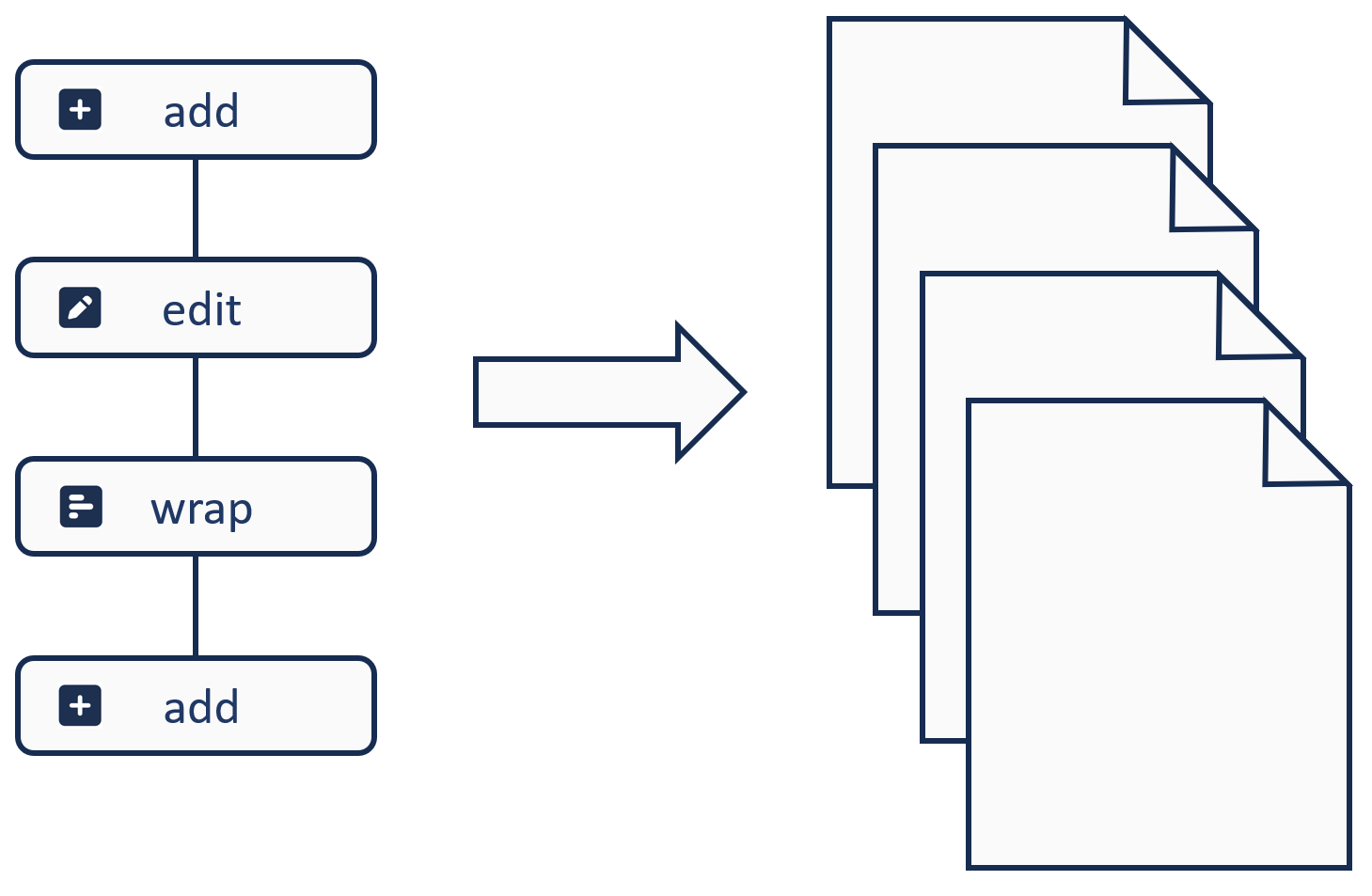

Denicek computational substrate

Computational substrate

Documents + edits
Good basis for interesting programming systems

Evaluation

A range of technical dimension values
Case study notebook system

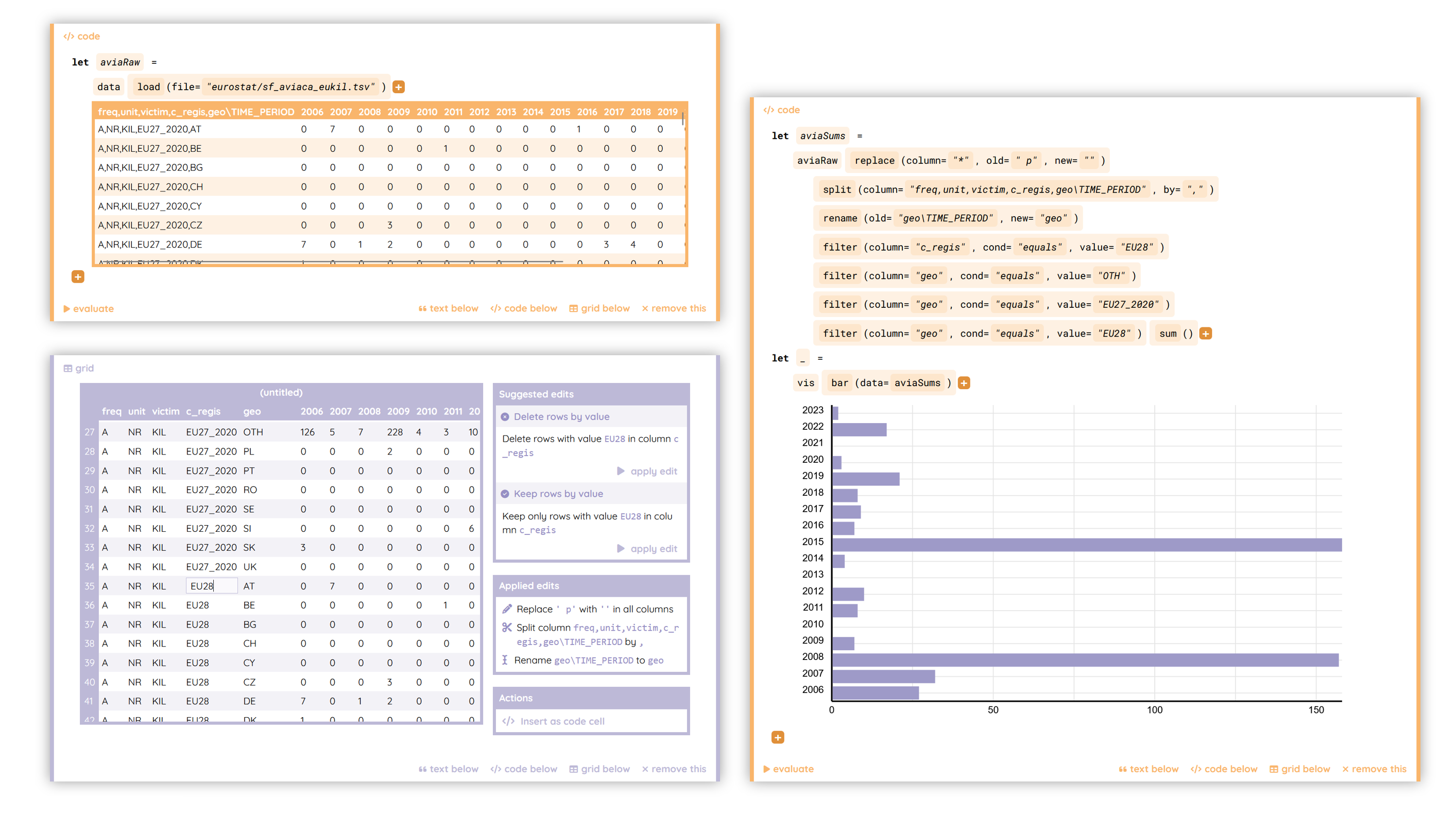

Case study: Data science notebook

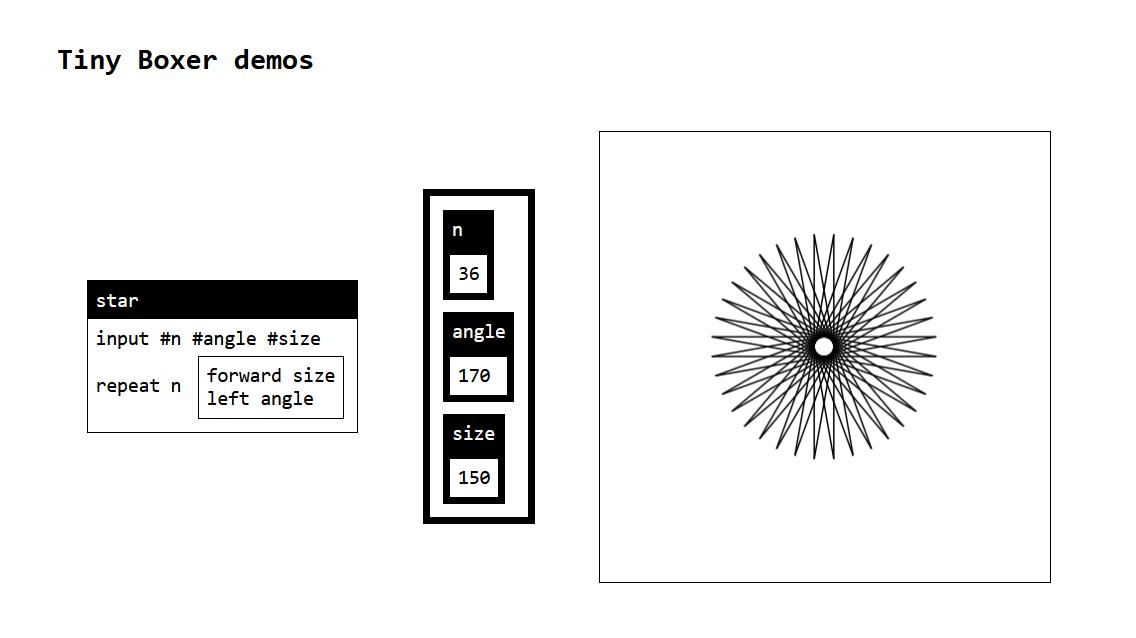

Tiny Boxer

Fun project for PLISS

Demo

Turtle graphics in Tiny Boxer

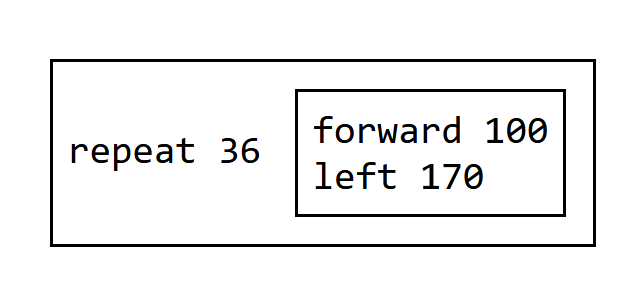

Explicit structure + naive realism

<div class="box">
  <span>
    <i>repeat</i> <b>36</b>
    <div class="box">
      <span><i>forward</i> <b>100</b></span>
      <span><i>left</i> <b>170</b></span>
    </div>
  </span>
</div>

Boxes <div> contain series of commands <span>
Commands start with an identifier <i> followed by
idents <i>, numbers <b>, strings <s> and nested boxes

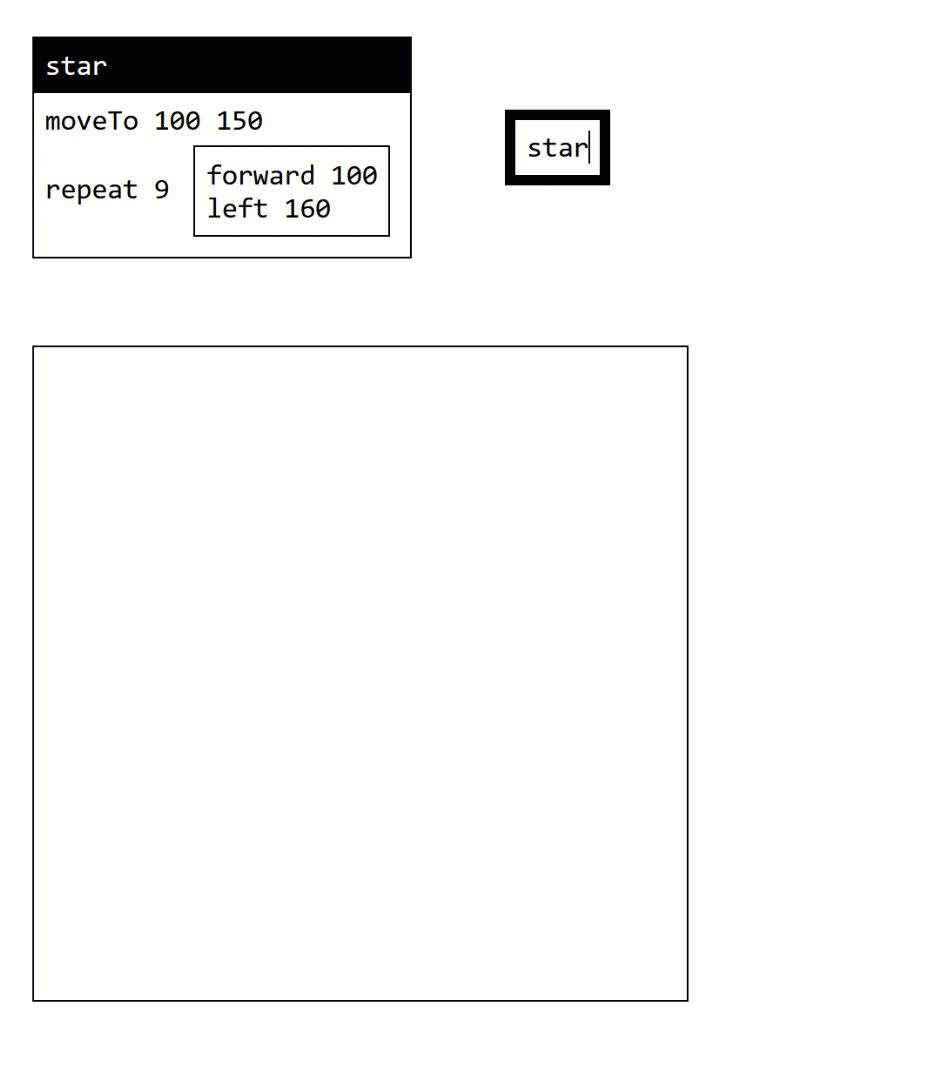

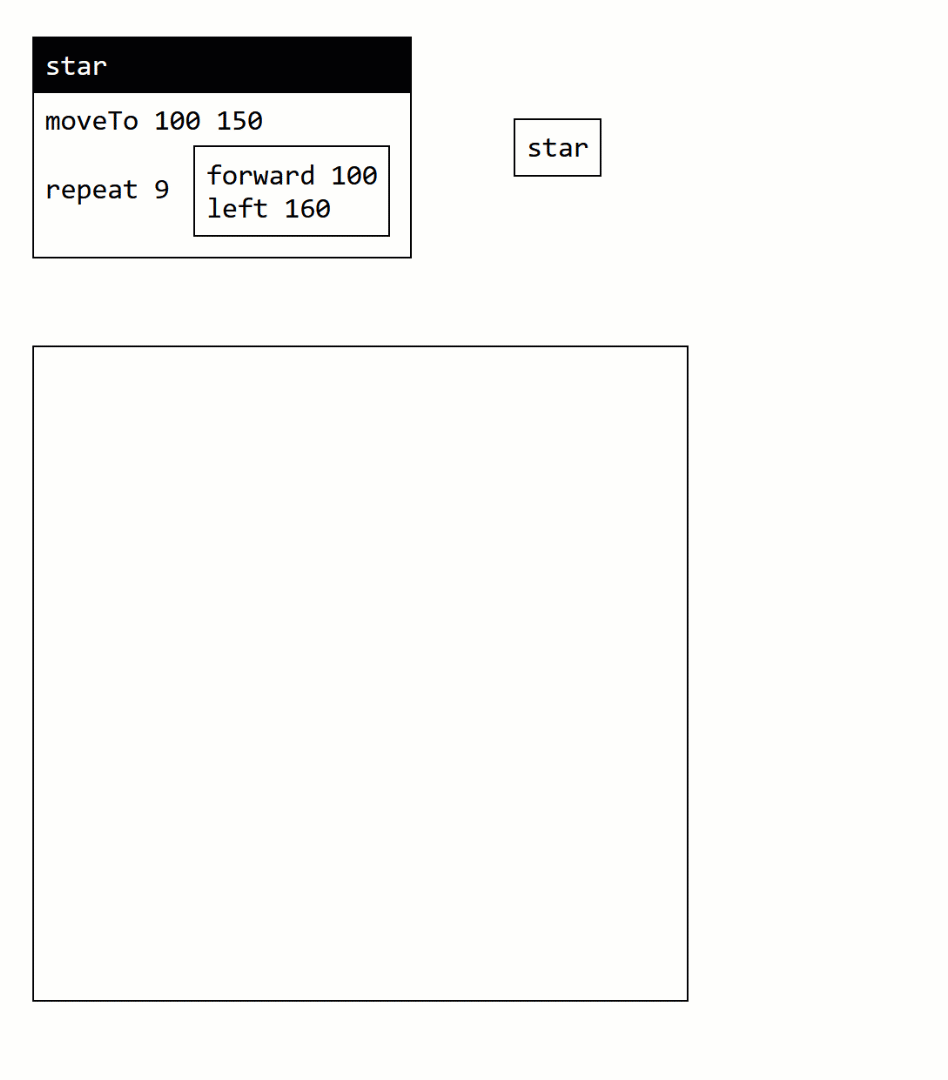

Evaluation

Copy and replace

Mutate the document!
All state is visible

Evaluation

Copy and replace

Mutate the document!
All state is visible

type Commands = Command[]

type Command =
  { operation: string,
    element: Element,
    parameters: Parameter[] }

type Parameter =
  | { kind: "identifier",
      name: string,
      element: Element }
  | { kind: "symbol",
      name:string,
      element: Element }
  | { kind: "primitive",
      value: string,
      element: Element }
  | { kind: "box",
      element: Element }

Implementation structure

Parse parameter
(Element) -> Parameter

Parse box
(Element) -> Commands

Evaluate command
(Command) -> void

Evaluate step
() -> void

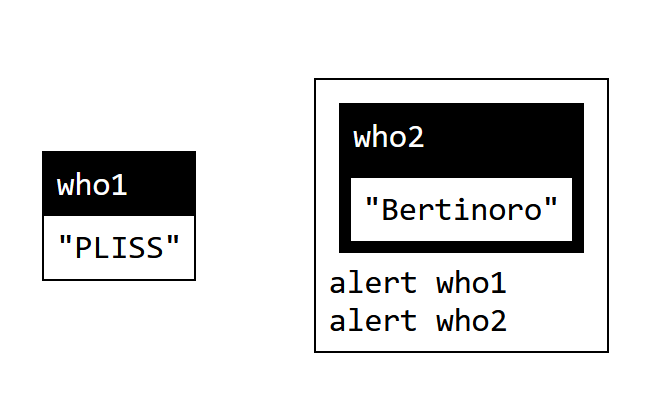

Variables as named boxes

Named boxes

<div class="name">
  <span>who1</span>
  <div class="box">
    <span><s>PLISS</s></span>
  </div>
</div>

Variable lookup

Look in the current box (scope)
Look in the document root

Tiny Boxer step-by-step

Step 1 - Parsing DOM into commands and parameters
Step 2 - Evaluation of simple built-in commands
Step 3 - Turtle graphics and repeat command for looping
Step 4 - Box lookup and built-ins that introduce boxes
Step 5 - Calling other boxes and input command

Conclusions
