Writing Tiny Programming
Systems in F#

Tomas Petricek, Charles University, Prague

tomas@tomasp.net
https://tomasp.net
@tomasp.net

Demo

Not what you'd expect
at the Lambda meetup

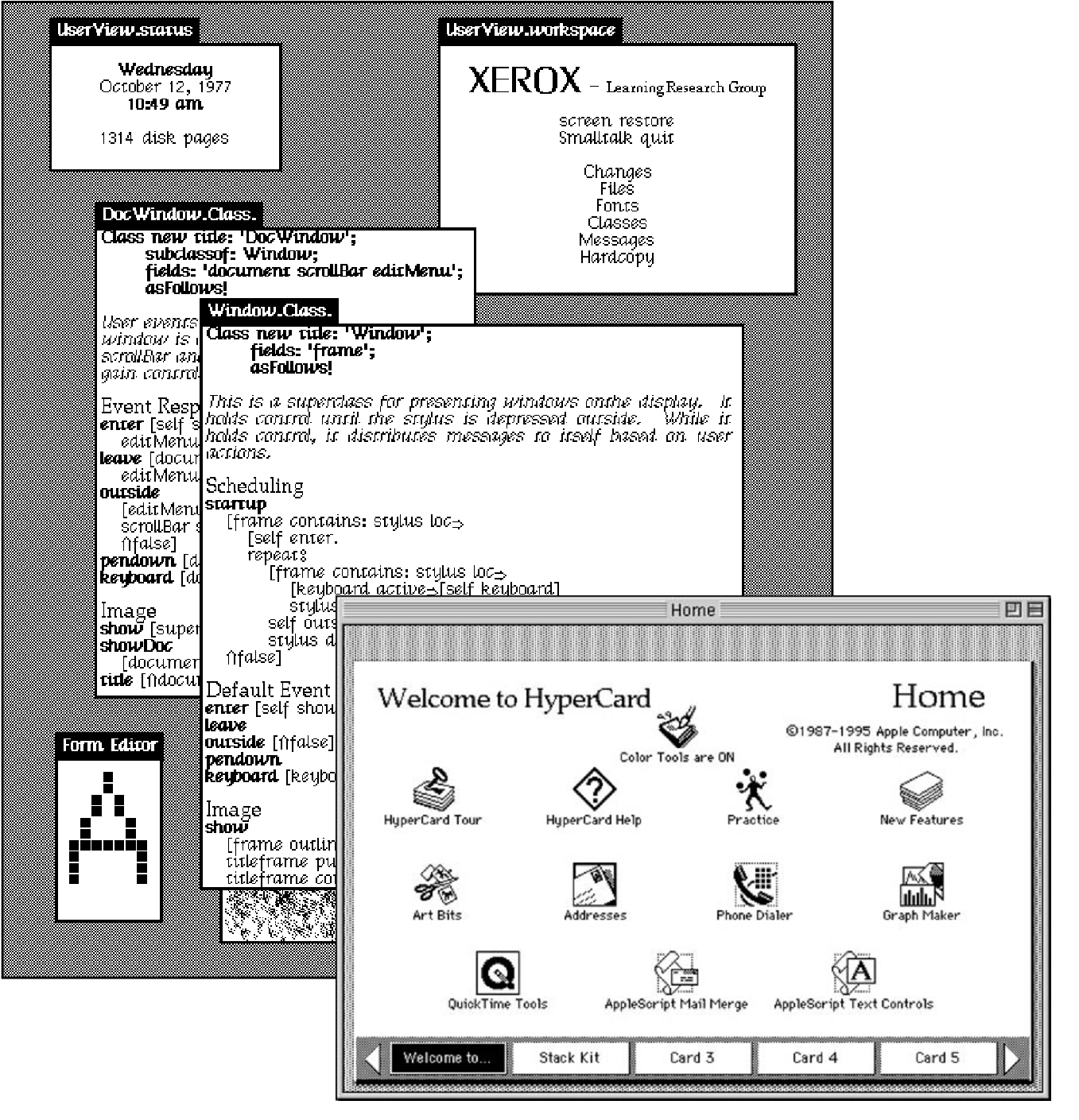

History of programming

What we see depends on how we look

Programming Languages

Programming is
writing code

Formal semantics, implementation, paradigms, types

We know how
to study this!

Programming Systems

Interacting with a stateful system

Feedback, liveness, interactive user interfaces

But how do we
study this?

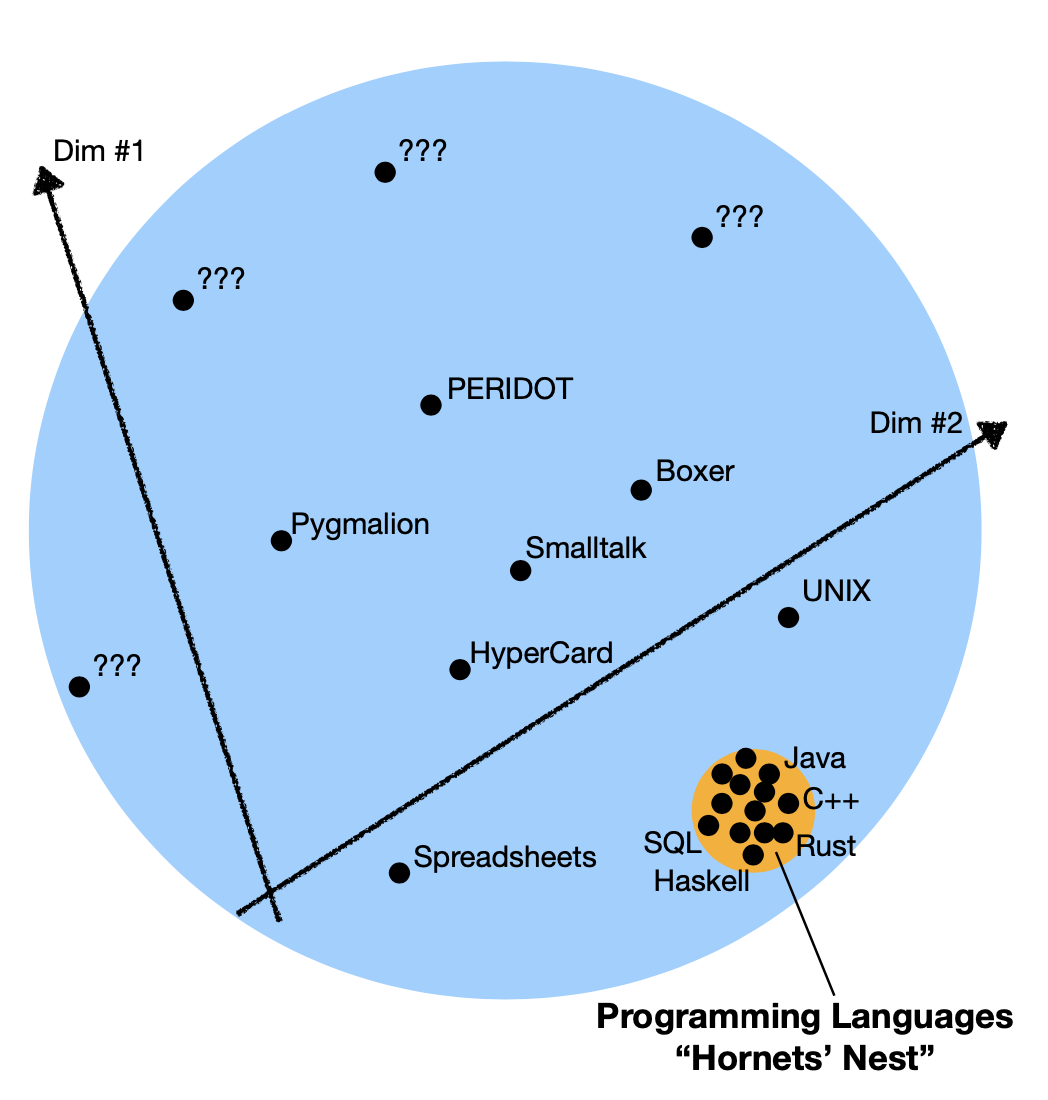

Technical dimensions

Capture system properties

  • Look at past systems afresh
  • Allow comparison of systems
  • Stand on the shoulders of giants!

What is a technical dimension

  • Self-sustainability
  • Modes of interaction
  • Conceptual structure

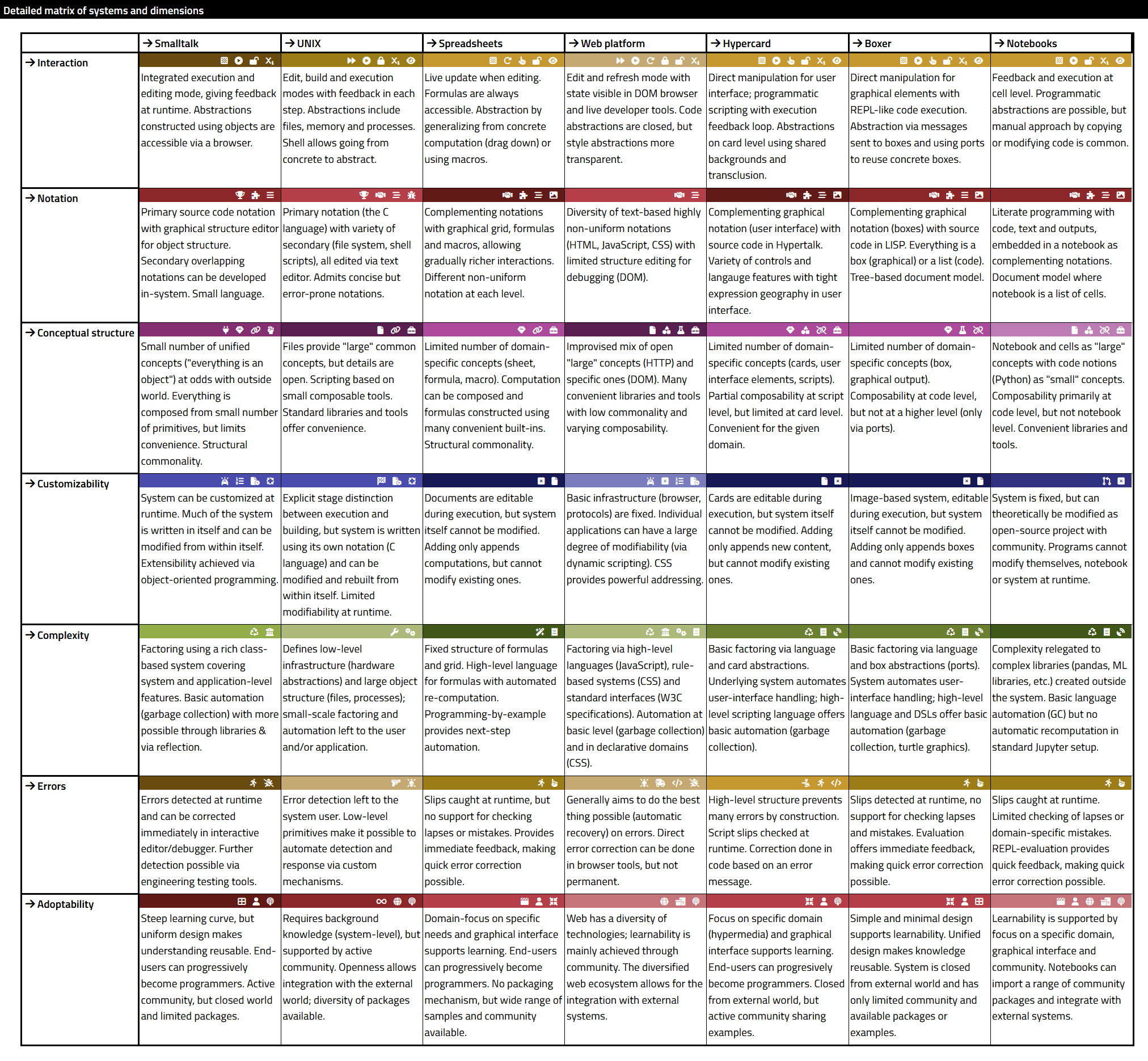

Technical dimensions catalogue

Analysis of

LISP machines,
UNIX, Hypercard, Spreadsheets,
Haskell, Web, etc.

tomasp.net/techdims

Demo

Another thing you'd expect
at the Lambda meetup

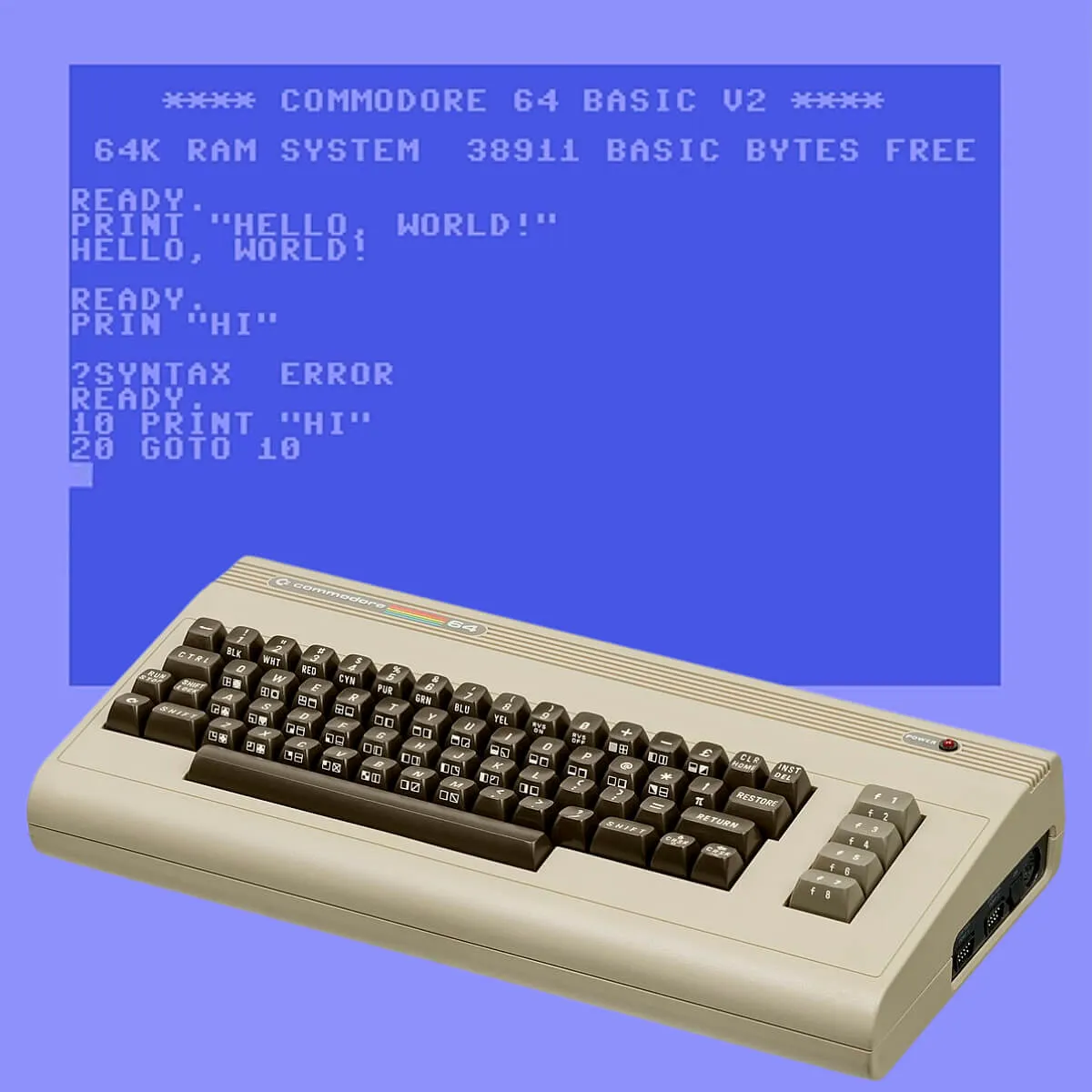

Why is BASIC cool

Factoring complexity
Simple with escape hatches for experts

Modes of interaction Interactive editor that's also an interpreter

Learnability
Magazines and games

Complementary science

Recreating BASIC in F#

type Expression =
  | Variable of string
  | Const of Value
  | Binary of Op * Expr * Expr
  | Func of string * Expr list

type Command =
  // Program commands
  | Print of Expr * bool
  | Goto of int
  | Poke of Expr * Expr
  | Assign of string * Expr
  | If of Expr * Command
  | Get of string

  // Editor and interactive
  | List of int option * int option
  | Delete of int option * int option
  | Run

Algebraic data types for the win!

Simple model to understand what
is going on

Everything else
built around this

Parse input
Evaluate command

/// Succeeds if the string 's'
/// starts with the prefix 'p'
let (|Prefix|_|) p s =
  if s.StartsWith p then
    Some(s.[p.Length..].Trim())
  else None

/// Succeeds if the string 's'
/// starts with a number; returns
/// the number & the remainder
let (|Number|_|) s =
  (...)

/// Parse command like '10 GOTO 20'
match input with
| Number(line, Prefix "GOTO" (Number(target, _))) ->

Active patterns

Adding super-powers to pattern matching!

Quick and dirty parsing, but great for demos...

Demo

Reconstructing BASIC in F#

Programming systems

Learning from the past

Demo

Programming by demonstration

Programming experiences

  • Collaborative programming
    Resolve (some) merge conflicts
  • Programming by demonstration
    Turn interactions into programs
  • Schema change control
    Adapt program when data schema changes
  • Incremental recomputation
    Invalidate only what is necessary

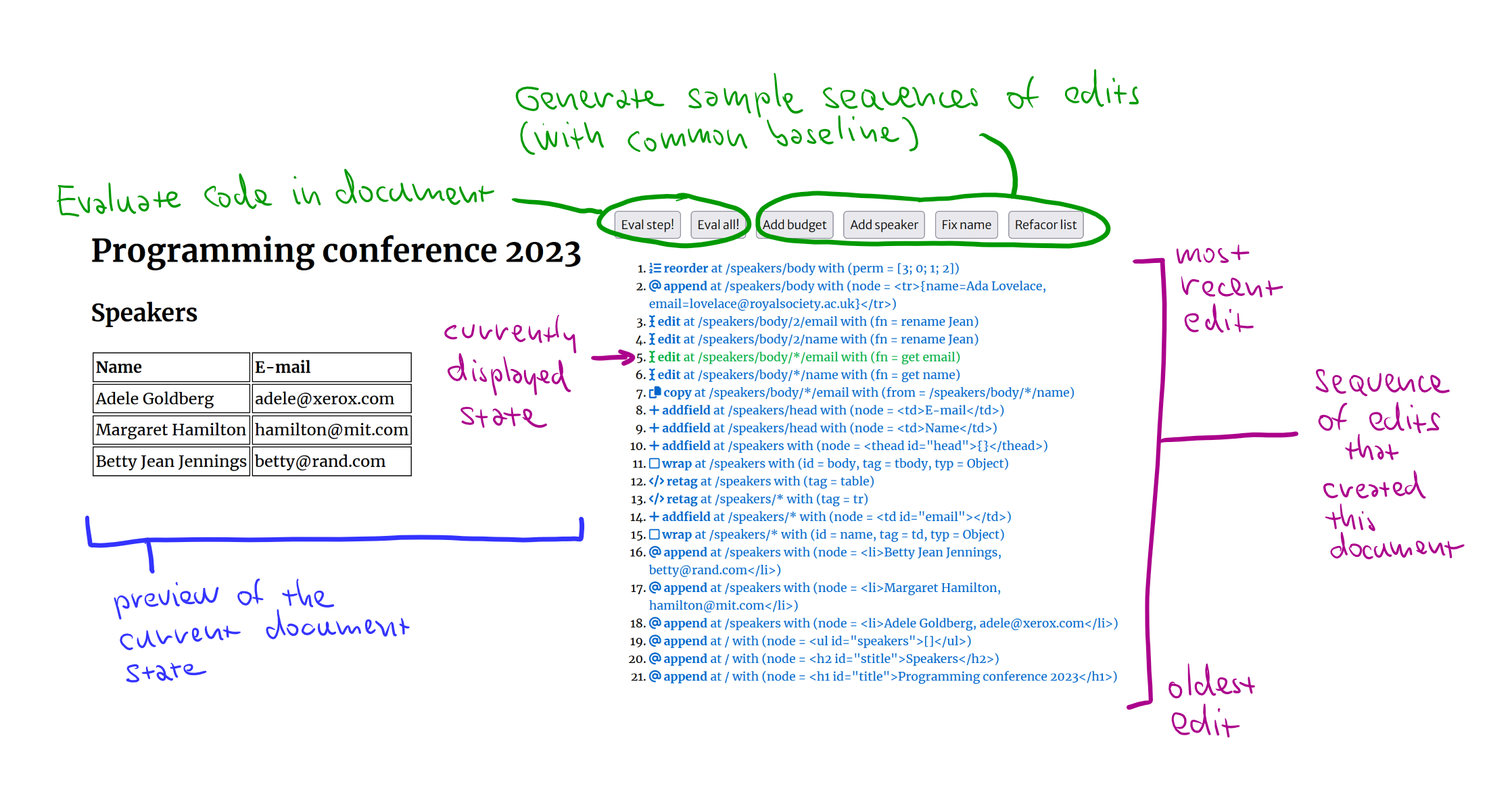

Two ideas

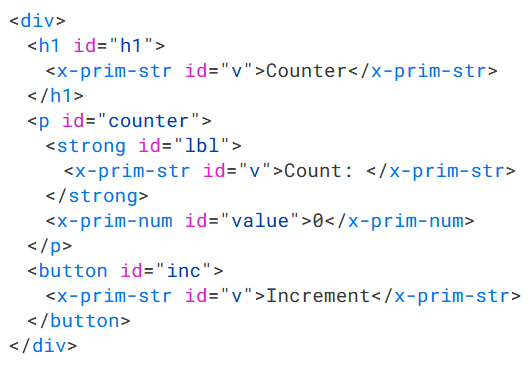

Document

Contains code & data

Easy to navigate

Keeps evaluation trace

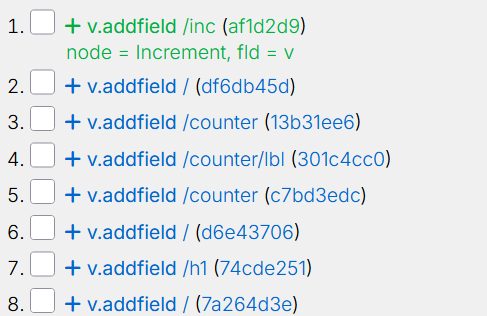

Edits

Replay gives document

Easier to merge

Capture edits as action

Demo

Add speaker & refactor list

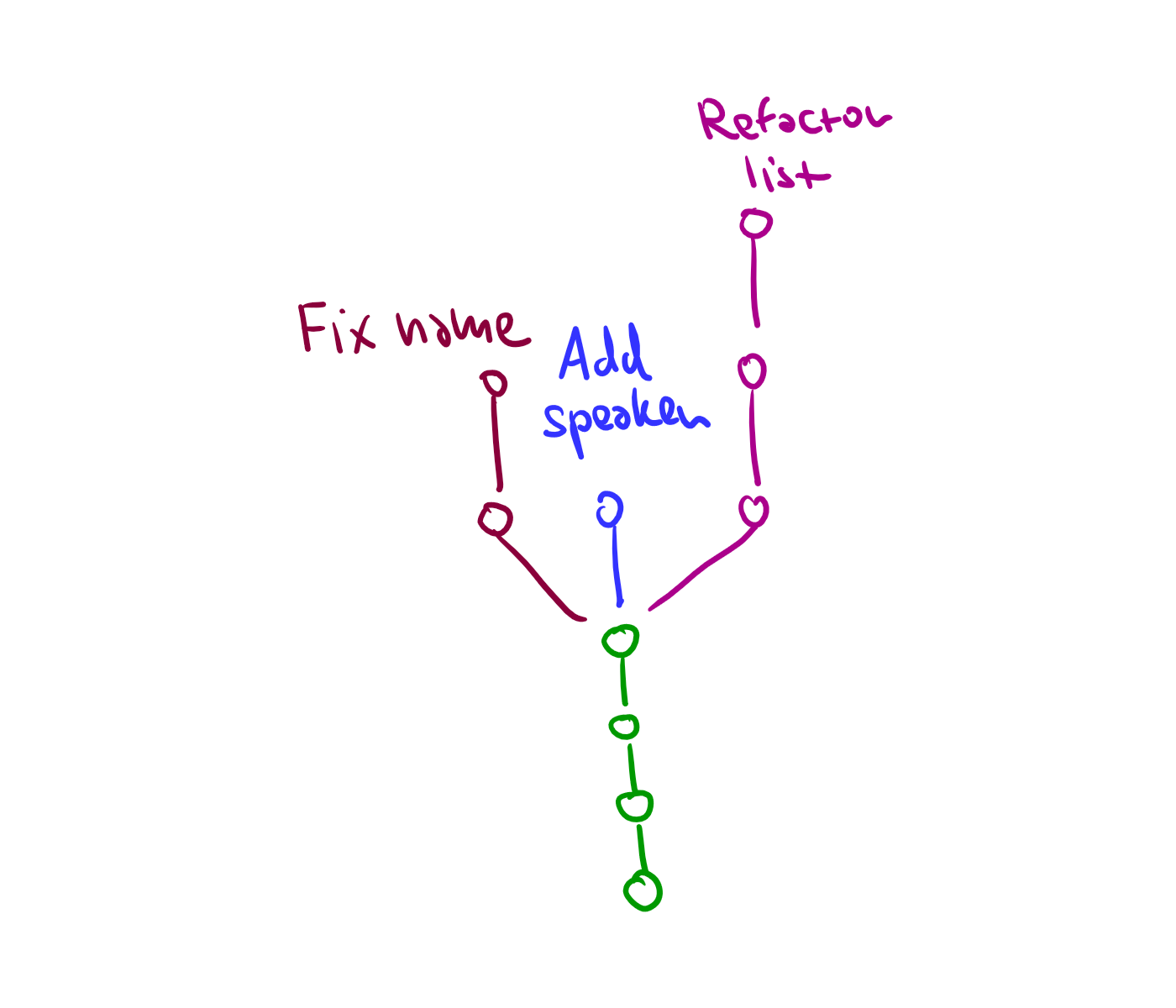

Sample edits

Shared baseline with multiple sequences of edits added

Typical local-first workflow, with independent edits

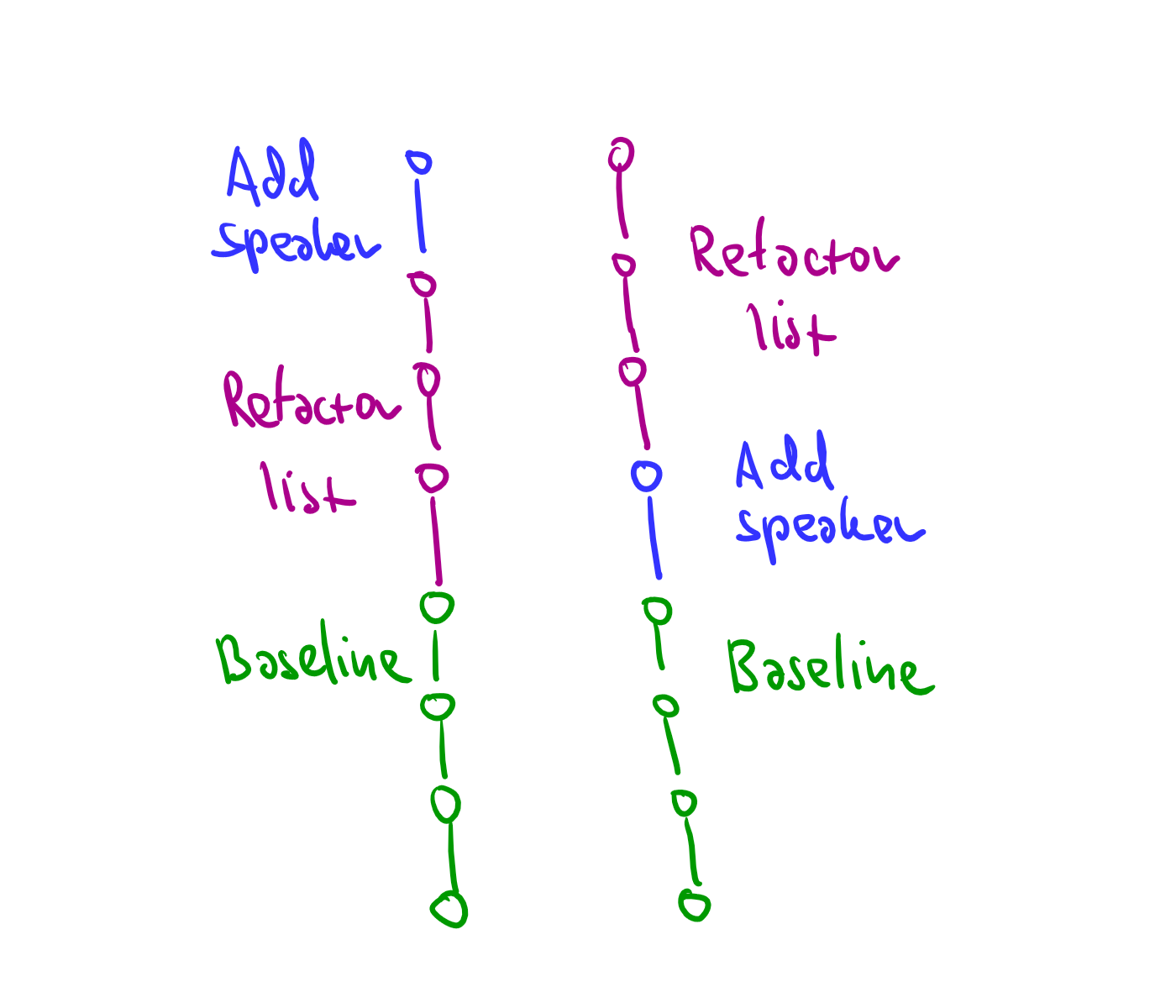

Two ways
of merging

Do they result
in equivalent
documents?

Formulas

Code as document elements

  • Store formulas as trees (AST) in document
  • Render in a (somewhat) nicer way
  • Evaluation adds edits to the log!
  • Beware interactions with edit merging

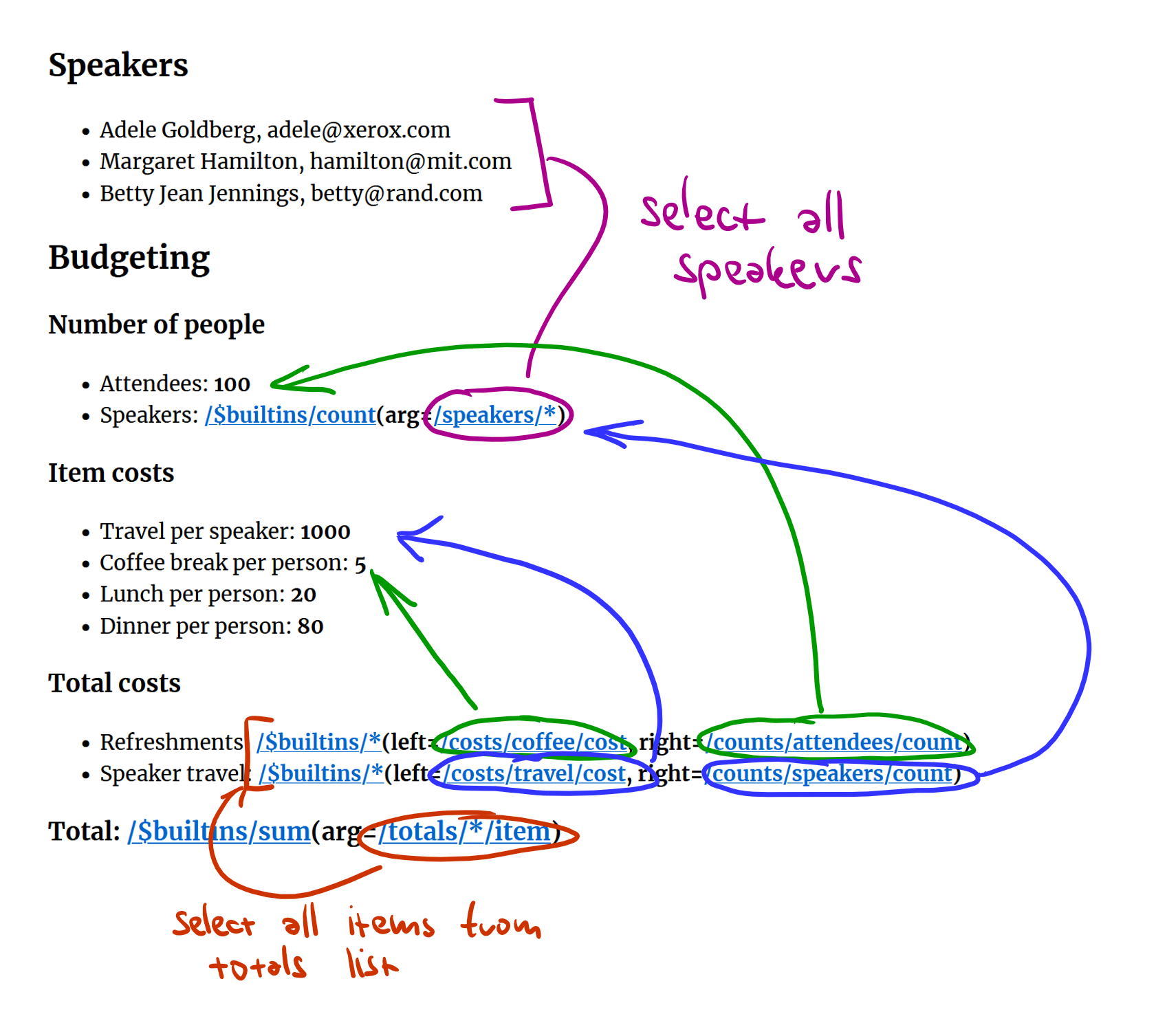

Code is data

Absolute selectors only for now

A selector
is a sequence of:

  • Field name
  • Index specifier
  • All selector

Demo

Budget calculation & refactor list

Evaluation

How it interacts with editing

  • Evaluation just adds edits!
  • Same edit merging as before
  • Conflicting edits remove evaluated edits
  • Incremental recomputation "for free"

Demo

Adding a speaker and evaluation

Denicek

Writing document-based system in F#

// Specify path(s) in a document
type Selector =
  | All
  | Index of string
  | Field of string
  | DotDot

// Two kinds of references
type RefKind =
  | Absolute
  | Relative

// Represents document structure
type Node =
  | Primitive of Primitive
  | Record of string * OrdList<string, Node>
  | List of string * OrdList<string, Node>
  | Reference of RefKind * Selector list

Modelling documents

Algebraic data
types again!

Homogeneous lists
Heterogeneous objects

Keeping nodes in the correct order is tricky...

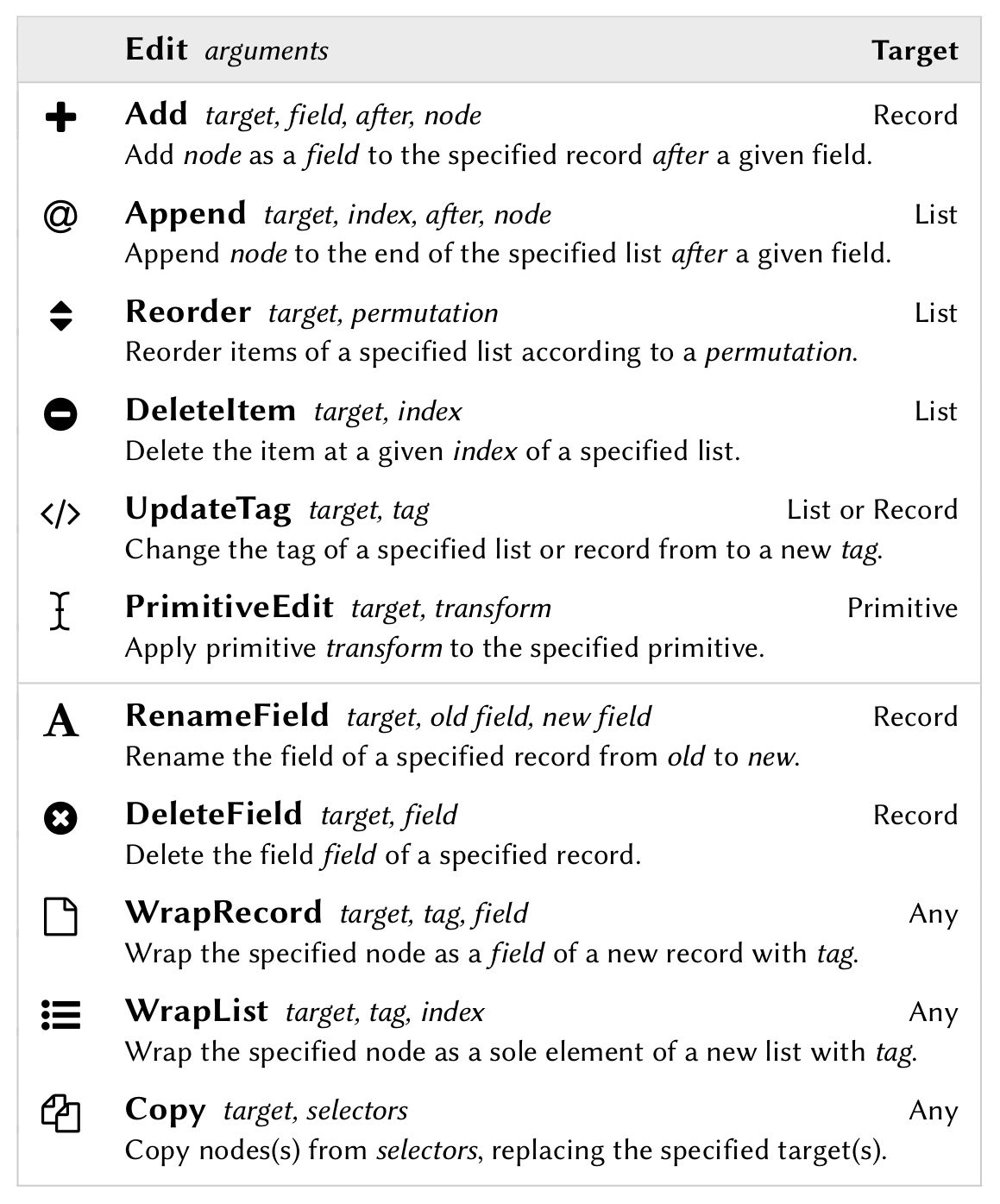

Modelling edits

Actually, just algebraic data types again...

Great way to communicate with your customer
(or fellow academic)

Powerful functional patterns

Folding and transforming document nodes

val fold : (Node -> 'a -> 'a) -> 'a -> Node -> 'a
val replace : (Node -> Node option) -> Node -> Node

Replaying history to get a document

val apply : Node -> Edit -> Node
let doc = List.fold apply initial

Elm-based user-interface using Fable

val render : (Event -> unit) -> State -> Dom
val update : State -> Event -> State
let app = runApp initial render update

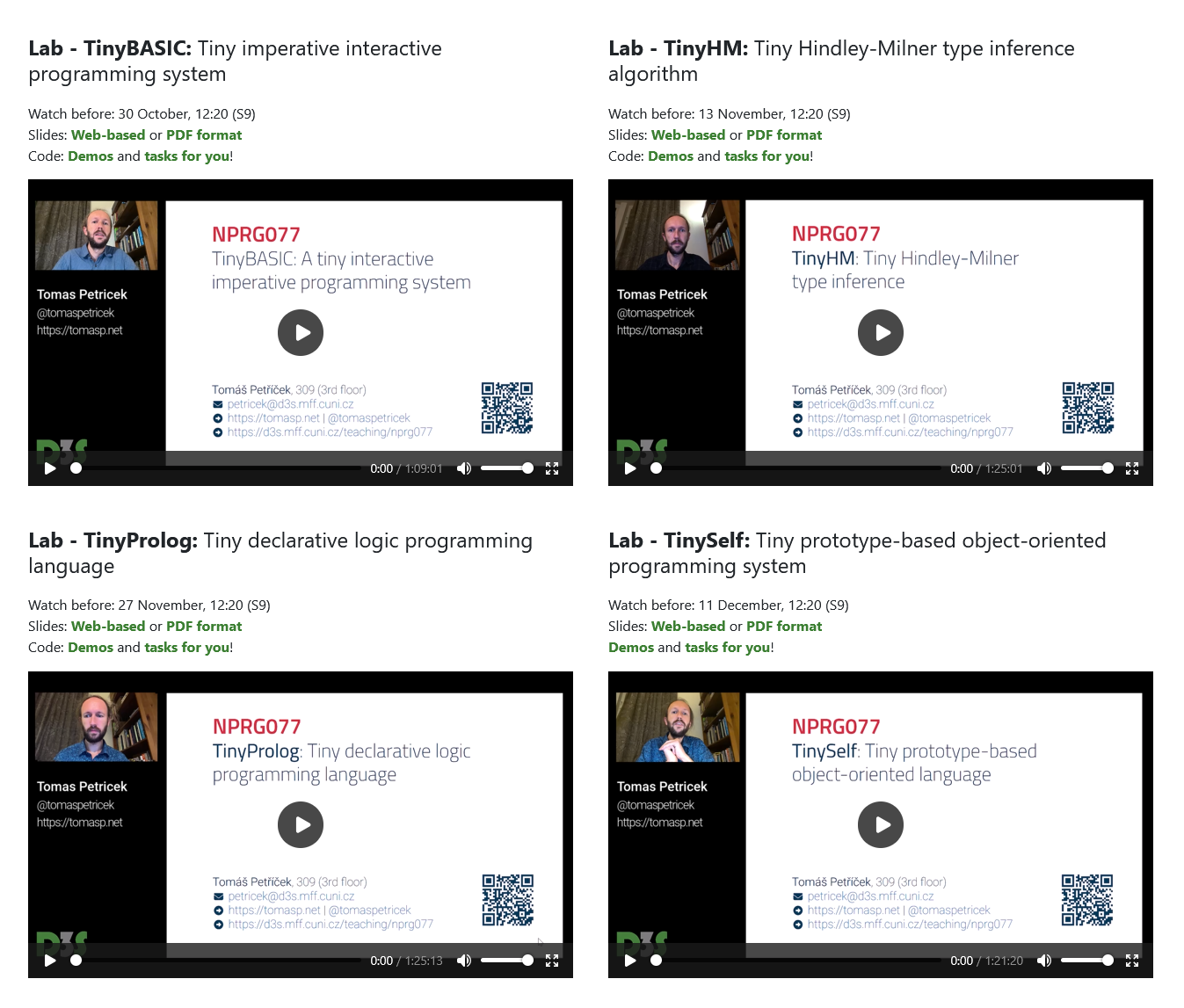

Teaching

Write your own tiny system(s)

Write your own tiny programming system(s)!

TinyML
TinyHM
TinyBASIC
TinyProlog
TinySelf
TinyExcel

type Expr =
  // Lambda calculus
  | Application of Expr * Expr
  | Lambda of string * Expr
  | Variable of string
  // Numbers and functions
  | Constant of int
  | Binary of string * Expr * Expr
  | Unary of string * Expr
  // Data types
  | Tuple of Expr * Expr
  | TupleGet of bool * Expr
  | Case of bool * Expr
  | Match of Expr * string * Expr * Expr
  // Programming
  | Recursive of string * Expr * Expr
  | Let of string * Expr * Expr
  | If of Expr * Expr * Expr

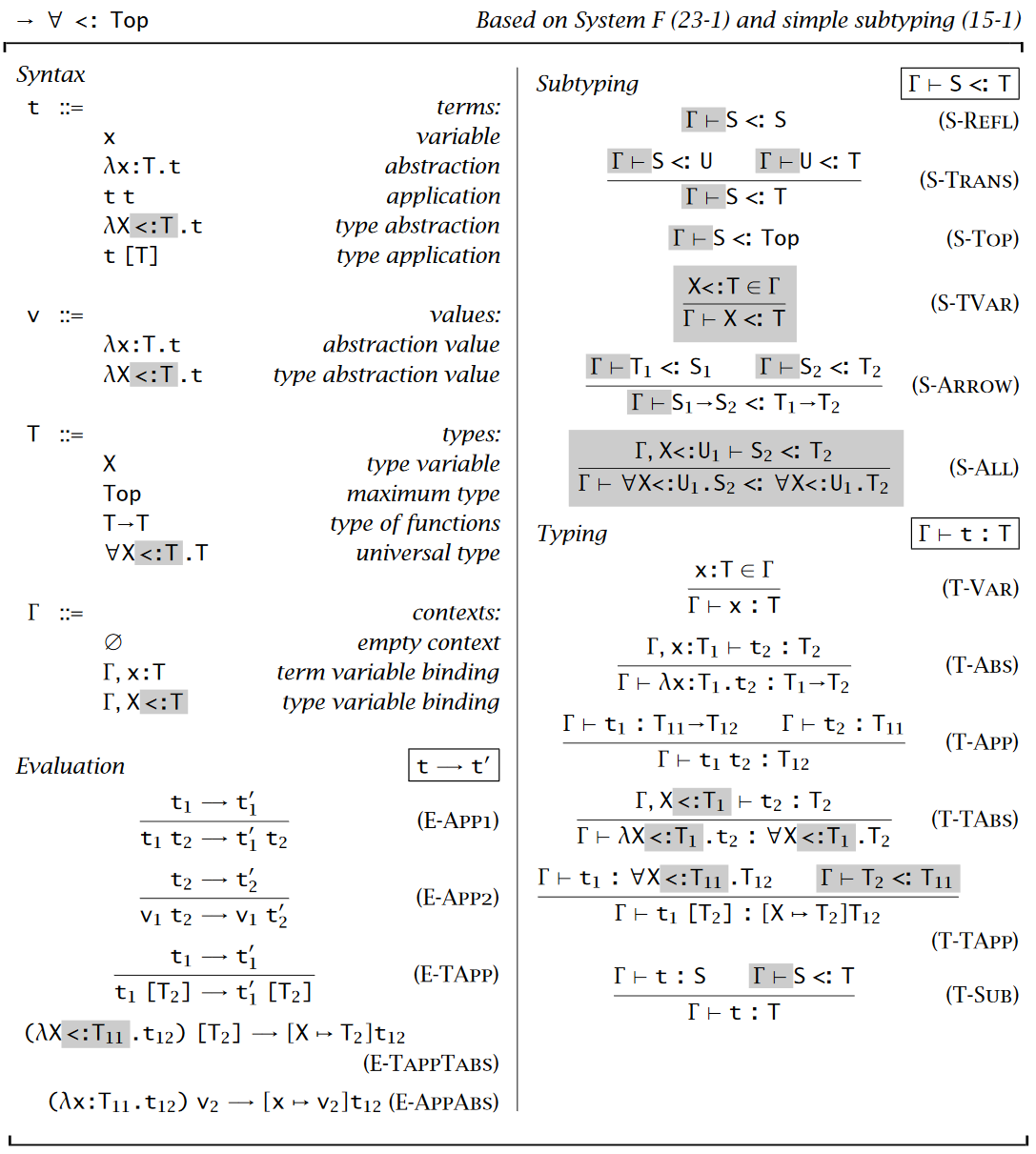

Functional language

Evaluation turns
an Expr into value

Type inference infers
a Type for Expr

// Example terms
// * 'human(socrates)' is a
//   predicate applied to atom
// * 'human(X)' is a predicate
//   applied to variable
type Term =
  | Atom of string
  | Variable of string
  | Predicate of string * Term list

// Clause with head and empty
// body represents a fact
type Clause =
  { Head : Term
    Body : Term list }

Logic programming

Automatic resolution via unification

human(socrates).
mortal(X) :- human(X).

Unification of human(socrates) and human(X) produces mapping X -> human

Conclusions

Tiny programming systems

PRG • PRG

More programming languages work happening in Prague!

MFF + FIT + you :-)

Research projects with funding for PhD students & post-docs...

‹Programming› 25

Programming research community meeting coming to Prague

18 paper talks
6 co-located workshops
Effekt tutorial

Writing tiny systems in F#

  • Programming systems are more than languages!
    Interaction, live state, interfaces, new models
  • Algebraic data types is all you ever need?
    The most basic, but the most powerful feature!

Tomas Petricek, Charles University, Prague

tomas@tomasp.net
https://tomasp.net
@tomasp.net

References

Technical dimensions of programming systems https://tomasp.net/techdims/

The Lost Ways of Programming: Commodore 64 BASIC https://tomasp.net/commodore64/

Write your own tiny programming system(s)! https://d3s.mff.cuni.cz/teaching/nprg077/

‹Programming› 2025 https://2025.programming-conference.org/

PRG • PRG: Prague Programming Languages and Systems Research Network https://prgprg.org/
