Cultures of Programming

The Development of Programming
Concepts and Methodologies

Tomas Petricek, Charles University, Prague

tomas@tomasp.net
https://tomasp.net
@tomasp.net

What went wrong?

Software update activated unused and wrong code

Reflections on the issue

  • Engineering blogs
  • Formal verification talks
  • SEC commission analysis

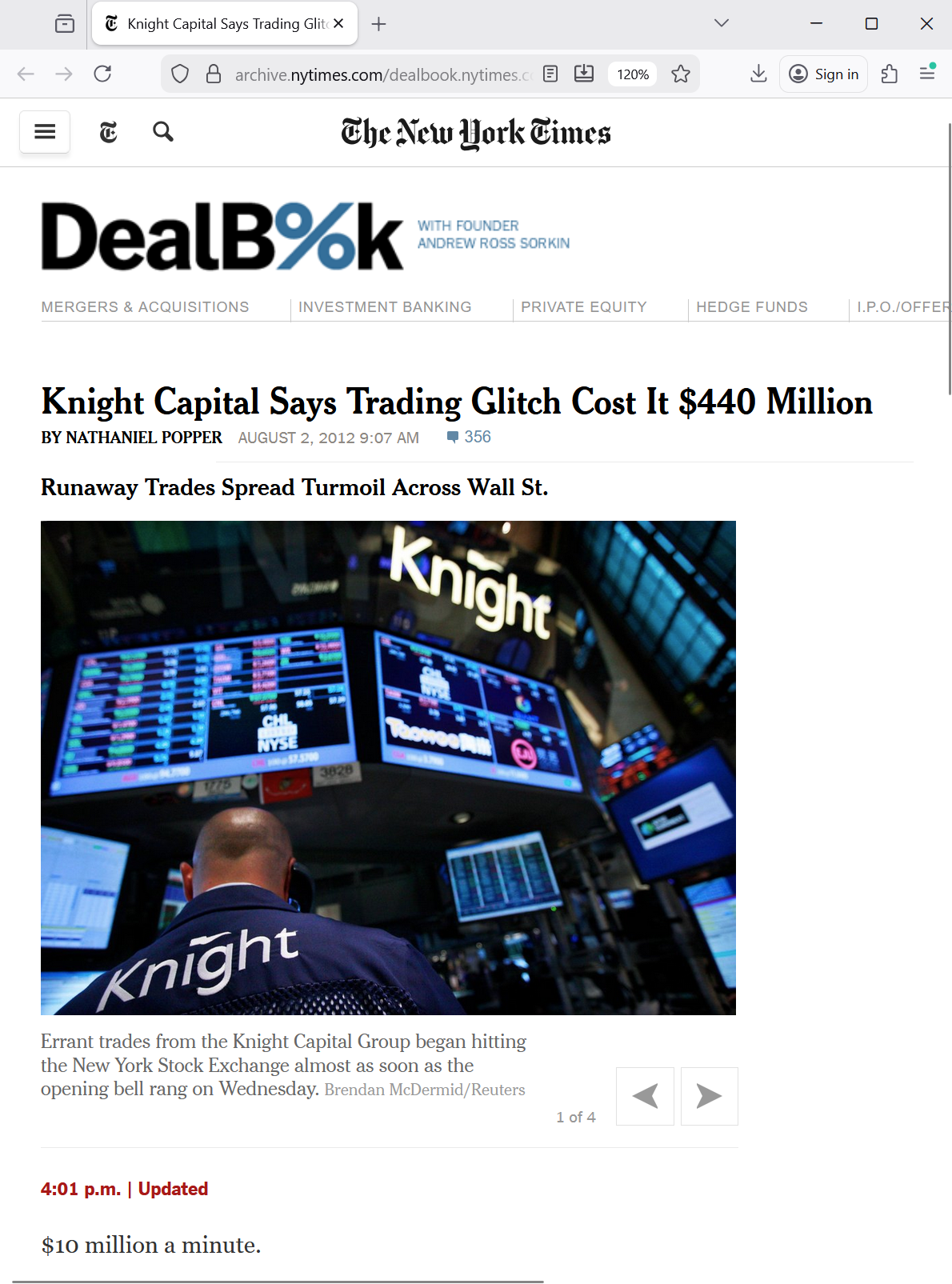

Reflections on the Knight glitch

Mathematical culture

Software not formally verified correct!

Engineering culture

Poor testing and engineering practice

Managerial culture

Incorrect implementation of oversight processes

Clashes

What is the problem of programming

Hacker origins

“Programming in the early 1950s was a black art,
a private arcane matter involving only a program­mer, a problem, a computer, ... and a primitive assembly program.”

John Backus (1976)

Mathematical science

“Program testing can be used to show the presence of bugs, but never to show their absence!” Rather than verifying programs through their testing, we should prove them correct.

Edsger Dijkstra (1969)

Humanistic problem

“Alan Kay is more interested in us kids. He repudiates the manipulative arrogance .. and serves the dictum of Seymour Papert, Should the computer program the kid or should the kid program the computer?”

Brand, Rolling Stone (1972)

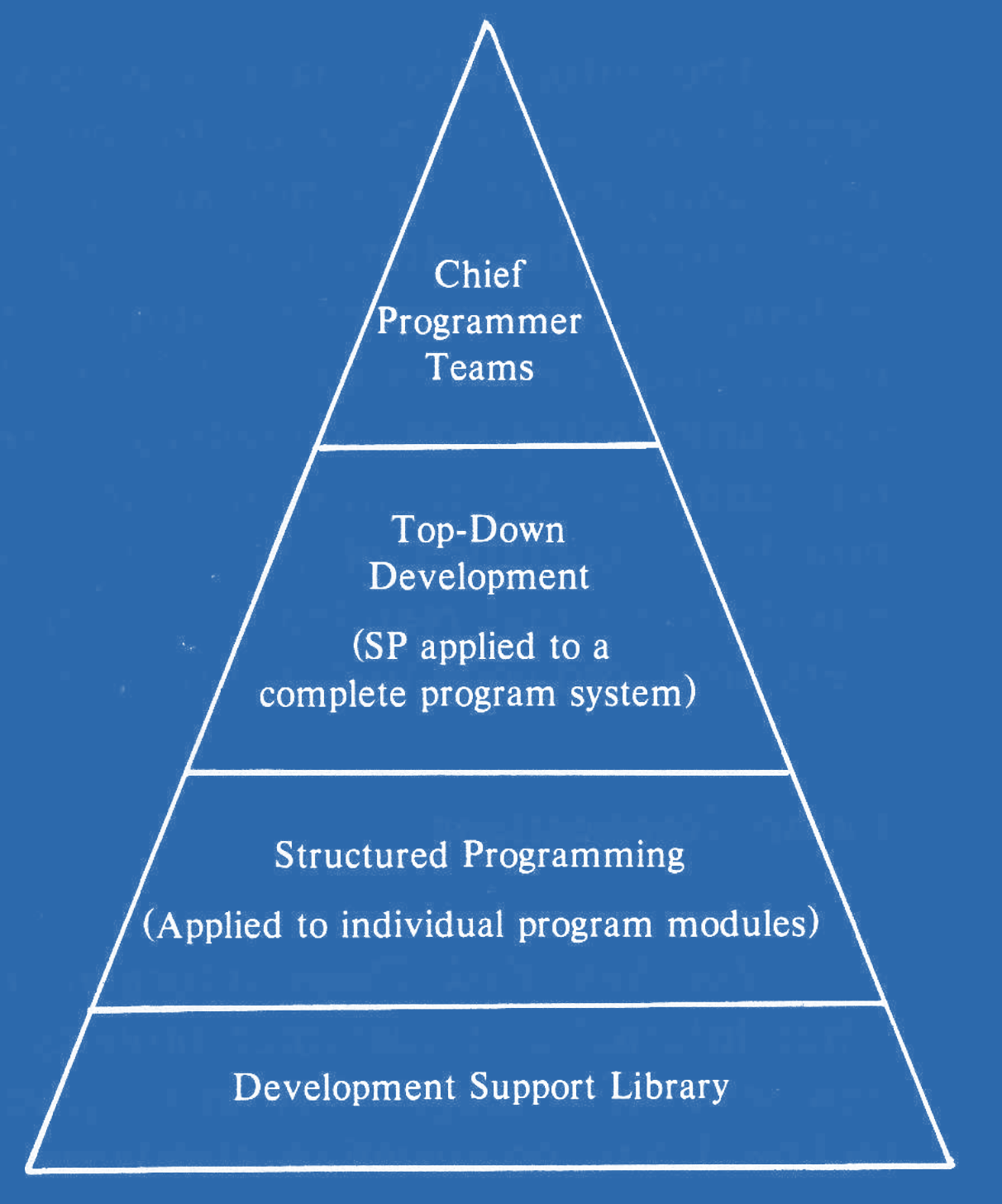

Managerial problem

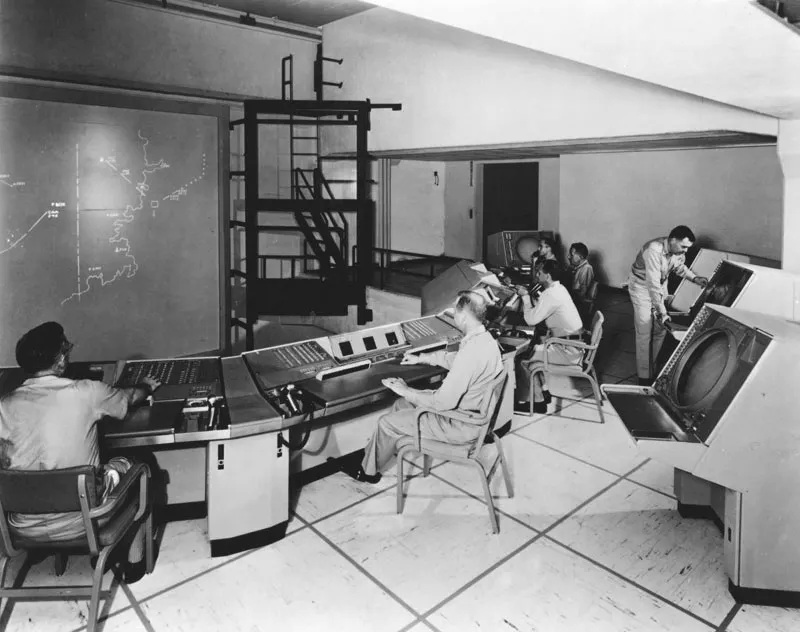

“With SAGE, we were faced with programs too large for one person to grasp entirely and also with the need to hire and train large numbers of people to become programmers... We were faced with organizing and managing a whole new art.”

Herbert Benington (1956)

History

Cultures of programming view

  • Cultures emerge early in the history
  • Unique values, views, methods, aesthetics
  • Stable over history of programming
  • Not always shared communities
  • Inherently pluralistic discipline?

Collaborations

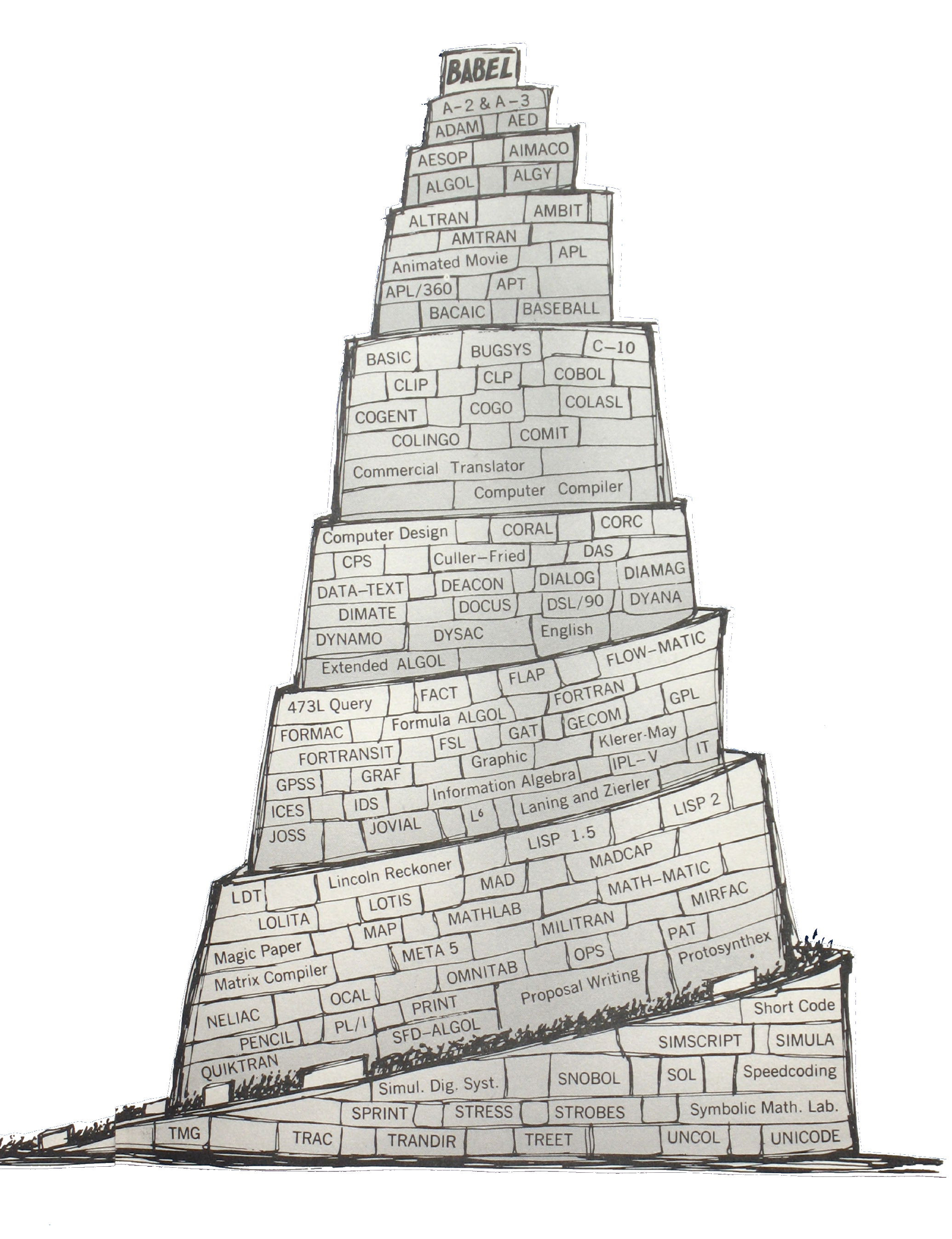

The birth of programming languages

Mathematical culture

Translation metaphor for programming (1950s)

From human language to formal logic and linguistics

Formal grammars for language description

Hacker culture

Clever tricks (1950s)

External form allows subroutine libraries

Interpretive routines for extra EDSAC codes

Managerial need

User groups and computer installation managers

Common universal notations

Cross-machine compatibility
Allow program exchange
Teaching at universities

Aesthetics

Disagreements on values

float Q_rsqrt( float number )
{
  long i;
  float x2, y;
  const float threehalfs = 1.5F;

  x2 = number * 0.5F;
  y  = number;

  // evil floating point bit level hacking
  i  = * ( long * ) &y;
  // what the fuck?
  i  = 0x5f3759df - ( i >> 1 );
  y  = * ( float * ) &i;

  // 1st iteration
  y  = y * ( threehalfs - ( x2 * y * y ) );
  // 2nd iteration, this can be removed
  // y  = y * ( threehalfs - ( x2 * y * y ) );
  return y;
}

What code is beautiful?


Hacker culture

Values clever code that shows understanding of the machine operation

#define submerge const char*_=O%239?" ":"\t;\t";O*=2654435761;int
#define _cOb8(...) int s,on,__VA_ARGS__;int main(int O, char**Q)

  _cOb8(o_,     _oO8ocQOcOb,       _ocQbo8oo,      _oO8ocOb_
    ){ ;           { ;;;              ;;}             ;{
      ;;             ;{              ; }              {;;}
     }   float   the;;  static things ;; for (;;){ us :;;
    ; ;  break; the;  ;; long grass  ;unsigned squall  ; }
   { } ; while (1){soft:;  submerge us;;    in: sleep (0) ;
    ; ;  printf    (_);   quietly :on  ;;   the; soil:; };
   {{ };           ; ; ;;             ;{ ;            }; {
  {  ;   shake: time (1) ;register   *_, the =clock(s  );
    ;} ; volatile    *_,  winds     ; ;  double wills ;{
      ;  char the    ,*   fire     ;; short companion,*_;}
    ; {  union    {}*_,  together  ;; ;   void *warms  ;}
   } ;;            ;{;              ;} ;              ;;
    ; ;  if (1) wet  :;    raise    (1);  struct{}ure  ;; ;
   ; ;   free (0);for(;;){  newborn :; ;     daughter :; ;
   ;{ ;  extern al,  **     world   ,*re;const ructed  ;};
 ;  ; ;  continue;on:;;    floods   :; ;    of: water :;};}
; ;{ ; ;          ;; {  ;          ; }  ;             }  ; ;  }

Beautiful code


Humanistic culture

Use double coding to speak to the human as well as
to the machine

What code is beautiful


Engineering culture

Simple, well-structured. Readability is valued more than cleverness.

What code is beautiful


Mathematical culture

Code achieves great expressivity using a combination of small number of orthogonal features.

What code is beautiful


Managerial culture

Structure of code enables appropriate organization of development teams and project management.

Aesthetics

Materiality of programming

  • Code matters for hackers and humanists
  • For mathematicians code is just maths
  • Engineers value code quality and structure
  • Code is secondary for managerial culture

Clashes

Struggle for control over a concept

Object-orientation

Struggle for control over a concept

  • 1960s - Mathematical simulations in Simula
  • 1970s - Personal dynamic media in Smalltalk
  • 1980s - From Smalltalk to C++ and Java
  • 1990s - UML and new development processes

SIMULA "1"

Activity declarations
and processes

Remote accessing

SIMULA 67

Classes and objects

Record handling inspired by Hoare

Three cultures of Smalltalk

Humanistic (early 70s)

"Computer for Children of All Ages"
Learning and educational focus

Hacker (late 70s)

Experimentation tool at Xerox PARC

Engineering (80s-90s)

From Tektronix to IBM Visual Age
Test-driven development, design patterns

Object-orientation

Disagreements and struggles for control

  • What is object-orientation about
  • Software malleability and openness
  • Help programmers vs. manage programmers
  • Degree of incommensurability

Conclusions

Cultures of Programming

Bonus slides

Collaborations

The history of programming with types

History of types

  • 1903 - Avoiding logical paradoxes (Russell)
  • 1956 - Numbers in two modes (FORTRAN)
  • 1957 - Data description cards (FLOW-MATIC)
  • 1974 - Abstract data types (Clu)
  • 1978 - Meta-language for a theorem prover (ML)
  • 1989 - Types in proof assistants (Alf and Rocq)
  • 2012 - Unsound type systems (TypeScript)

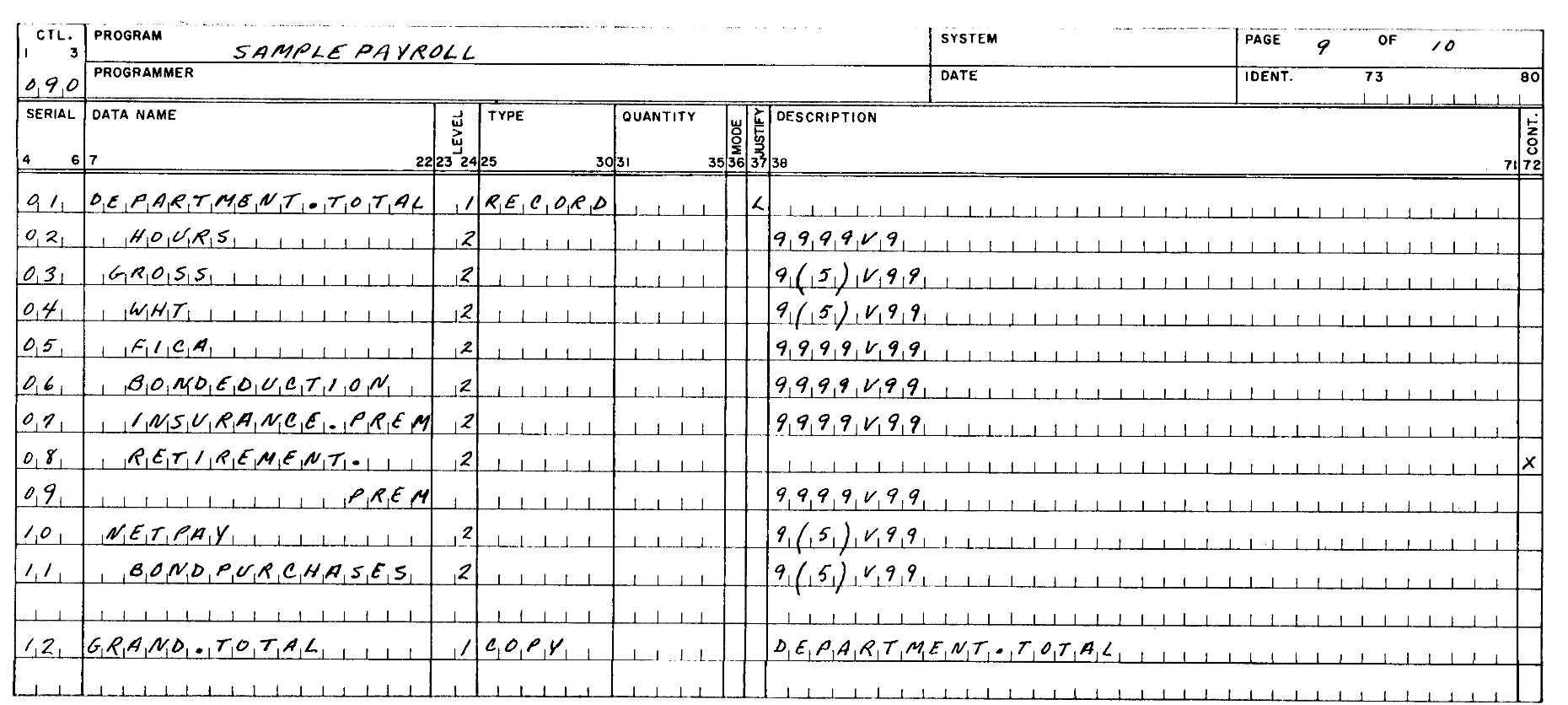

IBM COMTRAN

Electronic versions of paper-based records

Data records with specific string formatting

Towards a universal language

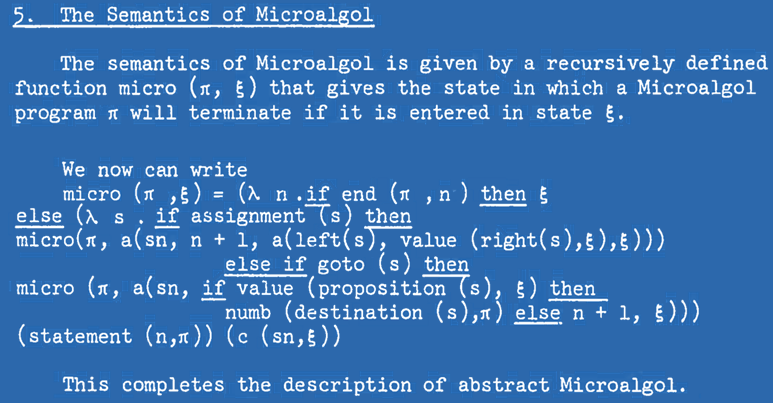

Mathematical models

  • Data spaces (McCarthy, '59)
  • Product \(A \times B\), union \(A \oplus B\)
  • Set-theoretical types (Hoare, '72)

Types in Algol 68

  • A long and difficult struggle
  • Whereas ALGOL 60 has values of [three types],
    ALGOL 68 features an infinity of “modes”.

From mathematics to engineering

Lambda-calculus models (Morris '69)

Models type checking via derivation rules

Types are not sets (Morris '73)

Authentication and secrecy problems
Now in Cedar system at Xerox PARC

Abstract data types (Liskov '74)

Type checking done at runtime in Clu
Cites Reynolds ("personal communication")

LCF/ML (1978)

Abstract data types
for proof terms

Data types
for convenient programming

Type checking
for proof correctness

Types

Cultural reconciliation at last...?

  • Proof assistants and dependent types
  • Type providers and data as types
  • Modelling types as relations
  • Unsound type systems for the real world
