Cultures of Programming
Undone Ideas on Programming:
When Cultures Fail to Meet
Tomas Petricek, Charles University, Prague
The history of programming, told through the lens of interactions between five cultures of programming.
Cultures cooperate, exchange ideas, disagree, struggle for control.
What went wrong?
Software update activated unused and wrong code
Reflections on the issue
- Engineering blogs
- Formal verification talks
- SEC commission analysis

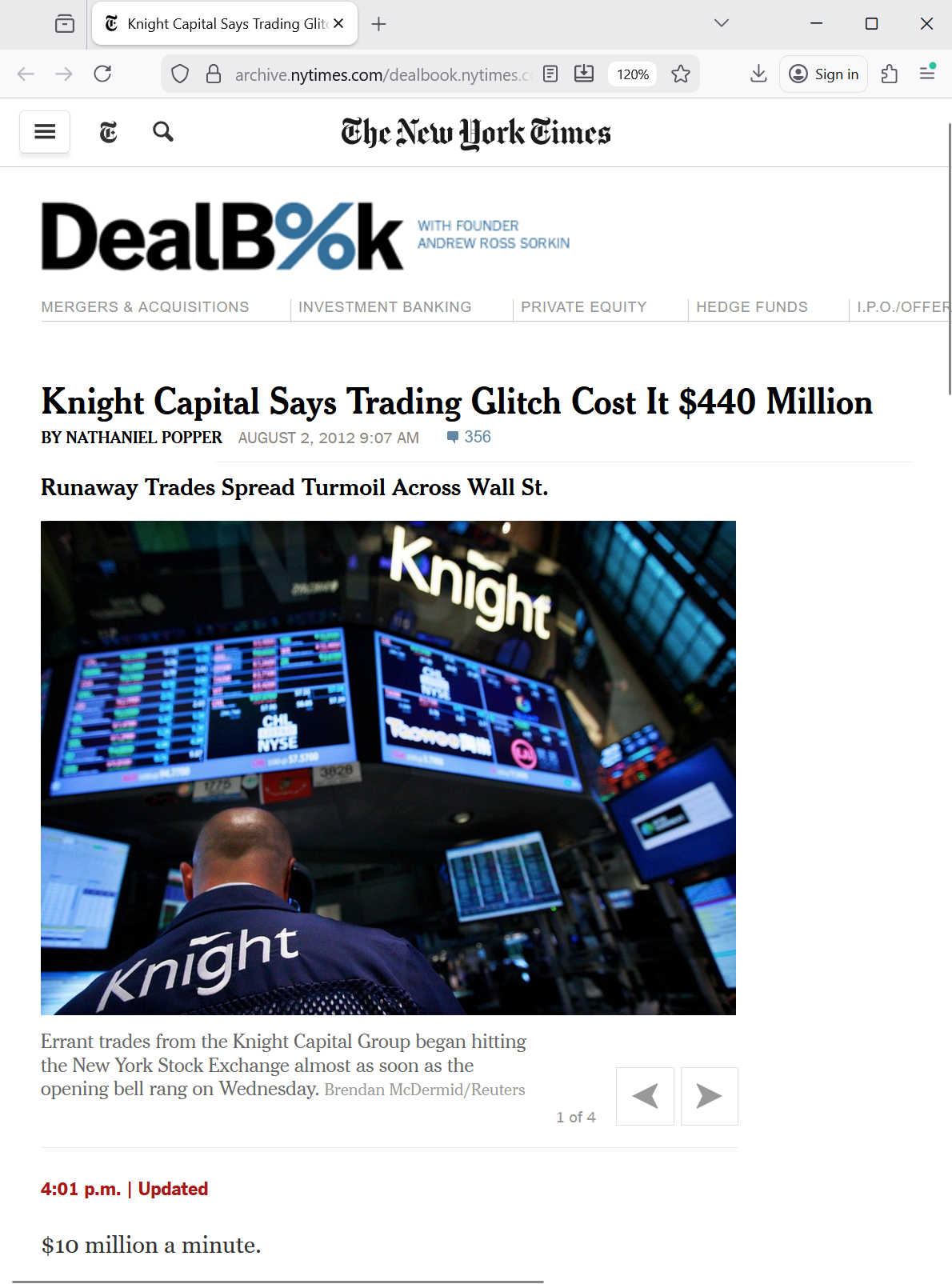

Reflections on the Knight glitch
Mathematical culture
Software not formally verified correct!
Engineering culture
Poor testing and engineering practice
Managerial culture
Incorrect implementation of oversight processes
Managerial
Hacker
Humanistic
Mathematical
Engineering
Collaborations
The birth of programming languages
Programming language
Programming before
- Direct machine control
- Plugging cables in ENIAC
- Idiosyncratic machine codes
Remarkable idea!
- New framing metaphor
- New formal models
- Implementation techniques
Mathematical culture

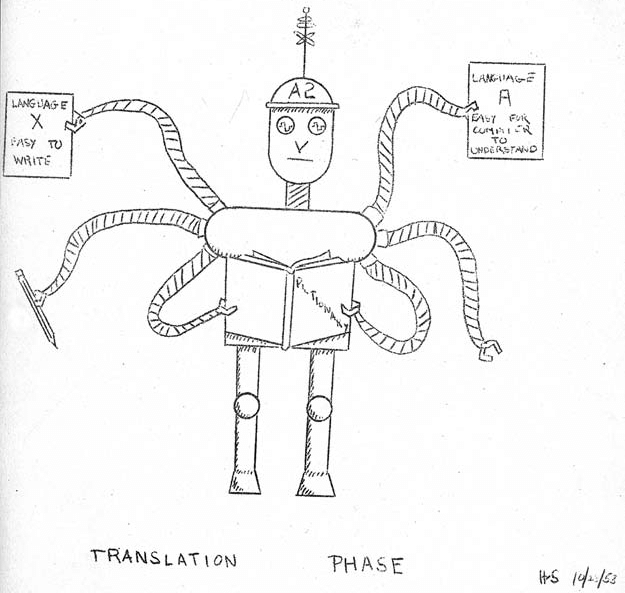

Translation metaphor for programming (1950s)
From human language to formal logic and linguistics
Formal grammars for language description
Hacker culture
Clever tricks (1950s)

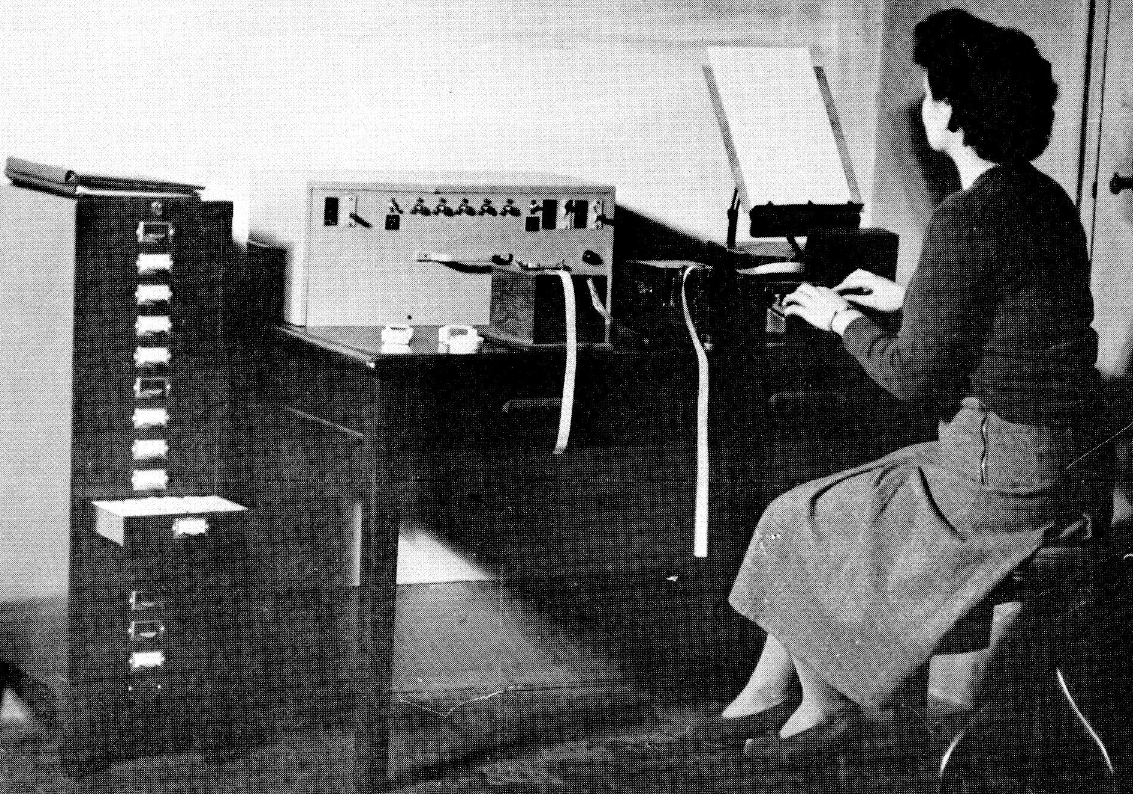

External form allows subroutine libraries
Interpretive routines for extra EDSAC codes
Managerial need
User groups and computer installation managers
Common universal notations
Cross-machine compatibility
Allow program exchange
Teaching at universities

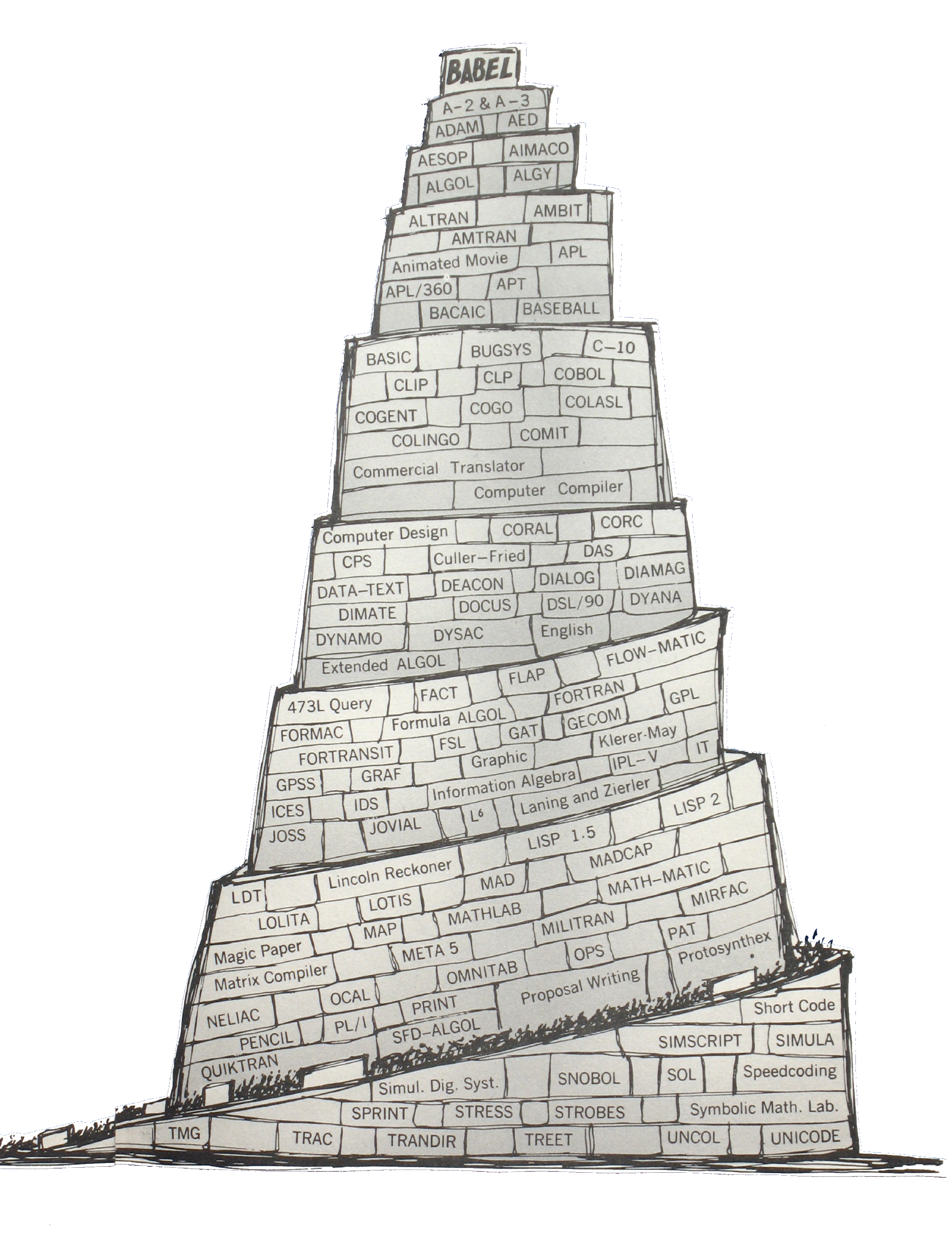

Limits of collaboration
No great unification!
- COBOL for managerial business use
- Algol for mathematical theory
- LISP for symbolic AI and hackers
Boundary object
- Shared understanding, but not focus
- Exchange of ideas between cultures
- Failure of universal languages
Undone
The meaning of programs

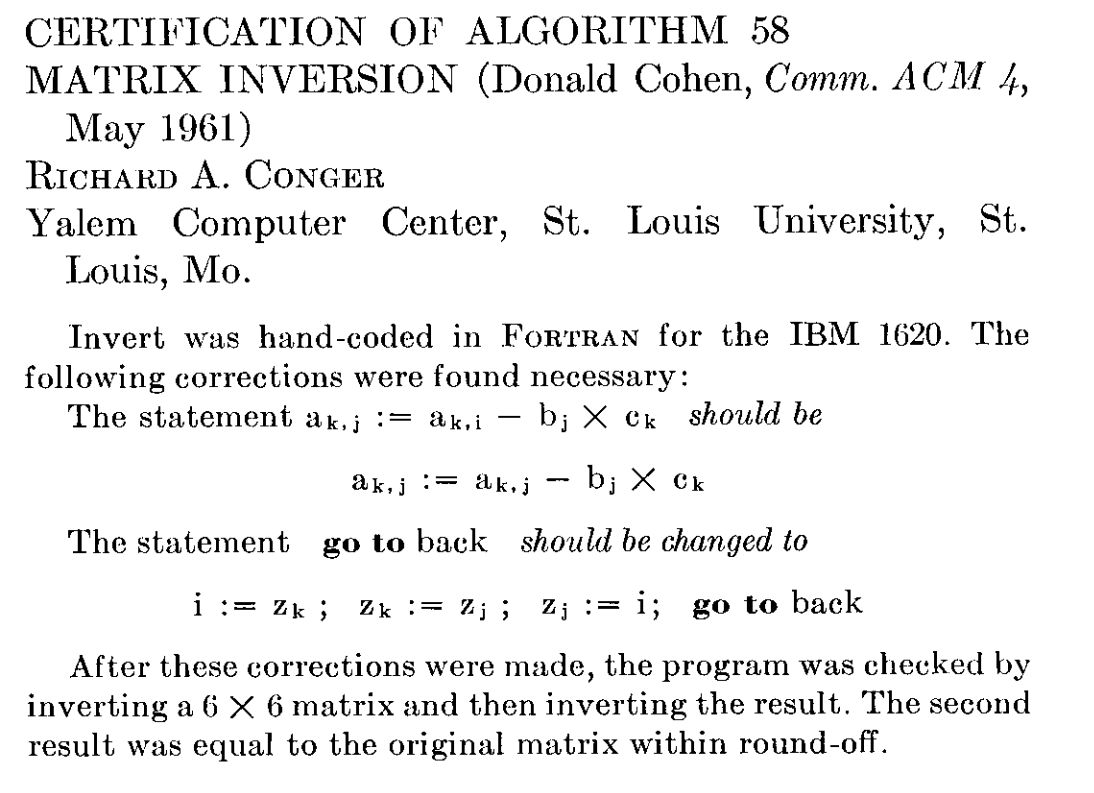

Algorithm certification (CACM 1961)
Algol becomes the language of academic computer science
Algorithms in CACM
Formal proofs take
time to appear!

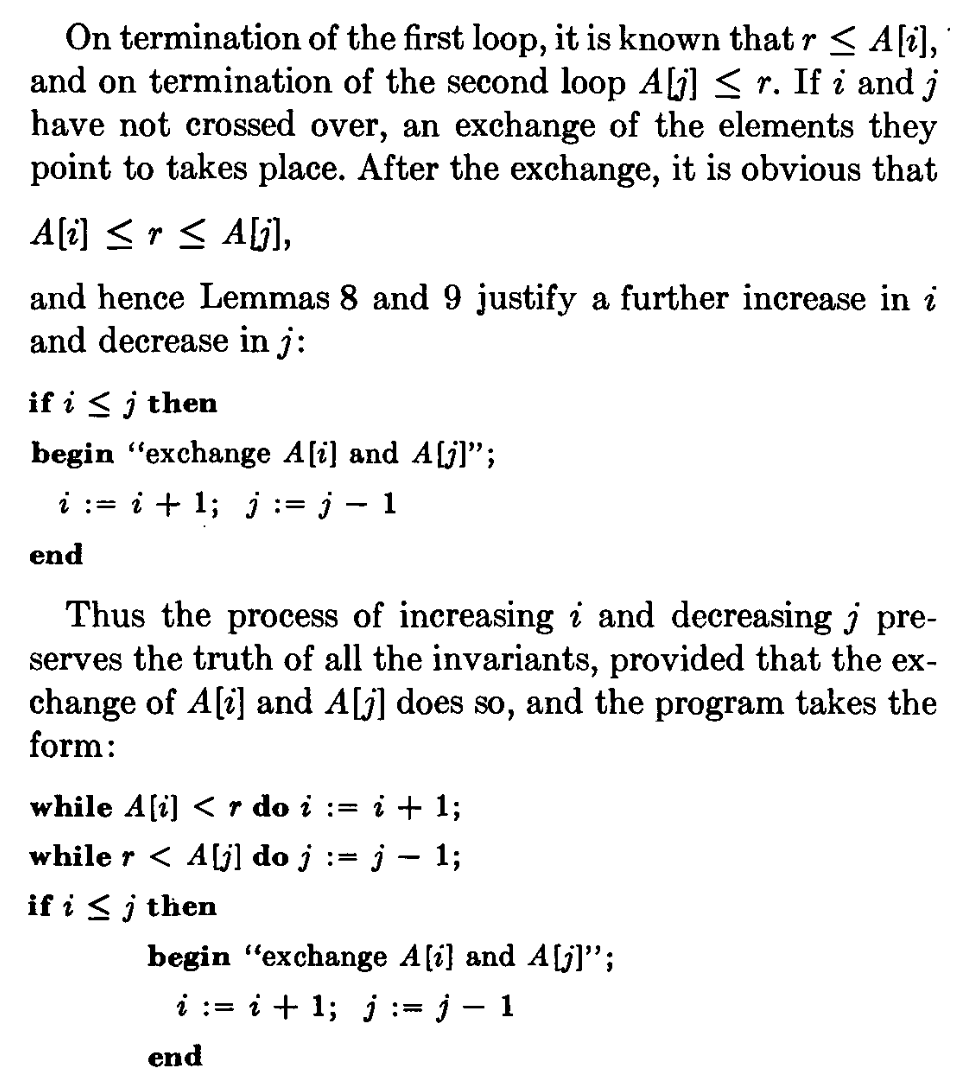

Proof of a Program: FIND (Hoare, 1971)
Program as a formal mathematical object
Ensure correctness using mathematical methods!

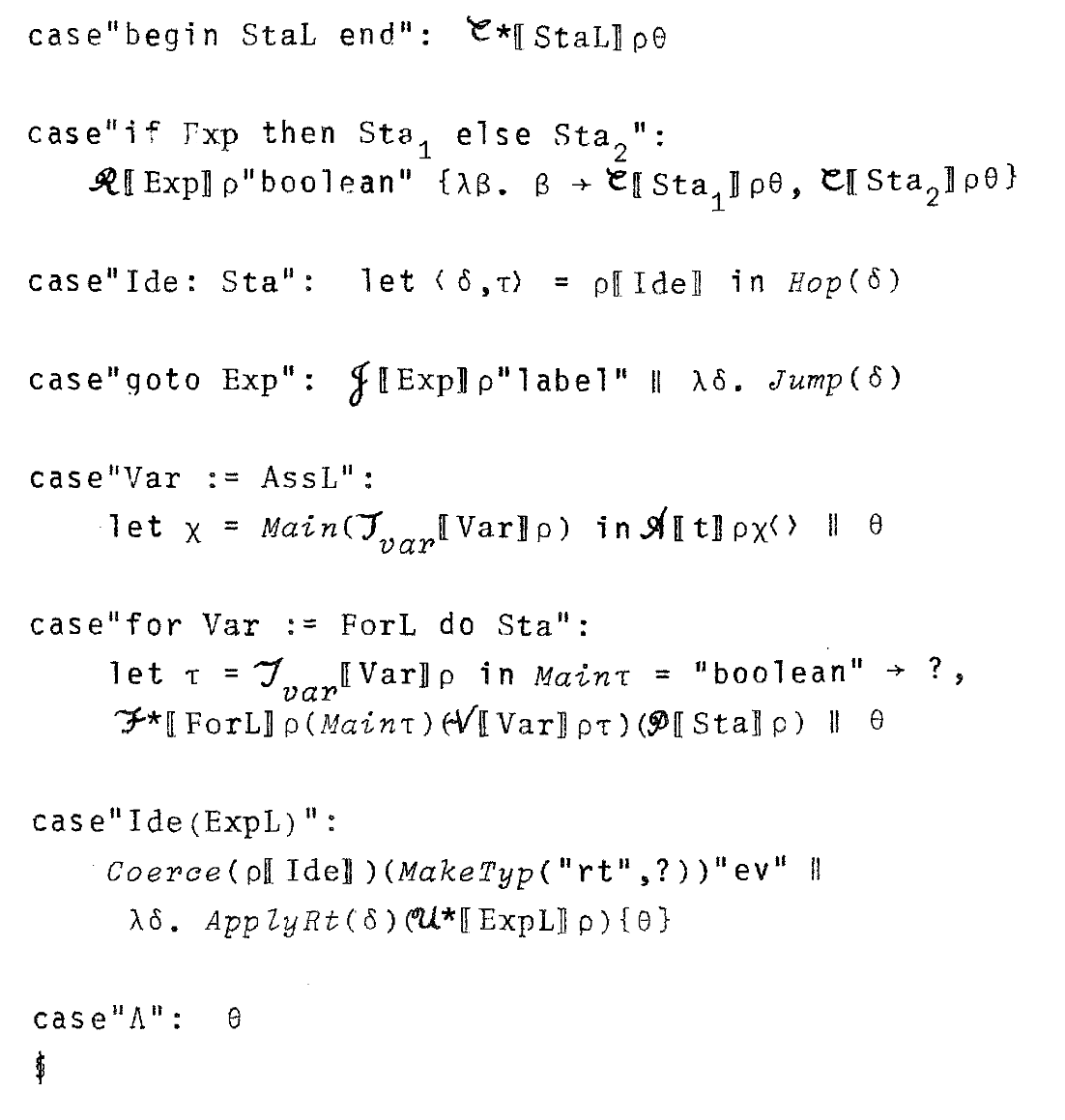

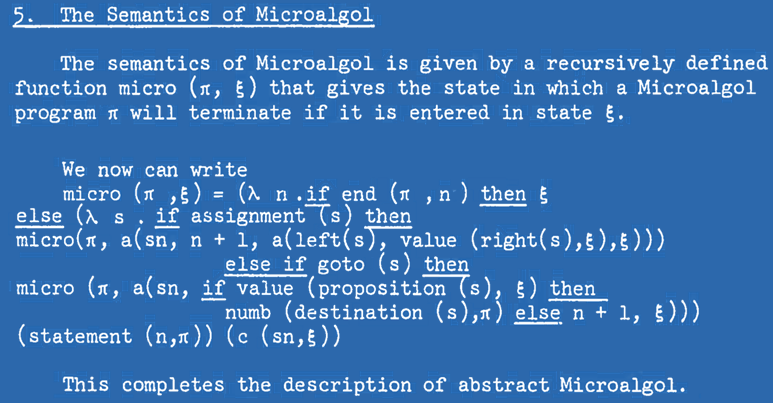

The mathematical semantics of Algol 60 (Mosses, 1974)
"I must admit I still feel a little surprised it’s as long as it is - I guess Algol 60 is just not nearly as 'well-behaved' as one tends to think it is."
See Astarte (2019)!
What does "Hello world" mean? (Sack, 2025)
#include <stdio.h>
main()
{
printf("hello, world\n");
}
Mathematical culture
Program prints the specified sequence of characters
Humanistic culture
Greeting! With social contact between the speaker and the hearer
Semantics as speech acts!
Semantics
Undone interactions between cultures
- Languages born out of collaboration
- Enables exchange of language features
- Semantics firmly in mathematical tradition
- Missing the bigger picture...
- Semantics as speech acts?
Struggles & collaborations
History of testing and debugging

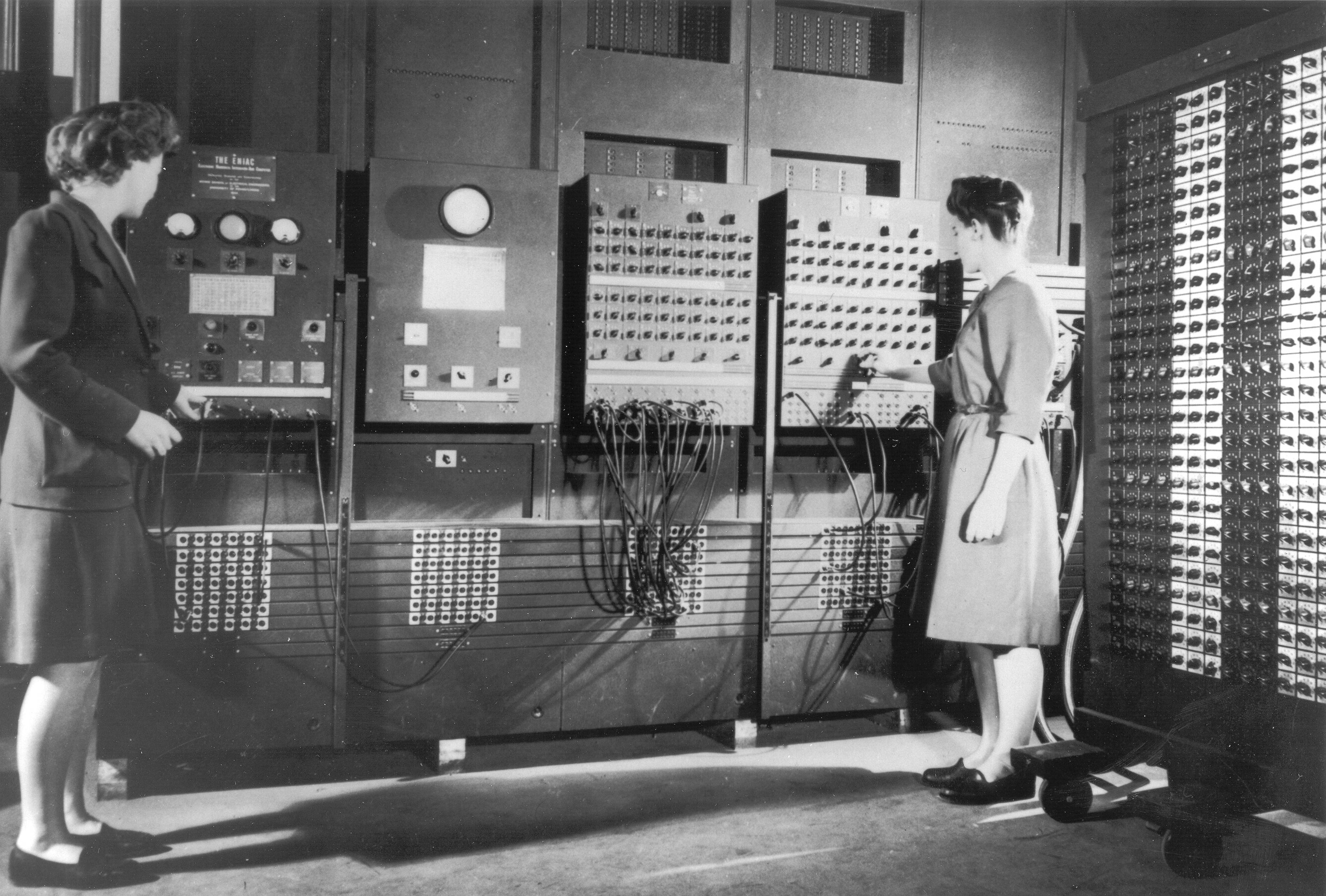

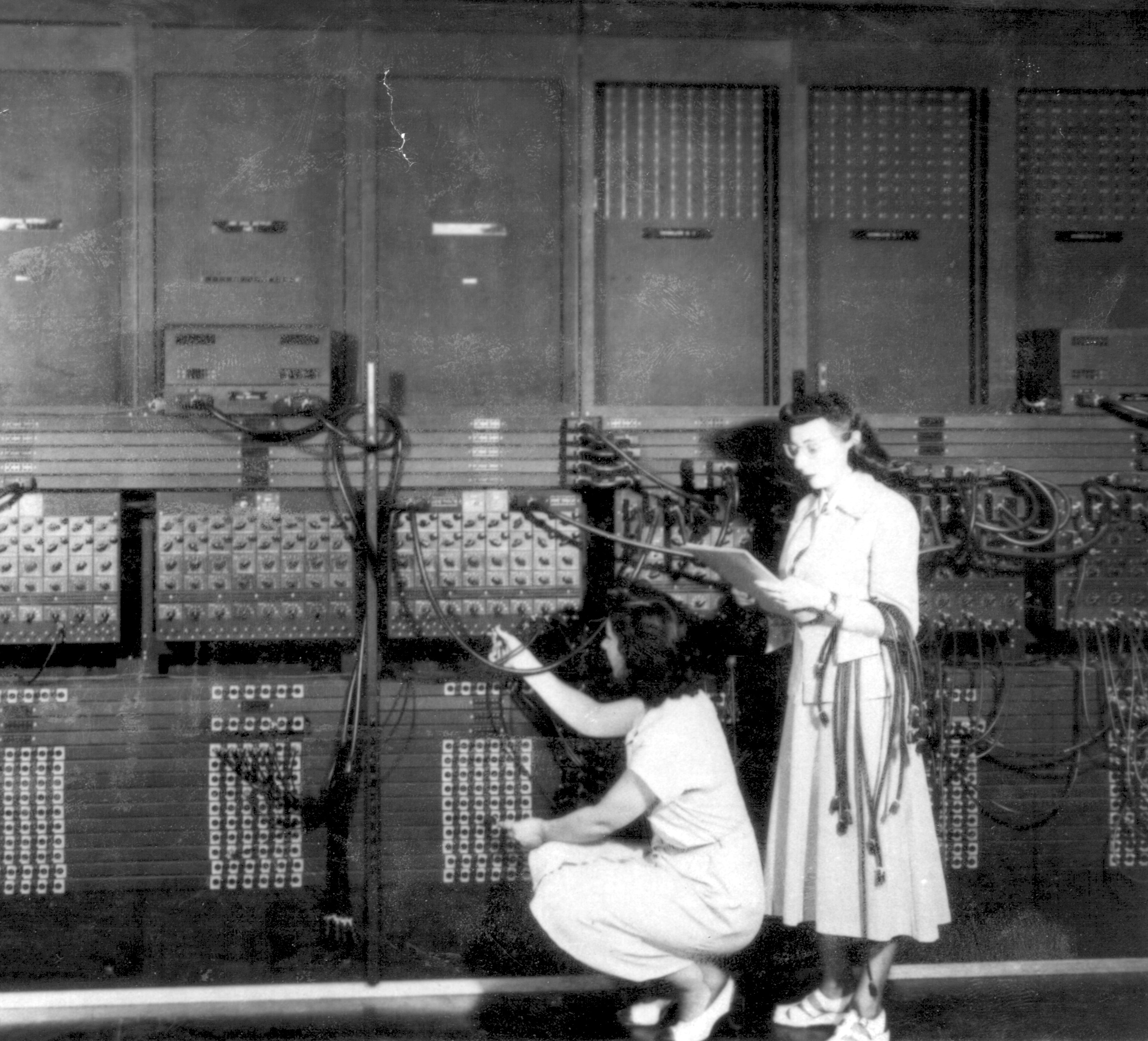

Debugging on the ENIAC
Early testing technique
- One manually calculated trajectory
- Run pulse-by-pulse and verify
- Checks program & machine failures
Simplifying programming
- Reprogramming the ENIAC
- Punched cards with 60 order code
- Machine helps with programming
Debugging ENIAC
"Adele was an active type of programmer, trying things very quickly.
I was more laid back and given to attempting to figure out things logically before doing anything."
Betty Jean Jennings
Extravagant use of computer time
Instruction-by-instruction execution
- Tedious and wasteful practice!
Post-mortem dump
- Prints specific memory region
- Look for errors offline
Interpretive checking routine
- Print diagnostics while running
- Interpreter with 50x slowdown

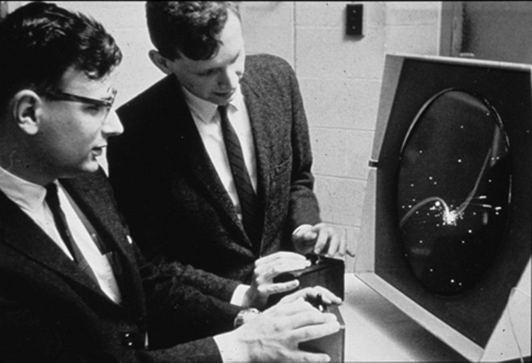

MIT hacker culture

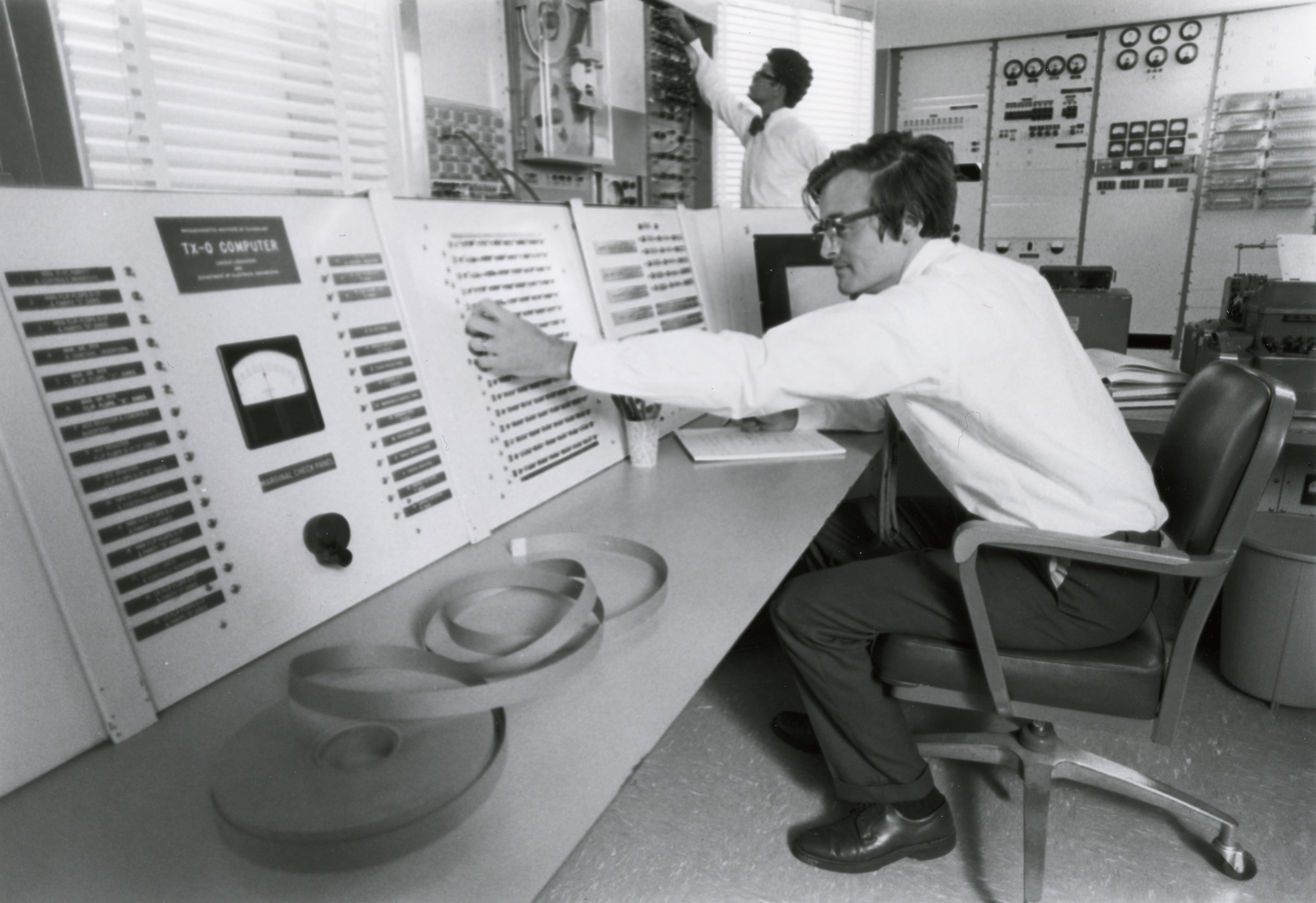

TX-0 at MIT (1958)
"Debugging at the console regarded as professional sin."
FLIT, DDT, DEBUG
Set breakpoints, interactively modify program & state.
Debugging Epoch Opens (1965)
Limiting factors for computing
- Hardware until mid-1950s
- Programming until mid-1960s
- What now? Now: debugging.
Terminology in the 1960s
- Checking a program (Turing, 1949)
- Debugging and program checkout
- Testing and error handling
Computer Program Test Methods Symposium (1972)
Testing distinguished
from debugging
Companies hire test managers and test technicians
Test automation establishes
a test as an artifact
Engineering and mathematical takes on testing

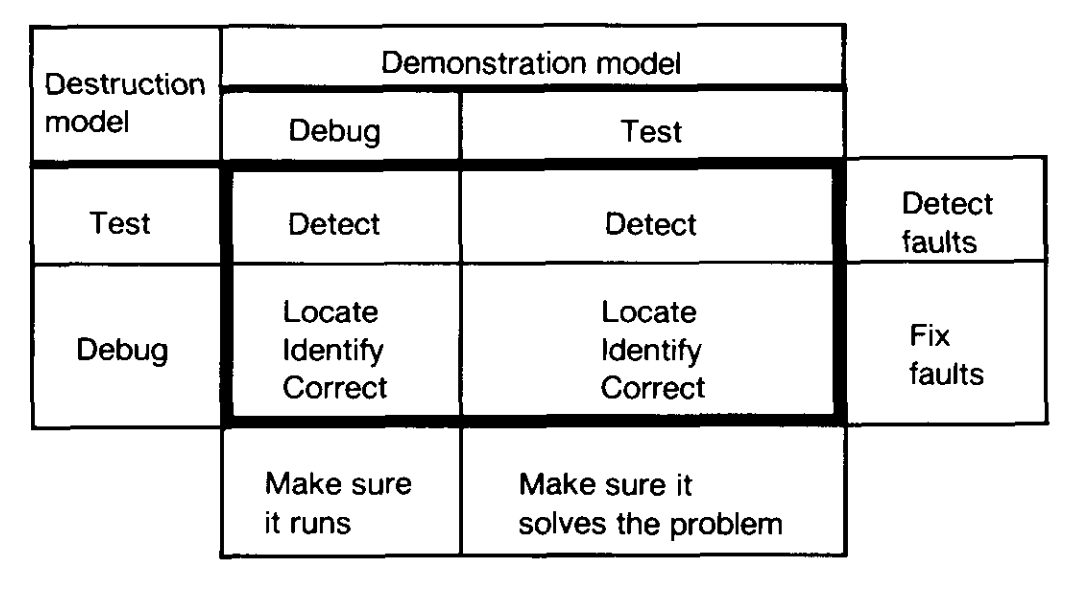

Growth of software testing (1988)
Demonstration era (1957-78)
-
Test to show that programs
work as required - Alternative to proofs
Destruction era (1978-82)
- Test to find errors
- Enables new tool developments
- Mutation testing, random testing
Testing as part of the development process

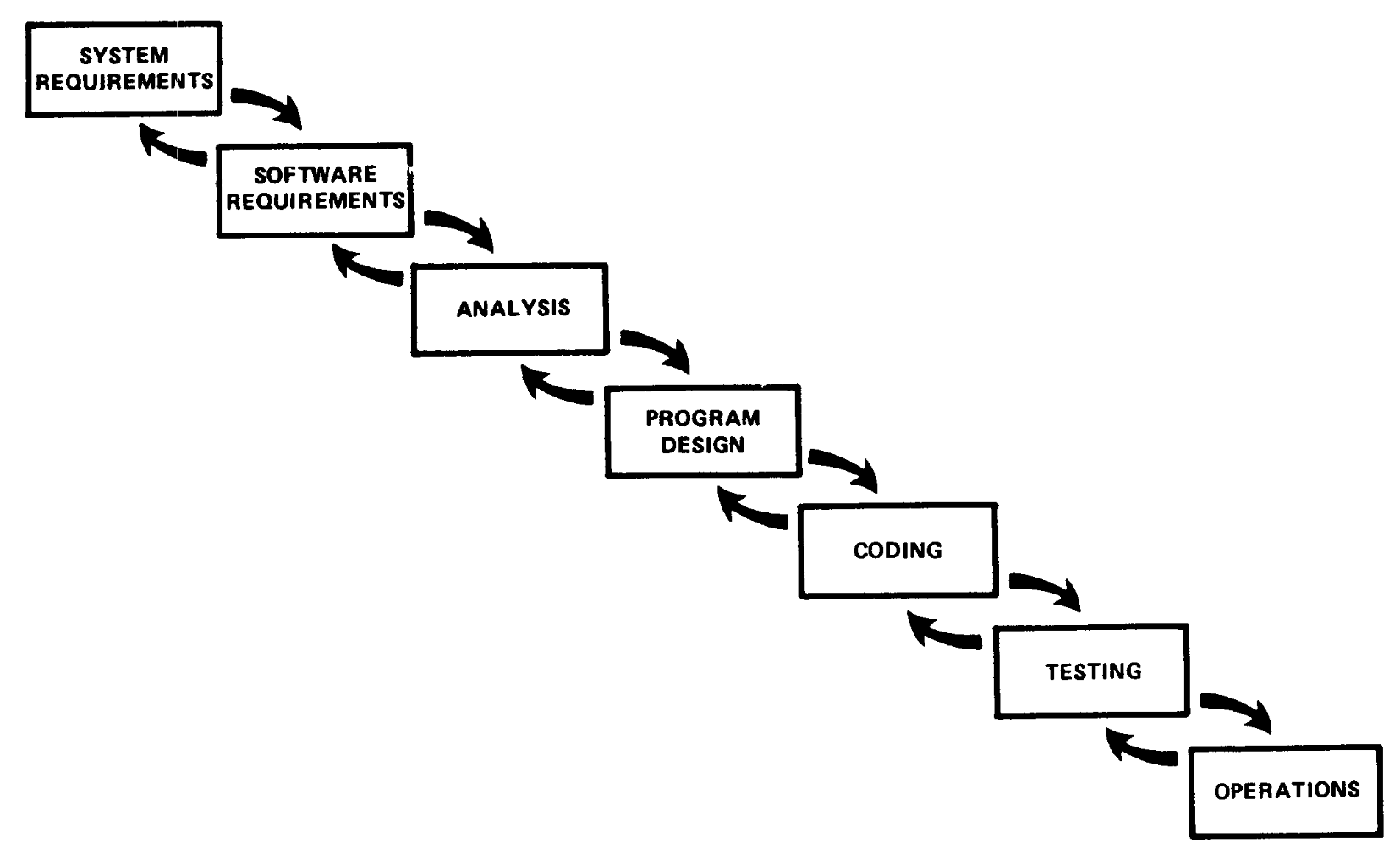

Testing after coding in Waterfall (1970)
Unit testing separate from acceptance tests

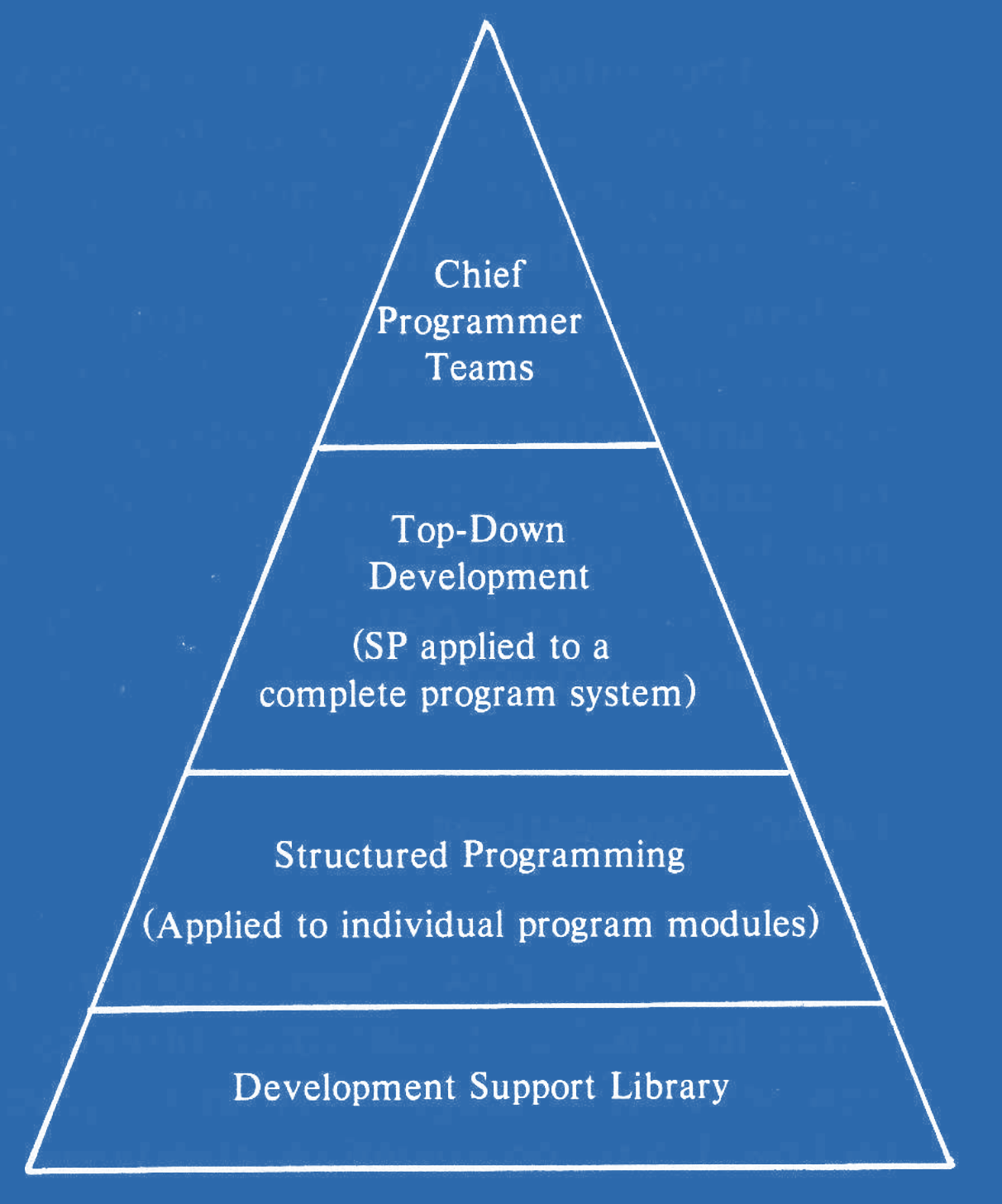

Managerial take on software testing
Extreme programming
Test-Driven Development
- Start by writing tests!
- Created with customers
- Then write code and improve
Development methodology
- From black art to scientific method
- Engineers regain control of testing
Undone
Science of program debugging
On-line debugging (1966)
"It has been possible .. to find a bug while at a breakpoint in running a test case, call the [structure] editor to make a correction, run the program on a simpler test case to verify the correctness of the change, then resume execution of the original test case from the breakpoint."

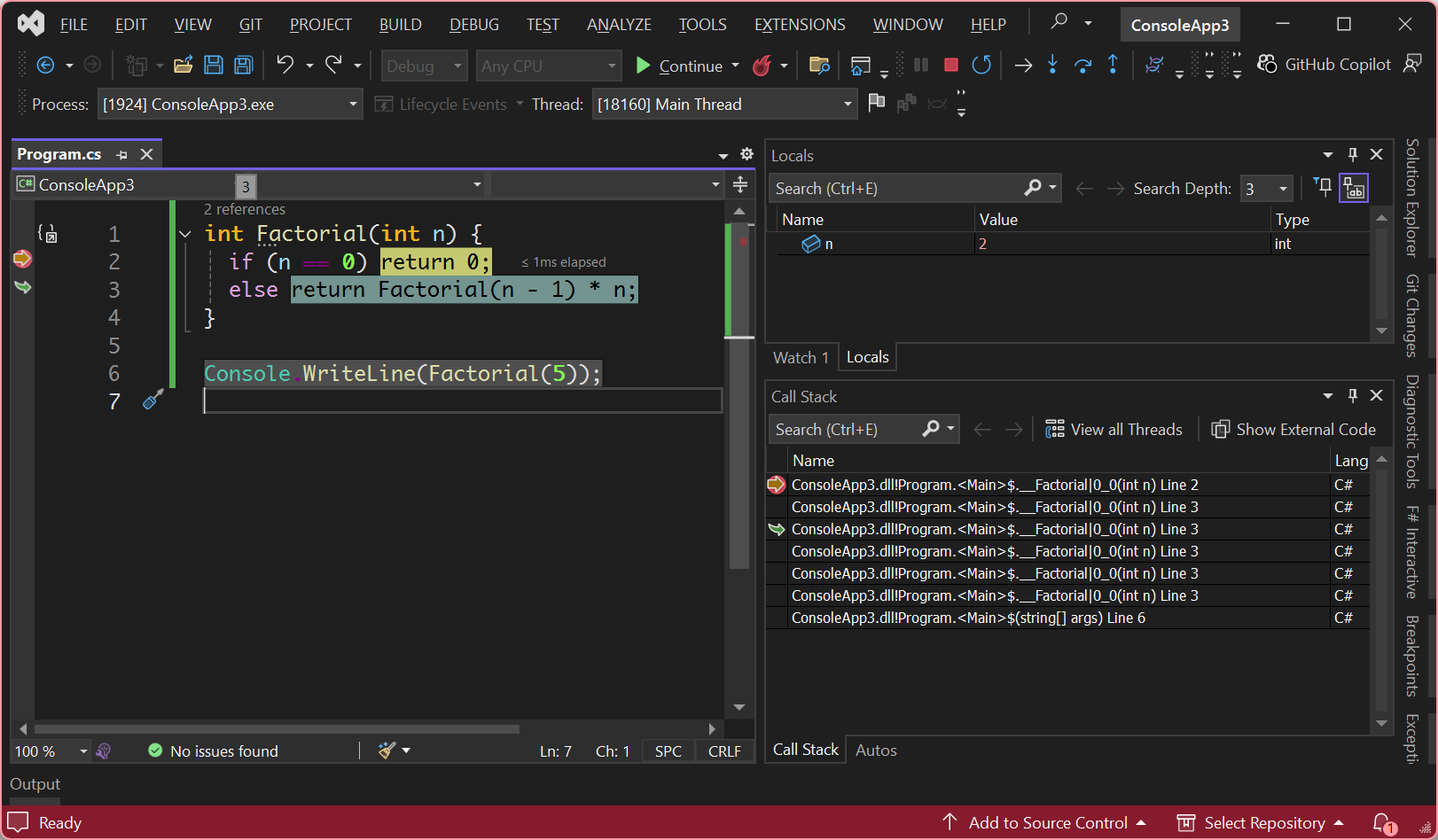

Debugging now
Set breakpoint
Make correction
Resume execution
To be fair...
Time-traveling debuggers, etc.
Debugging
Undone interactions between cultures
- Test becomes a stand-alone entity
- Adopted by engineers, managers, mathematicians
- Different meaning, but allows idea exchange
- Debugging remains a hacker practice
- Undone interaction between cultures?
Clashes
Struggle for control over a concept
Object-orientation
Struggle for control over a concept
- 1960s - Mathematical simulations in Simula
- 1970s - Personal dynamic media in Smalltalk
- 1980s - From Smalltalk to C++ and Java
- 1990s - UML and new development processes
SIMULA "1"
Activity declarations
and processes
Remote accessing
SIMULA 67
Classes and objects
Record handling inspired by Hoare
Three cultures of Smalltalk
Humanistic (early 70s)
"Computer for Children of All Ages"
Learning and educational focus
Hacker (late 70s)
Experimentation tool at Xerox PARC
Engineering (80s-90s)
From Tektronix to IBM Visual Age
Test-driven development, design patterns
Object-oriented methodology
How do you design
software using objects?
Objects as active actors
Responsibilities of objects
From objects to software development processes
Objects support requirements analysis, team structuring
Undone
Open programming systems

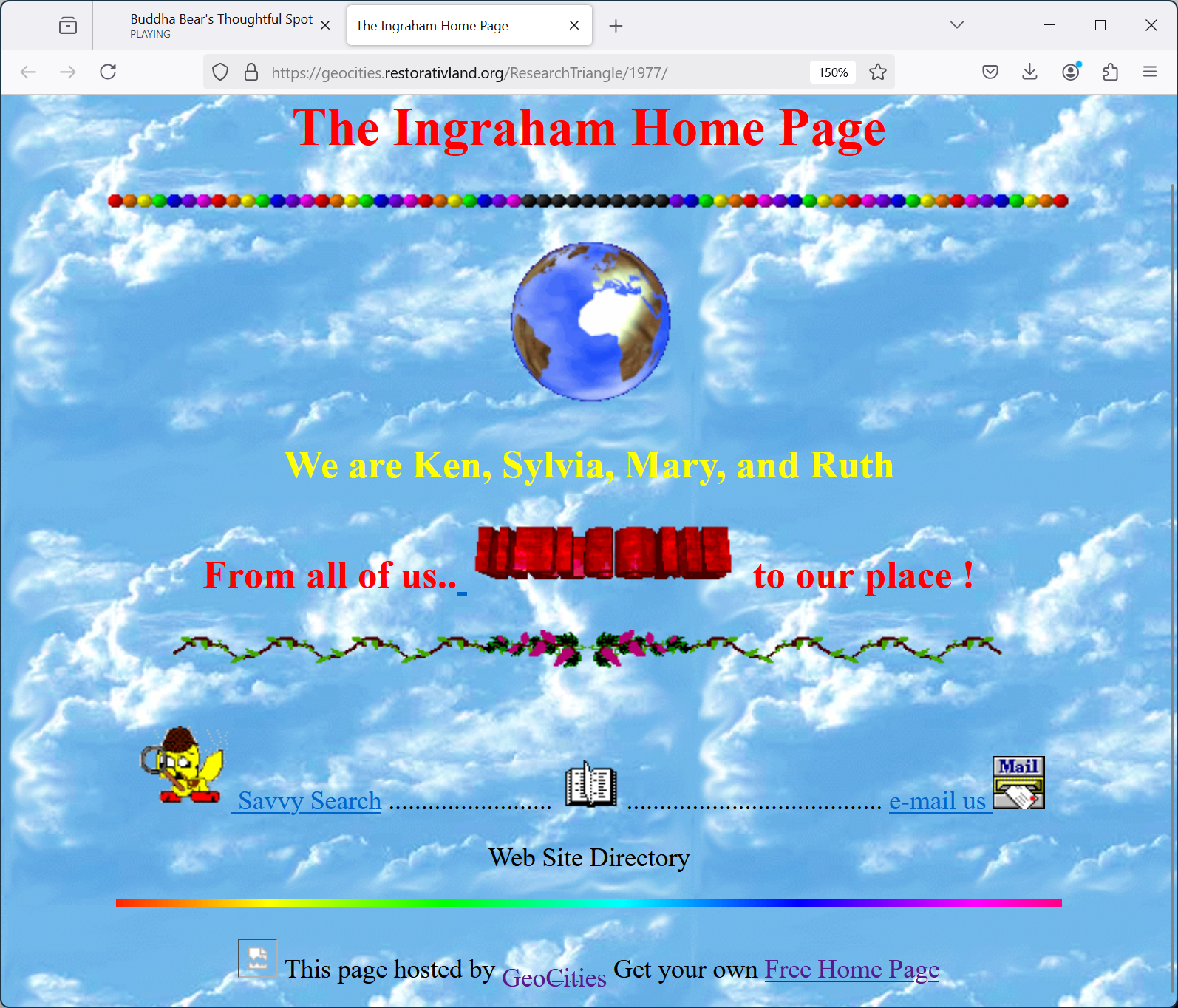

Open Web (90s)
Learn and reuse components using view source
Closing of the Web
Engineering reasons
Delivering large files over slow network...
Large software requires proper languages!
Open systems
Undone interactions between cultures
- Object-orientation becomes engineering tool
- Engineers decide on web technologies
- Malleability and openness gets lost!
- Degree of incommensurability
- Humanistic programming systems?
Conclusions
Undone ideas on programming
Undone ideas on programming
Cultures of programming map the space of ideas
Avoid narrow engineering or mathematical views
Call for more pluralism in computing!
Tomas Petricek, Charles University, Prague
tomas@tomasp.net |
tomasp.net
Open-access book and exhibition
Available at tomasp.net/cultures
Bonus slides
Clashes
What is the problem of programming
Hacker origins
“Programming in the early 1950s was a black art,
a private arcane matter involving only a programmer,
a problem, a computer, ... and a primitive assembly program.”
John Backus (1976)
Mathematical science
“Program testing can be used to show the presence of bugs, but never to show their absence!” Rather than verifying programs through their testing, we should prove them correct.
Edsger Dijkstra (1969)
Software engineering
“The phrase software engineering was deliberately chosen as provocative... We undoubtedly produce software by backward techniques.”
The black art of programming has to make way for the science of software engineering!
NATO Conference on Software Engineering (1968)
Humanistic problem
“Alan Kay is more interested in us kids. He repudiates the manipulative arrogance .. and serves the dictum of Seymour Papert, Should the computer program the kid or should the kid program the computer?”
Brand, Rolling Stone (1972)

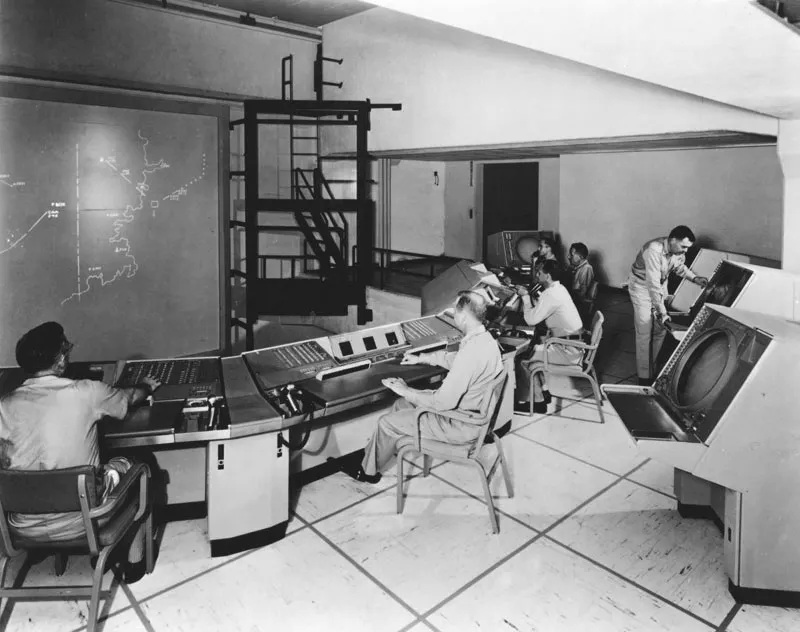

Managerial problem
“With SAGE, we were faced with programs too large for one person to grasp entirely and also with the need to hire and train large numbers of people to become programmers... We were faced with organizing and managing a whole new art.”
Herbert Benington (1956)
History
Cultures of programming view
- Cultures emerge early in the history
- Unique values, views, methods, aesthetics
- Stable over history of programming
- Not always shared communities
- Inherently pluralistic discipline?
Aesthetics
Disagreements on values
float Q_rsqrt( float number )
{
long i;
float x2, y;
const float threehalfs = 1.5F;
x2 = number * 0.5F;
y = number;
// evil floating point bit level hacking
i = * ( long * ) &y;
// what the fuck?
i = 0x5f3759df - ( i >> 1 );
y = * ( float * ) &i;
// 1st iteration
y = y * ( threehalfs - ( x2 * y * y ) );
// 2nd iteration, this can be removed
// y = y * ( threehalfs - ( x2 * y * y ) );
return y;
}
What code is beautiful?
Hacker culture
Values clever code that shows understanding of the machine operation
#define submerge const char*_=O%239?" ":"\t;\t";O*=2654435761;int
#define _cOb8(...) int s,on,__VA_ARGS__;int main(int O, char**Q)
_cOb8(o_, _oO8ocQOcOb, _ocQbo8oo, _oO8ocOb_
){ ; { ;;; ;;} ;{
;; ;{ ; } {;;}
} float the;; static things ;; for (;;){ us :;;
; ; break; the; ;; long grass ;unsigned squall ; }
{ } ; while (1){soft:; submerge us;; in: sleep (0) ;
; ; printf (_); quietly :on ;; the; soil:; };
{{ }; ; ; ;; ;{ ; }; {
{ ; shake: time (1) ;register *_, the =clock(s );
;} ; volatile *_, winds ; ; double wills ;{
; char the ,* fire ;; short companion,*_;}
; { union {}*_, together ;; ; void *warms ;}
} ;; ;{; ;} ; ;;
; ; if (1) wet :; raise (1); struct{}ure ;; ;
; ; free (0);for(;;){ newborn :; ; daughter :; ;
;{ ; extern al, ** world ,*re;const ructed ;};
; ; ; continue;on:;; floods :; ; of: water :;};}
; ;{ ; ; ;; { ; ; } ; } ; ; }
Beautiful code
Humanistic culture
Use double coding to speak to the human as well as
to the machine
What code is beautiful
Engineering culture
Simple, well-structured. Readability is valued more than cleverness.
What code is beautiful
Mathematical culture
Code achieves great expressivity using a combination of small number of orthogonal features.
What code is beautiful
Managerial culture
Structure of code enables appropriate organization of development teams and project management.
Aesthetics
Materiality of programming
- Code matters for hackers and humanists
- For mathematicians code is just maths
- Engineers value code quality and structure
- Code is secondary for managerial culture
Collaborations
The history of programming with types
History of types
- 1903 - Avoiding logical paradoxes (Russell)
- 1956 - Numbers in two modes (FORTRAN)

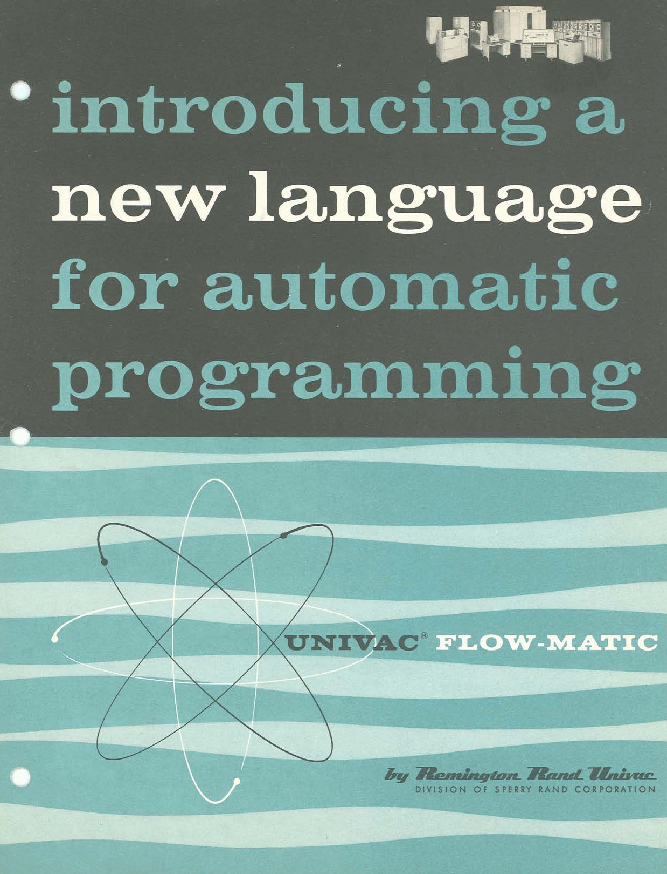

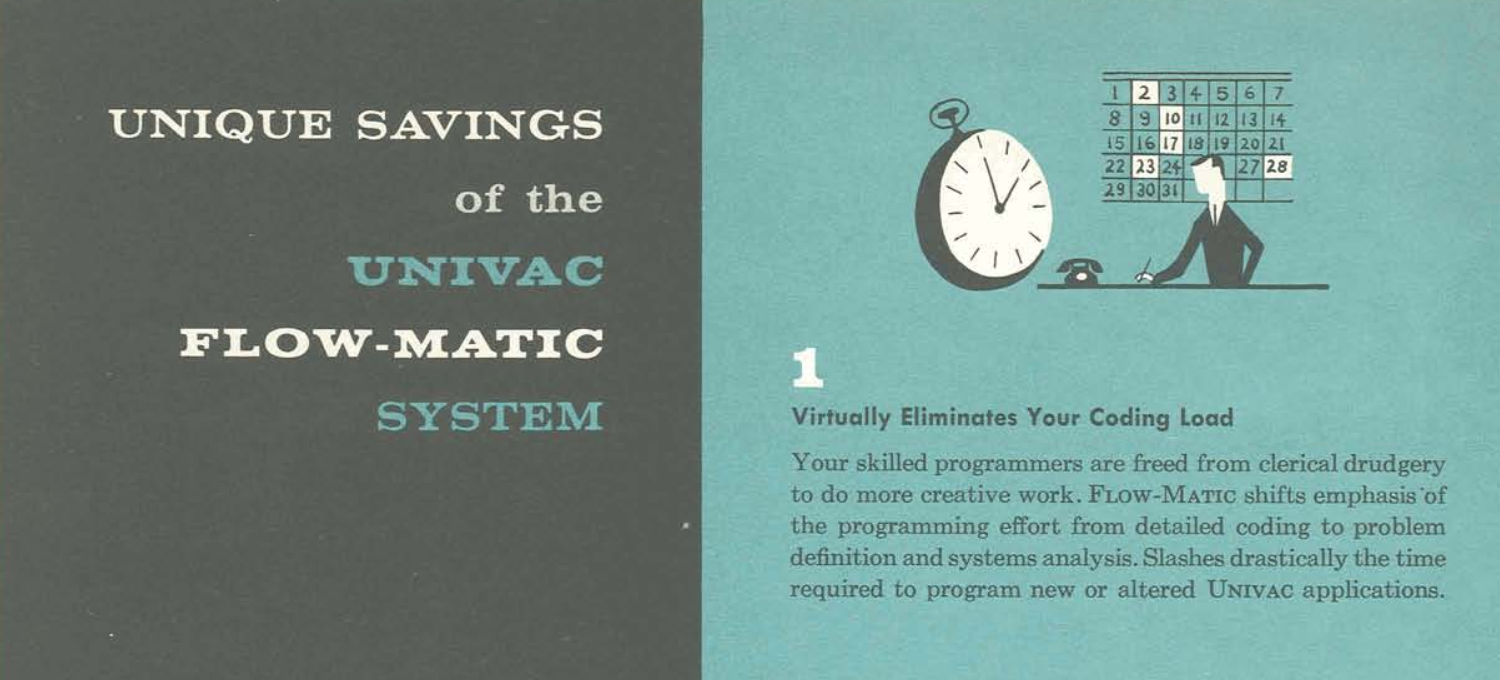

- 1957 - Data description cards (FLOW-MATIC)
- 1974 - Abstract data types (Clu)

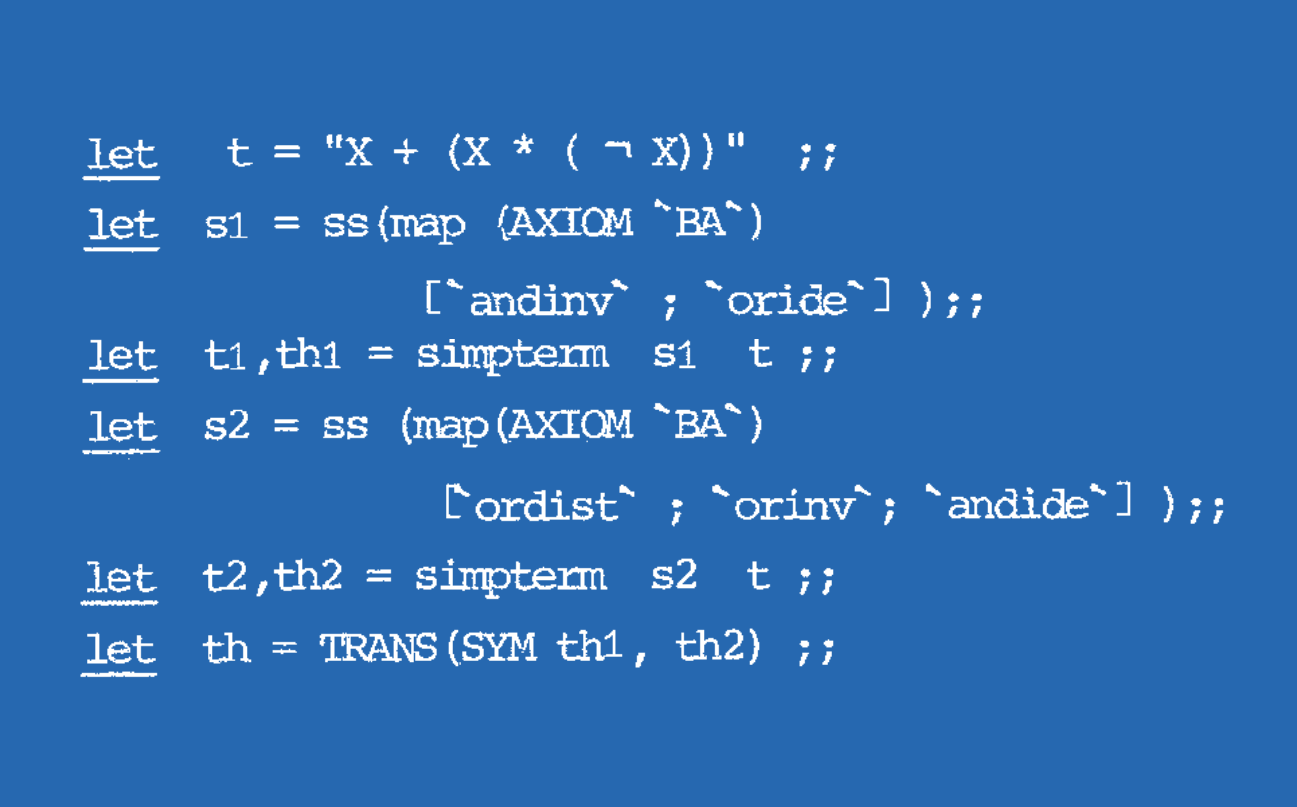

- 1978 - Meta-language for a theorem prover (ML)
- 1989 - Types in proof assistants (Alf and Rocq)
- 2012 - Unsound type systems (TypeScript)
Types in programming
FORmula TRANslator
rather than a language
Arguments in fixed or
floating-point mode
Algorithmic Language
Types (integer, real, Boolean) denote properties of values;
Subscripts for arrays

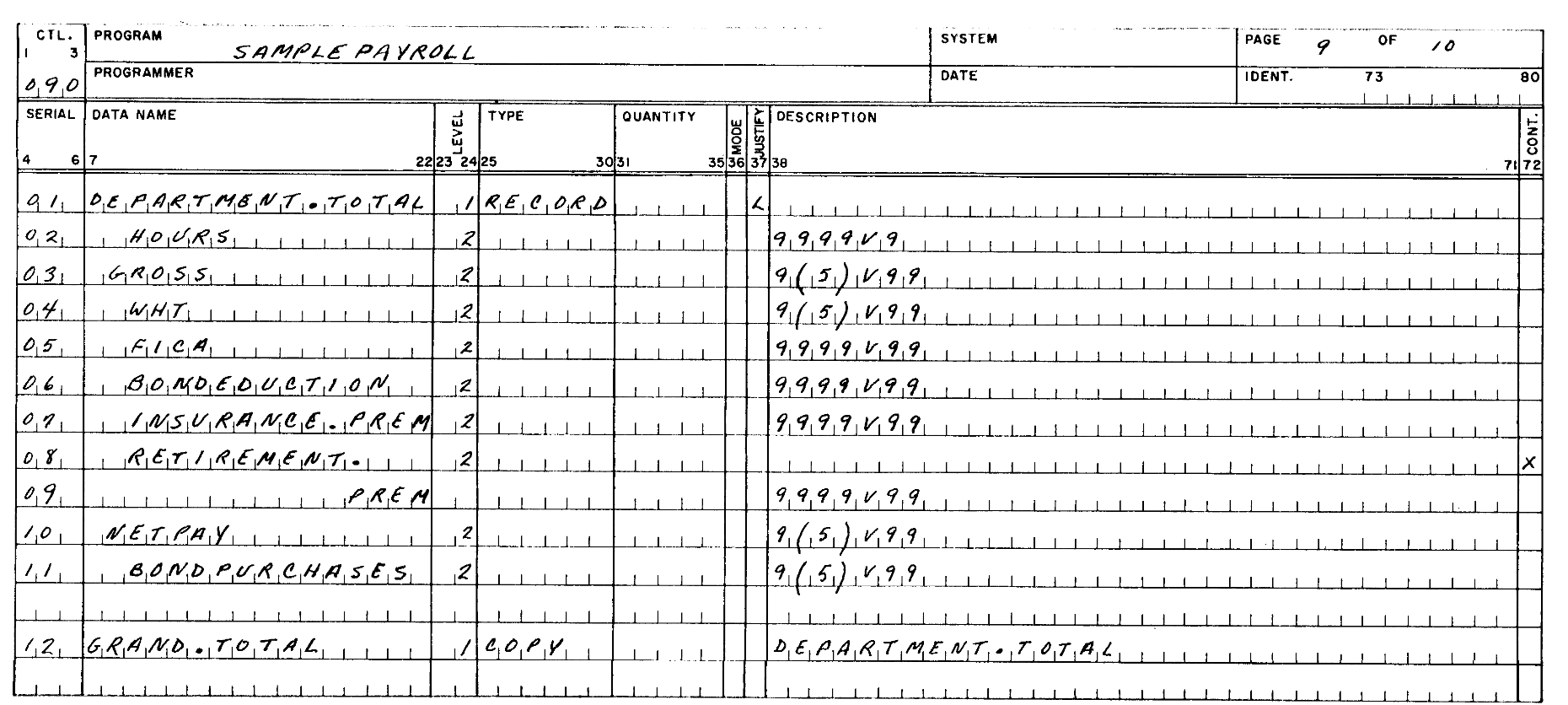

IBM COMTRAN
Electronic versions of paper-based records
Data records with specific string formatting
Towards a universal language
Mathematical models
- Data spaces (McCarthy, '59)
- Product \(A \times B\), union \(A \oplus B\)
- Set-theoretical types (Hoare, '72)
Types in Algol 68
- A long and difficult struggle
-
Whereas ALGOL 60 has values of [three types],
ALGOL 68 features an infinity of “modes”.
From mathematics to engineering
Lambda-calculus models (Morris '69)
Models type checking via derivation rules
Types are not sets (Morris '73)
Authentication and secrecy problems
Now in Cedar system at Xerox PARC
Abstract data types (Liskov '74)
Type checking done at runtime in Clu
Cites Reynolds ("personal communication")
LCF/ML (1978)
Abstract data types
for proof terms
Data types
for convenient programming
Type checking
for proof correctness
Types
Cultural reconciliation at last...?
- Proof assistants and dependent types
- Type providers and data as types
- Modelling types as relations
- Unsound type systems for the real world
