Dijkstra on BASIC

It is practically impossible to teach good program­ming to students that have had a prior exposure to BASIC: as potential prog­rammers they are mentally mutilated beyond hope of regeneration.

BASIC as a language? Meh.

Why look at BASIC?

BASIC as a programming system

  • Right at the birth of microcomputers
  • Part of an early computing culture
  • Interesting mode of interaction!

BASIC as a programming problem

  • Interpreter with richer state
  • Statements vs. expressions
  • More interesting F# programming!

BASIC

Interaction and emulators

Demo

Writing BASIC in C64 emulator

Realistic machine-level system emulator

All the clever hacks with POKE work!

See: C64 emulator

What is interesting about it?

Learnability

  • Your computer boots into BASIC

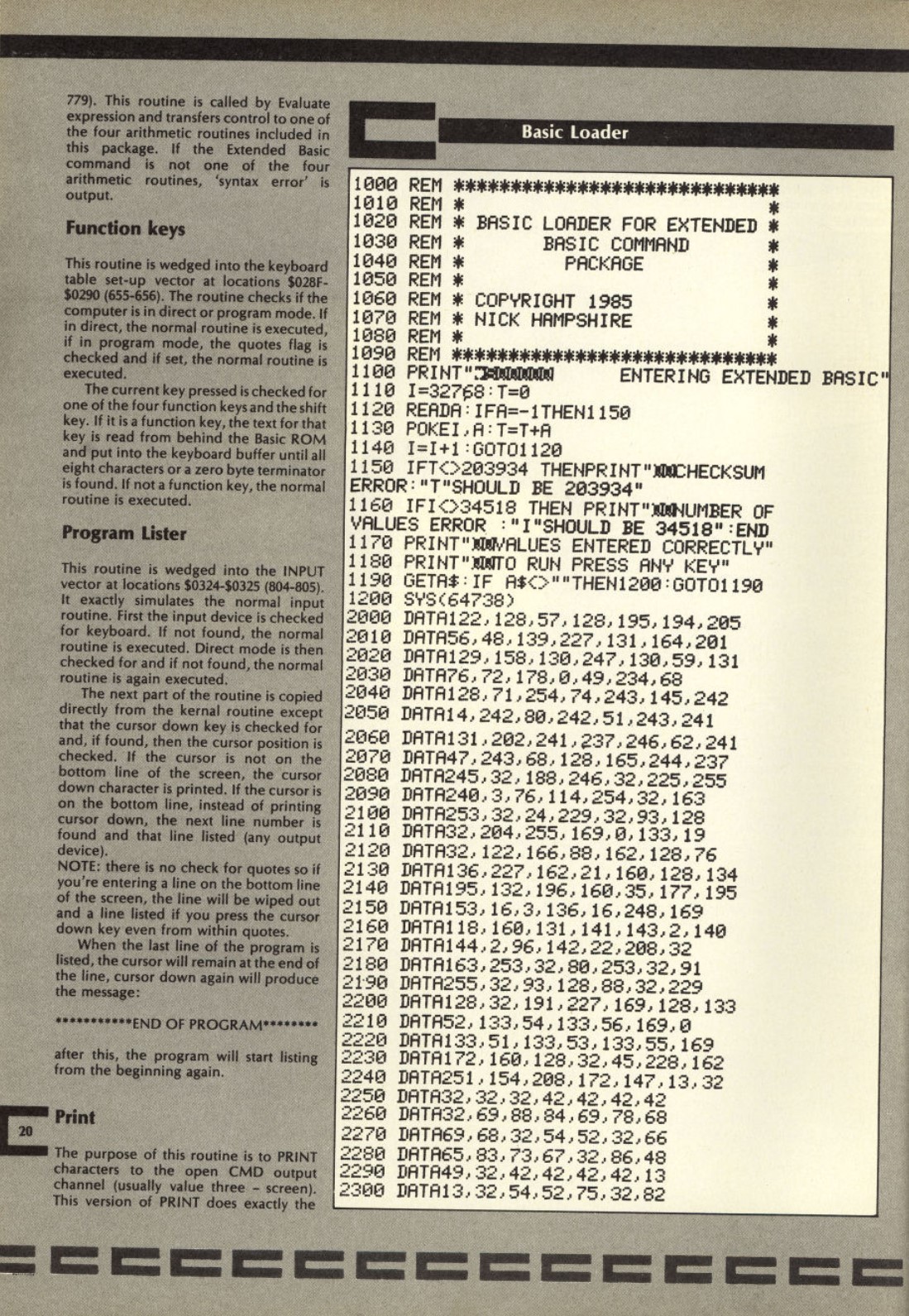

  • Copy games code from magazines

From novice to hacker

  • Simple, but you can do lots with POKE

Interaction mode

  • Code editor and REPL at the same time

Demo

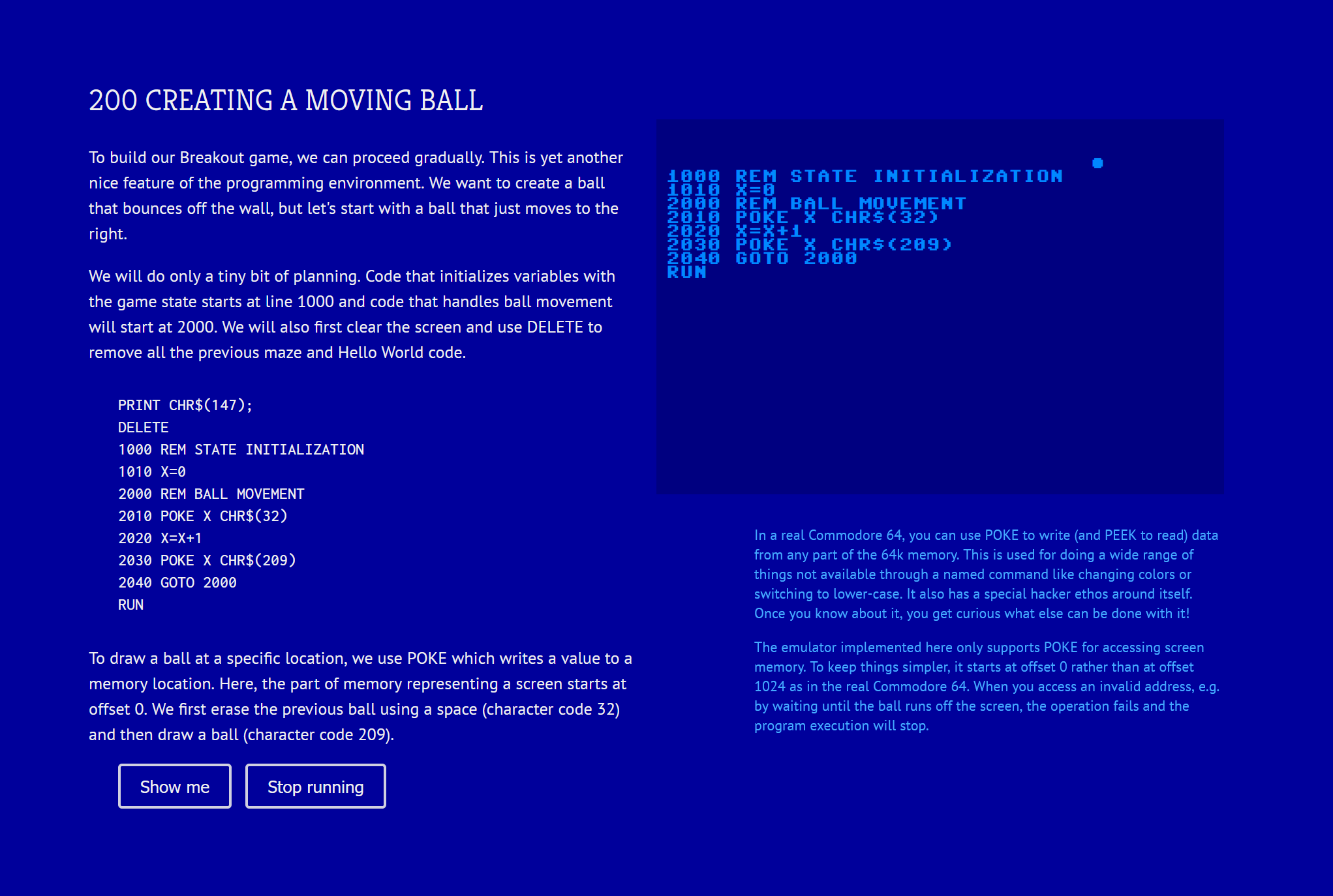

My C64 essay

Explore the interaction
How it helps write, test and debug code?

Not fully accurate
Program does not live in memory, POKE offsets are wrong

The F# language

What you need to know

TinyBASIC

What F# do you need to know

  • Project, console and tail recursion
  • F# language logic and data types
  • Records, functions, tuples, patterns
  • List processing using built-in functions

Demo

Project, console, recursion

let point = (1, 10)
let (x, y) = point

(* (int*int) -> (int*int) *)
let rotate (x, y) = (y, x)

(* int -> (int*int) -> (int*int) *)
let moveX by (x, y) = (x + by, y)

(* (int*int) -> int *)
let area (x, y) =
  match x, y with
  | 0, _ | _, 0 -> 0
  | x, y -> x * y

(* (int*int) -> int *)
let area pt =
  match pt with
  | ((0, _) | (_, 0)) -> 0
  | x, y -> x * y

Tuples, patterns and functions

Tuple type int * int is just another ordinary type of values

Pattern (x,y) can appear in multiple locations in code

Functions can mix arguments and tuples

SKETCH

Tuples and patterns

let l1 = [1; 2; 3; 4]
let l2 = 1::2::3::4::[]
let l3 = [1..4]

(* Pattern matching lists *)
match list with
| [e1; e2] -> (...)
| el::els -> (...)
| [] -> (...)

(* Possible, but not very useful *)
let (e::es) = list
let foo [e1;e2] = (...)

(* Higher-order list functions *)
let twice x = x * x
List.map twice [1..10]
List.map (fun x -> x * x) [1..10]
List.sum [1..10]

List constructors and list patterns

List type written as list<int> or int list

Constructed using :: (rare) and [..] (often)

Patterns :: and [..] can appear anywhere, but are partial

Demo

Real-world list processing

The pipe operator

Fluent style for functional data processing

let (|>) x f = f x

In bash scripting (|), adopted by R (%>%), maybe JavaScript

Demo

Real-world list processing (2/2)

TinyBASIC

Interpreter structure

type Value = (* .. *)
type Expression = (* .. *)

type Command =
  (* Jumps and subroutines *)
  | Goto of int
  | GoSub of int
  | Return
  (* I/O operations *)
  | Clear
  | Print of Expression list
  | Input of string
  (* If, variables and control *)
  | If of Expression * Command
  | Assign of string * Expression
  | Run
  | Stop

BASIC interpreter structure (1/2)

Expressions evaluate to Values and are simple

Commands contain all the operations that modify the program state

(* State of the interpreter stores
   program lines as sorted list,
   variables in a dictionary,
   generator for the RND function
   and stack for GOSUB/RETURN *)
type State =
  { Program : list<int * Command>
    Variables : Map<string, Value>
    Random : System.Random
    ReturnStack : int list }

(* Evaluate a command and then
   run the next one (if any)
   until the program ends.
 : State -> (int * Cmd) -> State *)
let rec runCommand state (line, cmd) =
  (* ... *)

(* Find the next line after 'line'
   and run that or stop if none *)
and runNextLine state line =
  (* .. *)

BASIC interpreter structure (2/2)

State is the program source code, variables
(and a few extras)

Current line is also
a part of the state
(function argument)

Demo

BASIC Hello World

TinyBASIC

How the BASIC language works

REM You can write comments!
REM Jumping and calls
GOTO 10
GOSUB 10
RETURN

REM Printing to the screen
POKE 1024 CHR$(42)
PRINT "HELLO ";X

REM Variables and ifs
X=10
IF (X>0) GOTO 10

REM Control
RUN
STOP

BASIC basics

GOSUB jumps, but keeps return location on stack
for RETURN

PRINT takes a sequence of expressions (and we ignore cursor moving)

POKE writes a byte to memory (we will cheat)

We ignore command chaining (:)

Demo

Elegant programs with GOSUB :-)

TinyBASIC

A bit of theory

Meaning of programs

Functional languages

  • Compositional semantics
  • Define meaning of \(e_1 + e_2\) in
    terms of the meaning of \(e_1\) and \(e_2\)

Imperative languages

  • What is the meaning of PRINT "HI"?
  • What is the meaning of GOTO 10?
  • Whatever the interpreter does..
  • Not very good for program proofs!
 00 REM FACTORIAL IN BASIC
 10 Q=5
 20 N=1
 30 F=1
 40 IF N=Q THEN GOTO 100
 50 N=N+1
 60 F=F*N
 70 GOTO 40
100 PRINT F

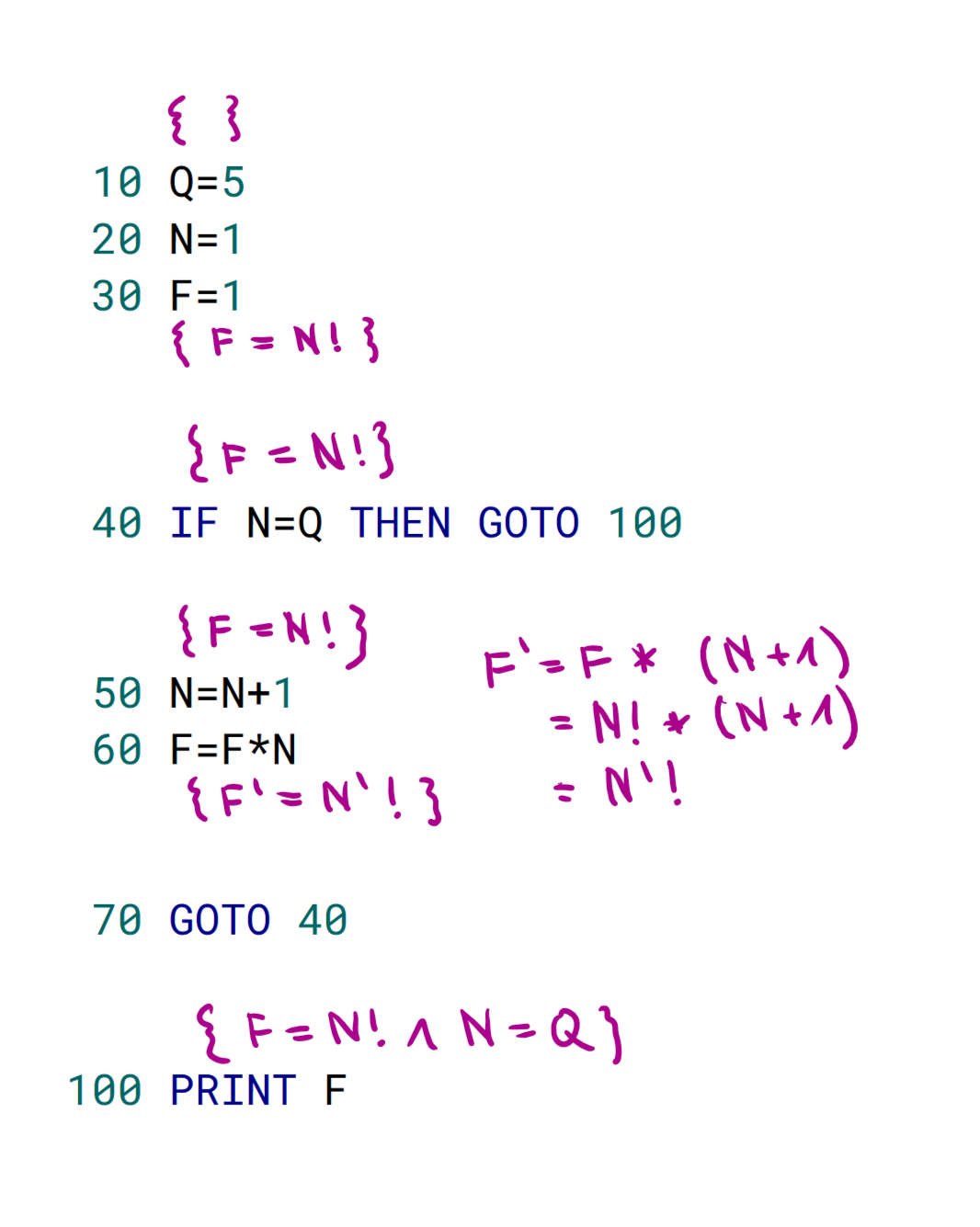

Reasoning about BASIC programs

Hoare triples \(\{P\}c\{Q\}\)

Pre-condition \(P\) what is true before the command execution

Post-condition \(Q\) what is true after the command execution

Reasoning about BASIC programs

Postconditions of a command before have to match preconditions of a command after

Coming up with the right properties is tricky!

Lab overview

TinyBASIC system step-by-step

TinyBASIC - Basic tasks

  1. Add GOTO and better PRINT for infinite loop fun!
    Evaluation of expressions, finding of the next line

  2. Implement interactive program editing
    Handle commands that edit the program code

  3. Add variables, conditionals, integers and bools
    Needs Map<string, Value> in the program state

  4. Random function and (not quite correct) POKE
    To be able to generate random stars!

  5. A few more functions and operators
    As required by the Nim (subtraction) game

TinyBASIC - Bonus tasks

  1. Add support for more elegant programs with GOSUB
    Needs list<int> (stack of return line numbers) in state

  2. Refactor our Nim code sample to use it
    Dijkstra will still not be happy, but we avoid repetition

  3. Implement an "AI" player for our Nim game
    Wikipedia says this is a solved problem :-)

Closing

A tiny imperative programming system

Conclusions

A tiny interactive imperative programming system

  • Evaluation logic not that far from TinyML!
  • Imperative interpreter needs much more state
  • How exactly interactive editing worked?!
  • Parsing & interactive editing out of scope :-(
