Is Excel real programming?

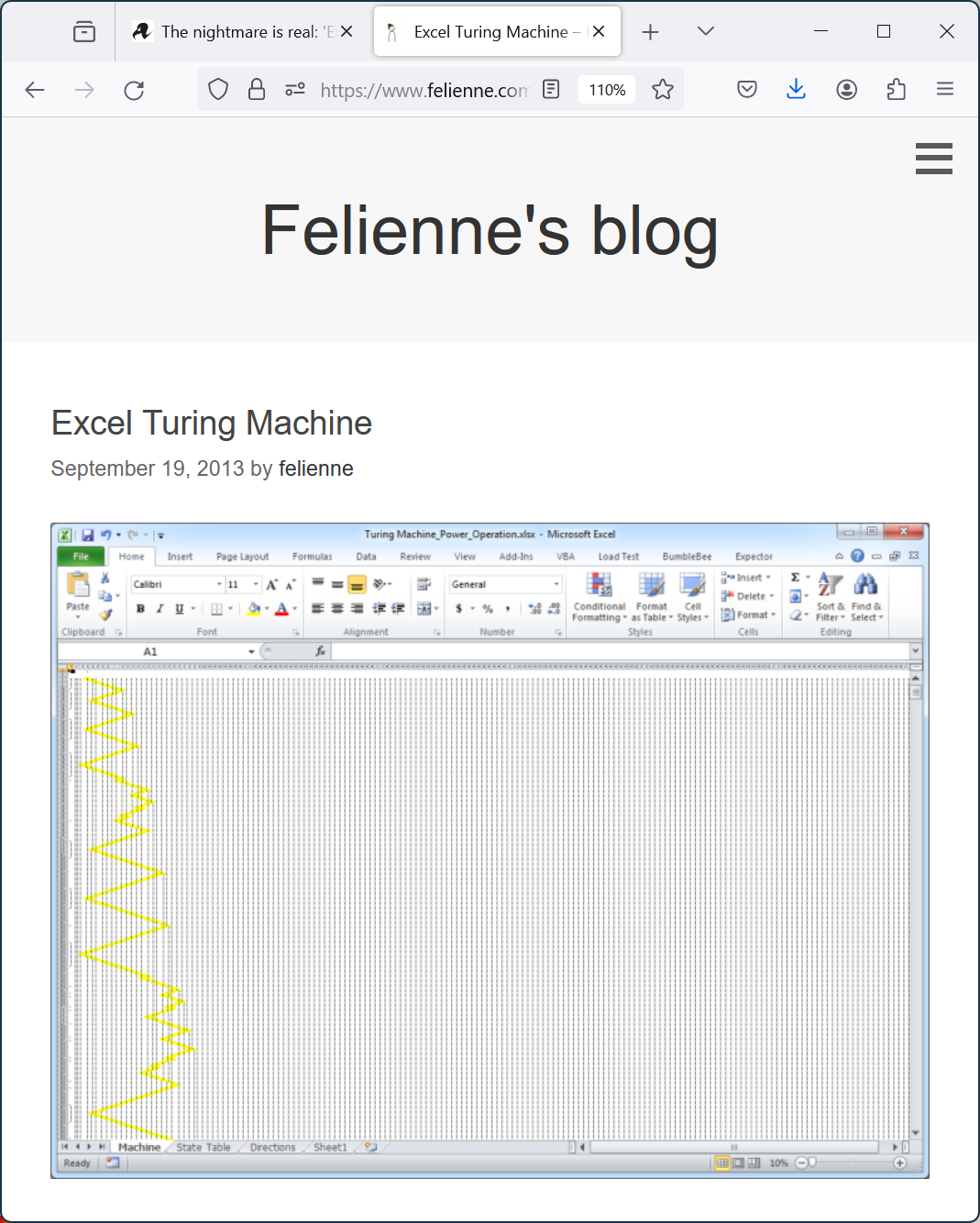

It is Turing-complete!

Encoded using "drag-down"

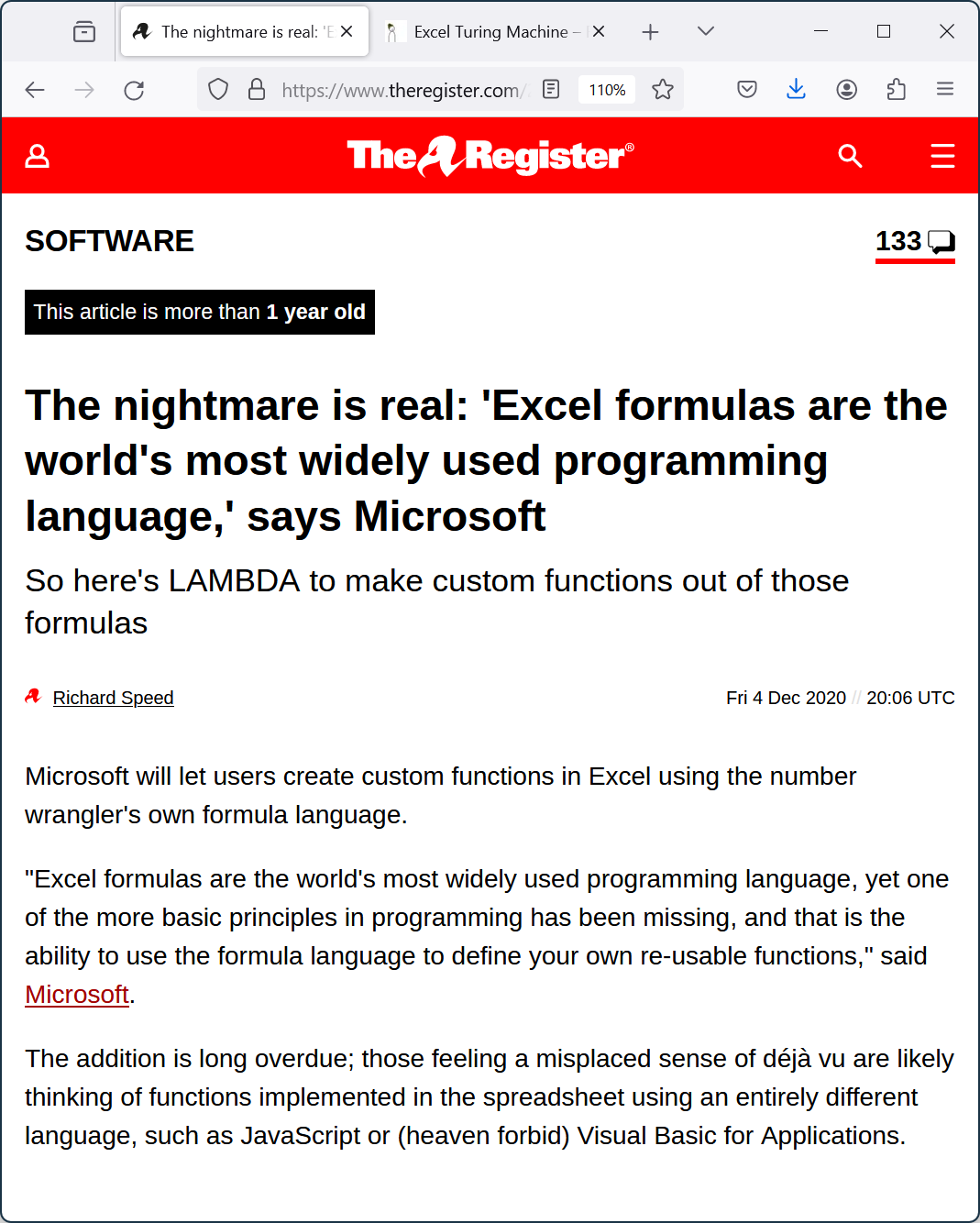

It is widely-used!

Simple, but can do a lot...

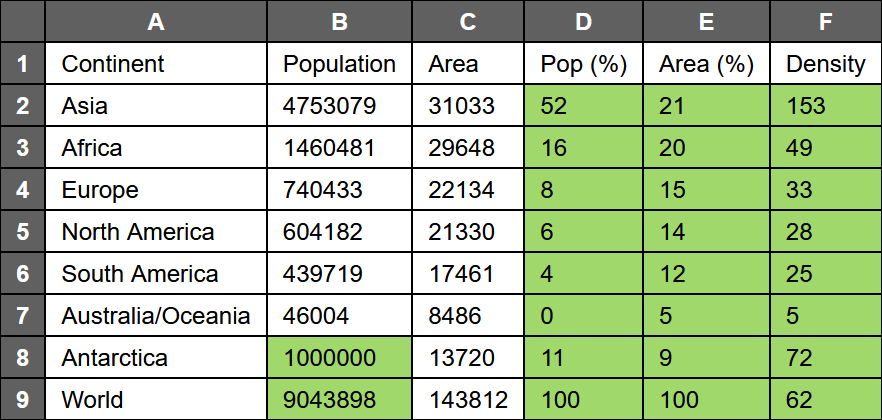

TinyExcel

What makes spreadsheets interesting?

  • Most accessible programming tools!
  • Program in a two-dimensional space
  • Edit and view in the same environment
  • Automatic and live sheet recomputation

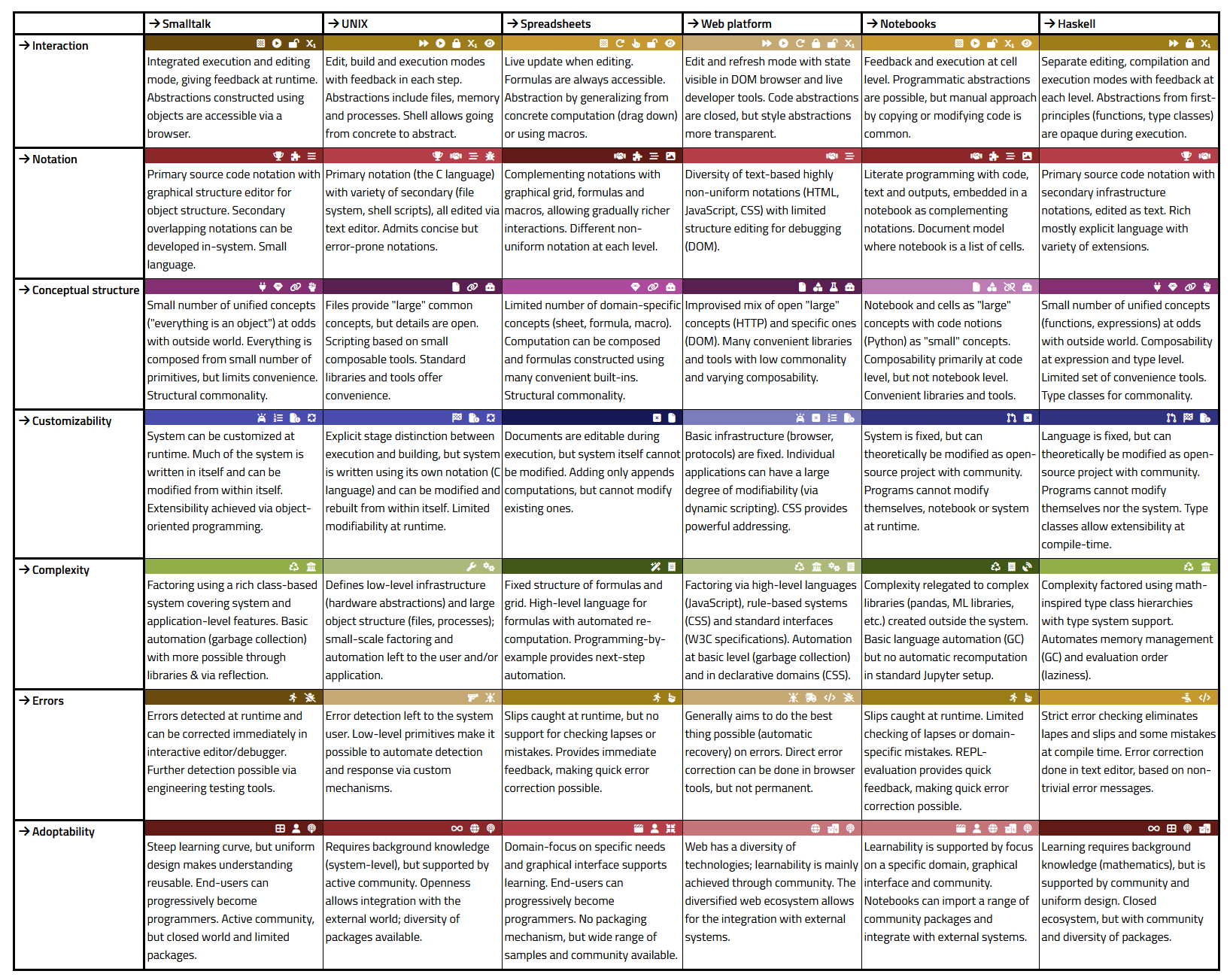

Technical Di­mensions of Programming Systems

(Jakubovic et al., 2023)

What matters about stateful interactive systems?

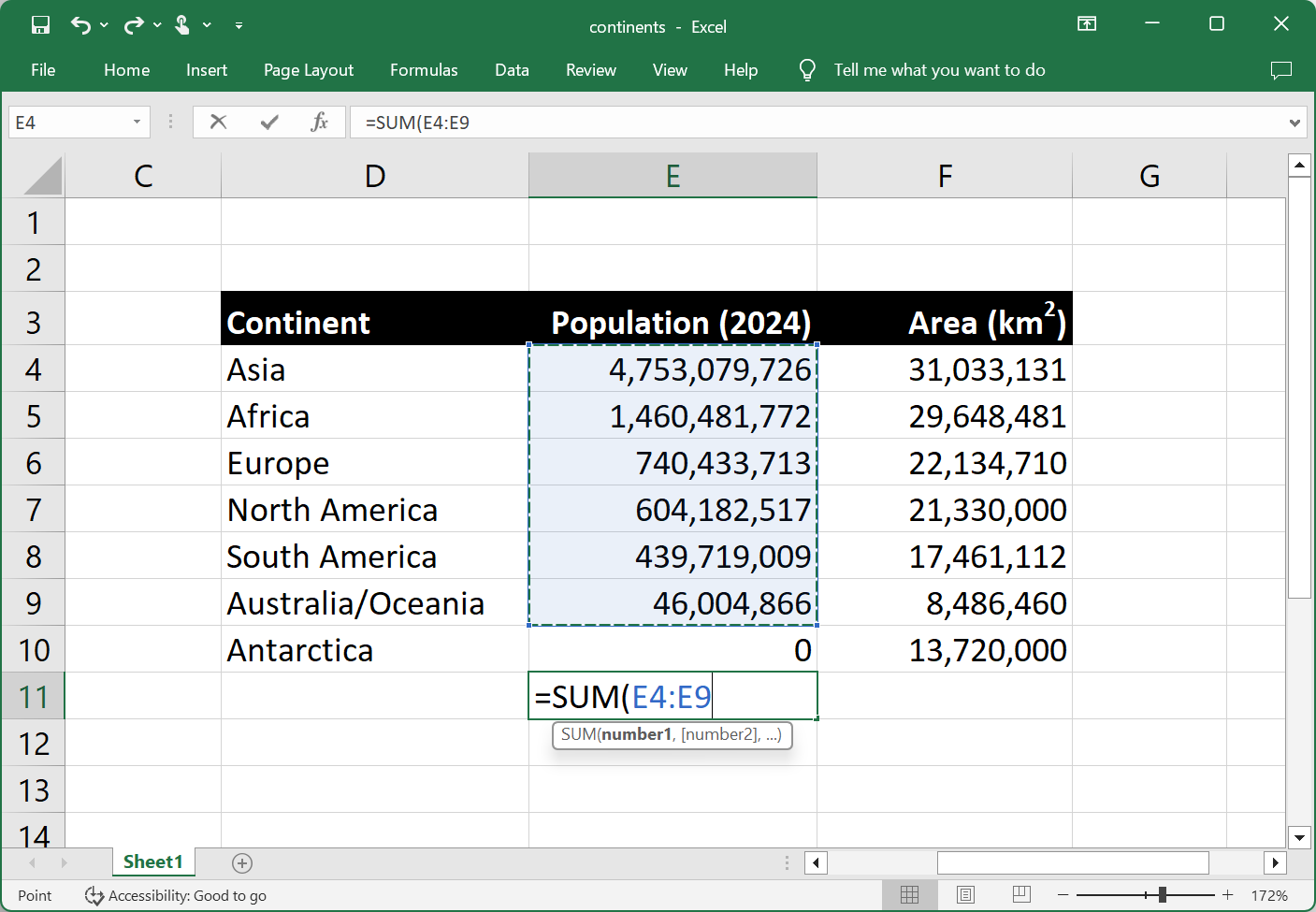

Demo

Excel data exploration basics

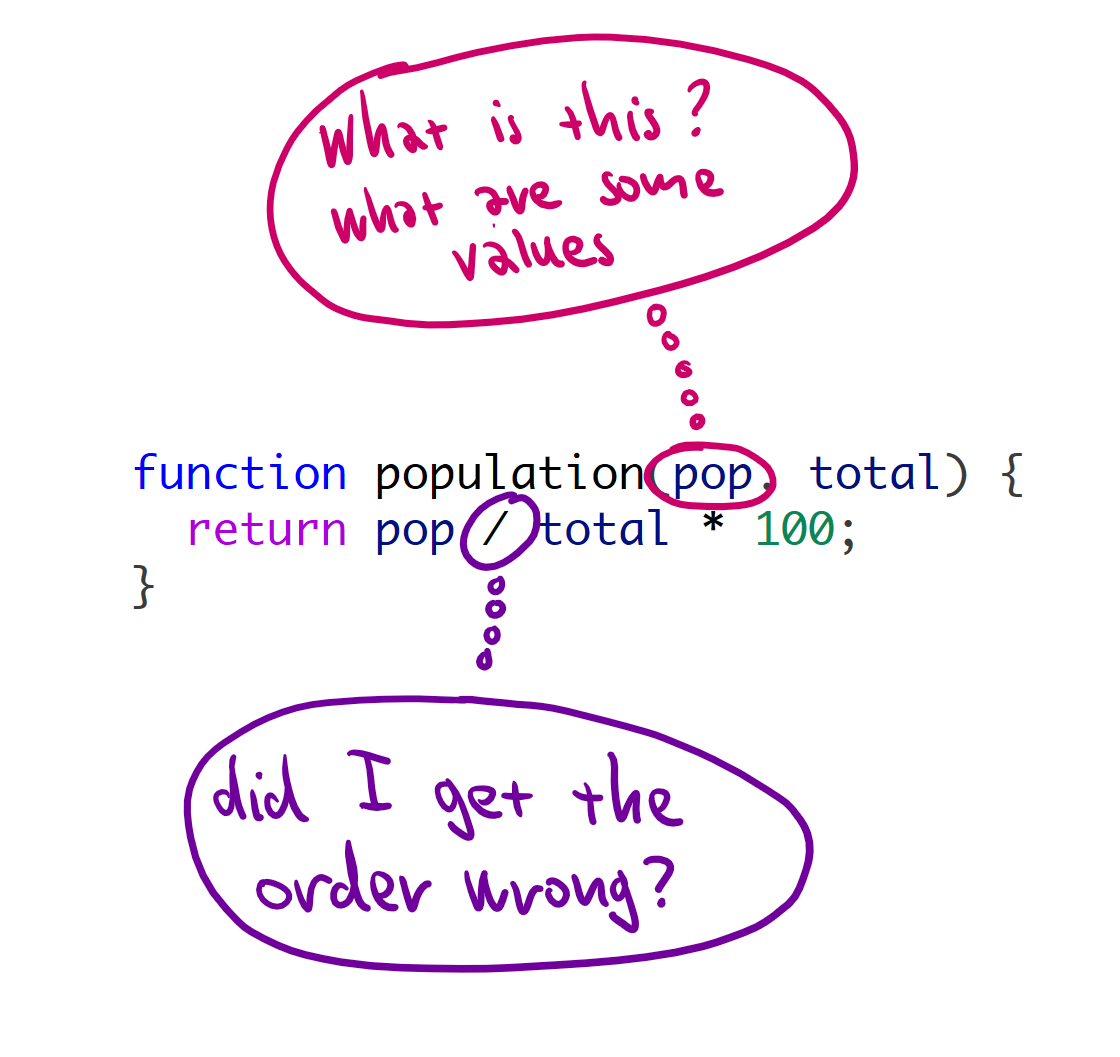

Abstraction is hard

Drag-down for formulas makes abstraction easy

You only ever work with concrete values

Always see sample inputs & verify sample outputs

TinyExcel

Scope of the tiny version

  • Two-dimensional space with references
  • "Drag-down" to apply formula to a column
  • Relative and absolute cell references
  • Incremental computational engine

TinyExcel

Technical dimensions

The good and the bad

High usability

  • Live exploratory programming
  • Work with concrete values
  • Learning from examples

High-profile errors

  • "Growth in the time of debt" errors
  • SEPT2, MARCH1 gene names
    (Septin, Membrane-Associated Ring Finger)

Confusing terminology

  • Exploratory programming
    Write, run, rethink with easy editing
  • Live programming
    See results of your program immediately
  • Live coding
    Run immediately, typically audio performance
  • Interactive programming
    Modify stateful programming system

Spreadsheets are...

Exploratory - easy to fiddle with data

Live - you see results (almost) immediately

Concreteness

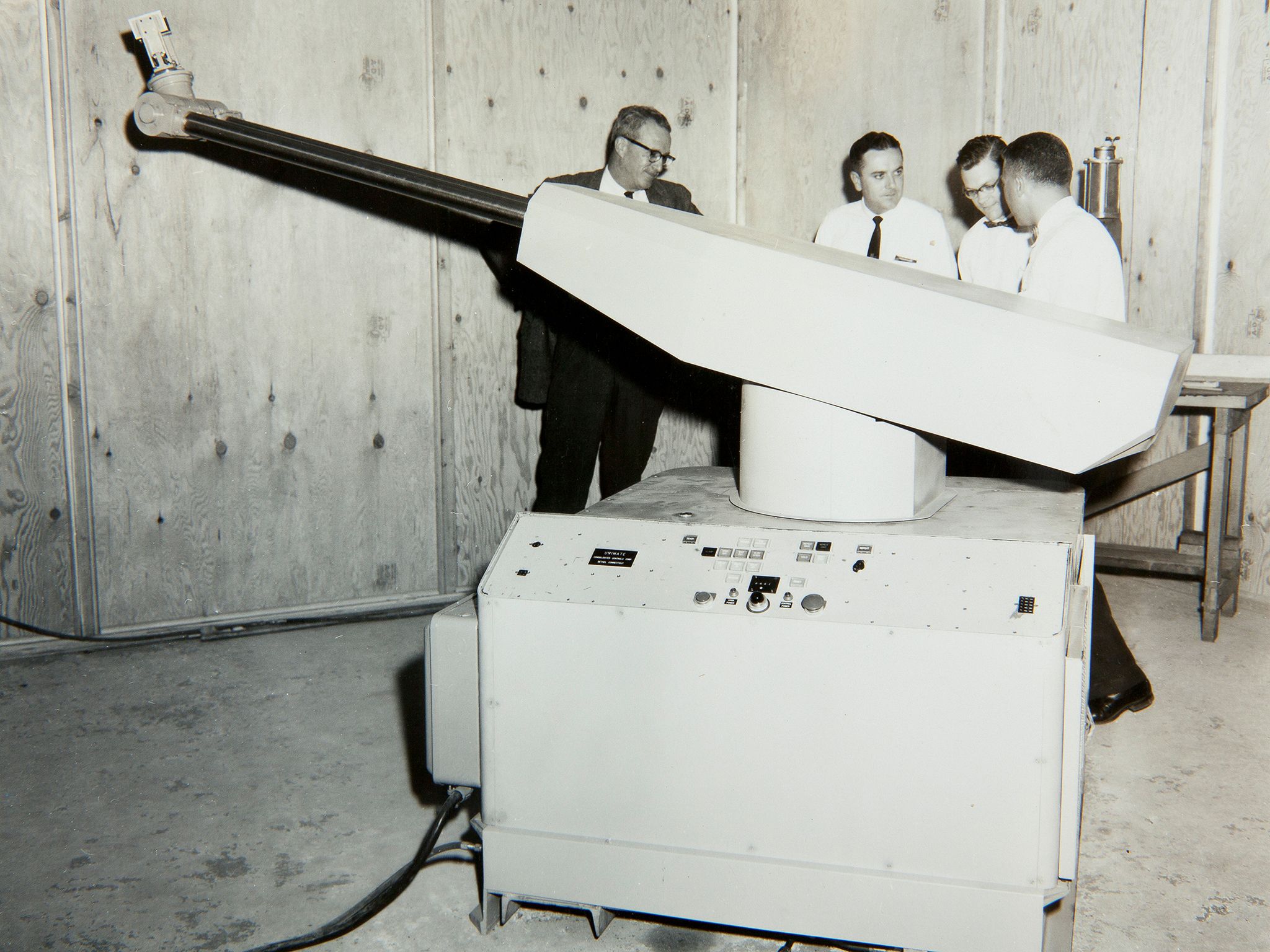

Unimate industrial robot (1961)

Program by moving
the robotic hand

Macro recording
but done right

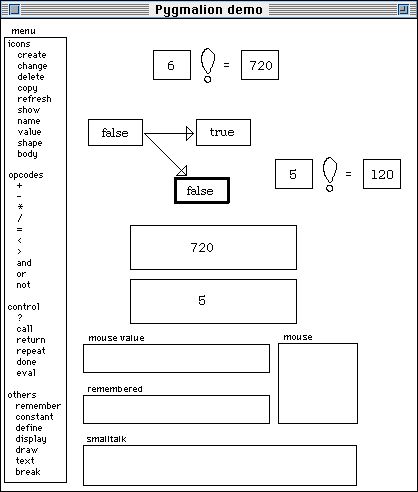

Concrete programming

Programming by demonstration

  • Think macro recording
  • How to generalize & re-apply
  • "Drag down" in spreadsheets

Programming by example

  • Generalize from input/output list
  • Search for fitting program
  • Also FlashFill in Excel

Demo

FlashFill in Excel

How people learn Excel

From existing spreadsheets

  • View source of formulas
  • Learn how functions work
  • Logic needs to be visible!

Going to the expert

  • Every office has Excel "guru"
  • Needed for harder aspects
  • Needed for use that does not have a "trace"

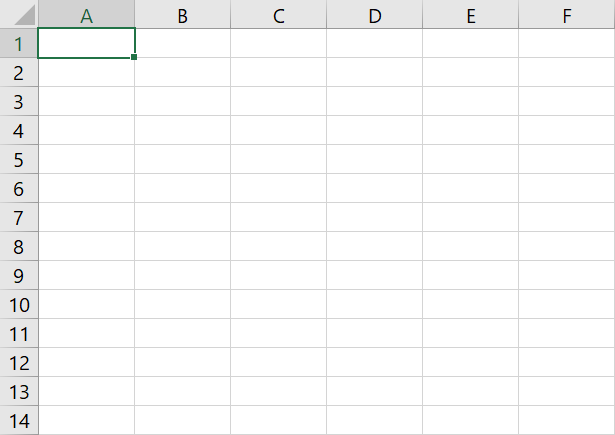

The grid power!

Humans are good at working with space

Programs are not typically spatial...

Grid is limiting, but powerful concept

TinyExcel

Learning from spreadsheets?

  • More programming for non-programmers?
  • Immediate live feedback is great!
  • Abstractions from working with concrete values
  • Programs should exist in understandable space

Could "normal" programming be more like this?

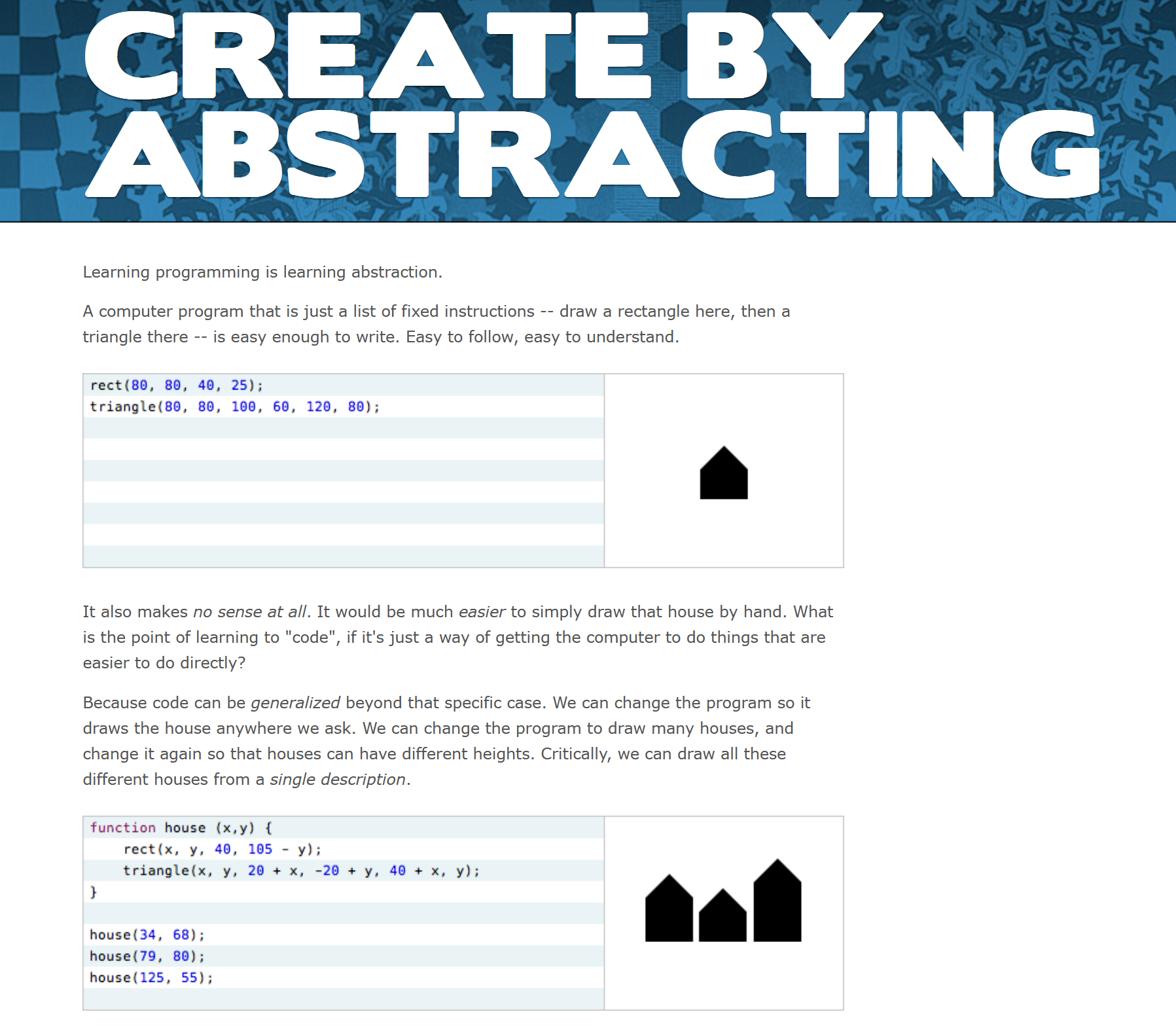

Demos by Bret Victor

Learnable Program­ming: Designing a programming system for understanding programs (online)

TinyExcel

Implementation techniques

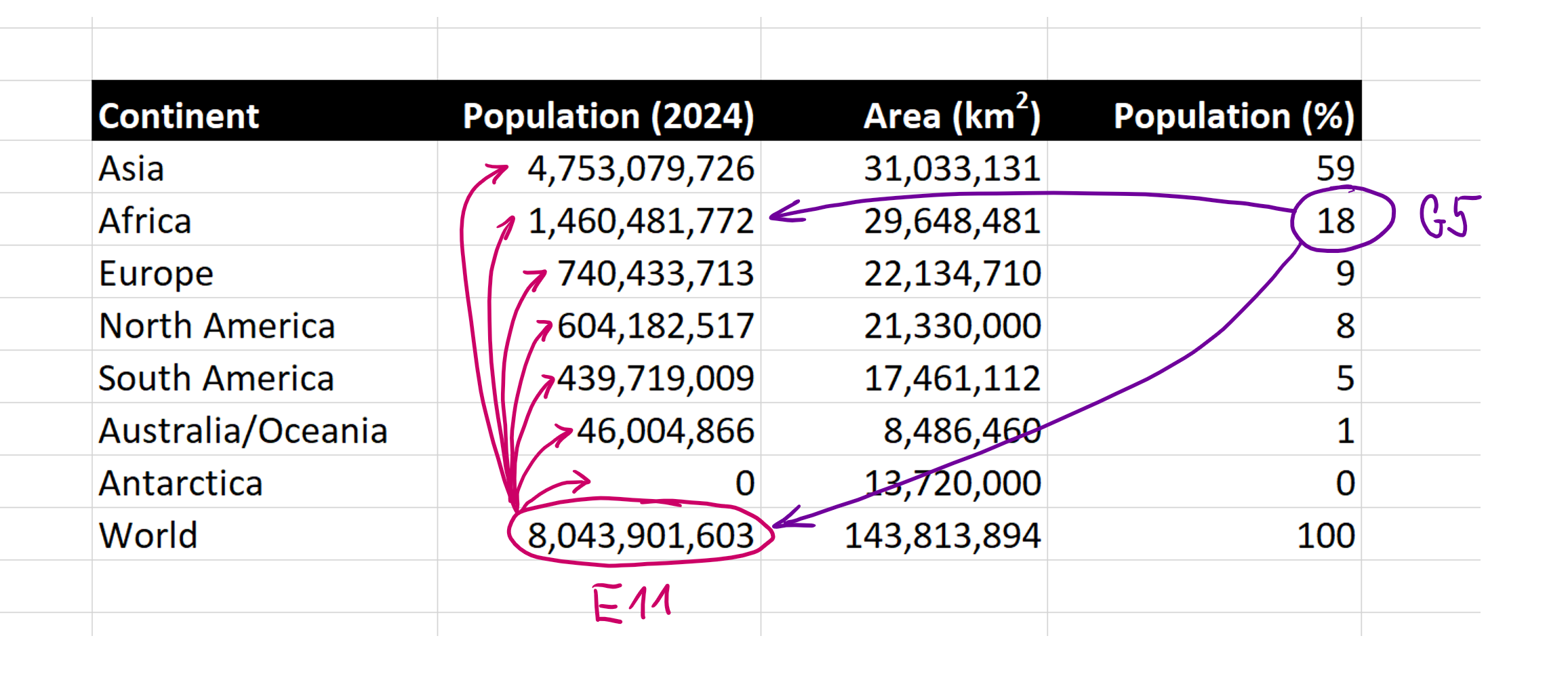

Inter-cell dependencies

In what order to evaluate sheet?

Avoid evaluating
a cell repeatedly!

What to re-evaluate
when cells change?

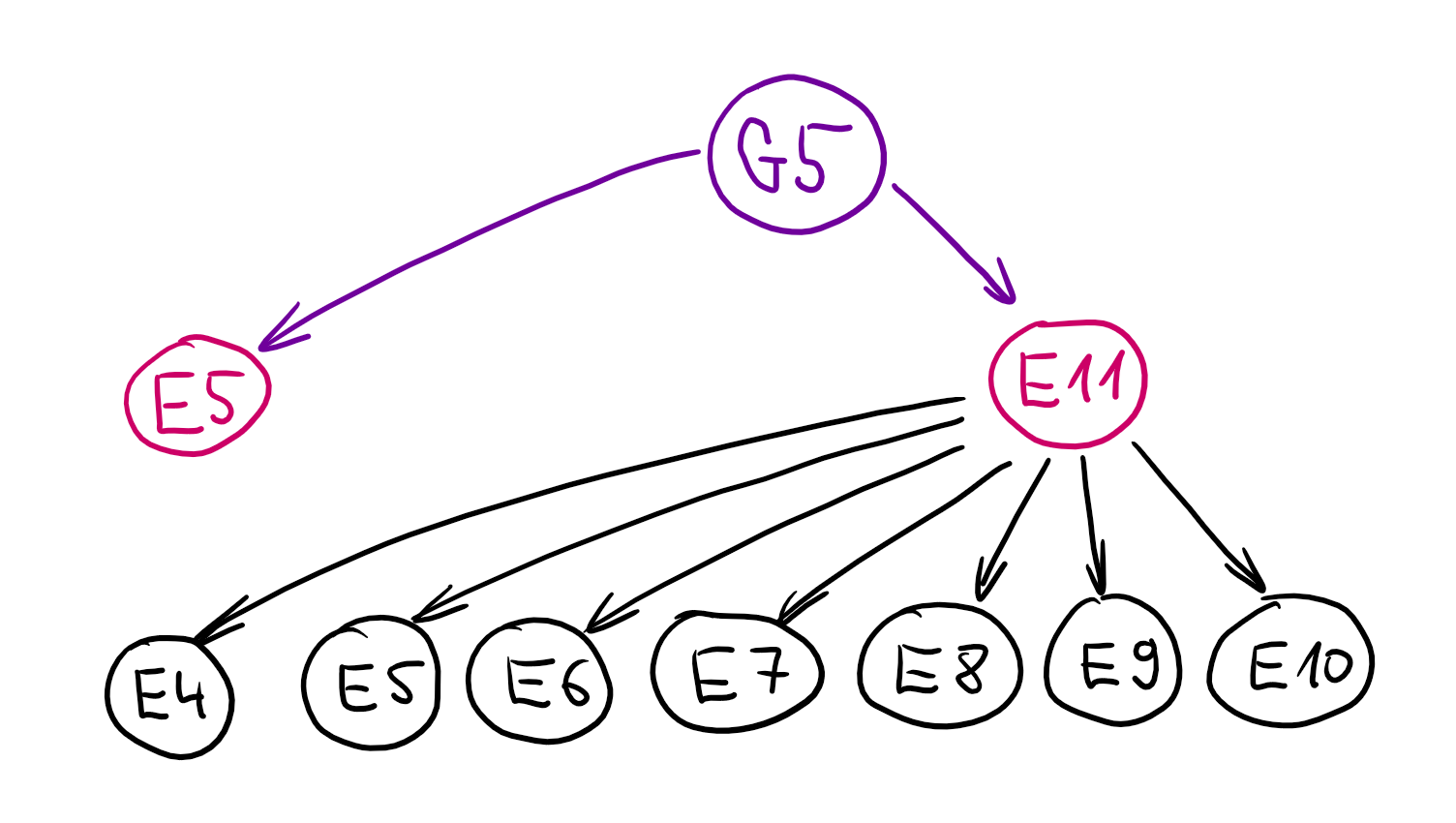

Dependency graphs

Dependencies via cell
and range references

Cyclic dependencies

Excel does a fixed maximal number of iterations

Explicit or implicit in code

Graph data structure vs. event listeners

Reactive programming

Different implementations

  • Functional Reactive Programming
  • ReactiveX (rxjs, RxJava, Rx.Net)
  • Elm software architecture

Implementation techniques

  • Push-based - Changes propagated from source
  • Pull-based - Update required by the consumer
  • Builder-based - Computation to be instantiated

TinyExcel

Implementation techniques

  • Naive non-cached recursive starting point
  • Cell is as graph node with "Updated" event
  • Depending nodes listen, recompute & notify
  • Tricky error and update handling...

The F# language

What we need for Excel

What we need to write Excel

Event handling

  • F# events are objects (values)
  • Can trigger & register handlers

More tips & tricks

  • Collection processing
  • Fancy patterns and active patterns

Finally a user interface?

  • Would be nice, but setup costs high...
  • Write sheet as HTML document & open

Generating lists

List comprehensions with the yield keyword

let worldInfo =
  [ yield addr "A1", Const(String "Continent")
    yield addr "B1", Const(String "Population (thousands)")
    for i, (cont, pop) in Seq.indexed continents do
      yield addr ("A"+string(i+2)), Const(String cont)
      yield addr ("B"+string(i+2)), Const(Number pop) ]
  • yield adds another item to the list
  • for and other constructs to write generators
  • Seq.indexed trick to get item index

Demo

Extending the List module

// Decares event value
let evt = Event<int>()

// Trigger event
evt.Trigger(1)
evt.Trigger(2)
evt.Trigger(3)

// Object for listening
evt.Publish

// Listen and print
evt.Publish.Add(fun n ->
  printfn "Got: %d" n)

F# Events

Regular F# objects
Not special constructs

Corresond to IObservable in C#

Add and remove handlers using AddHandler and RemoveHandler

Demo

Working with F# events

Writing and opening HTML files

If you know C#, you can use other options too!

let demo () =
  let f = Path.GetTempFileName() + ".html"
  use wr = new StreamWriter(File.OpenWrite(f))
  wr.Write("""<html><body><h1>Hello world!</h1></body></html>""")
  wr.Close()
  Process.Start(f)
  • GetTempFileName gives you a file in TEMP folder
  • use to make sure stream gets closed on error
  • Process.Start can (sometimes) open files too

TinyExcel

Implementation structure

// In column, row format
// e.g. A1 becomes (1, 1)
type Address = int * int

// Note error is a value!
type Value =
  | Number of int
  | String of string
  | Error of string

// Operators are functions
type Expr =
  | Const of Value
  | Reference of Address
  | Function of string * Expr list

// Using immutable F# map
type Sheet = Map<Address, Expr>

Simple start

Standard ML-like expression language

References (instead
of variables) are evaluated recursively

Sheet maps (filled) addresses to expressions

// Expression and value are
// mutable. Updated triggered
// when they change.
type CellNode =
  { mutable Value : Value
    mutable Expr : Expr
    Updated : Event<unit> }

// Immutable map
// of mutable cells
type LiveSheet =
  Map<Address, CellNode>

Version with the dependency graph

Value evaluated
on creation which prevents circular refs

Expression stored
"drag down" expansion

Updated event
to notify of changes

Advanced extensions

Ranges and array values

type Value = // (...)
  | Array of Value list

type Expr = // (...)
  | Range of Address * Address

Absolute addresses

type Index = Fixed of int | Normal of int
type RawAddress = int * int
type Address = Index * Index

Lab overview

TinyExcel step-by-step

TinyExcel - Basic tasks

  1. Simple expression evaluator
    With grid references by cell address

  2. "Drag down" formula expanding
    Relocating relative references in formula

  3. Reactive event-based structure
    Refactoring code to use graph nodes

  4. Reactive event-based computation
    Adding update event handling

  5. Rendering sheets as HTML pages
    First step towards a user interface

TinyExcel - Bonus and super tasks

  1. Absolute and relative addresses
    Alongside with improved "drag down"

  2. Adding range selection and array values
    Required for the SUM function

  3. Adding change visualization
    Tracking and showing what has changed

  4. Full support for live editing
    Updating dependencies in the dependency graph

Closing

Tiny incremental spreadsheet system

Where can you use this...

Financial systems

  • Live financial models
  • Incremental computation
    with dependency graph

Interesting programming systems

  • Live programming systems
  • Future more usable programming tools!

Conclusions

A tiny incremental spreadsheet system

  • Computation as dependency graph
  • Working with two-dimensional grid
  • Good old (ML-like) expressions

Tomáš Petříček, 309 (3rd floor)
petricek@d3s.mff.cuni.cz
https://tomasp.net | @tomaspetricek
https://d3s.mff.cuni.cz/teaching/nprg077
