Logic programming

  • Declarative style - specify what, but not how
  • Programs consists of facts and rules
  • Evaluation by clever inference engine
  • Prolog, Datalog and basis of other systems
  • Origins in AI and natural language

From inference to programming

Type inference

  • Program analysis
  • Generated constraints
  • Unification of types
  • Infer type assignment
  • Unification + substitution

Logic programming

  • Program evaluation
  • Handwritten programs
  • Unification of terms
  • Infer variable assignment
  • Unification + substitution

A bit of history

Natural language processing in the late 1960s & early 1970s

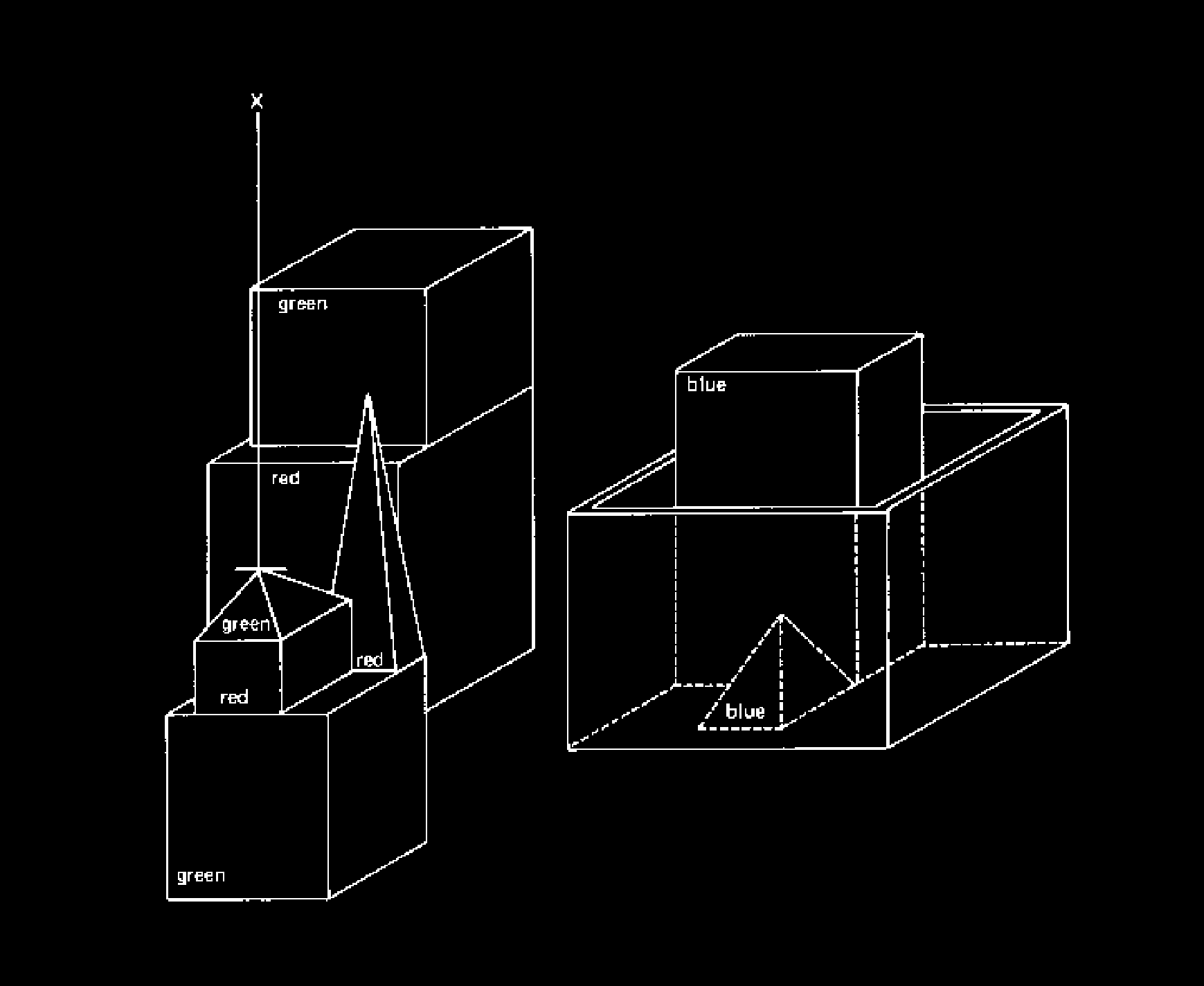

SHRDLU, PLANNER

"Find a block which is taller than the one you are holding and put it into the box."

Prolog then and now

Alain Colmerauer, Marseilles (1972)

  • Natural language processing
  • Automatic theorem proving

Fifth generation systems (1980s)

  • 10 year initiative in Japan
  • Epoch-making knowledge processing

Prolog (and Datalog) today

  • Used in real-world in specialized domains
  • Basic of many reasoning & solving systems

TinyProlog

Logic programming by example

Prolog "Hello world"

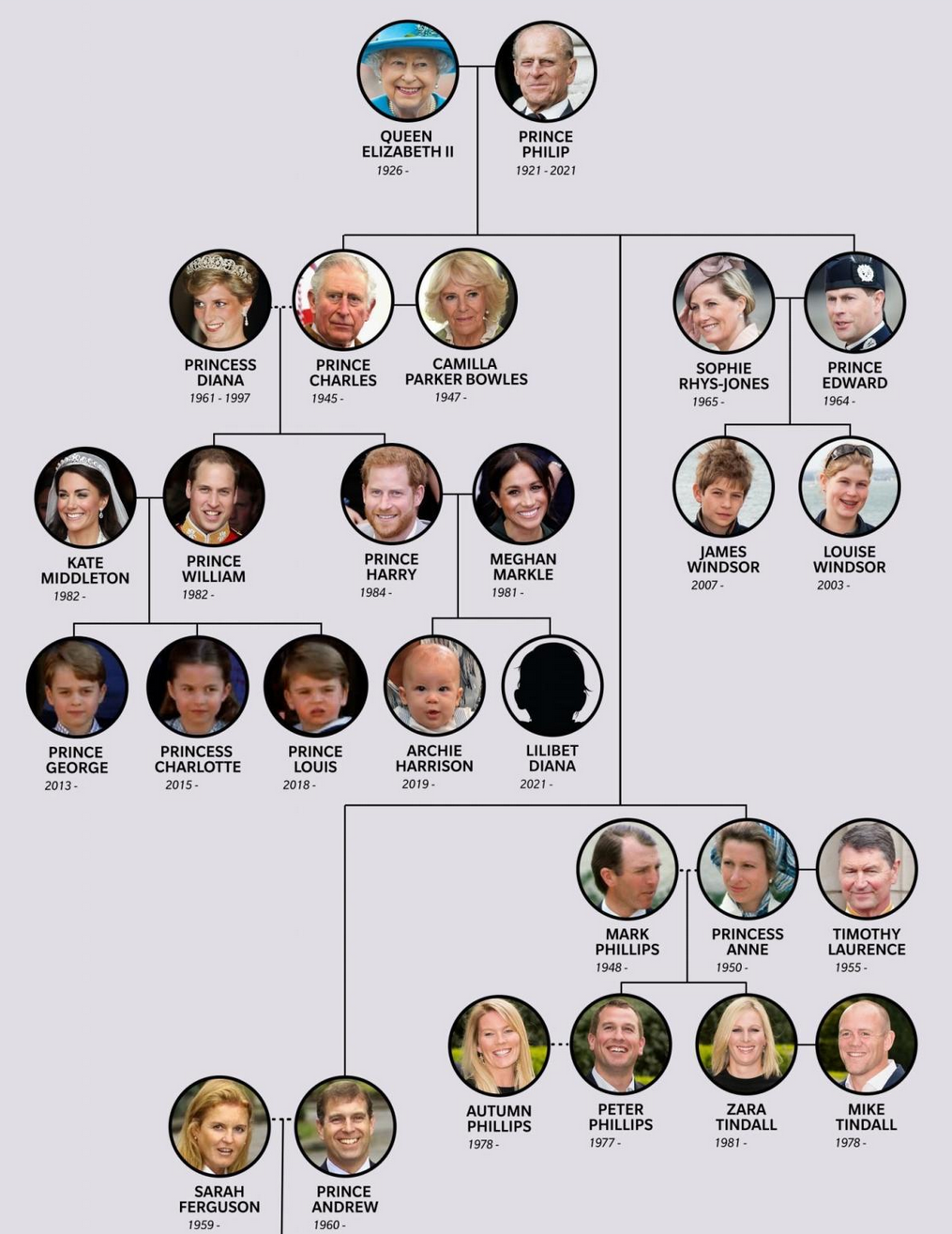

Family tree querying

  • Simple database querying
  • Search for data patterns
  • Grandparent (parent of a parent)
    Father (parent who is male)

List processing

  • Linked lists with "cons" and "nil"
  • Matching lists with patterns
  • Many functions become multi-purpose

Demo

Family tree and lists

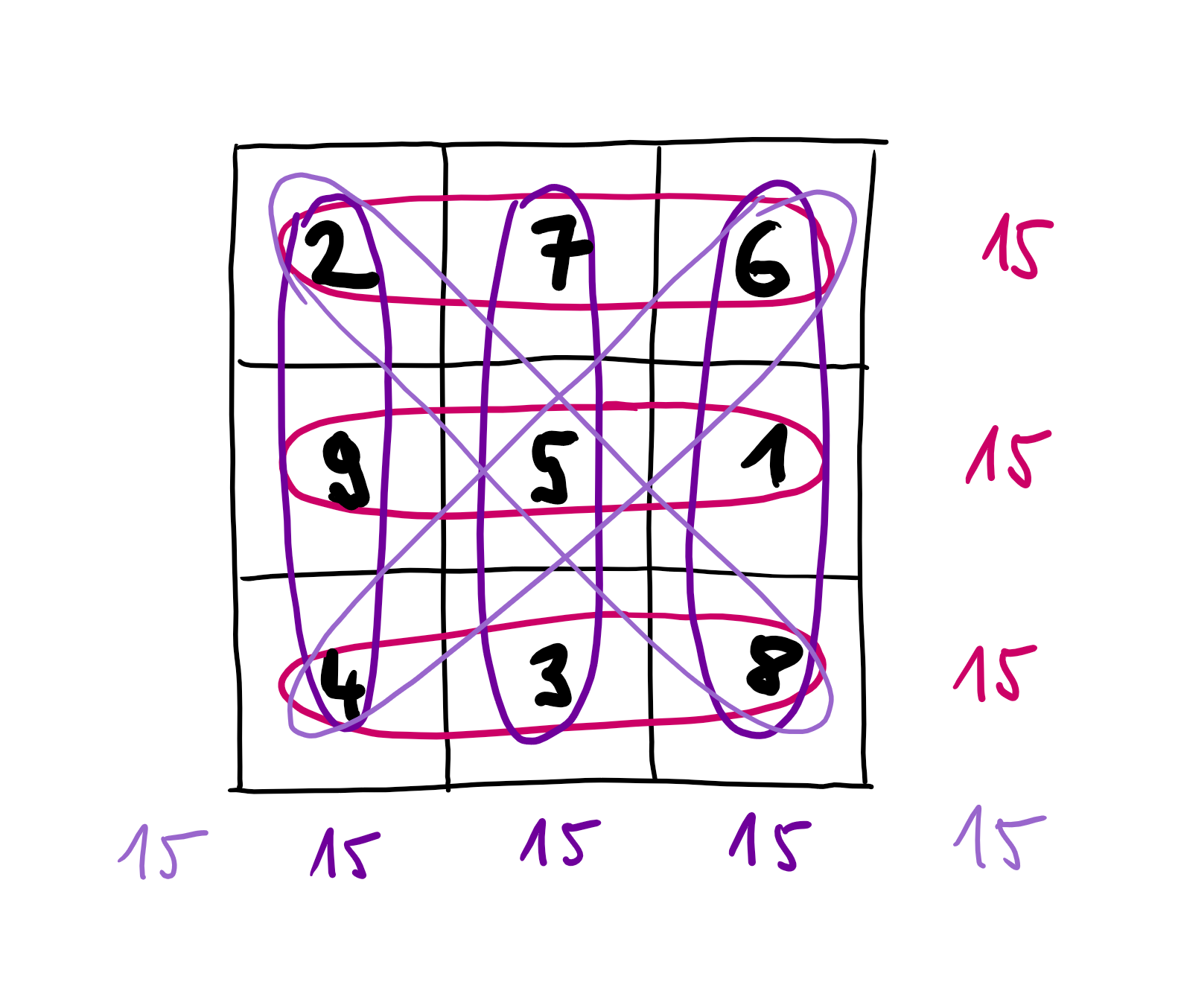

Magic squares

Naive method
Generate & test
all permutations

Better approaches
Try adding only reasonable options

Naive is fine for us!

Demo

Generating magic squares

TinyProlog

A bit of theory

Model of knowledge

Closed world assumption

  • Only declared facts are true
  • No unknown children exist!
  • Shapes the semantics of Prolog

Negation in Prolog

  • Yes means provably true
  • No means not provably true
  • False only in a closed world

Theory behind resolution

Prolog programs as logic clauses

  • Horn clause: \(A \leftarrow B_1 \wedge B_2 \wedge \ldots \wedge B_n\)
  • Equivalent: \(A \vee \neg B_1 \vee \neg B_2 \vee \ldots \vee \neg B_n\)

SLD resolution in Prolog

  • Sound and refutation-complete
    resolution for Horn clauses
  • Will prove 'false' if possible

Variables in Prolog clauses

Universally quantified over formula, existentially over body

\(\forall x \forall y (grandparent(x, y) \leftarrow \exists z (parent(x, z) \wedge parent(z, y)))\)

Transformed using standard logical operations

\(\forall x \forall y (grandparent(x, y) \vee \neg \exists z (parent(x, z) \wedge parent(z, y)))\) \(\forall x \forall y (grandparent(x, y) \vee \forall z \neg (parent(x, z) \wedge parent(z, y)))\) \(\forall x \forall y \forall z (grandparent(x, y) \vee \neg parent(x, z) \vee \neg parent(z, y))\)

We need to use free variables when applying rule!

Numbers

Calculating inside Prolog

  • Peano arithmetic encoded as zero & successor
  • Constraint Logic Programming (CLP) extensions
  • CLP(Z) adds a specialized solver for integers
  • CLP(B), CLP(Q), CLP(R) and more

Cyclic terms and occurs check

Occurs check

  • Avoid terms of the form A = f(A)
  • Supports rational trees (cyclic terms)
  • Not checking is faster, but not right

Practical Prolog

  • Some operations can fail:
    A = 1 + A, B is A.
  • Checks can be turned on:
    set_prolog_flag(occurs_check, true).`

Demo

Enabling occurs check

TinyProlog

Implementation structure

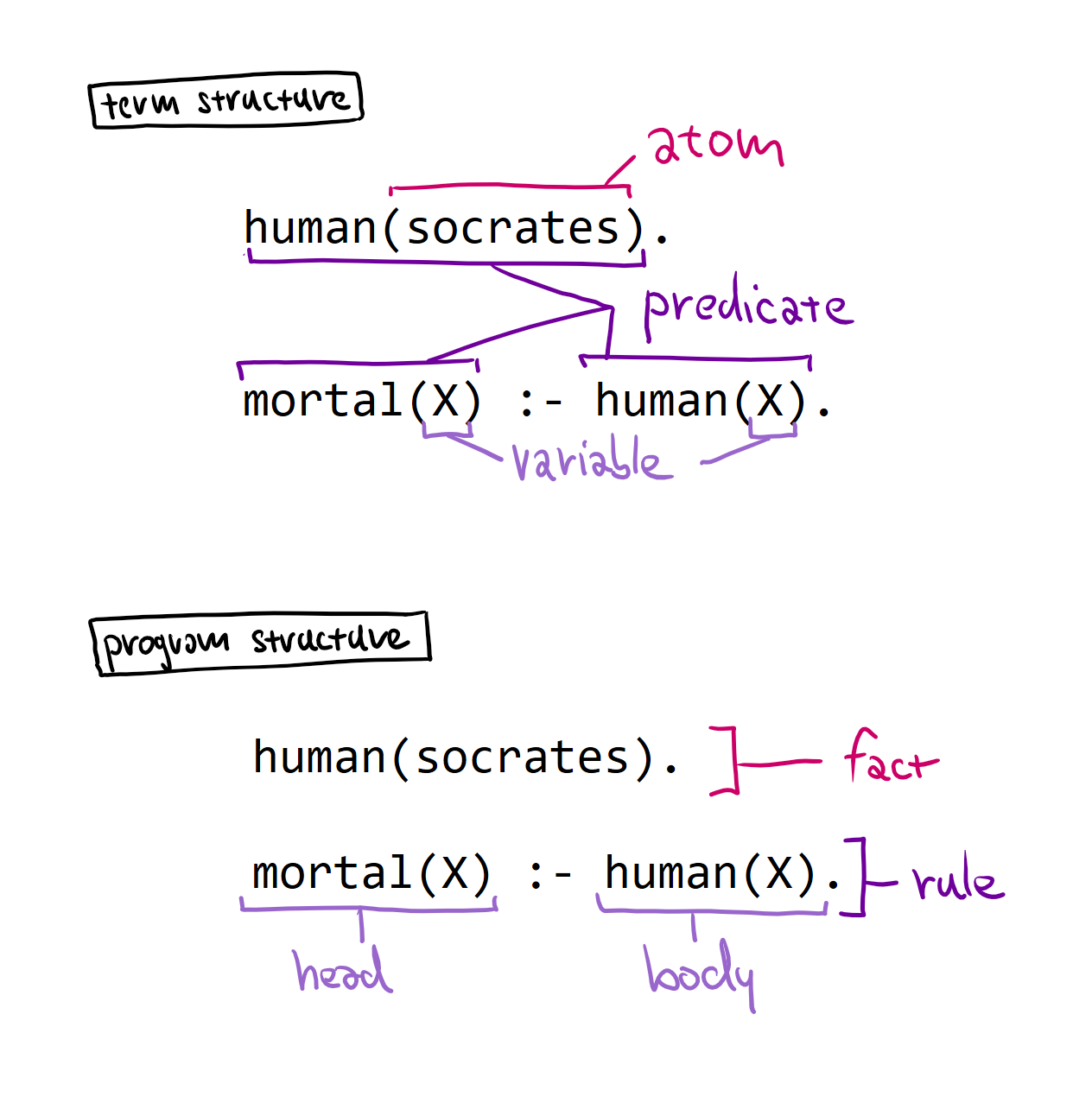

TinyProlog programs

Program is a list of clauses which are:

1) Rules (head + body) 2) Facts (head)

A term can be:

1) Variable
2) Atom
3) Predicate

(* Recursive term definition *)
type Term =
  | Atom of string
  | Variable of string
  | Predicate of
      string * Term list
  | Call of Term * Term list

(* Facts have empty Body *)
type Clause =
  { Head : Term
    Body : Term list }

(* Create a fact clause *)
let fact p =
  { Head = p; Body = [] }

(* Create a rule clause *)
let rule p b =
  { Head = p; Body = b }

TinyProlog programs

Encoded as F# types!

Atom vs. variable

Atom is a single data item, thing that exists.

Variable is a place­holder that we want to assign a term to.

Prolog resolution logic

  • Start with user query as the goal
    Single (or multiple) term(s) with unbound variables
  • Find applicable rule/fact by matching its head
    Unification to check if the rule can be applied
  • Generate substitution from the matching
    Substitution generated by unification process
  • Add goals based on the rule body
    Apply substitution and repeat until all goals solved

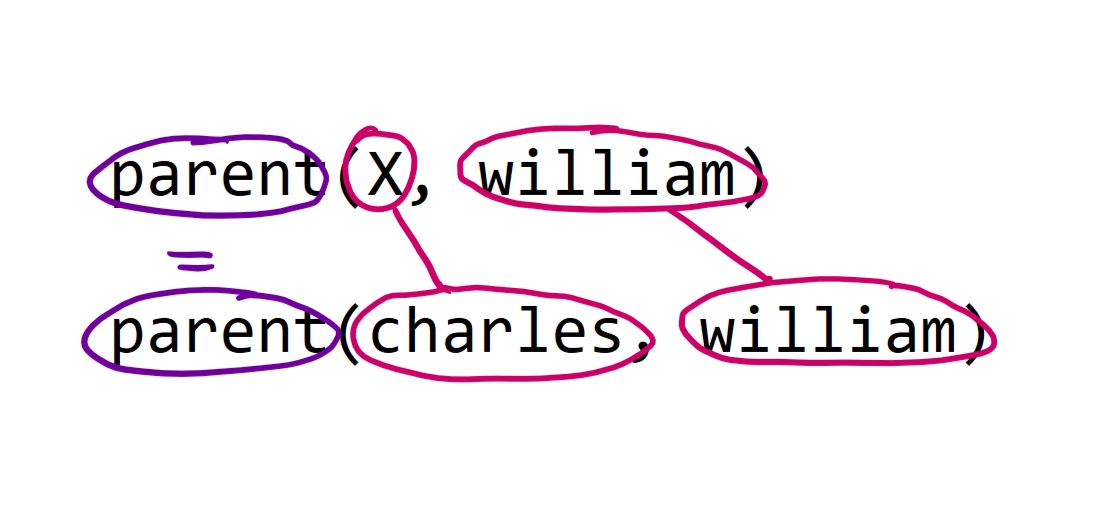

The unification process

Tiny implementation

  • Similar to our type inference code!
  • unify and unifyLists functions
  • Generate substitution for variables

Used in Prolog context

  • Same 2 uses of substitution
  • Occurs check done optionally
  • Use fresh set of variables when
    reusing rules from program database!
let rec unifyLists l1 l2 =
  match l1, l2 with
  | [], [] ->
      (* empty substitution*)
  | h1::t1, h2::t2 ->
      match unify h1 h2 with
      | Some(s) -> (*
         1. substitution 's' to
            unify 'h1' and 'h2'
         2. now unifiy 't1' and 't2'
            recursively & compose
         3. if not possible, fail *)
      | _ -> (* fail *)
  | _ -> (* fail *)

and unify t1 t2 =
  match t1, t2 with
  | Atom(a1), Atom(a2) -> (* does 'a1' match 'a2'? *)
  | Variable(v), t | t, Variable(v) ->
      (* return a substitution *)
  | Predicate(p1, args1), Predicate(p2, args2) ->
      (* if p1 = p2, unify arguments recursively *)
  | _ -> None

Unification logic

Split into two functions for better readability

unify matches terms

unifyLists matches two lists using unify

% Number: 0
zero

% Number: 1
one = s(zero)

% Number: 5
five = s(s(s(s(s(zero)))))

% Empty list
empty

% List [1]
cons(one, empty)

% List [1; 5]
cons(one, cons(five, empty))

Adding support for numbers and lists

Nothing extra is needed!

Good enough for a tiny implementation.

Terribly inefficient and limited if you want to calculate anything!

The F# language

Useful advanced features

Advanced F# features

Active patterns

  • Custom patterns for use in match
  • Match number with Odd or Even
  • Recognize special forms of terms
  • Complete or partial patterns

Sequence expressions

  • Write code that generates a sequence of items
  • Comprehensions (Haskell), generators (JS), ...
  • Lazy seq {..} or eager [..] or arrays [|..|]

Demo

Advanced F# features

Lab overview

TinyProlog system step-by-step

TinyProlog - Basic tasks

  1. Implementing basic unification of terms
    Recursively match atoms, variables and predicates

  2. Composing and applying substitutions
    To handle multiple occurrences of a variable correctly

  3. Searching clauses & variable renaming
    Find applicable rules and relevant facts in program

  4. Generating and proving goals recursively
    The key trick! Generate and solve goals in a loop

  5. Adding numbers to TinyProlog
    Representing, calculating and pretty printing

TinyProlog - Bonus and super tasks

  1. Lazy search and support for lists
    Refactoring for readability and more pretty printing

  2. Generating magic squares in TinyProlog
    In which we find out how slow our implementation is :-)

  3. Implementing call and functional maplist
    Adding special predicate for higher-order programming

  4. Adding support for occurs checks
    If you want to make it slower and more correct

  5. Implementing Prolog-style cut operator
    Super-bonus if you are into Prolog programming...

Closing

A tiny logic programming language

Conclusions

A tiny declarative logic programming language

  • Remarkably similar to ML type inference!
  • This is not a coincidence...
  • Evaluation as search, not a sequence of steps
  • Much work needed to make this practical

Tomáš Petříček, 309 (3rd floor)
petricek@d3s.mff.cuni.cz
https://tomasp.net | @tomaspetricek
https://d3s.mff.cuni.cz/teaching/nprg077
