Object-orientation

Dynamic lookup - object chooses how to respond

Abstraction - object state can be hidden from user

Subtyping - any compatible object can be used

Inheritance - reuse to implement a new object

Brief history

Origins of object orientation (1960s-70s)

Algol-based and scientific Simula

Tools for thought and messaging in Smalltalk

Conceptual development (1980s)

Rigorous Eiffel and "serious" C++

Prototypes and materialized objects in Self

Commercial refinement (1990s-2000s)

Class-based safe Java and C#

Prototypes in JavaScript and typed TypeScript

Why TinySelf?

"Pure" object-orientation

  • Simple, uniform system
  • Everything is an object (for real)
  • Simpler than class-based Smalltalk

Shows the potential of objects

  • Not Java-style organization of code
  • Objects and graphical interfaces!
  • Objects with introspection and debugging!

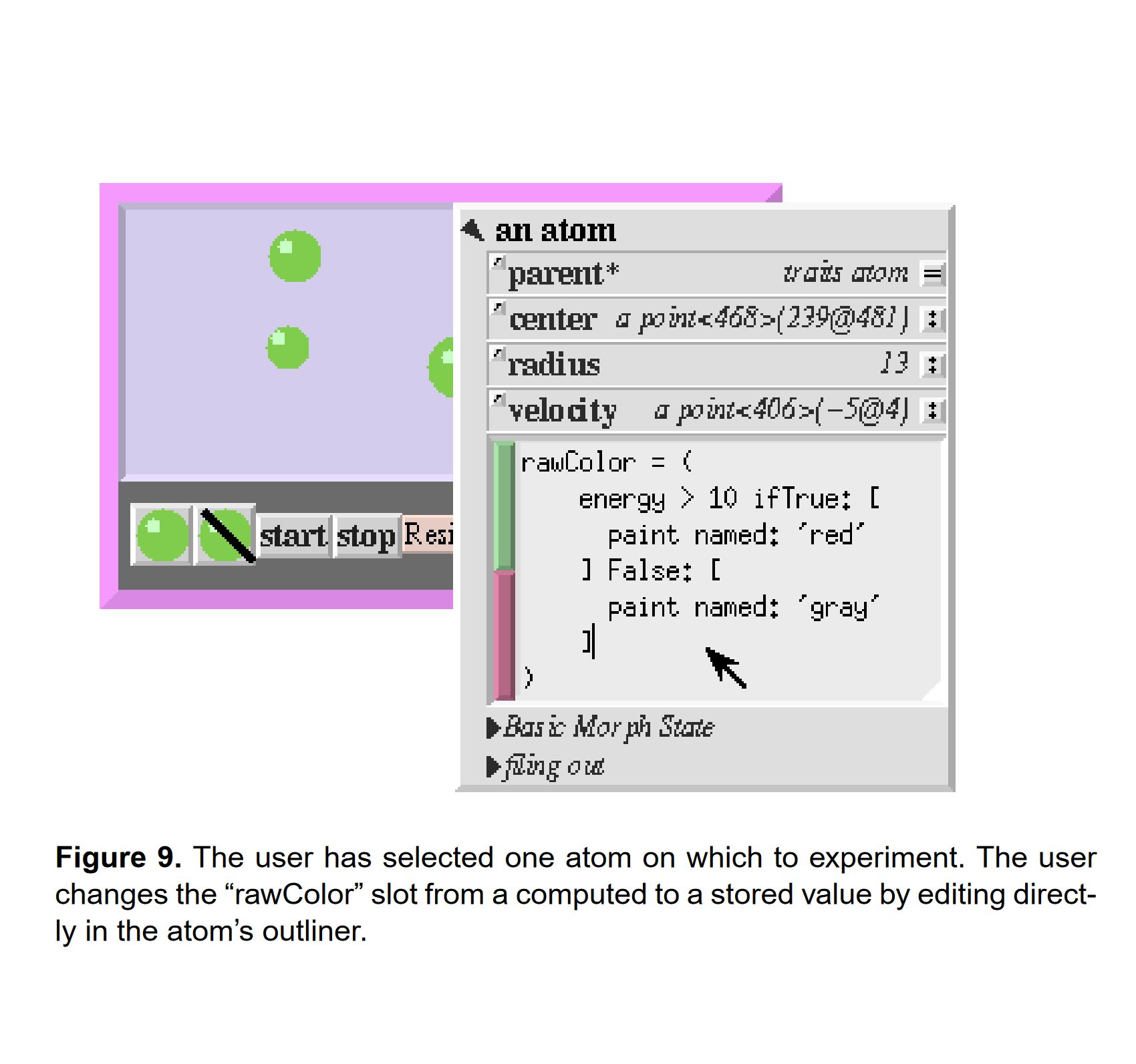

Self & Morphic user interface framework

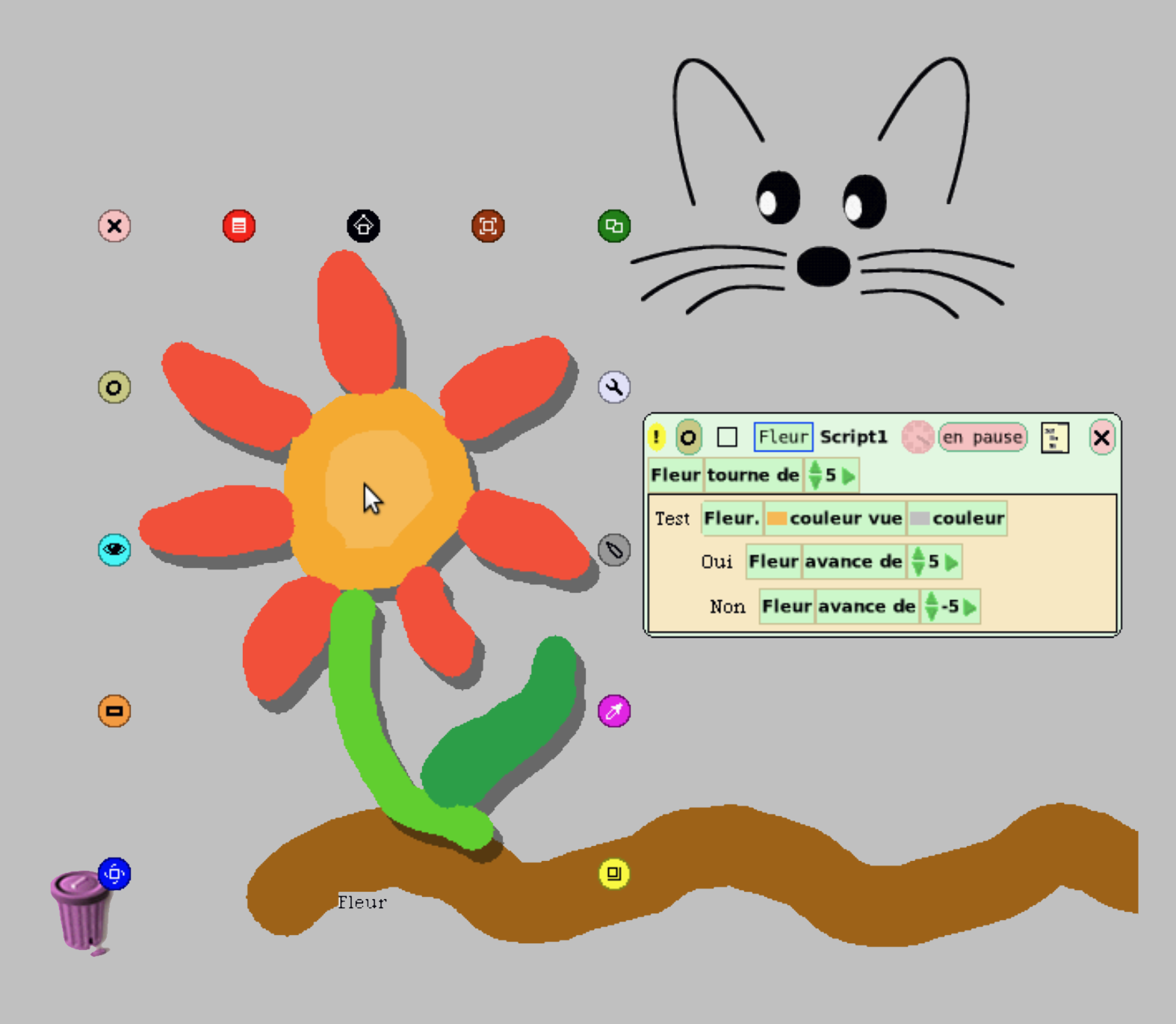

Visual programming

Programming by graphically manipulating objects on screen

Direct programming

Objects on screen are objects in the system

Demo

(Not so) Tiny Smalltalk

TinySelf

Scope of the implementation

  • Prototype-based multiple inheritance
  • Methods with simple interpreted code
  • Explaining basic runtime structures
  • Inaccurate interpreter in "Self style"
  • Sketch of what UI framework might look like

TinySelf

Self programming paradigm

Everything is an object

Really everything

  • Objects, methods, lambdas, expressions, activation records
  • Object has lists of slots and
    optionally contains code

Obect = slots* + code?

  • Data object has just slots
  • Method object has code
  • Closure has code and slots!
  • Data object has methods as slots

// Object consists of zero or more
// slots and optionally code
type Objekt =
  { mutable Code : Objekt option
    mutable Slots : Slot list }

// A slot has name and contents;
// Some slots are parents
and Slot =
  { Name : string
    Contents : Objekt
    IsParent : bool }

TinySelf objects

Object consists of zero or more slots and optional code!

In Self parent slot names end with *

TinySelf objects can
also be special things

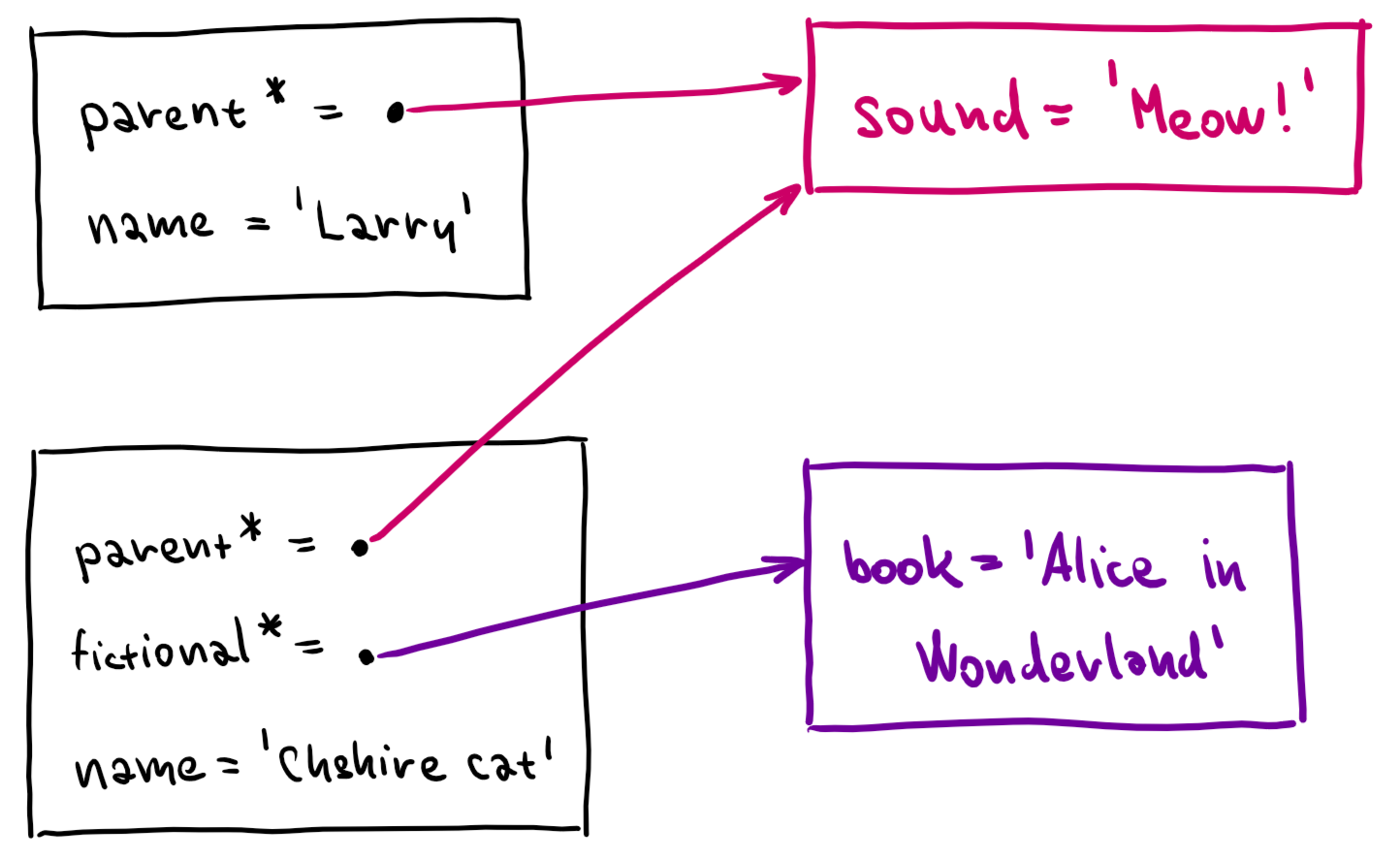

Prototypes and slots

Message send looks at target object first, then searches parents

cheshire name  // OK
cheshire book  // OK

larry name  // OK
larry book  // Fail

Message send fail if none or multiple slots found

Demo

Representing cats in Self

"""Data object with name"""
(| book = 'Alice in Wonderland' |)

"""Method with  some code"""
( self name printLine )

"""Data object with parent
 slot and a 'speak' method"""
(| parent* = cat
   name = 'Cheshire Cat'
   speak = (
     self sound printLine
   )
|)

"""Data access or method call"""
cheshire name
cheshire speak

Message sending

Lookup slot with a matching name, then:

  • If it contains data object, it is returned
  • If it contains method, the method is called

Assignment slots and special calls differ...

Demo

Hello world, traits and cloning

The power of simplicity...

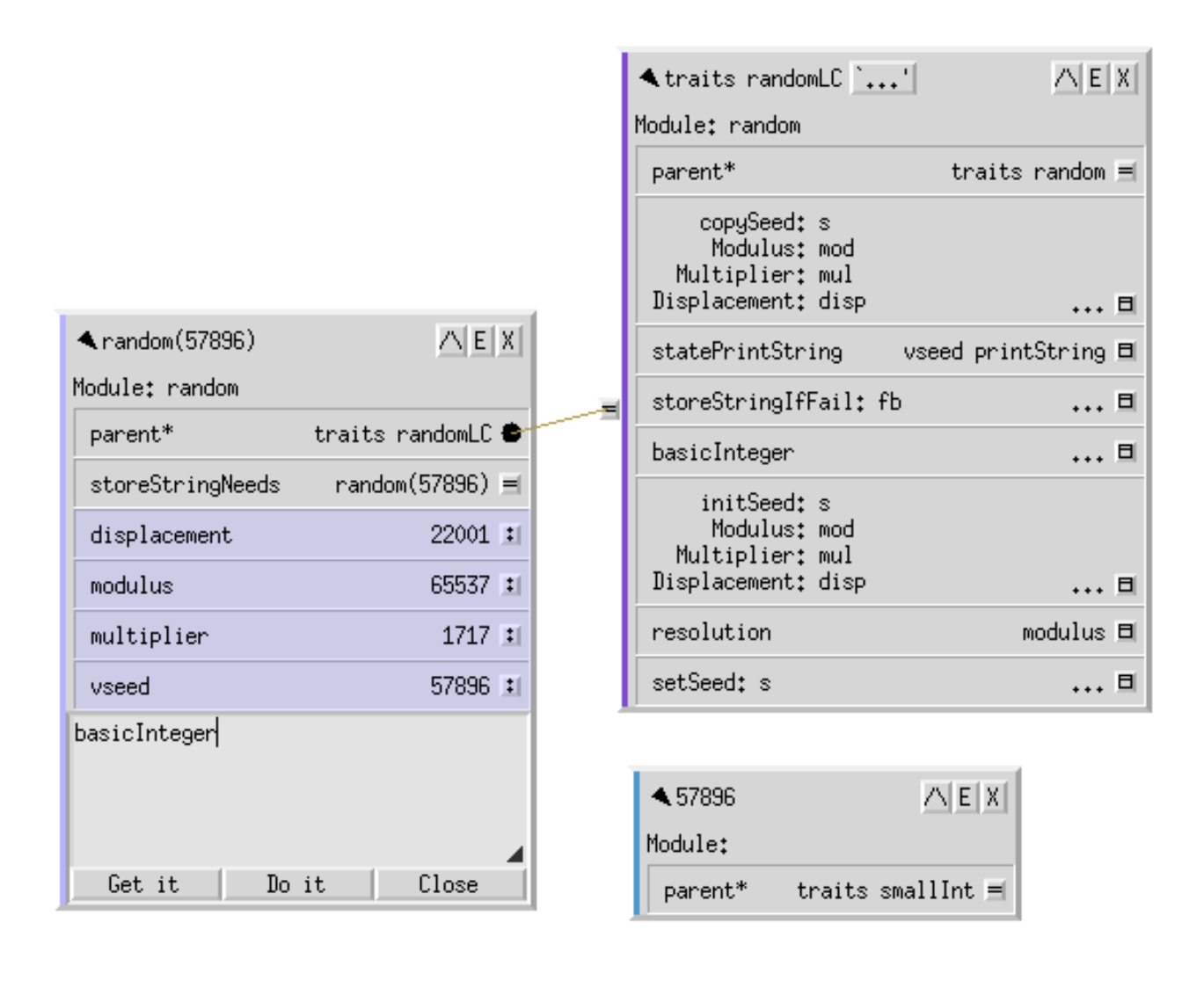

Simplicity and uniformity

  • All objects can be opened!
  • Activation records for debugging
  • Self-sustainable system

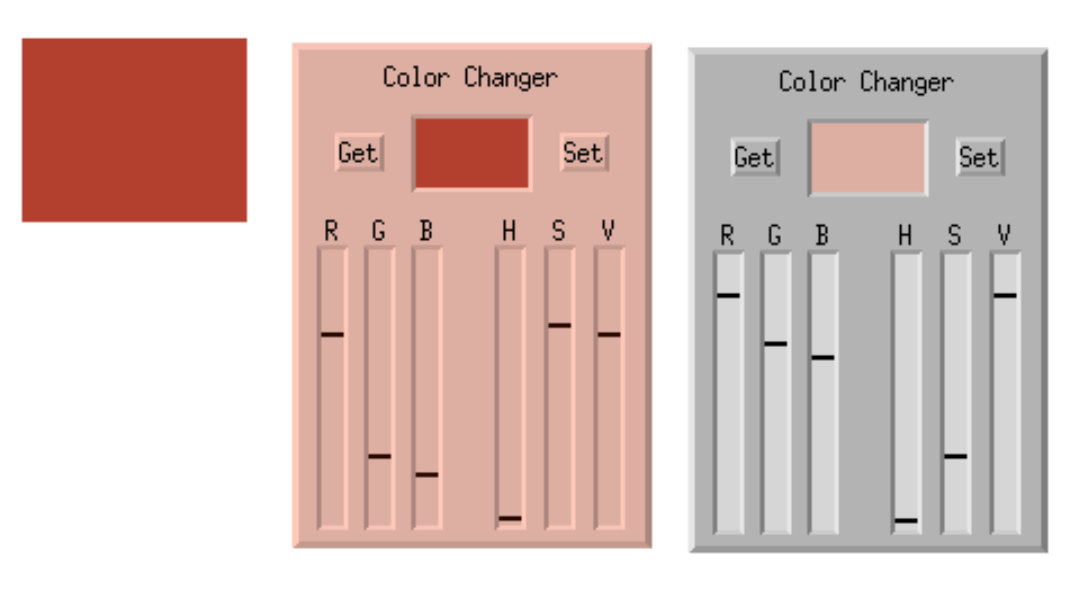

Morphic framework

  • Things on screen are objects!
  • Object with a morph prototype can draw itself
  • User interface is just morphs - no special code!

Demo

Morphic and graphical objects

The F# language

What we need for TinySelf

Mutable records in F#

Defining mutable objects

  • Records with mutable fields
  • We could use classes too

Equality and records

  • Still use structural equality by default
  • Not if records (can) contain functions!
  • ReferenceEquality attribute to override
type Person =
  { mutable Name : string
    mutable Book : string option }

let setName n p =
  p.Name <- n
let setBook b p =
  p.Book <- Some b

let x = { Name = "Bill"; k = None }
x |> setName "William"
x |> setBook "Alice in Wonderland"

match x with
| { Book = Some book } ->
  printfn "%s likes %s" x.Name book
| _ ->
  printfn "%s is sad :-(" x.Name

Mutable records

Helper functions
Make code a bit nicer
Can support |> pipe

Pattern matching
Same as immutable
Nice data extraction!

Demo

Working with mutable records

TinySelf programming style

Different than before!

Everything is an Objekt
Type definition stays
We change what we put in!

Uniformity has drawbacks Everything type checks!

Helper methods

Simplify object construction

let makeString s =
  makeDataObject [
    makeParentSlot "parent*"
      stringPrototype
    makeSlot "value"
      (makeSpecial(String s))
    makeAssignmentSlot "value"
  ]

TinySelf

Key implementation tricks

TinySelf

Key implementation tricks

  • How Self puts things on screen!
  • Slot lookup in parent objects
  • Message send to method/data slots
  • Activation records and calling
  • How TinySelf represents expressions

How Self-like systems put things on screen?

Escape hatch is a must
Smalltalk system calls
Self primitive calls
(primitives primitiveList)

TinySelf special objects
Primitive string values
Native F# methods

// Special TinySelf objects!
type Special =
  | String of string
  | Native of (Objekt -> Objekt)

// Optionally special object
and Objekt =
  { mutable Code : Objekt option
    mutable Special : Special option
    mutable Slots : Slot list }

// Code to clone an object
let cloneCode =
  { Slots = []; Code = None
    Special = Some(Native(fun arcd ->
      lookupSlotValue "self*" arcd
      |> cloneObject )) }

// Method with special code object
let cloneMethod =
  { Slots = []; Special = None;
    Code = Some cloneCode }

Special objects

String values

No other way to represent strings!

Native methods

F# function taking "activation record" and returning the result

Used as method code

TinySelf

Lookup and message sending

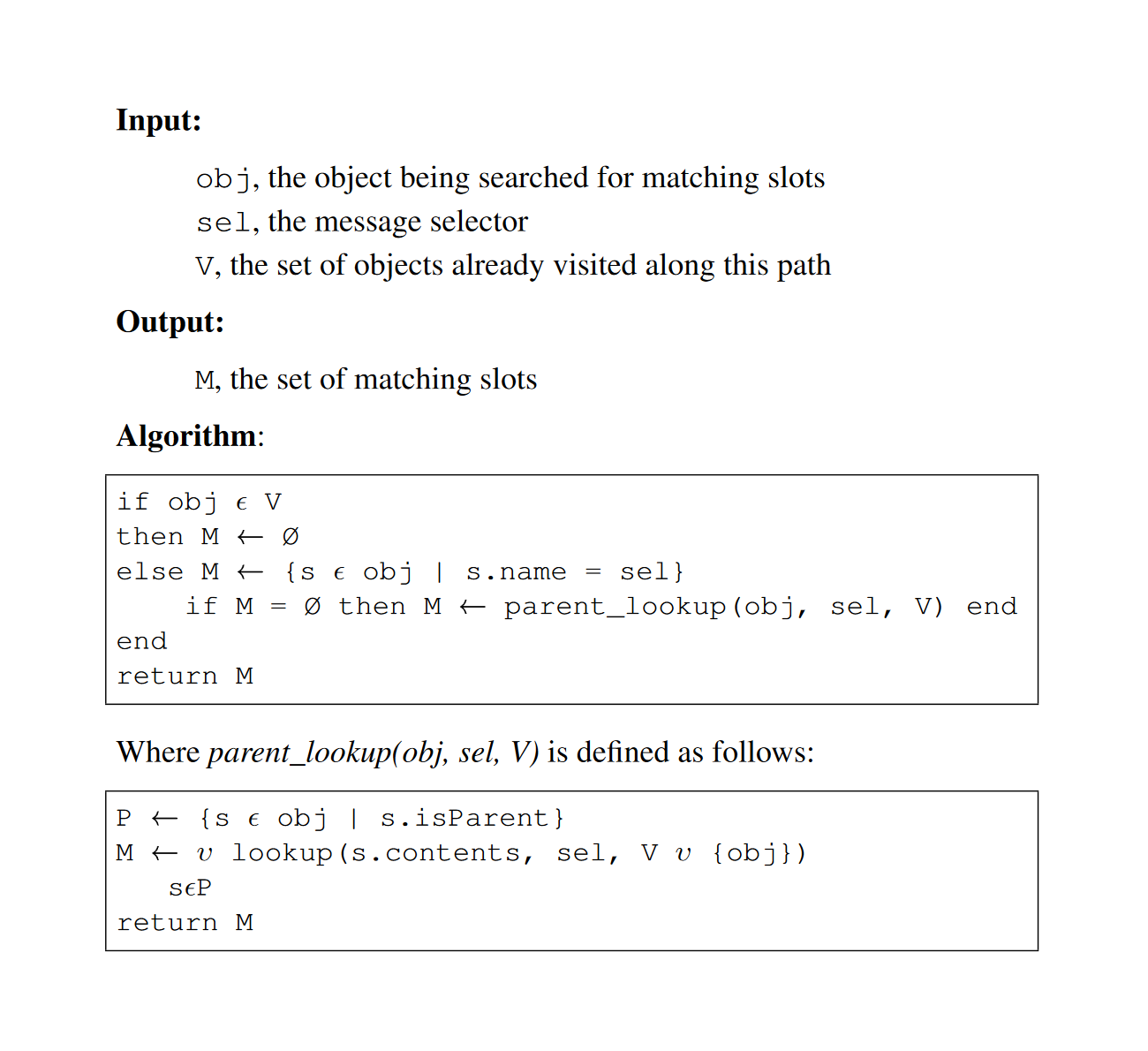

Slot lookup logic

1) Search target object

2) Search parents and union the results

3) Avoid infinite loops!

Message sending logic

Self handbook

A normal send does a look­up to obtain the target slot;

If the slot contains a data object, then the data object is simply returned.

If the slot contains a method, an activation is created and run.

TinySelf translation

  1. Find slot using lookup!
  2. Check it is exactly one
  3. If there is no code, return it
  4. If there is code, run it...
    • Create activation record
    • Run (non-)native code

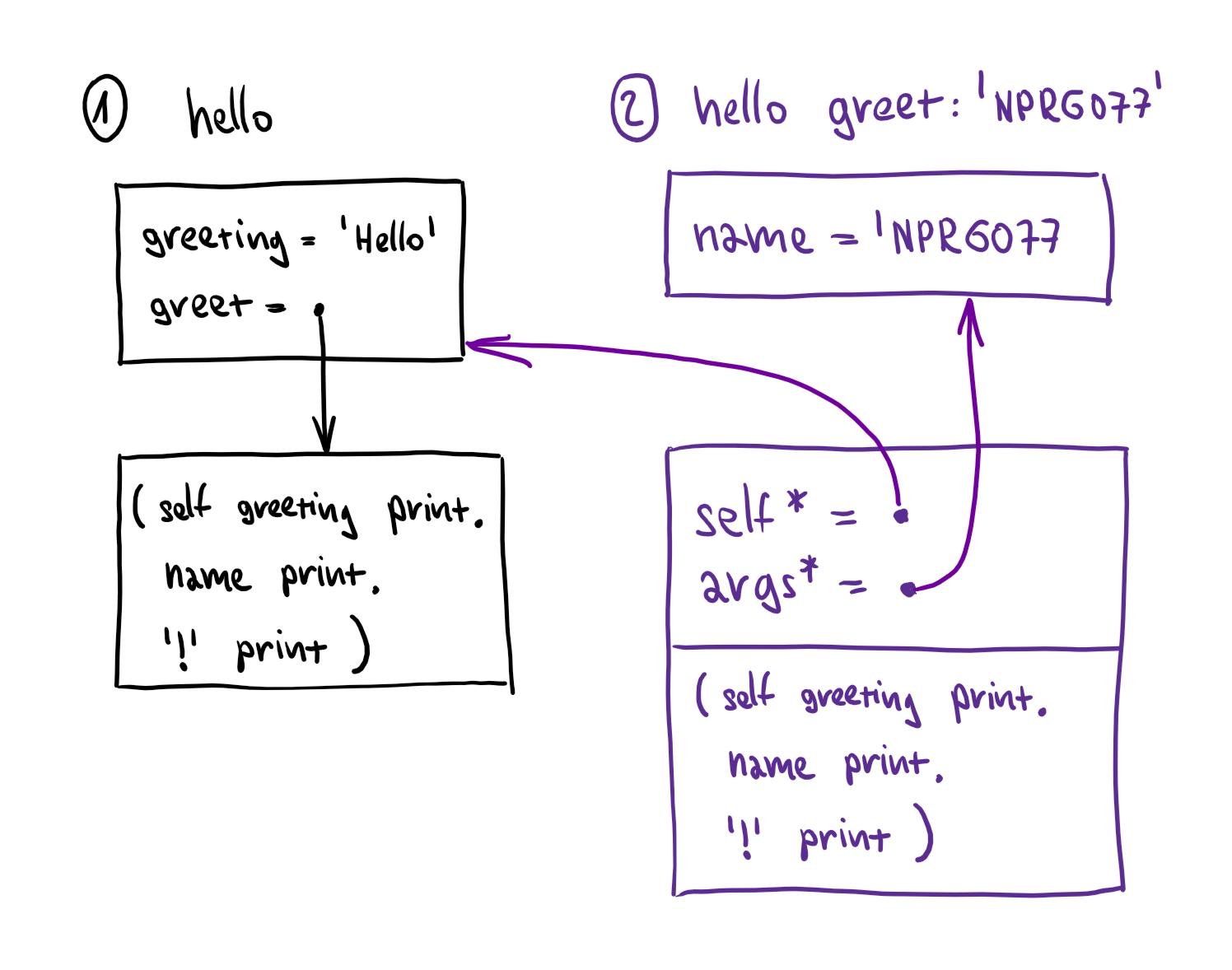

Activation record

Lookup in activation record to get all our code needs!

Clone of method
It could have data!

Self as parent
Access target's slots!

Arguments as parent
Access arguments!

Representing TinySelf code

AST is a tree of objects

  • All nodes have eval method
  • Called with activation as argument
  • Objects store sub-expressions etc.

Benefits and drawbacks

  • Differs from normal Self or Smalltalk!
  • Much simpler than compiled methods
  • Beware! Values and expressions are Objekt!

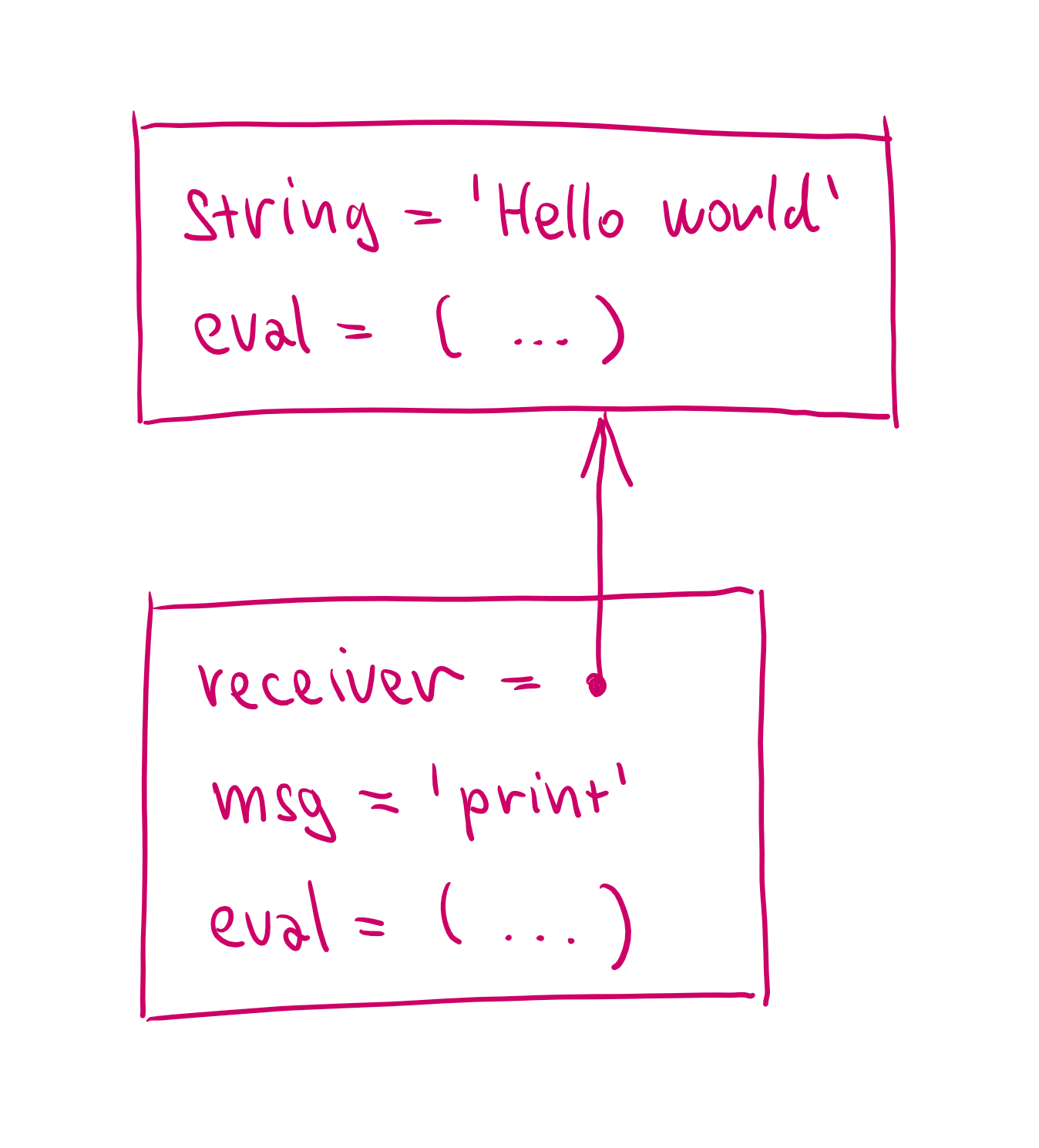

Simple expression

'Hello world' print


Send expression
Receiver, message, arguments to be used

String expression
String value to be returned

To make this nicer, put eval code into prototypes...

Lab overview

TinySelf system step-by-step

TinySelf - Basic tasks

  1. Implementing slot lookup
    Traversing the prototype hierarchy to find slots

  2. Implementing (basic) message sending
    Handling of data objects and (native) methods

  3. Cloning and mutating TinySelf objects
    Assignment slots and clonable trait

  4. Representing & interpreting TinySelf expressions
    Creating expression objects with eval method

TinySelf - Bonus and super tasks

  1. Arguments and sequencing of expressions
    Adding more types of expressions to TinySelf

  2. Booleans and 'if' as a message send!
    Booleans are just objects with an if method

  3. Objects as lists and more expressions
    Adding more infrastructure before the next step...

  4. Creating web-based visualizers
    A small step towards TinyMorphic framework

Closing

A tiny prototype-based OO language

TinySelf and OO

Dynamic lookup
Find method using lookup

Abstraction
No private slots in TinySelf

Subtyping
Object with required slots

Inheritance
By setting a parent slot

What is missing

Self-sustainable
Complete basic library
Reflection capabilities

Reflection via mirrors
Mirror objects
Inspect & modify

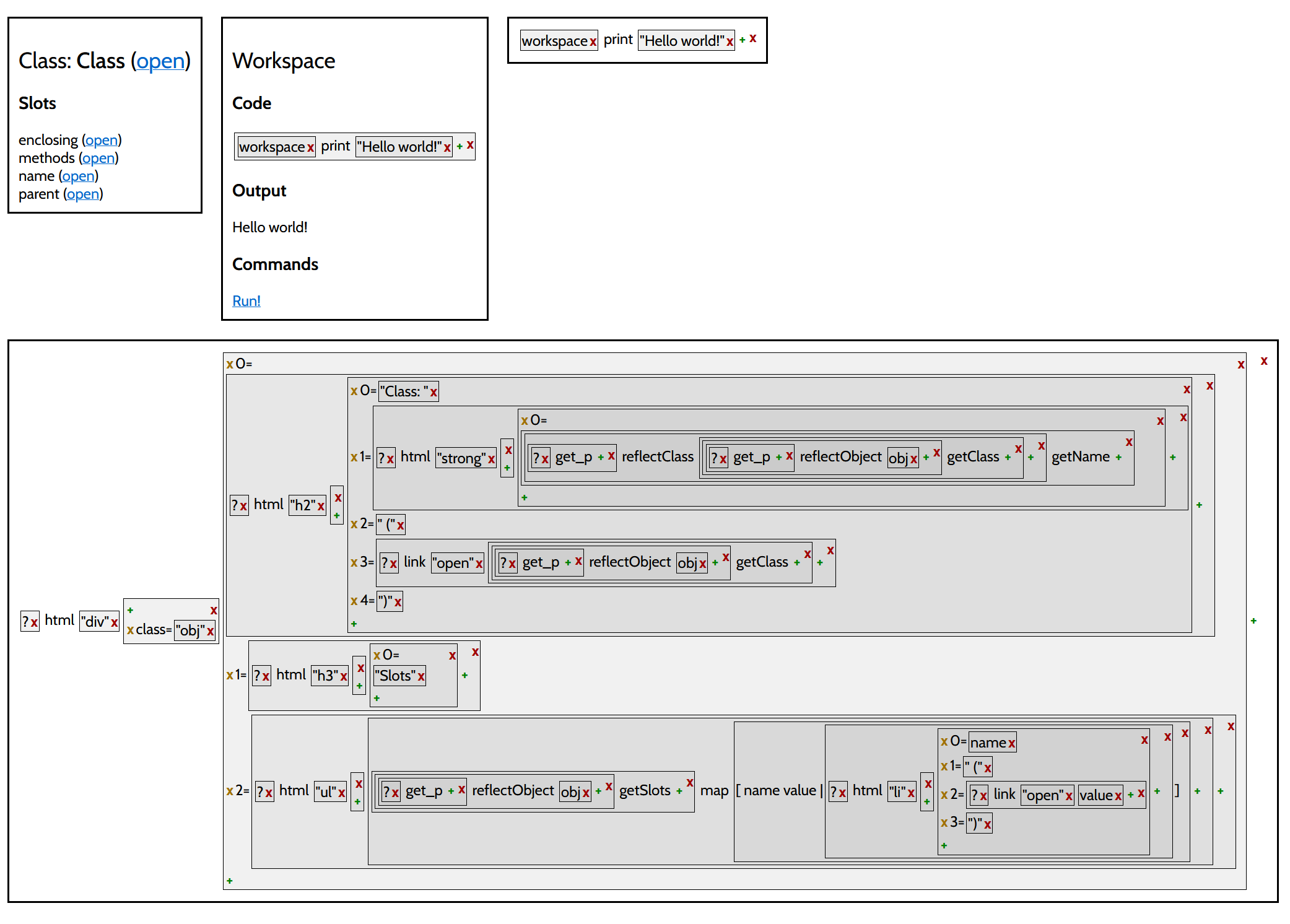

Done in Nanospeak

Conclusions

A tiny prototype-based object-oriented language

  • Basic logic of object-oriented languages
  • Shows how to build self-sustainable system
  • Different implementation - everything is object
  • Hard to implement! Need debuggers, not types
