CO582: Computer Interaction and User Experience
Feedback on assignment 2






Tomas Petricek

email: t.petricek@kent.ac.uk
twitter: @tomaspetricek
office: S129A

General notes

General notes

Common issues

Is the scope of the analysis reasonable?

Found some interesting love/hate points?

This is not a review for a magazine

Reference to user interaction principles

Readability, structure and formatting

General notes

What theories to use?

10 Usability Heuristics by Jakob Nielsen

Design principles of Don Norman

Different kinds of errors

Fitts' law for mouse navigation

Metaphors with fits and misfits

Multiple modes and mode errors

Work examples

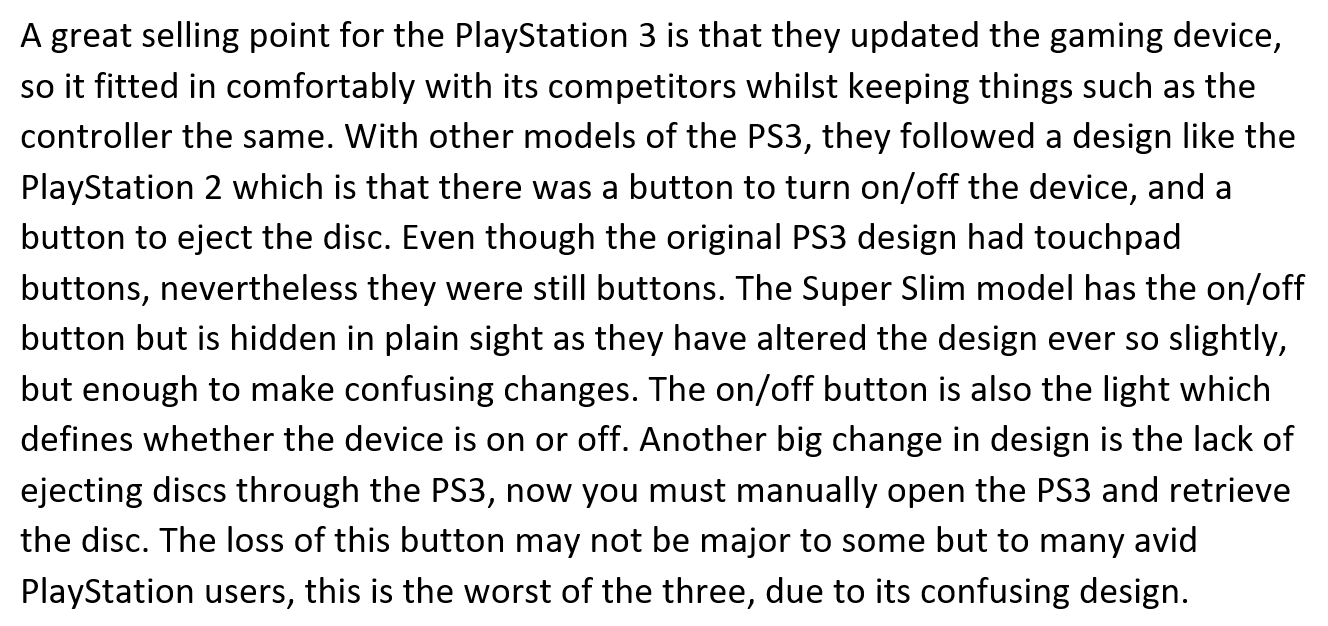

PlayStation 3

Is there any interface criticism at all?

What is confusing about the button design?

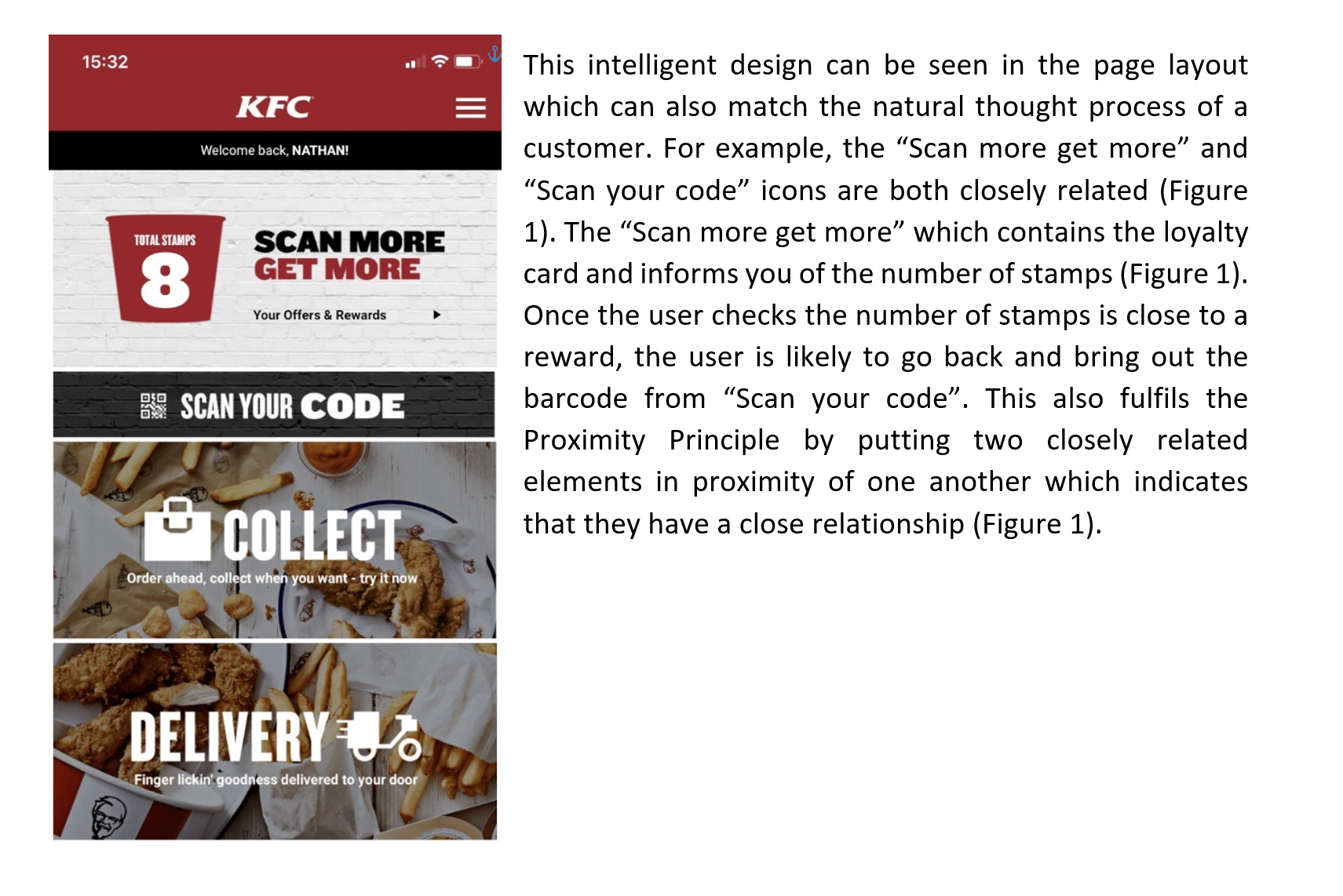

KFC app

Contrast to highlight the "Scan more get more" deal

Proximity between the banner and the first action

Smartphone interface

What aspect of smartphone interface is this about?

Notes on Android UI, phone usage, etc.

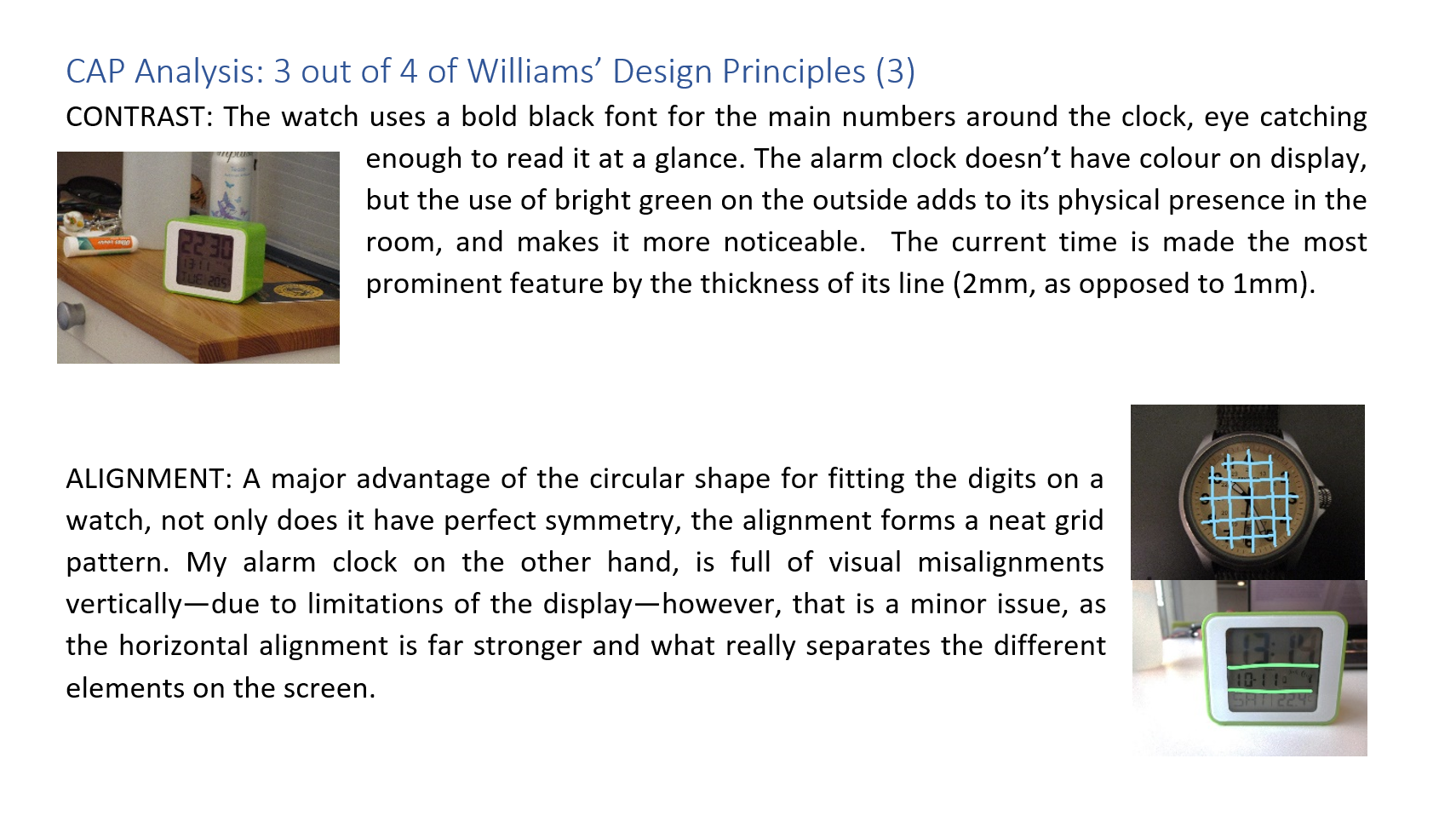

Watch and clock

Criticism with reference to specific principles

Choice of a few: alignment and contrast

Sports app

What is this about
and who wrote it?

What are major
topics covered?

What is the picture
in the corner about?

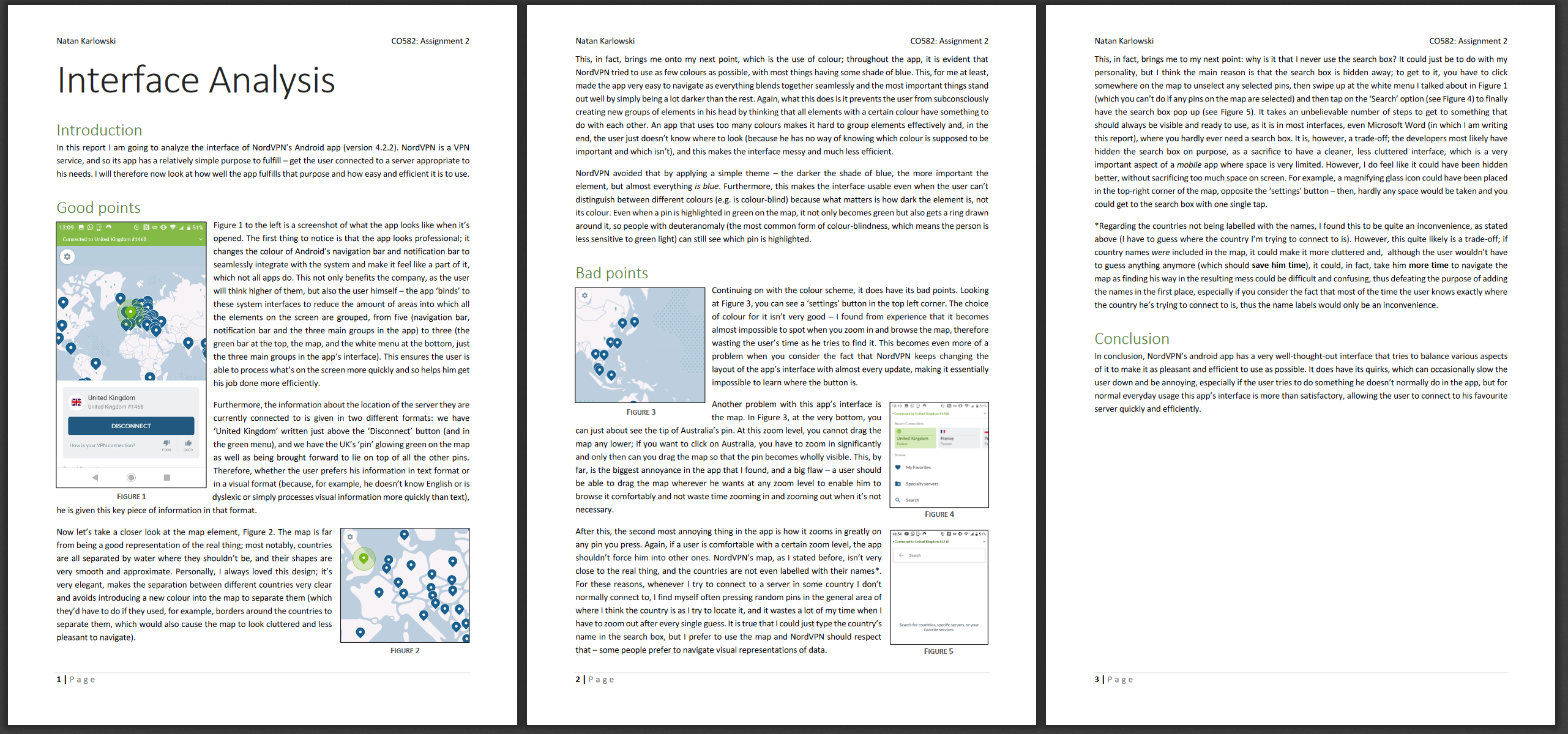

NordVPN

Title, author, sections with headings

Figures are clear and have numbers and labels

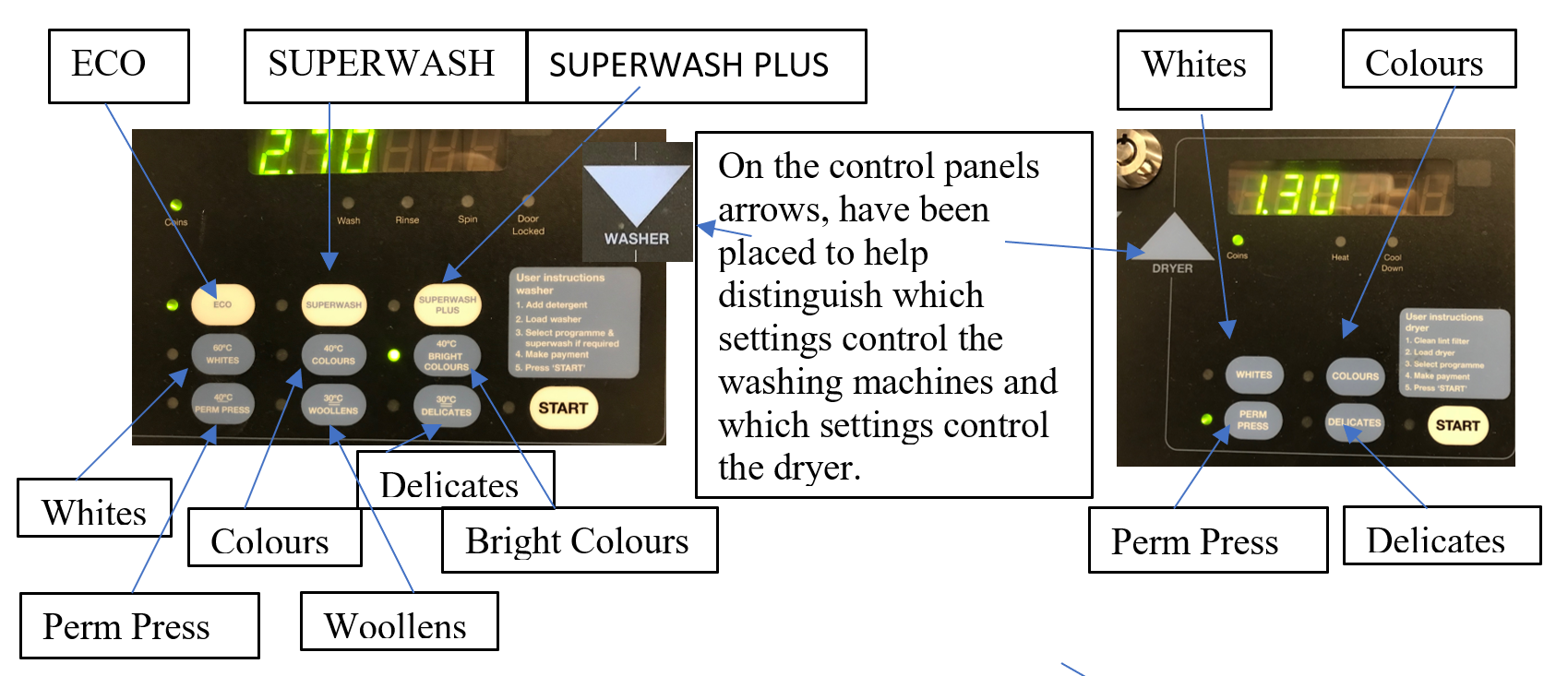

Washing machine

Highlights important points about the interface (arrows)

Adds labels for hard to read text

Interface examples

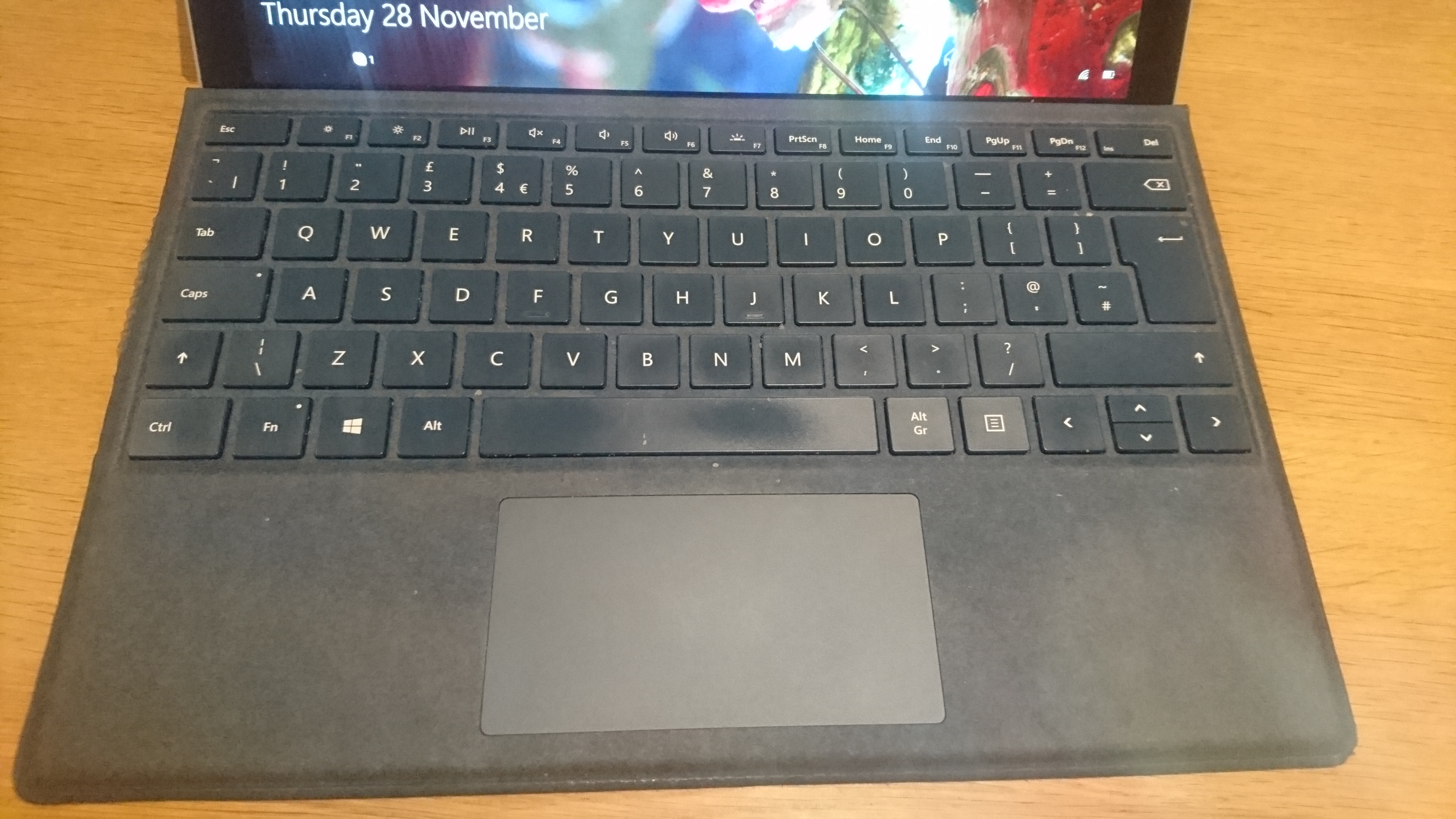

Surface Pro keyboard

Surface Pro keyboard

Fn key for special keys
Behaves as F1, F2, etc. when turned off
Behaves as volume, brightness when turned on"

Genuine usability issues
Closing application when turning sound off!
Navigating in code editor jumps to another page

Mode errors
Mode is indicated, but indicator is hard to see
Very easy to switch mode by accident

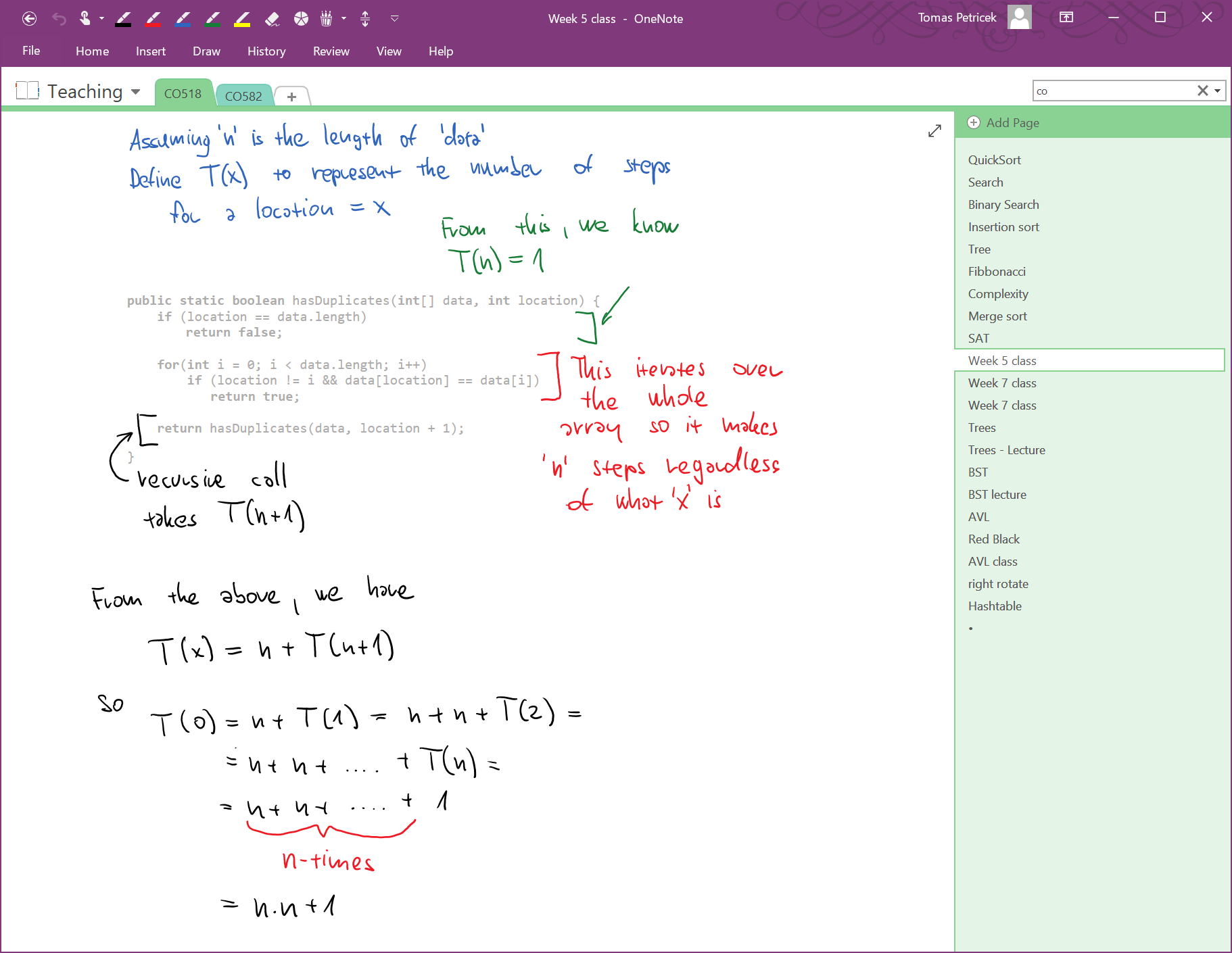

OneNote application

OnNote application

Notebook metaphor
OneNote is like a physical notebook
What are the fits and misfits of the metaphor?"

Notebook fits
Structure with notebooks and pages
Drawing with a pen, eraser on the back

Notebook misfits
Advanced tools for moving text around
It wouldn't occur to you that you can do this

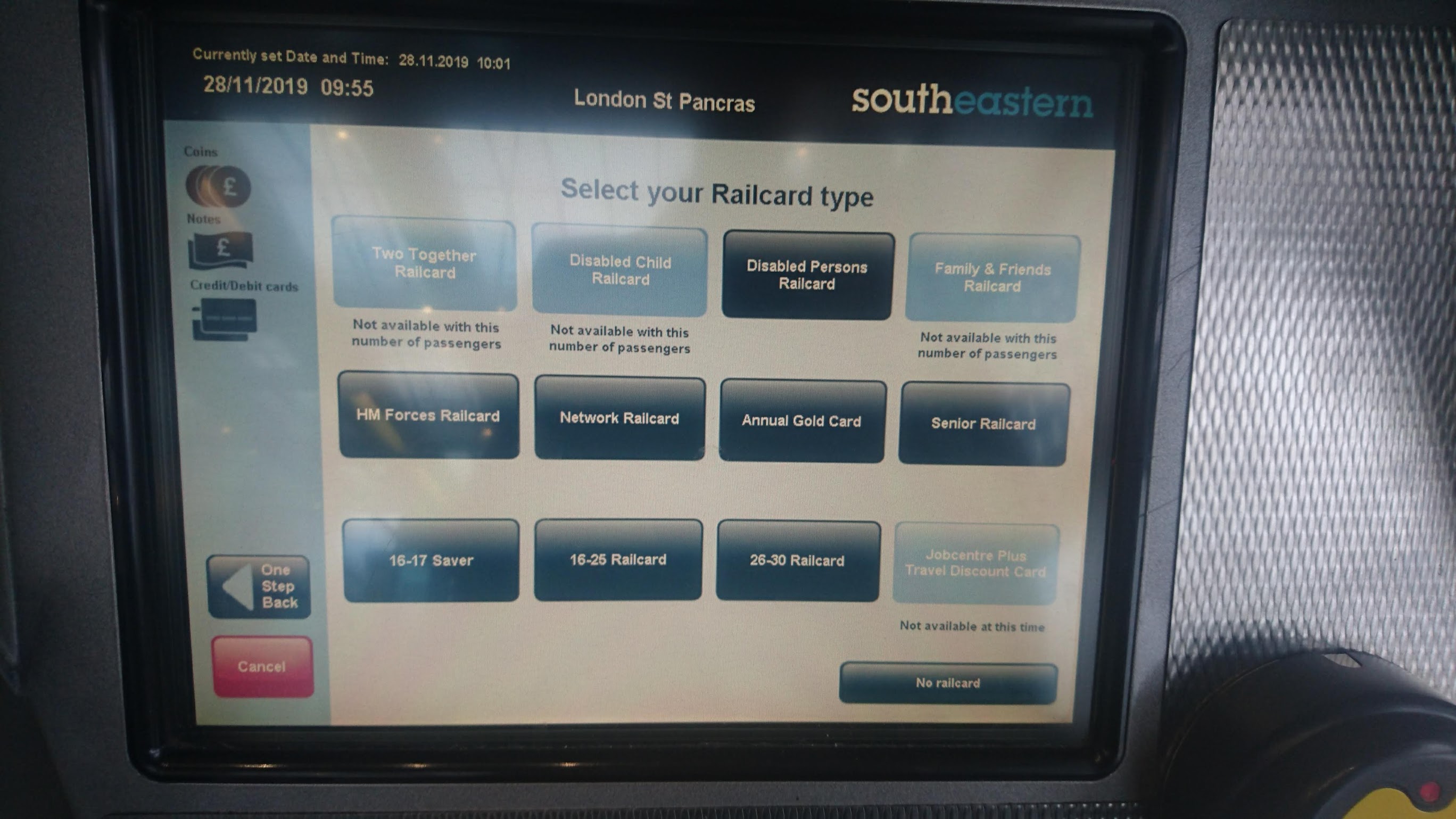

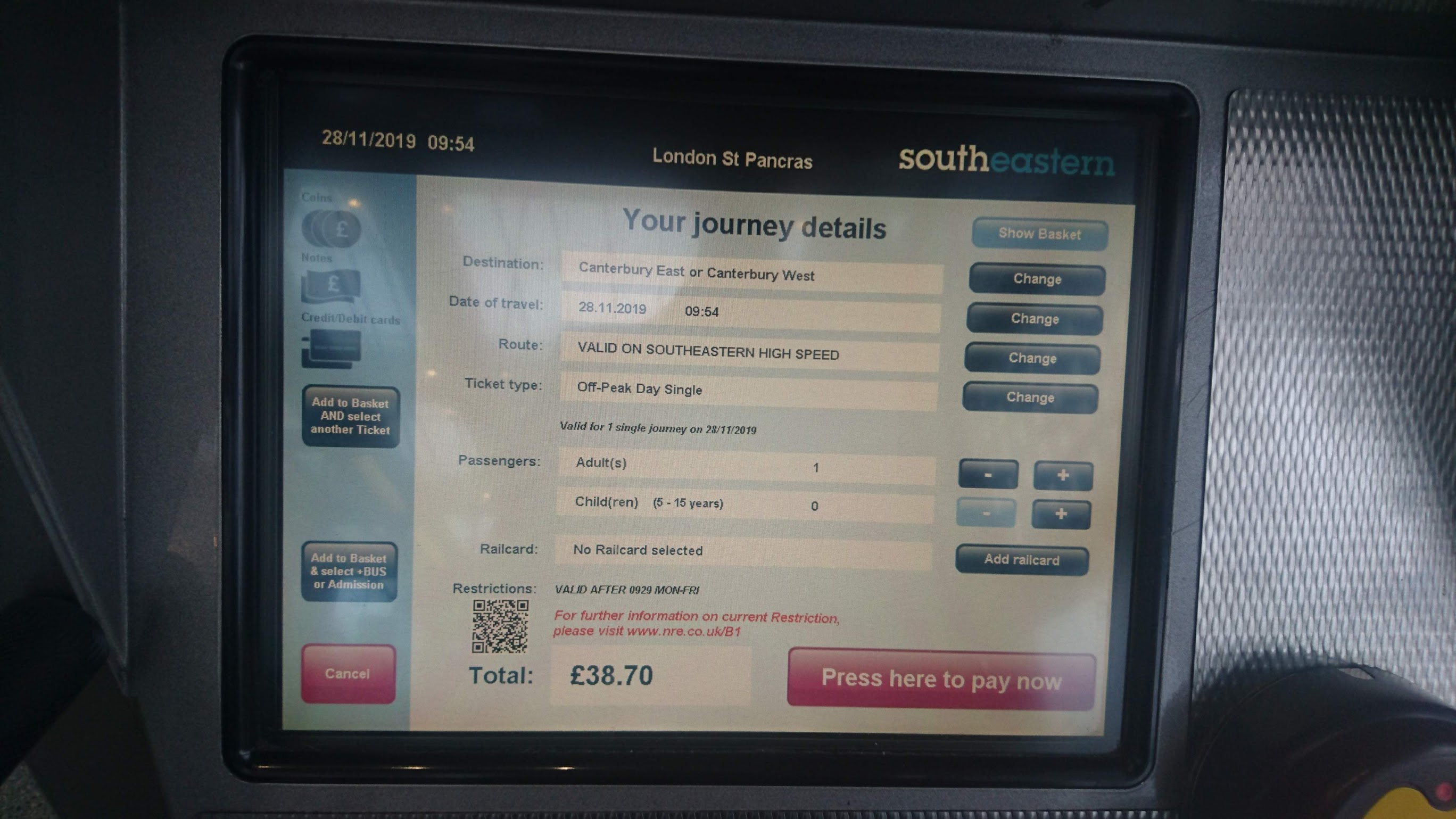

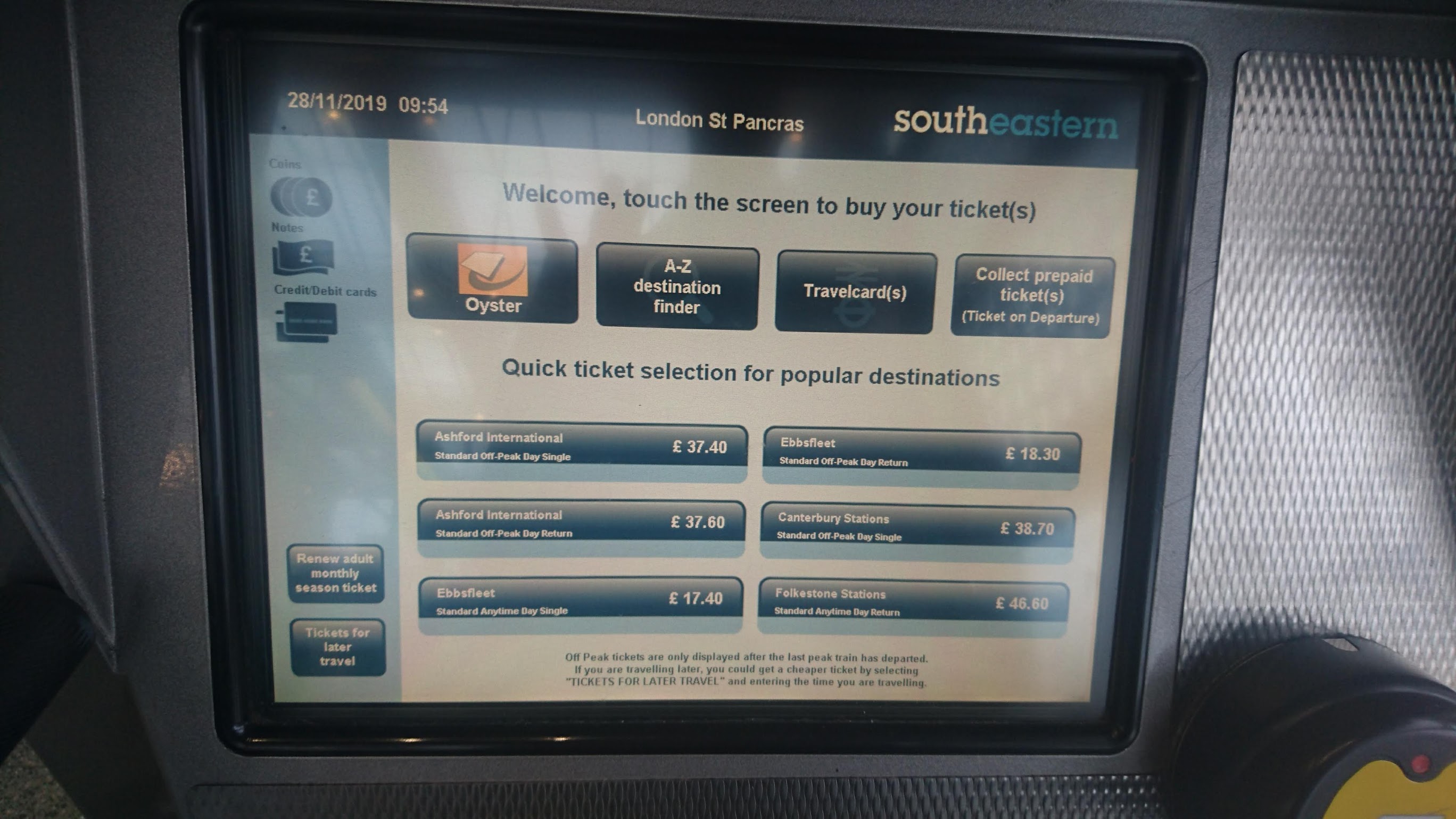

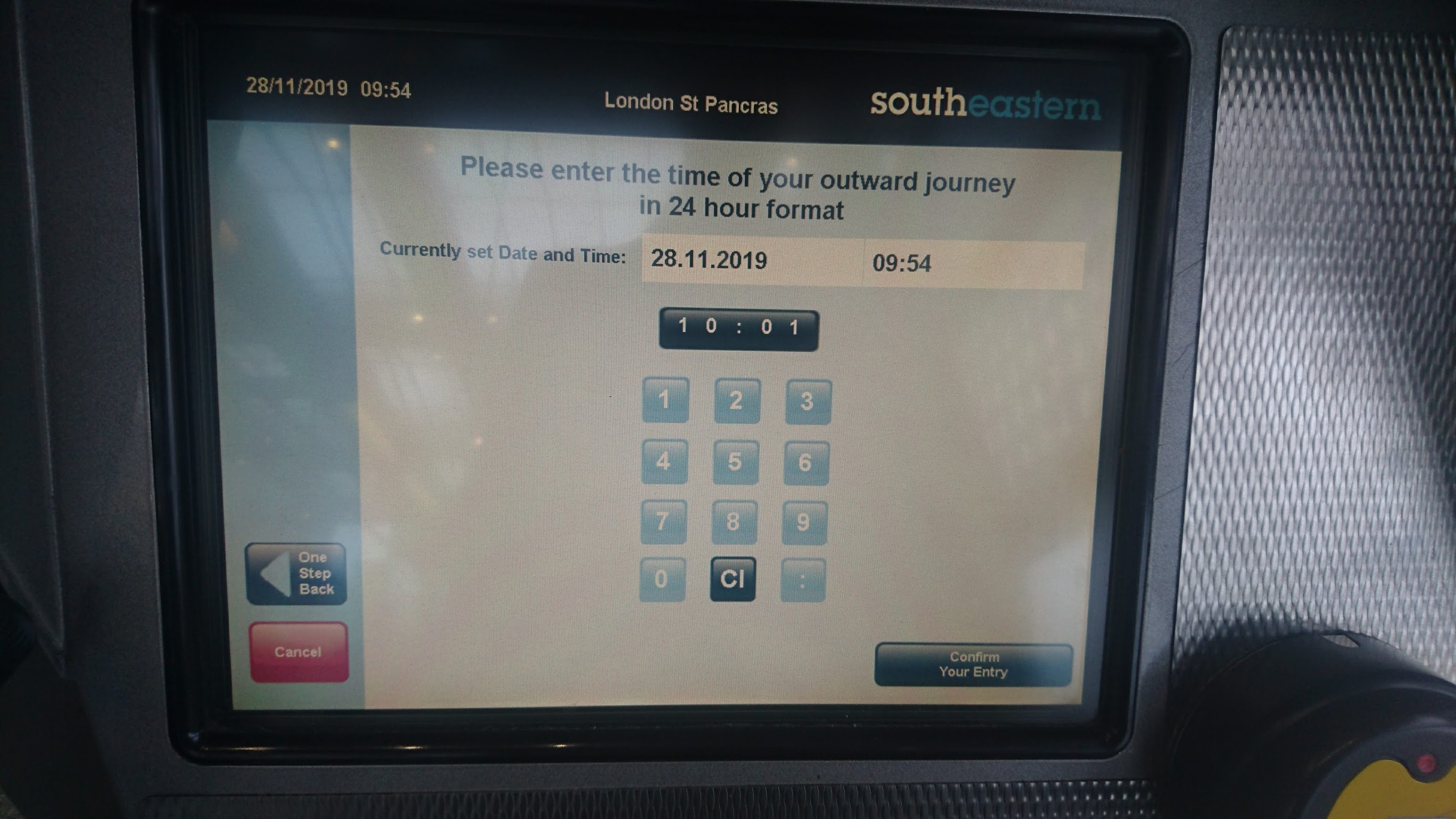

Southeastern tickets

Southeastern tickets

Southeastern tickets

Southeastern tickets

Southeastern tickets

Southeastern tickets

Southeastern tickets

Flexibility and efficiency of use (Nielsen)
Provides easy default option
A button for "Tickets for later travel"

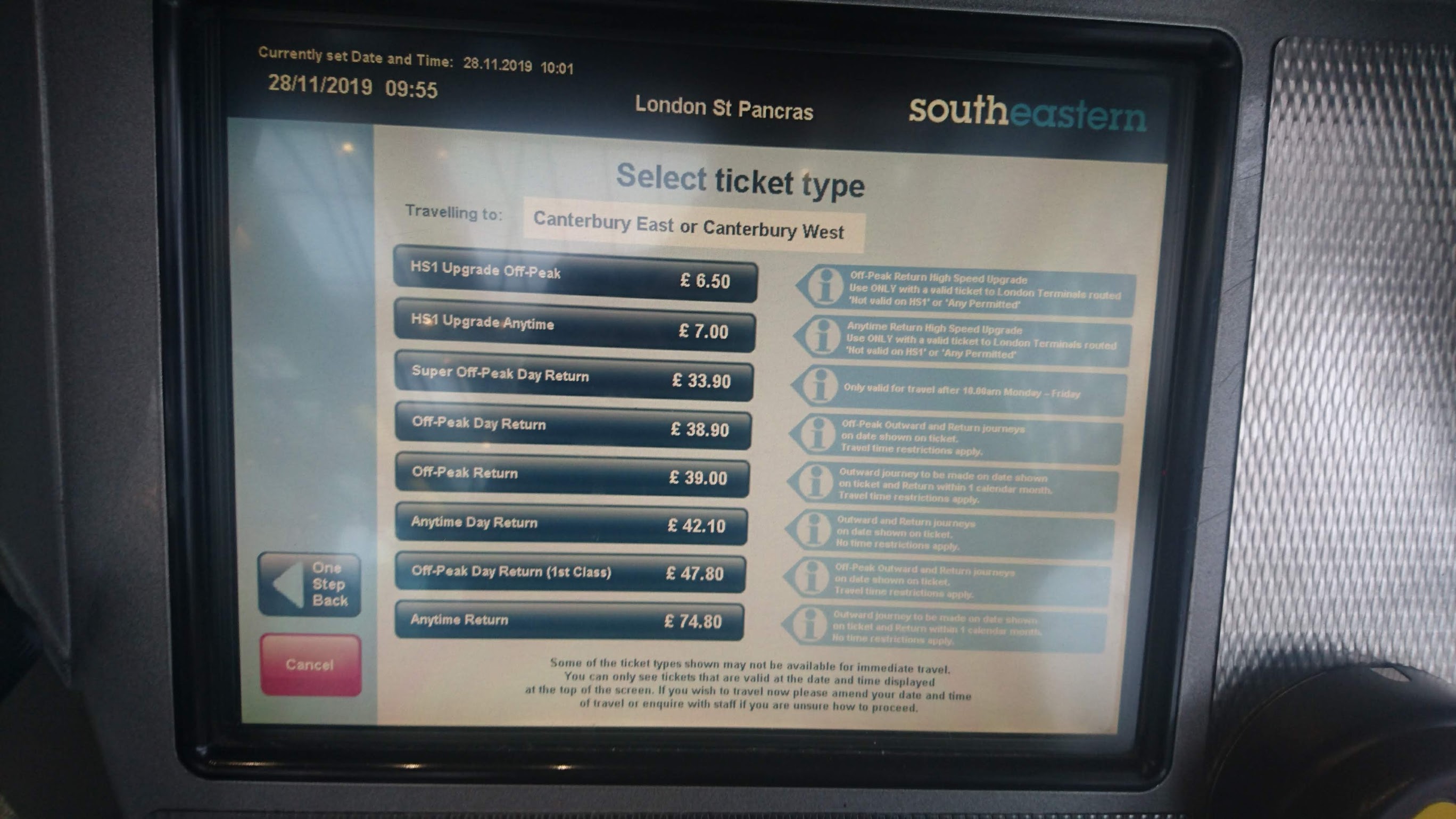

Visibility (Norman)
Super off-peak ticket is out of sight
Hidden behind "later travel" when you travel now!

Mode errors
Different ticket options shown in different modes
You do not even know there are two modes!

Summary

CO582: Feedback on Assignment 2

What are the most important lessons

  • Think about interactions and usability
  • Support your argument with theories
  • Format and structure documents well!


Tomas Petricek
t.petricek@kent.ac.uk | @tomaspetricek
