Where I'm coming from?

  • PhD, University of Cambridge
    Types for context-aware programming
  • Microsoft Research Cambridge
    F# and applied functional programming
  • The Alan Turing Institute, London
    Expert and non-expert tools for data science
  • University of Kent, Canterbury
    Programming systems and history

What is my quest?

More programming lan­guage research in Prague!

Ask about reading group!
Do a PL project or thesis!
Join us for a PhD?

Side-effects

Monads and monad transformers

// Random number generators
let rnd = Random()
rnd.Next()

// Get the current time
System.DateTime.Now

// Throw an exception
raise "Something went wrong"

// Write to a file
File.WriteAllText(
  "/tmp/test.txt", "Hello!")

// Use mutable state
let mutable counter = 0
counter <- counter + 1

Side-effects

Sooner or later, you need to do them!

Communicating with the outside (network, files, input/output)

Expressing things on the inside (threads, mutable state, non-determinism, exceptions)

Side effects

Different approaches

  • Allow anywhere but use cautiously
  • Implement and track using monads
  • Allow but track using effect systems
  • Implement and track sing effect handlers

Monads and monad transformers

Capture effect as monadic type

  • Can fail: a -> Maybe b
  • Uses state: a -> State b
  • Interactive: a -> IO b

Issues with monads

  • They cannot be easily combined!
  • Neither: a -> State (Maybe b)
  • Nor: a -> Maybe (State b)

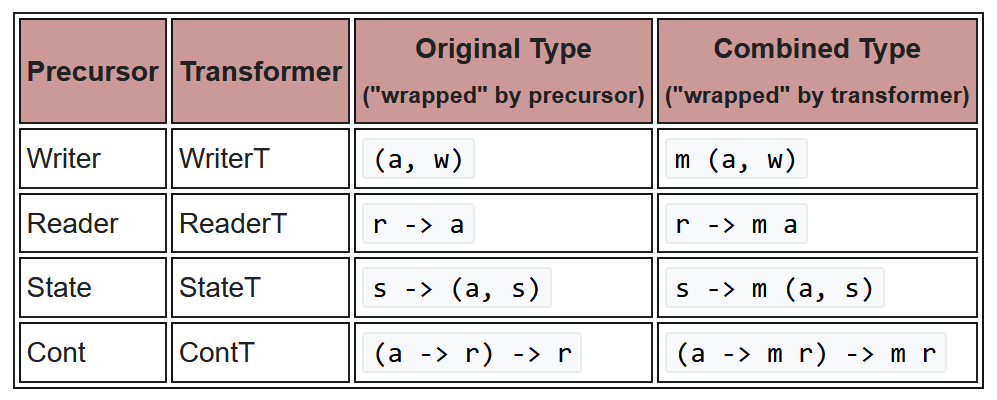

Monad transformers

Wrap another monad to produce a new one

Works but not great...

Only some combinations
Not an automatic process
Code becomes ugly

Effect systems

Effects and effect handlers

Effects and effect handlers

Effect systems (1980s-90s)

  • Information about effects in types
  • Memory, networking, IO
  • Mostly theoretical papers

Effect handlers (2010s-20s)

  • New implementation method
  • Better tracking in the type system

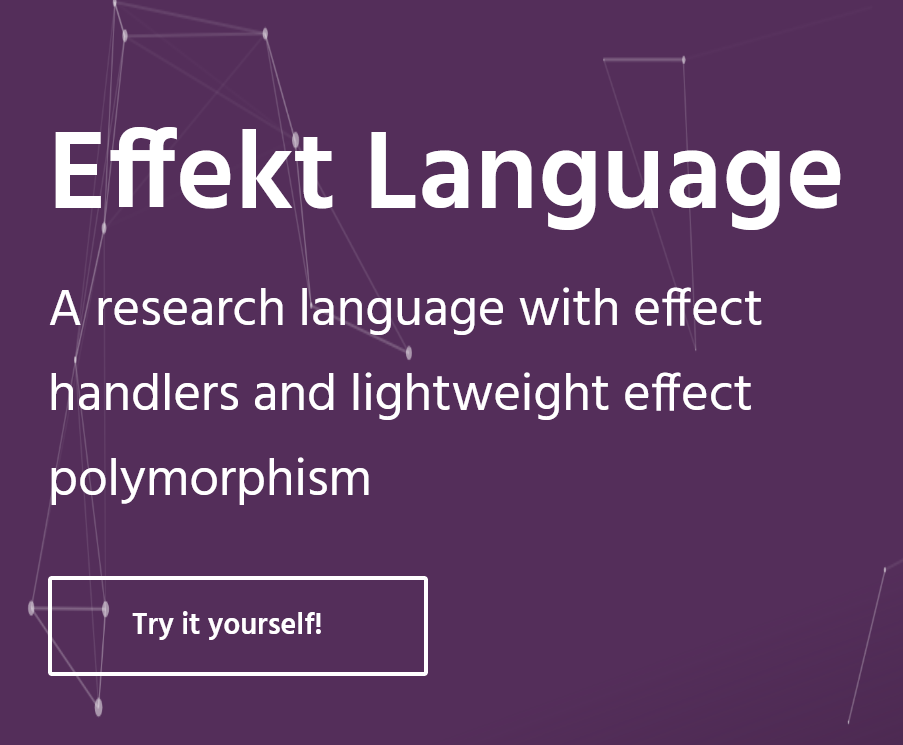

  • Effekt, Eff, Koka, Haskell, OCaml, Scala, ...

Demo

Eff programming language

Type systems

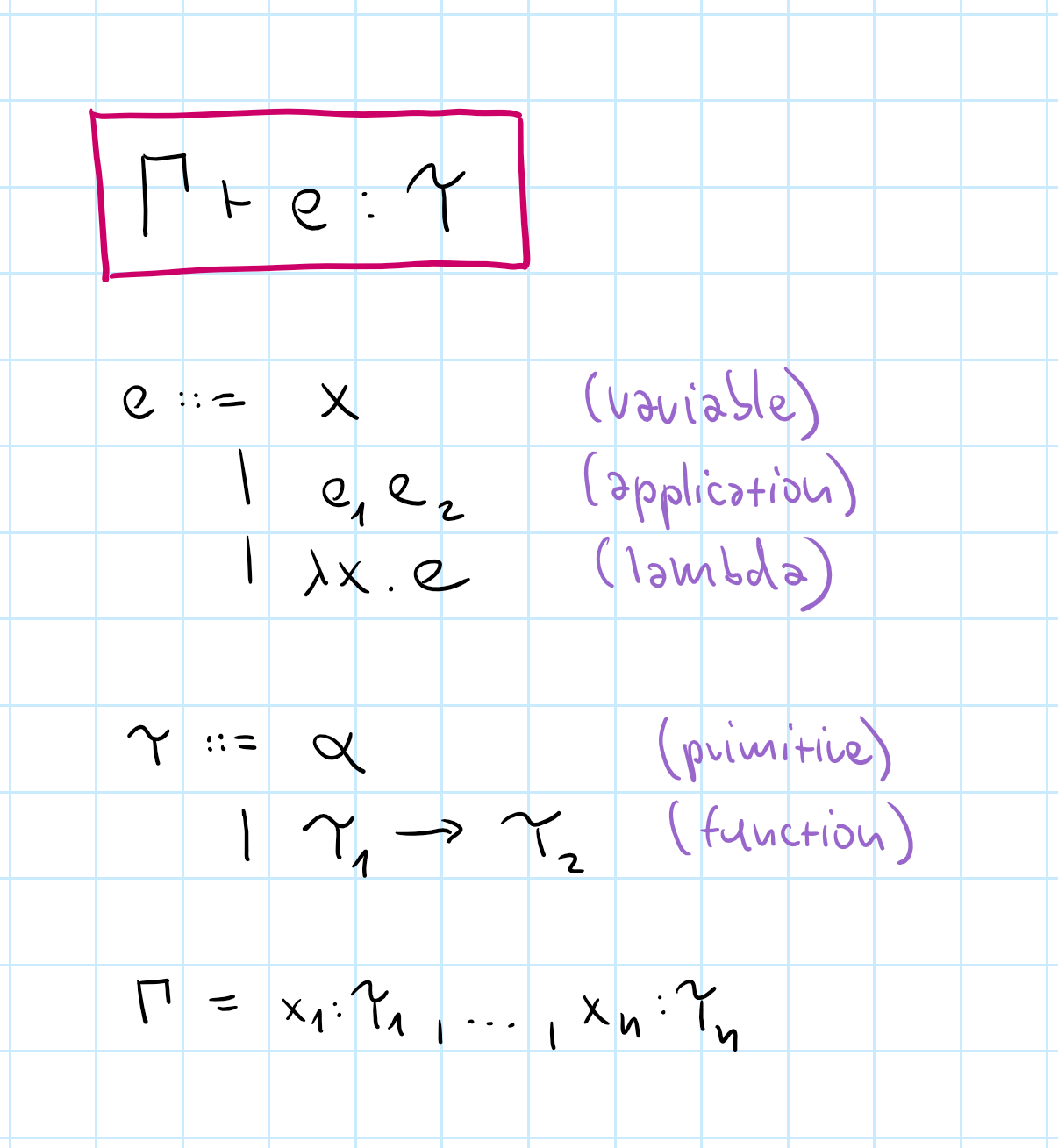

Given a variable context \(\Gamma\), an exp­ression \(e\) has a type \(\tau\).

Explain idea in a simple \(\lambda\)-calculus language

Ignore practical aspects like type inference!

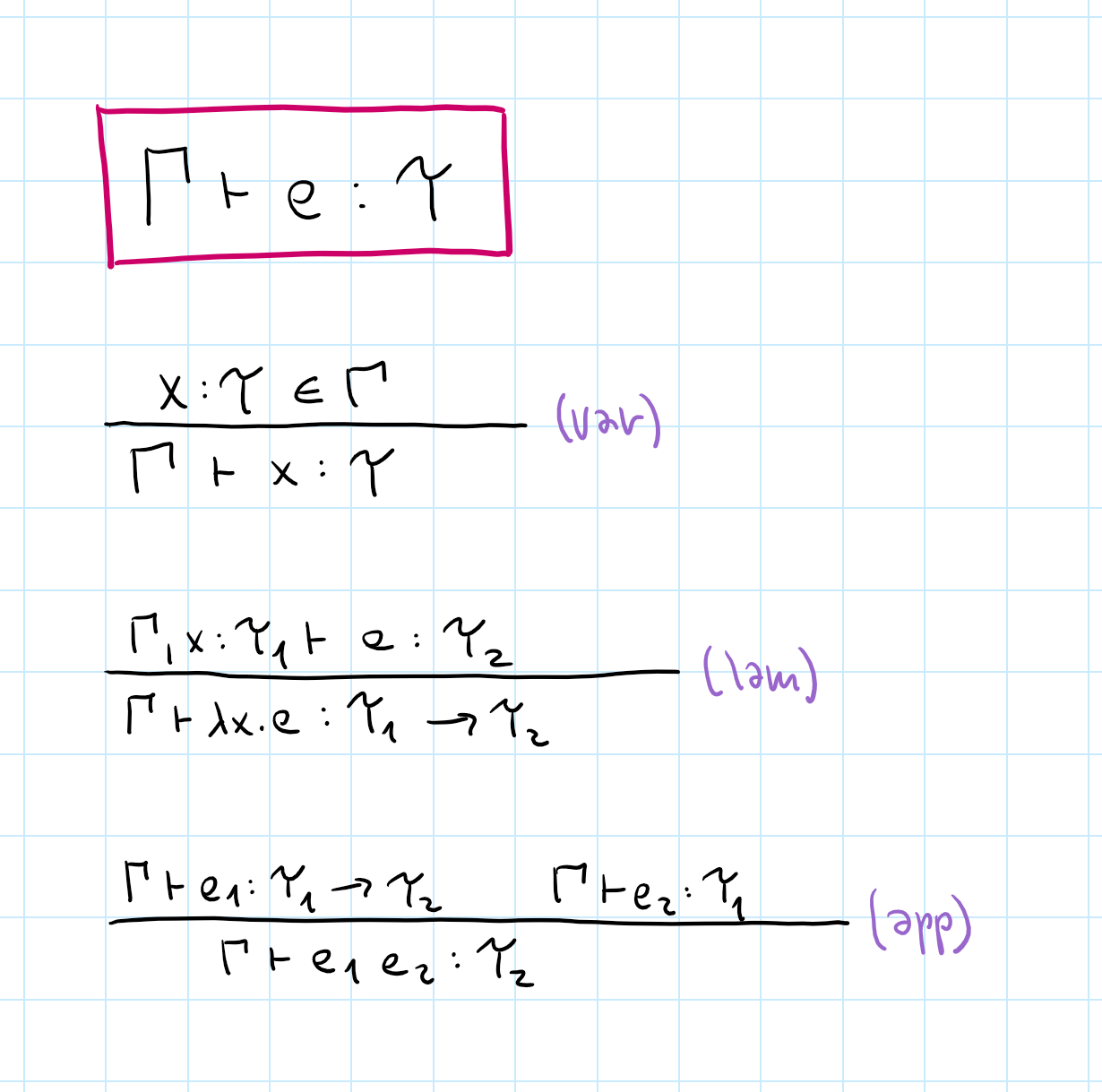

Type system

Derivation rule for each expression

Expression has a type if there is a derivation

Does not specify
type inference!

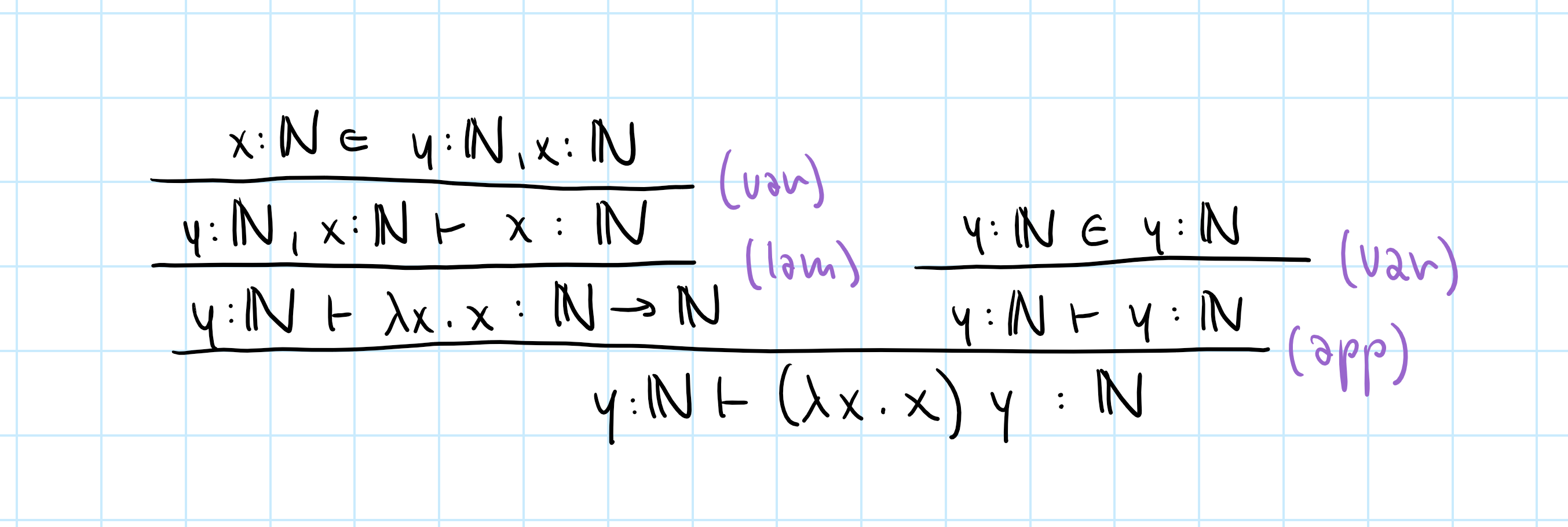

Sample typing derivation

They are quite tedious to write by hand!

Effect systems

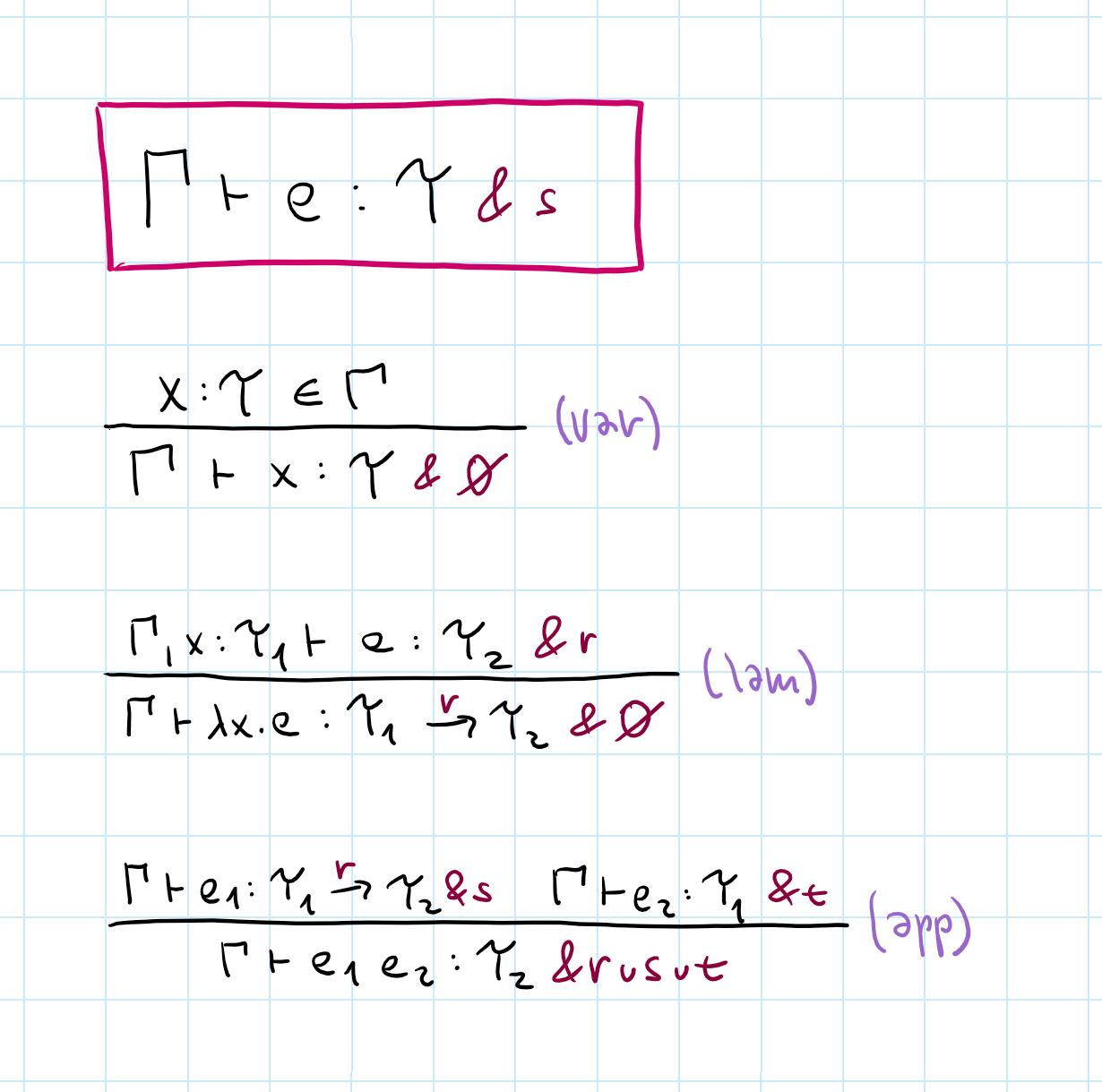

Effect systems

Adds effect annotations

Added to expression and function type

Var access & lambda creation are pure

Application unions
all effects

Demo

Type system of Eff

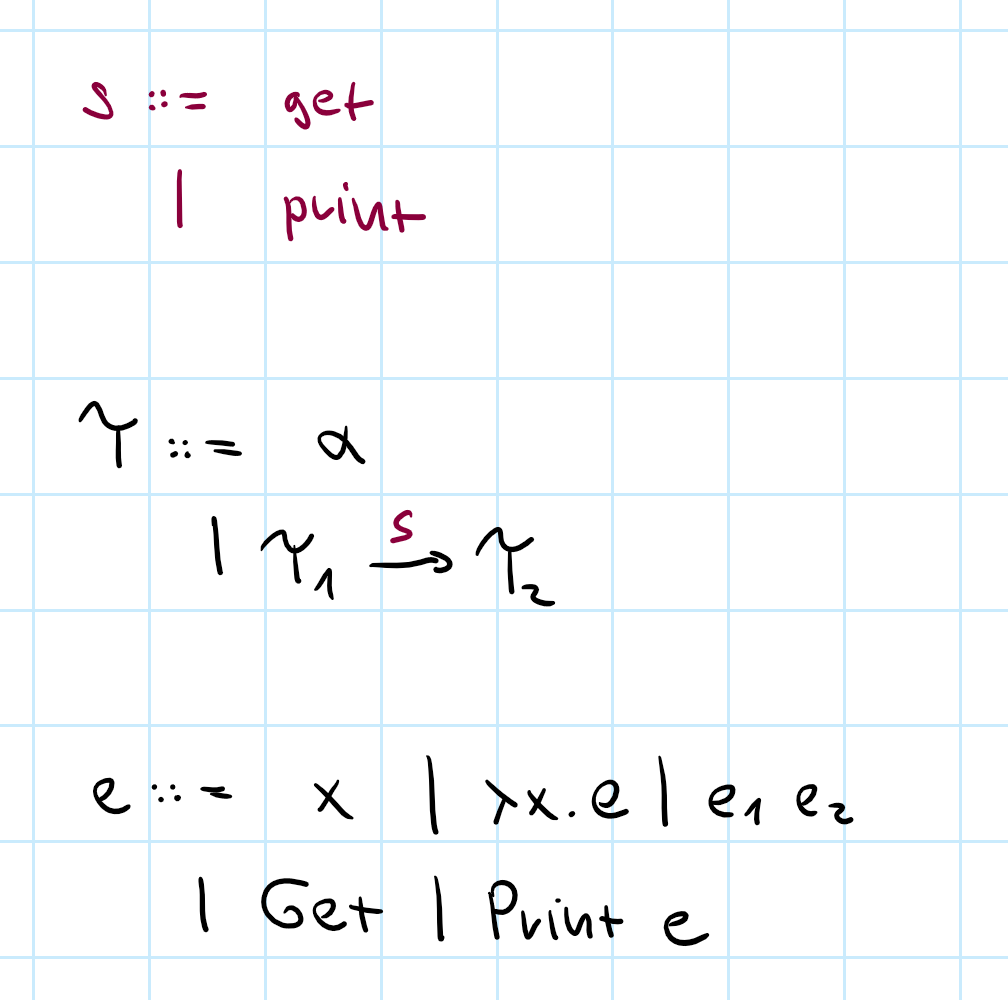

Language with effects

Effect handlers can be defined and handled like exceptions

Here just print and get

Types of Get and Print introduce get and print

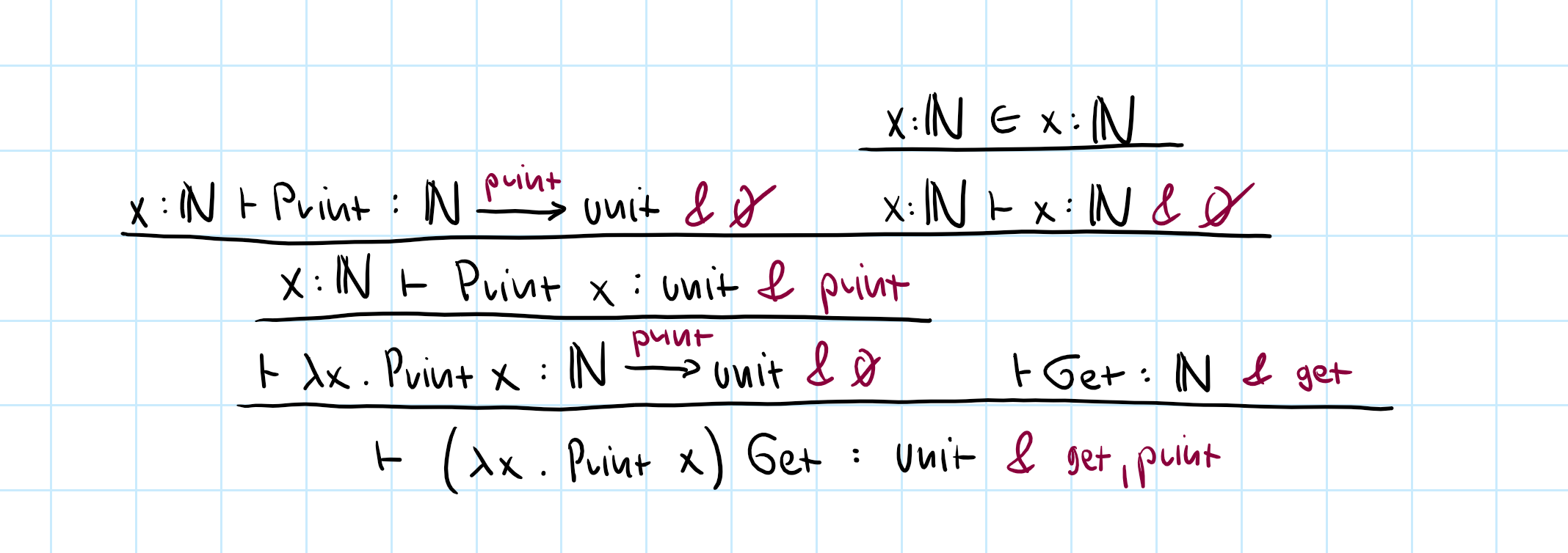

Typing effectful expression

Effect annotations combined using union!

Effects

Interesting and tricky aspects

  • More fine-grained than monads!
  • Polymorphism is hard to get right
  • Complicates all higher-order functions
  • Generalizing to other structures than unions

Monads and effects

How are they related?

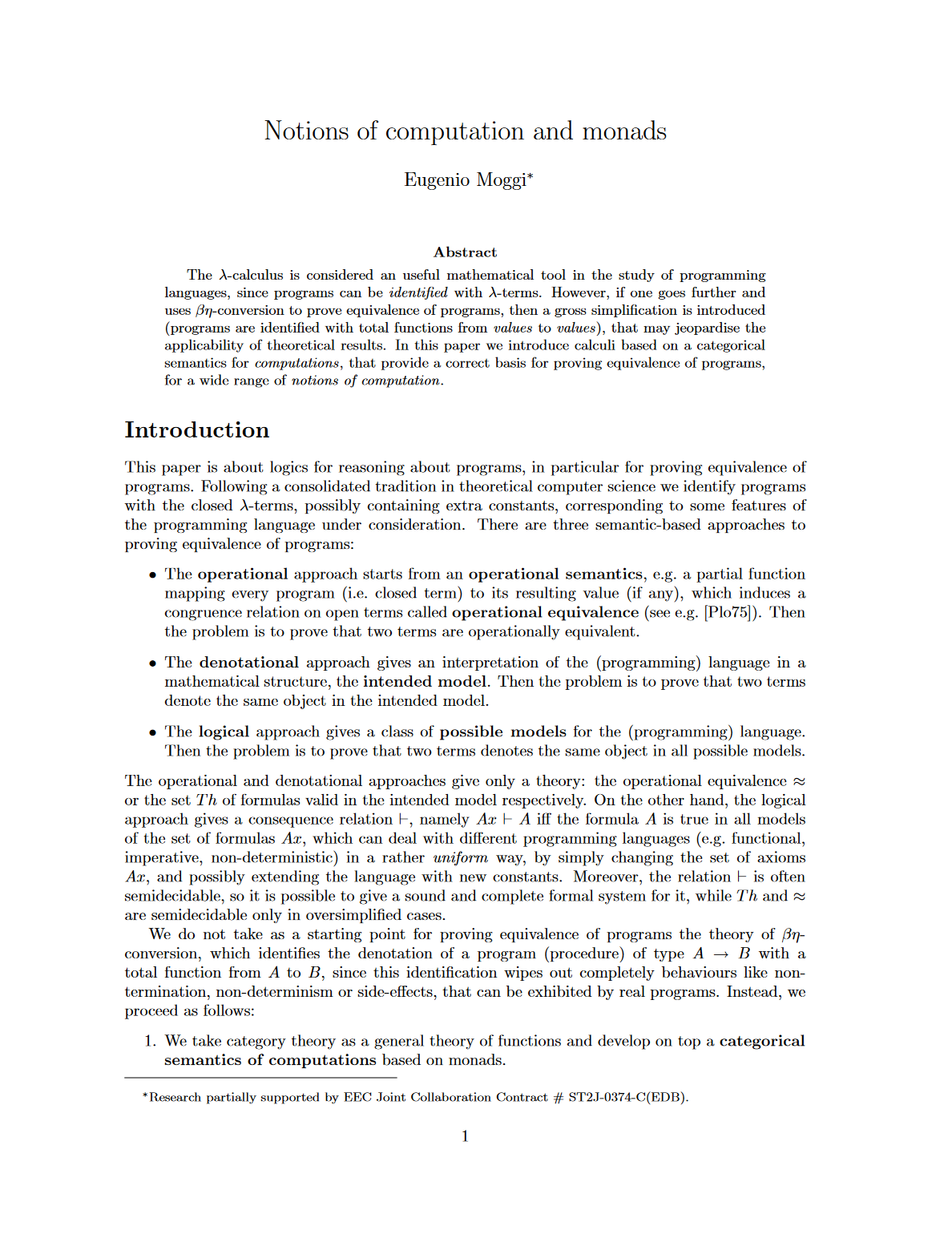

Monads and effects

(Moggi, 1991)

Monads can be used to model the semantics of side-effects

Two tiny languages

One with built-in effects
One with effects as feature

Monads and category theory

Programming language semantics

  • Formally define what programs mean
  • Explain subtle language features
  • Reason about programs

Category theory

  • Lots of algebraic structures for use!
  • Composition is a central concept
  • For compositional (functional) programs too!

Category = objects + arrows

A category \(\mathcal{C}\) consists of objects \(obj(\mathcal{C})\) and arrows \(arr(\mathcal{C})\) between objects, i.e. \(f : A \rightarrow B\) where \(A, B \in obj(\mathcal{C})\) with:

  • Arrow composition
    Given \(f : A \rightarrow B, g : B \rightarrow C\), there is \(f\circ g:A \rightarrow C\).

  • Associativity
    Given \(f, g, h\), it holds that \((f\circ g)\circ h = f\circ (g\circ h)\)

  • Identity arrow for all \(B\)
    \(id_B : B \rightarrow B\) such that \(id_B \circ f = f\) and \(g \circ id_B = g\)

Interesting categories

Mathematical structures

  • Sets with functions between them
  • Numbers with less/greater than
  • Vector, topological spaces etc.

Programming structures

  • Types with functions between them (more or less)
  • Classes with subtyping relationship
  • Version control with parent relationships (maybe)

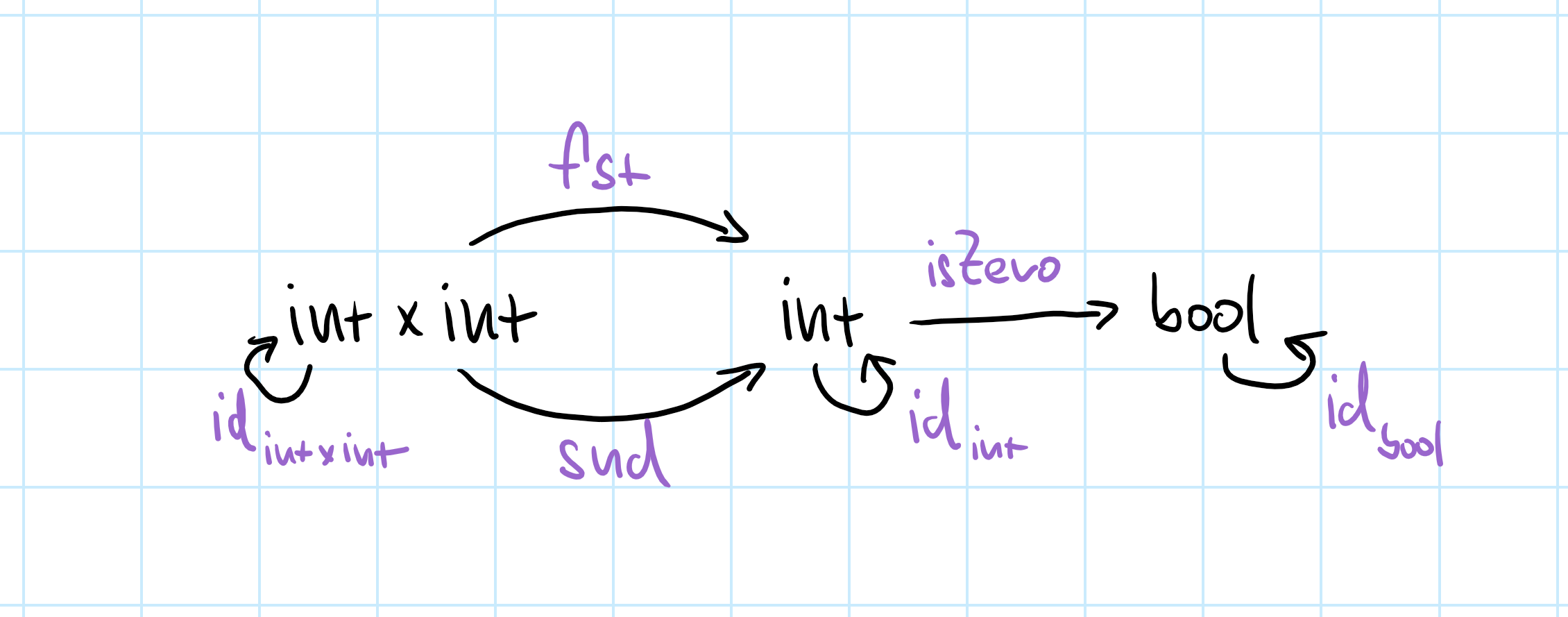

Types = objects, functions = arrows

Arrow composition is function composition!
Haskell's isZero.fst becomes \(\textit{fst}\,\circ\textit{isZero}\)

Categorical semantics

What is the meaning of a+b?

\(\qquad a\!:\!int,b\!:\!int \;\vdash\, a+b\!:\!int\)

Arrow or morphism between two objects:

\(\qquad int\times int\rightarrow int\)

Yes, you can read this as a function too...

Categorical semantics

What is the meaning of \(e\)?

\(\qquad v_1\!:\!\tau_1,\ldots,v_n\!:\!\tau_n\vdash e : \tau\)

Arrow or morphism between two objects:

\(\qquad \tau_1\times\ldots\times\tau_n \rightarrow \tau\)

Maps (categorical) product of inputs to output

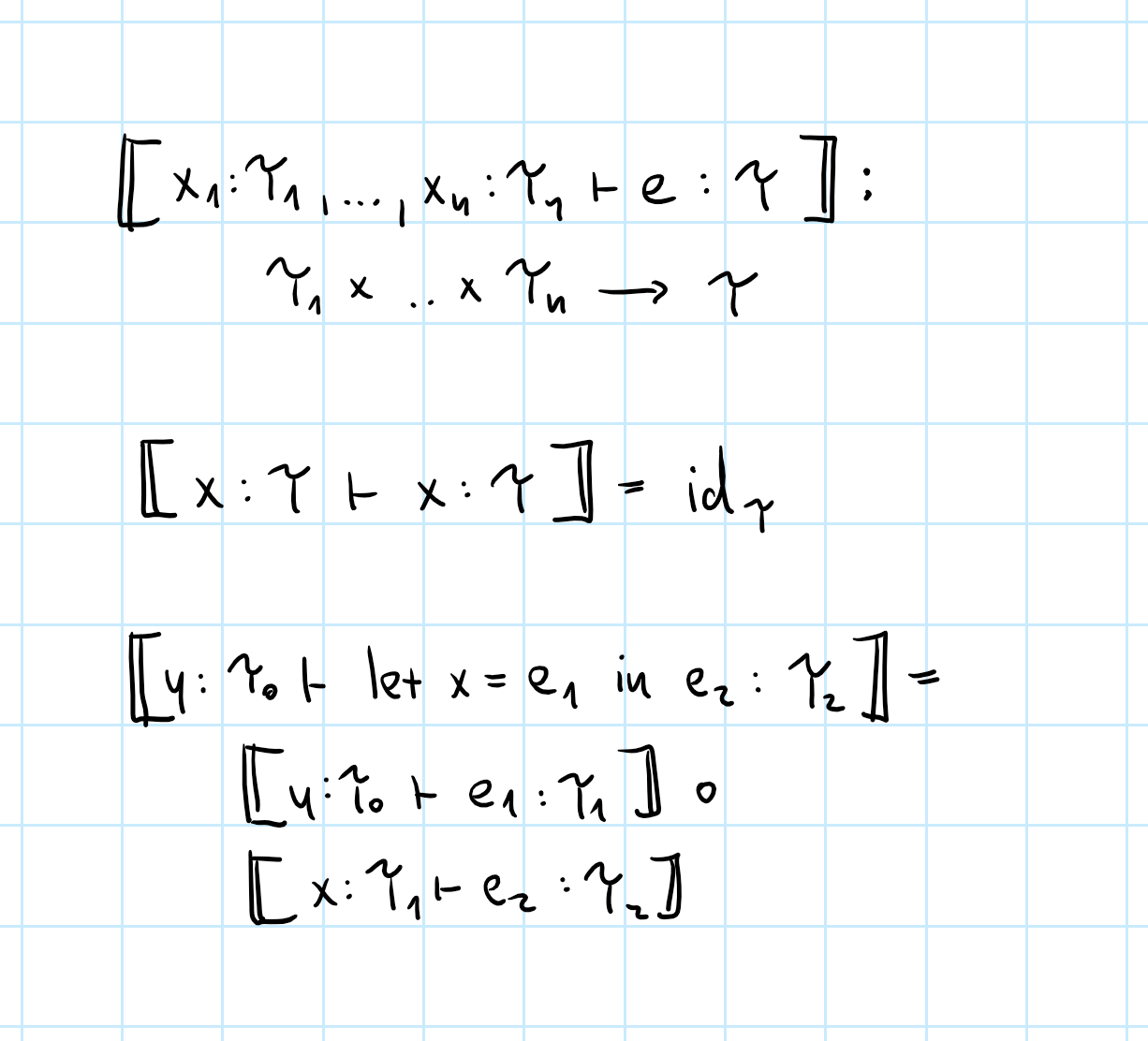

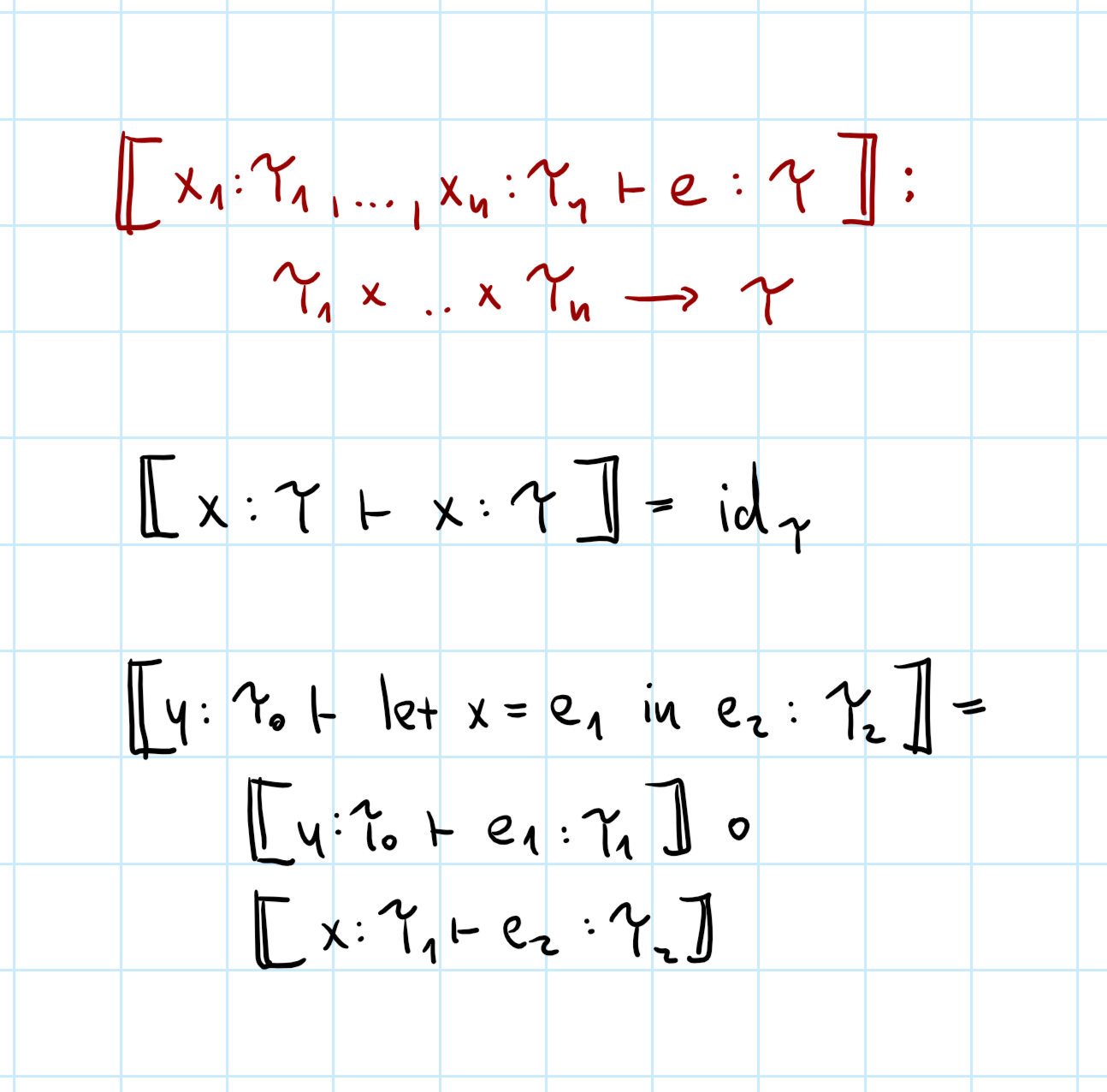

Categorical semantics

Basics map nicely
Variable access is
identity, composition
is composition

But more is needed
Cartesian Closed Categories

Categorical semantics

But what if there are side-effects?

\(\qquad v_1\!:\!\tau_1,\ldots,v_n\!:\!\tau_n\vdash e : \tau \htmlStyle{color:#8A003B;}{ \,\&\, s}\)

The result is wrapped with a monad \(\htmlStyle{color:#8A003B;}{M}\)!

\(\qquad \tau_1\times\ldots\times\tau_n \rightarrow \htmlStyle{color:#8A003B;}{M}\,\tau\)

"Monad is just a monoid in the category of endofunctors. What is the problem?"

Definition of a monad

Given a category \(\mathcal{C}\), a monad is a functor \(\htmlStyle{color:#8A003B;}{M} : \mathcal{C} \rightarrow \mathcal{C}\)
together with mappings (or natural transformations):

  • \(\eta_\tau : \tau \rightarrow \htmlStyle{color:#8A003B;}{M}(\tau)\)

  • \((-)^*\) which turns an arrow \(f : \tau_1 \rightarrow \htmlStyle{color:#8A003B;}{M}(\tau_2)\)
    into an arrow \(f^* : \htmlStyle{color:#8A003B;}{M}(\tau_1) \rightarrow \htmlStyle{color:#8A003B;}{M}(\tau_2)\)

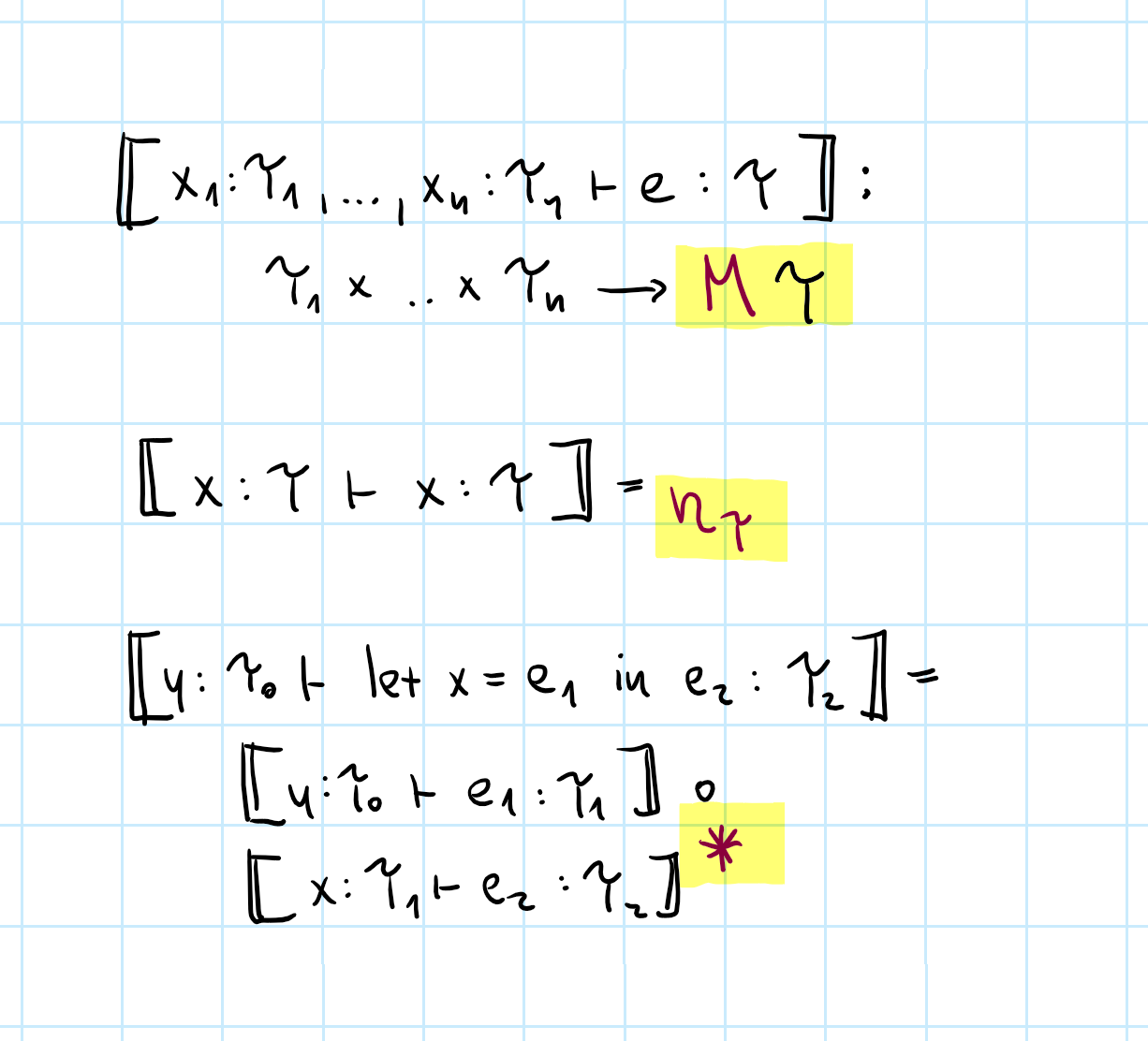

Monadic semantics

Monadic semantics

Monad (functor) wraps the output type

Unit and bind is what we need to compose!

Graded monads

What about effect annotations?

  • We had effects \(r, s, t\) but just a monad \(M \tau\)!
  • Annotate the monad structure as \(M^r \tau\)
  • Monad composition composes annotations

Graded monads for effects

  • Unit \(\eta_\tau : \tau \rightarrow M^0(\tau)\)
  • Bind \((-)^* : (\tau_1 \rightarrow M^r(\tau_2)) \rightarrow (M^s(\tau_1) \rightarrow M^{s\oplus r}(\tau_2))\)
  • List of length \(n\) with \(*\)
  • State with lattice of access rights

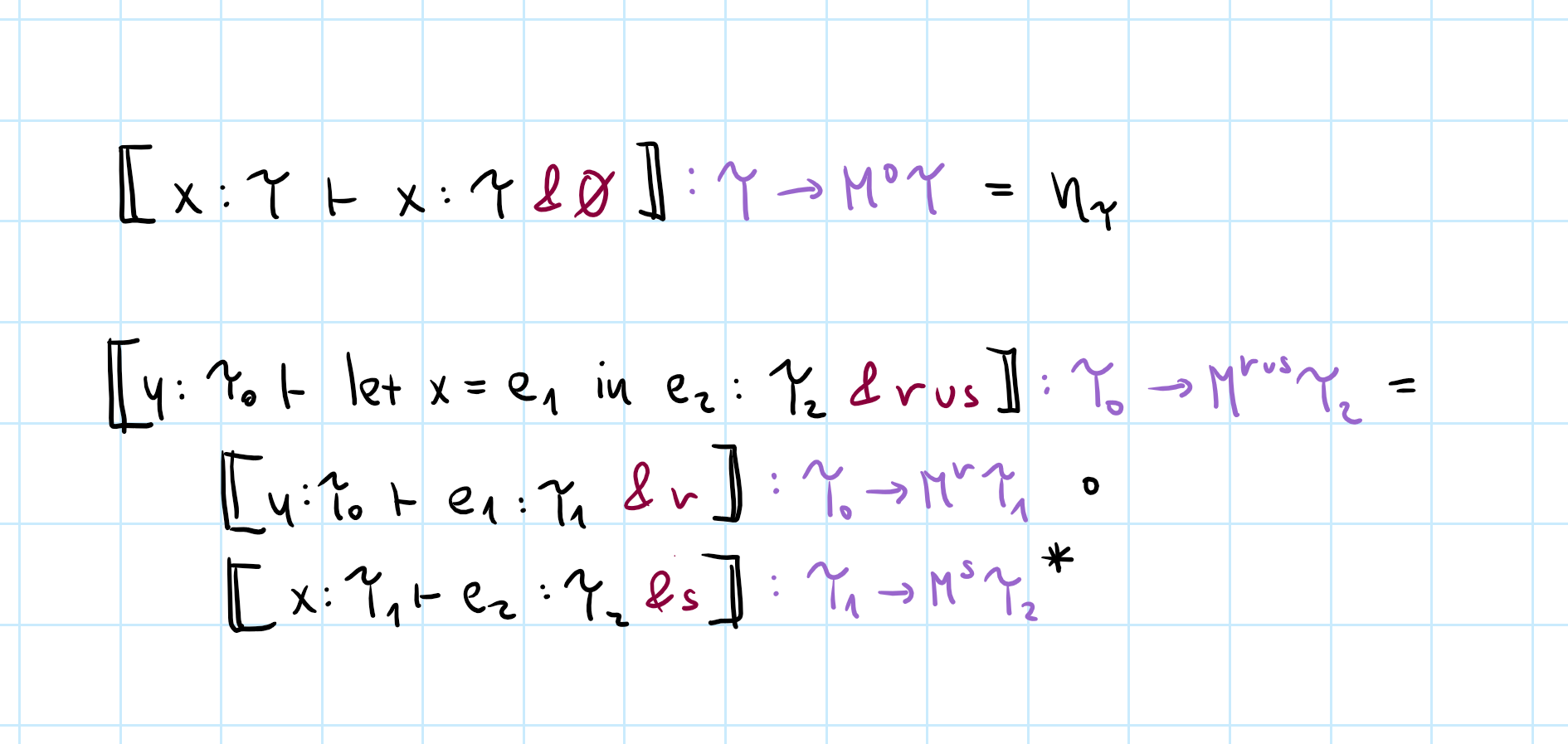

Semantics with graded monads

Comonads and coeffects

The dual of effects is?

Context-dependent computations

Programming problems

  • Different compilation targets
  • Systems with different resources
  • Neighbourhood in simulations

Actual examples of coeffects

  • Tracking of resources (implicit parameters)
  • History in data flow languages
  • Variable liveness (used or not)
// Reading global state
System.DateTime.Now

// Data-flow computations
(x + prev x) / 2

// Implicit parameters
let foo() = ?x + 1
let ?x = 1 in foo()

// Game of life
let this = (* am I alive *)
let nbr = (* # of neighbours *)
(this && (nbr = 2 || nbr = 3))
|| (not this && nbr = 3)

Context-awareness

Reader monad is product comonad

a -> M b
a -> (s -> b)
a * s -> b
C a -> b

Other context-related problems

Definition of a monad (again)

Given a category \(\mathcal{C}\), a monad is a functor \(\htmlStyle{color:#8A003B;}{M} : \mathcal{C} \rightarrow \mathcal{C}\)
together with mappings (or natural transformations):

  • \(\eta_\tau : \tau \rightarrow \htmlStyle{color:#8A003B;}{M}(\tau)\)

  • \((-)^*\) which turns an arrow \(f : \tau_1 \rightarrow \htmlStyle{color:#8A003B;}{M}(\tau_2)\)
    into an arrow \(f^* : \htmlStyle{color:#8A003B;}{M}(\tau_1) \rightarrow \htmlStyle{color:#8A003B;}{M}(\tau_2)\)

Definition of a monad

Given a category \(\mathcal{C}\), a comonad is a functor \(\htmlStyle{color:#8A003B;}{C} : \mathcal{C} \rightarrow \mathcal{C}\)
together with mappings (or natural transformations):

  • \(\mu_\tau : \htmlStyle{color:#8A003B;}{C}(\tau) \rightarrow \tau\)

  • \((-)^*\) which turns an arrow \(f : \htmlStyle{color:#8A003B;}{C}(\tau_1) \rightarrow \tau_2\)
    into an arrow \(f^* : \htmlStyle{color:#8A003B;}{C}(\tau_1) \rightarrow \htmlStyle{color:#8A003B;}{C}(\tau_2)\)

Demo

Stencil computations

Monadic semantics

Comonadic semantics

Monad (functor) wraps the input type

Variable context handling becomes tricky!

Coeffects and graded comonads

  • Fewer good examples of comonads
    Non-empty list, product (reader), stencils
  • Graded comonad capture more than comonads
    Maybe works, because \(\textnormal{Maybe}^{\textnormal{hasValue}} \tau \rightarrow \tau\)
  • Needs extra stuff because of variables!
    \(C(\tau_0)\times C(\tau_1 \times \ldots \times \tau_n) \rightarrow C(\tau_0 \times \ldots \times \tau_n)\)
  • Composition + merging and splitting of contexts
    Composition \(\otimes\) with context merging \(\oplus\) and splitting \(\vee\)

Effect systems

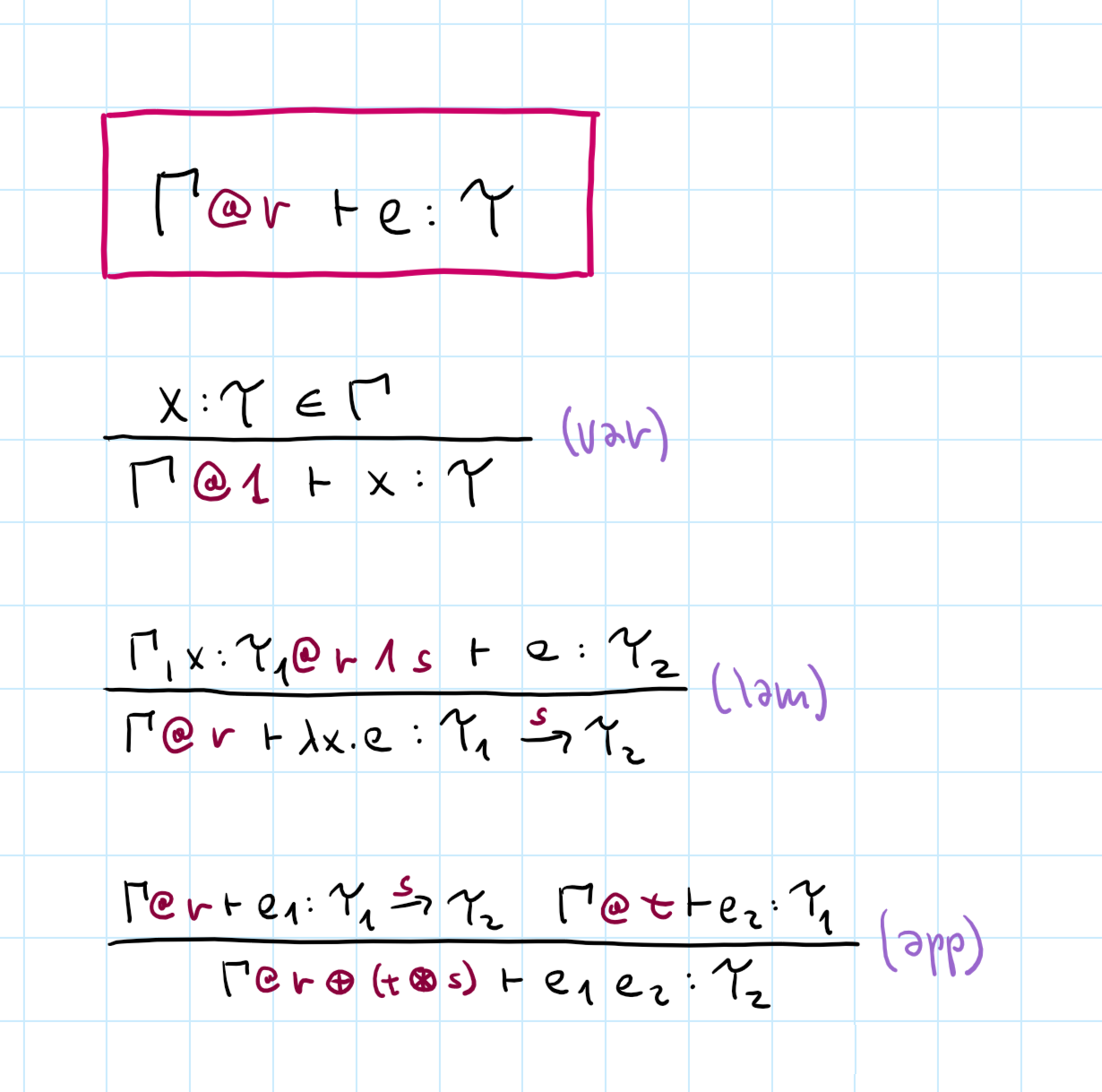

Coeffect systems

Adds coeffect annotations

Variable access is pure

Lambda combines available contexts

Application becomes
a bit tricky!

Demo

Derivations in coeffect playground

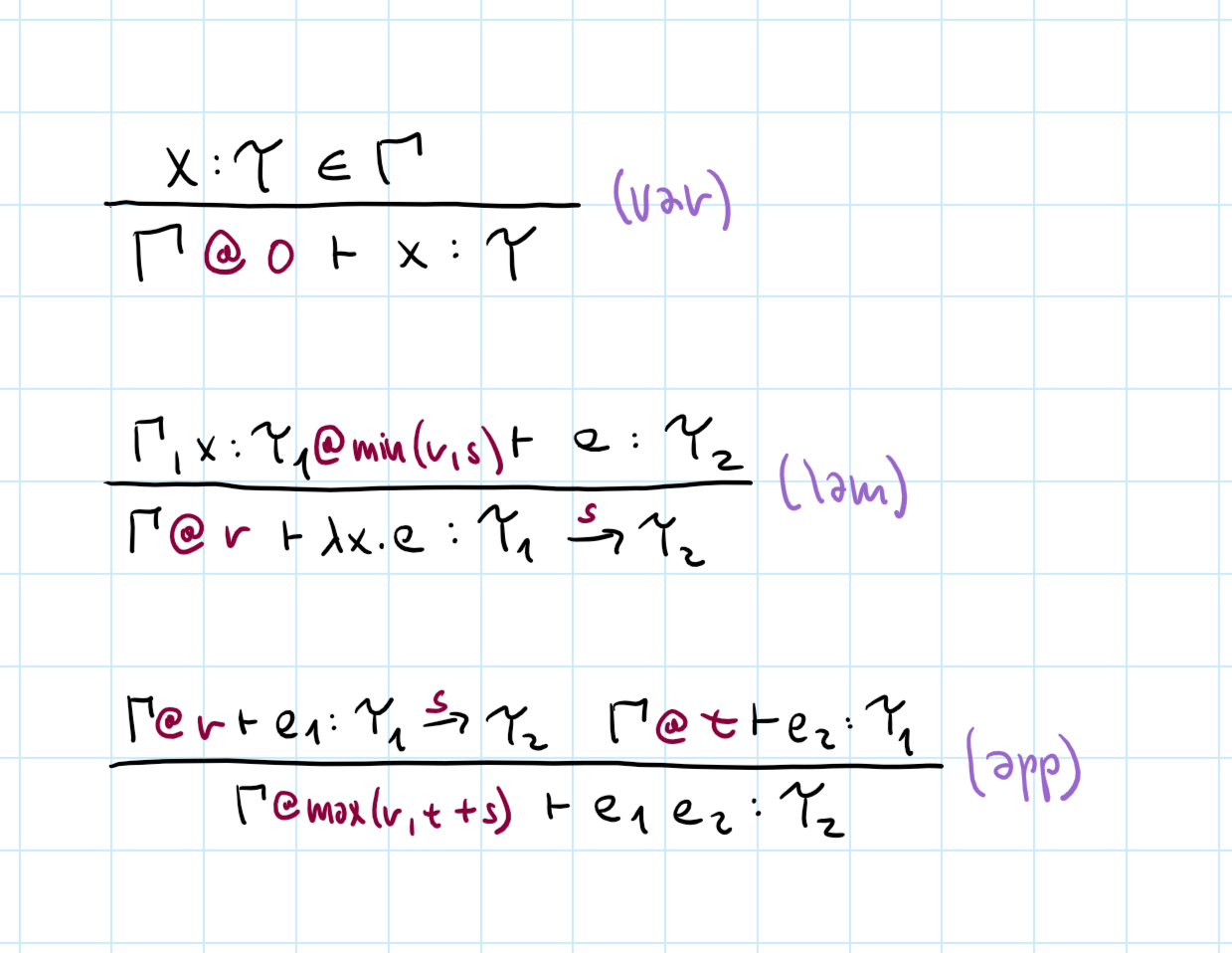

Dataflow coeffects

Two extra operations

Composition (multipication)

Split context into two (requires max)

Merge two contexts (requires min)

Effects and coeffects

Conclusions

Excuse to talk about

  • Programming language design
    Design based on existing codebase is funny!
  • Algebraic data types
    Nice and powerful modelling tool
  • Dependent type system concepts
    Weird in TypeScript, but interesting!
  • Some practical TypeScript tricks
    Lets you do lots of useful things...

Project, thesis or PhD on programming?

Languages and applications with effects, coeffects & capabilities

Semantics of interactive programming systems

Types for data science scripting in Python or R

Conclusions

Effects and Coeffects

  • Effects can be modelled as monads
    But you need grading and more structures
  • Coeffects to track context-dependence
    Dual to effects, but need different extras!
  • Coeffects can be modelled as comonads
    But you need grading for interesting cases

Tomáš Petříček, 309 (3rd floor)
petricek@d3s.mff.cuni.cz
https://tomasp.net | @tomaspetricek
https://d3s.mff.cuni.cz/teaching/nprg077
