NPRG085: Theory of Programming Languages

Course introduction

Tomáš Petříček and Vít Šefl

petricek@d3s.mff.cuni.cz | sefl@ksvi.mff.cuni.cz
@tomasp.net | https://tomasp.net

Examination

To pass the course, you need to successfully pass an oral exam at the end.

Test understanding of semantics & types

Use semantics to perform reduction
Show that a property holds for given rules
General questions

Practical details and arrangements

Only topics covered during the lectures
Extra literature is helpful but not required
Sign up via SIS

Literature

Langauge semantics

Semantics of Programming Languages (Cambridge)
Types and programming languages (Pierce)

Types and lambda calculus

Practical foundations for programming languages (R. Harper)
Software foundations (B. Yorgey et al)
Advanced topics in types and programming languages (ed: Pierce)
The lambda calculus: its syntax and semantics (H. P. Barendregt)

Study materials

The lectures will be recorded. The recordings
will be made available in some way.
If there's interest, we could make a Discord server like we did last year (for Principles) and share the study materials there as well.

Goals

After the course, you should be able to:

Define an operational model of a PL
Add a type system to a programming language
Read, write and use formal derivation rules
Understand basic properties of these models & systems
Appreciate how the simplest systems can be expressive

Goals

Type systems and semantics are deep topics and we'll only scratch the surface.
For example, we won't cover denotational semantics, axiomatic semantics, subtyping, set-theoretic types, gradual typing, etc.
However, the course will give you the
core tools to delve deeper.

Outline (1/2)

The imperative part of the course will mostly
be given by Tomáš; the functional part by Vít.

The current plan for this semester is:

Intro, motivation, simple imperative language (now!)
Refresher on semantics, lambda calculus, and types
Simple type system for an imperative language
Basic properties of these models
Data types, evaluation contexts, evaluation order
Deeper dive into lambda calculus, data via functions

Outline (2/2)

Term representation, simply typed lambda calculus
Church/Curry-style formulation, quantification
Hindley-Milner type system, type inference
Adding functions to an imperative language
Advanced type systems (bonus topic)
Practical applications (bonus topic)

Motivation

Why theory of programming languages

What is a language?

What is the meaning of a program

Whatever the interpreter does

English language specification

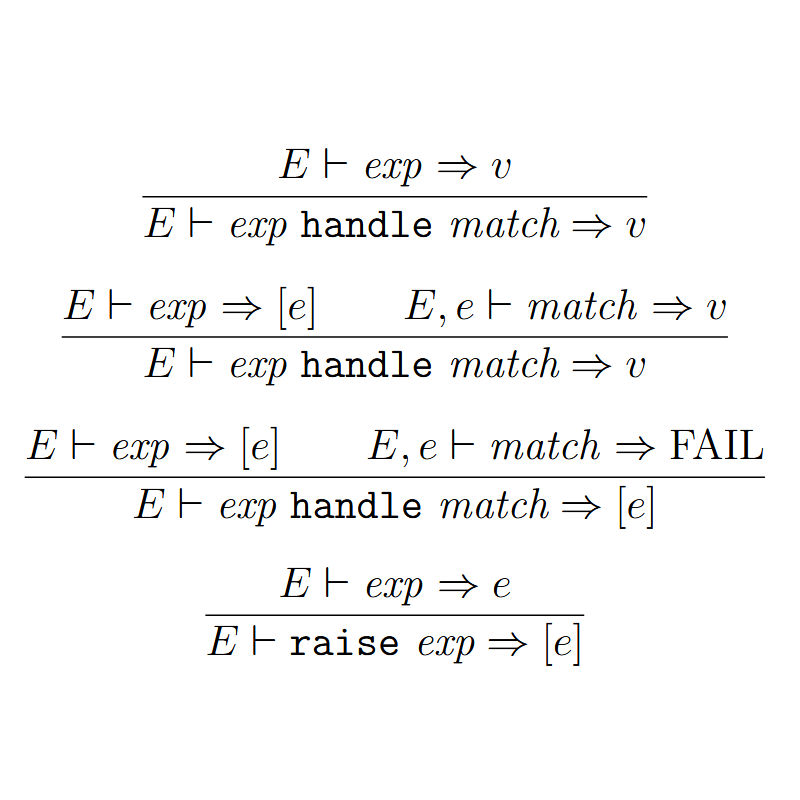

Mathematical formal definition

Mathematical formal definition

Language syntax

What is a valid program

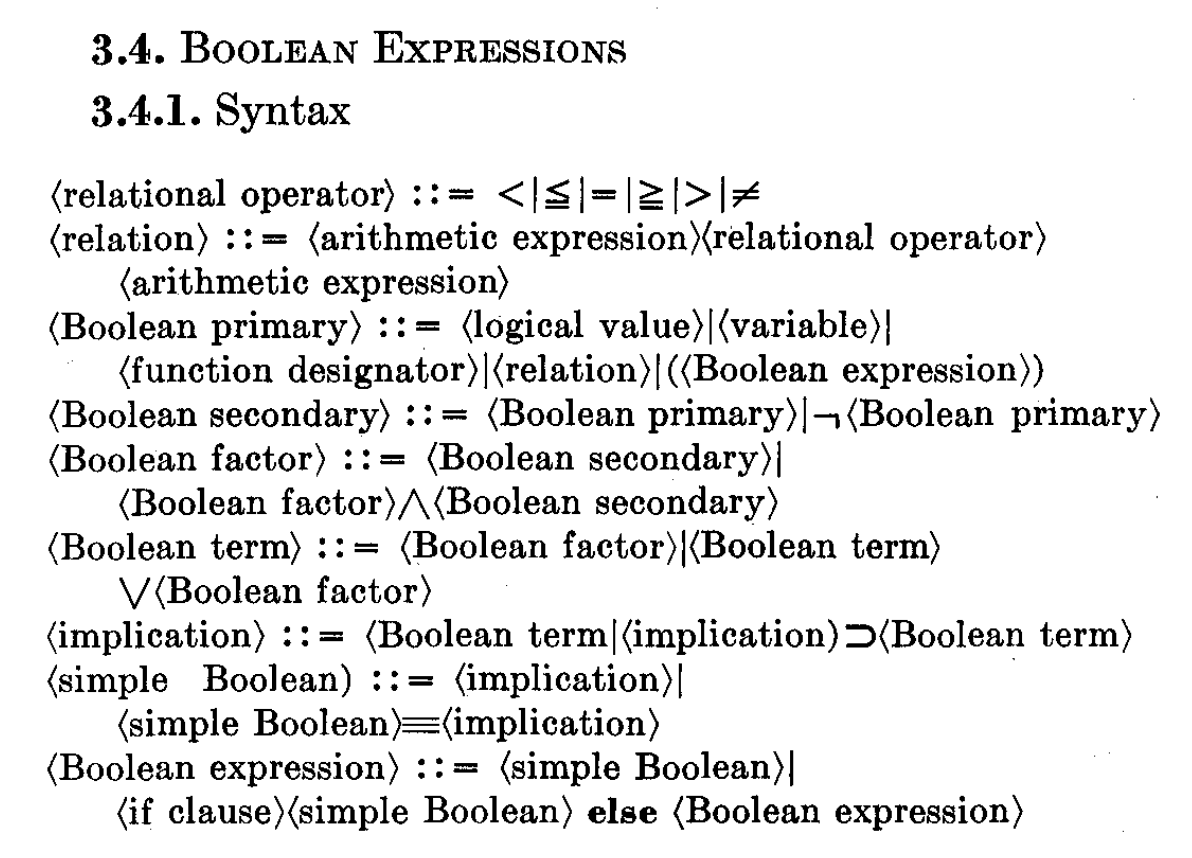

BNF definition from Algol 60
Abstract syntactic structure

Language semantics

What happens when program runs
This took much longer to figure out!
Reduction rules ala lambda calculus (one option)

Type systems and safety

Typed and untyped languages
Define (nontrivial) set of possible values of variable
Trapped errors vs. untrapped errors
Trapped stopped execution, untrapped go unnoticed
Safe programming language
No program can produce an untrapped error
Safe programming languages
Can be both typed (OCaml) and untyped (JavaScript)
See Type Systems by Luca Cardelli

Demo

Why theory of programming languages

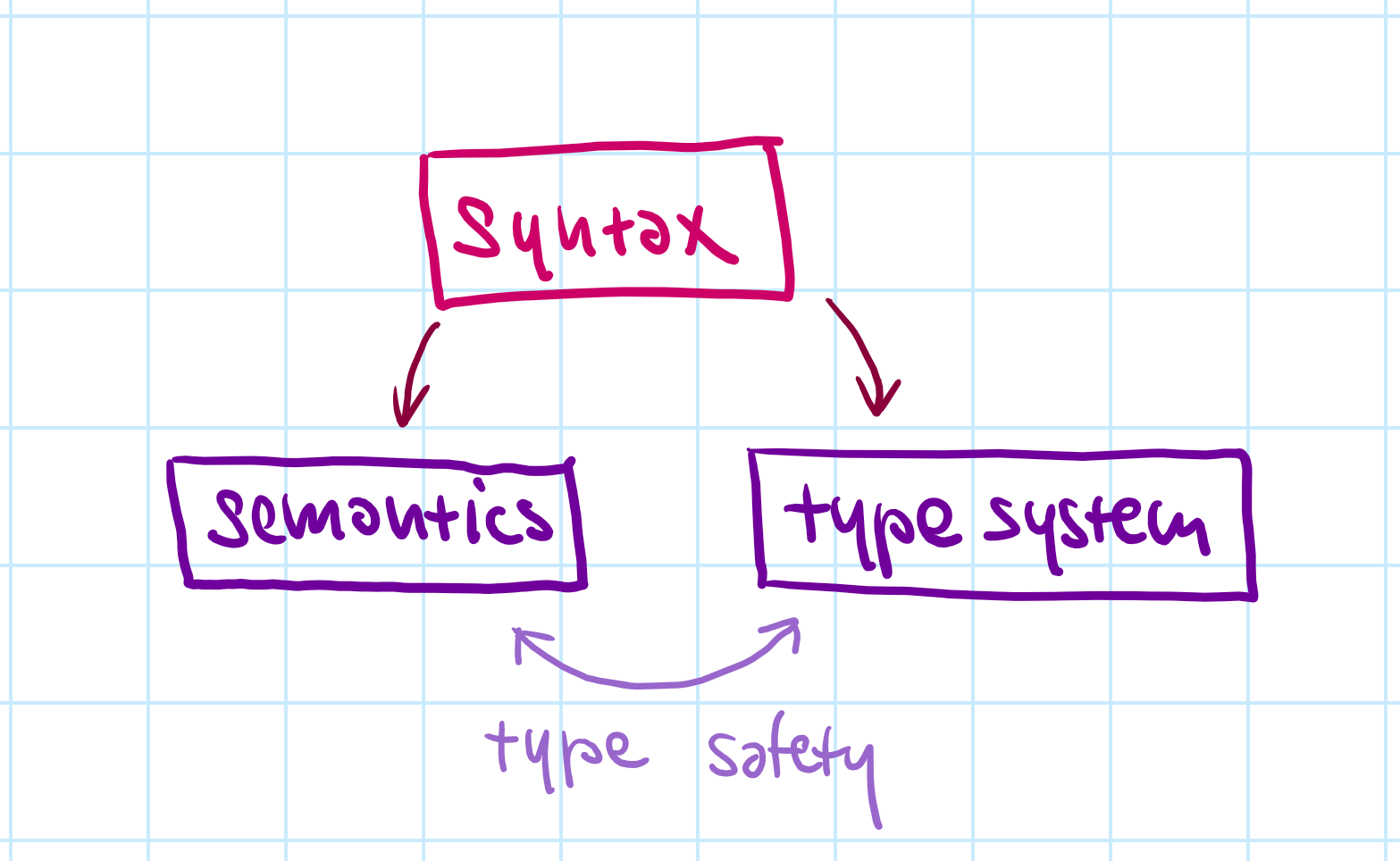

Semantics and type-safety

Operational semantics

Define how programs run
Program produces a value

Type systems

Define what is well-typed
No invalid operations can happen

Type-safe language

Well-typed programs do not go wrong
Also - determinacy, unique typing

Operational semantics

Small imperative language

// Computing a factorial
// of value in 'l1'. Stores
// the result in 'l2'.

let l1 = ref 5
let l2 = ref 1

while !l1 >= 1 do
  l2 := !l2 * !l1
  l1 := !l1 + -1
done

L1 language

Minimal imperative language a bit like subset of ML or F#

No normal variables!

Stores are special
and assumed (no let)

Expression-based

assign, read, if, while, sequencing, operators

Demo

Factorial in a subset of F#

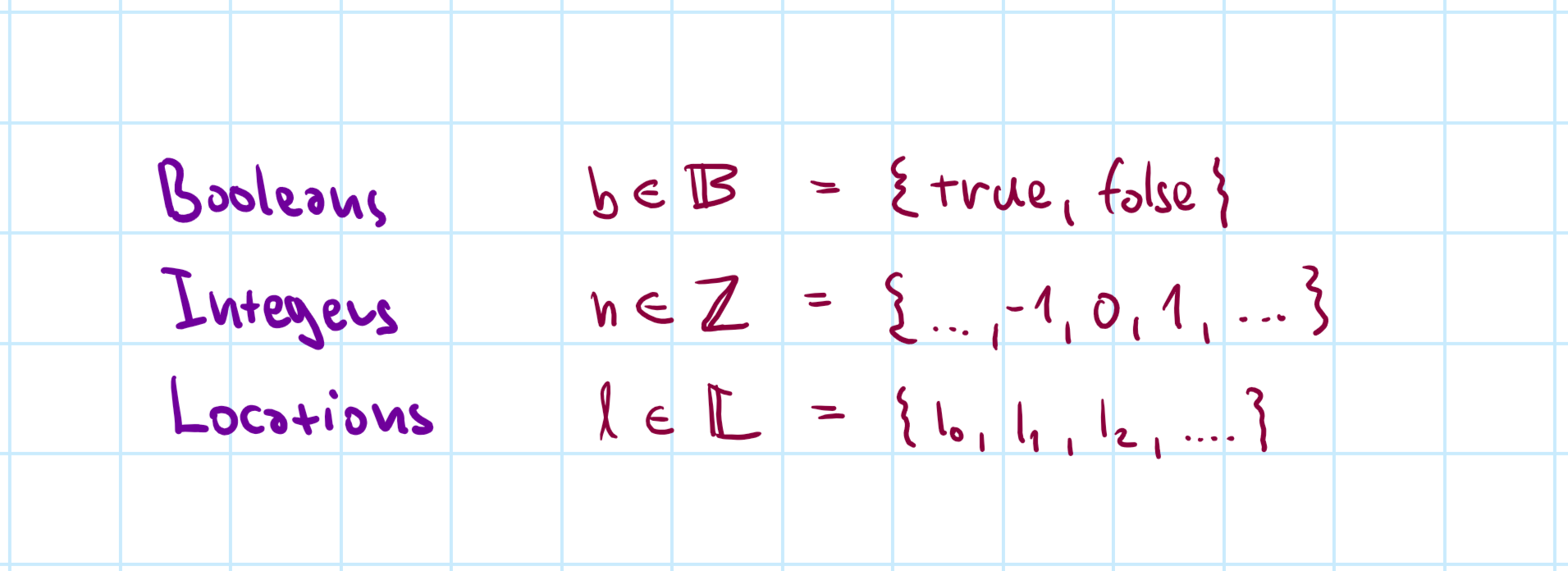

Syntax definition

Concrete primitives and abstract locations

We treat primitives
as sets and name members as \(b \in \mathbb{B}\),
\(n\in\mathbb{Z}\) and \(l\in\mathbb{L}\)

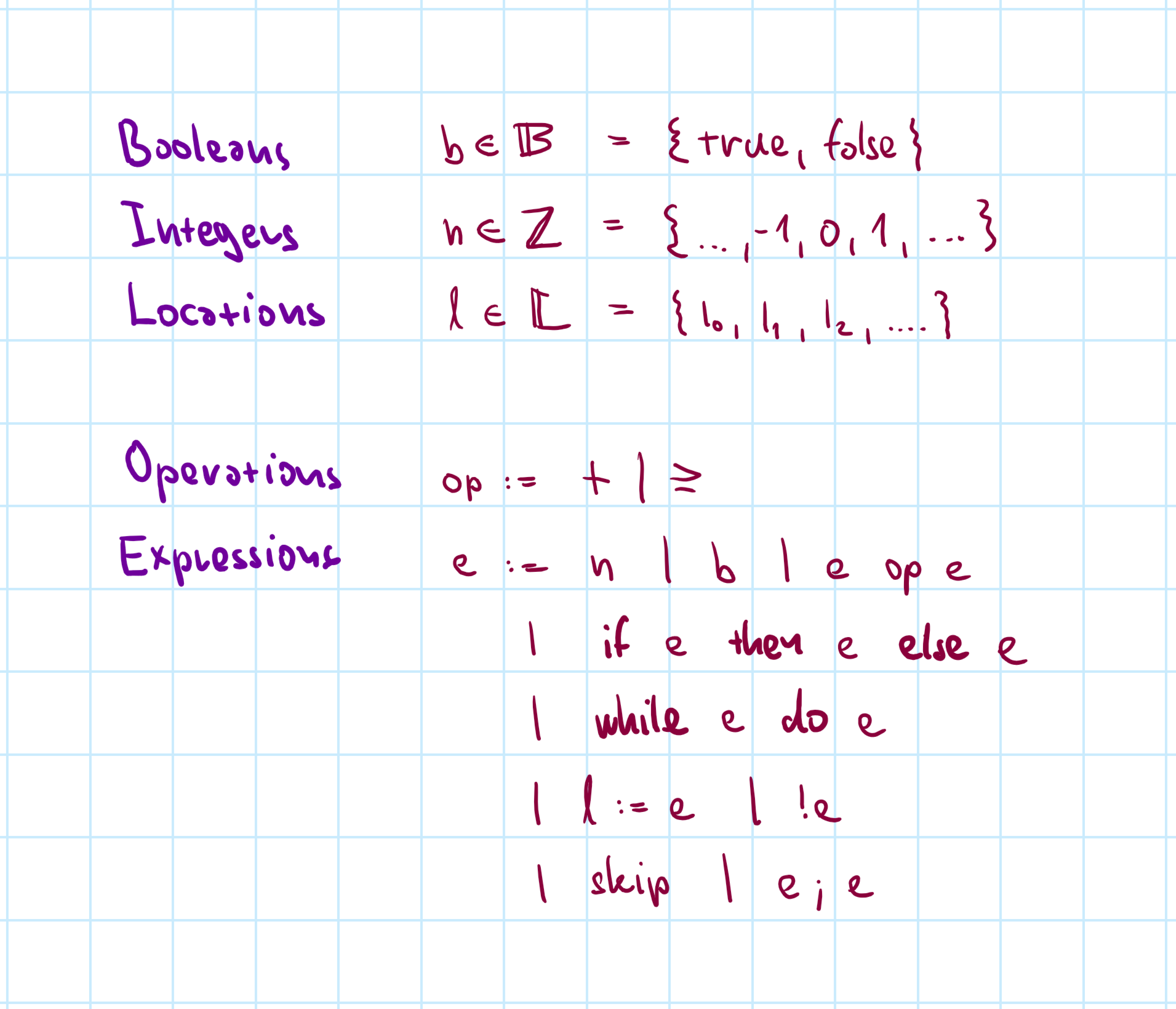

Syntax definition

BNF-like notation,
but think of it as a definition of a set.

\(:=\) defines a set
\(|\) lists options

Keywords are bold
and \(n,b,l,e,op\) are members of other sets

Modelling store

What is the evaluation state

How does the expression \(l_1\!:=\,!l_1\!+\!1;\; !l_1\) evaluate?
Depends on what is the value of \(l_1\) at the start!

Modelling store

Stores \(s\) are final partial functions from \(\mathbb{L}\) to \(\mathbb{Z}\)
Assign integer to some of the possible locations

Evaluation, revisited

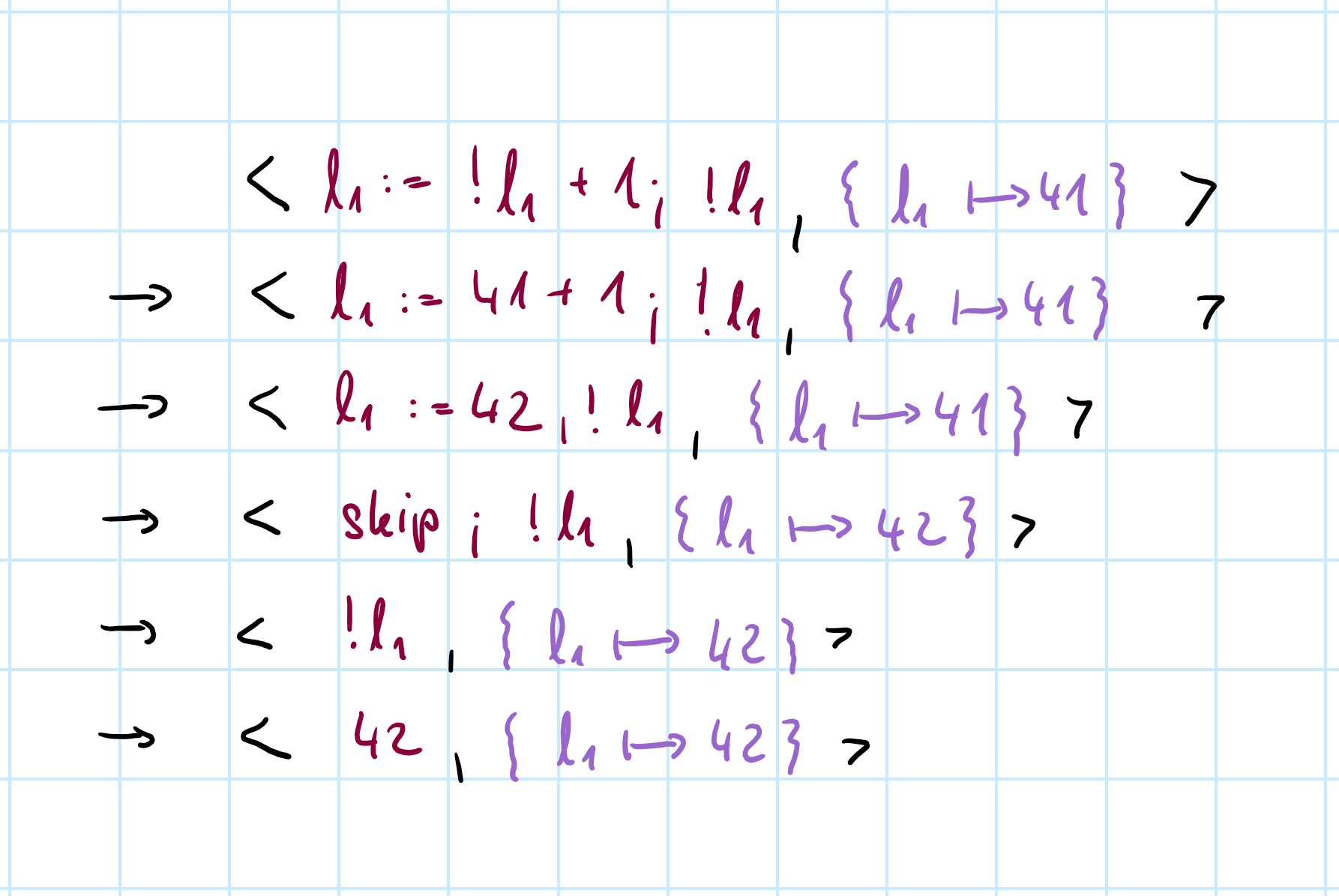

Evaluate \(l_1\!:=\,!l_1\!+\!1;\; !l_1\) with store \(s = \{ l_1 \mapsto 41 \}\)

Evaluation as transition

Program evaluates step-by-step

One-step reduction relation \(\langle e, s \rangle \rightarrow \langle e', s' \rangle\)
Program \(e\) with store \(s\) reduces to \(e'\) with store \(s'\)
One step is one primitive operation!

Whole program reduction

Keep reducing \(\langle e, s \rangle \rightarrow \ldots \rightarrow \langle e', s' \rangle\)
Until \(e'\) is a value, i.e., \(e \in \mathbb{Z} \;\cup\; \mathbb{B} \;\cup\; \{ \texttt{skip} \}\)
Some programs can keep reducing indefinitely!
Some programs can get stuck, i.e., \(1 + \texttt{true}\)

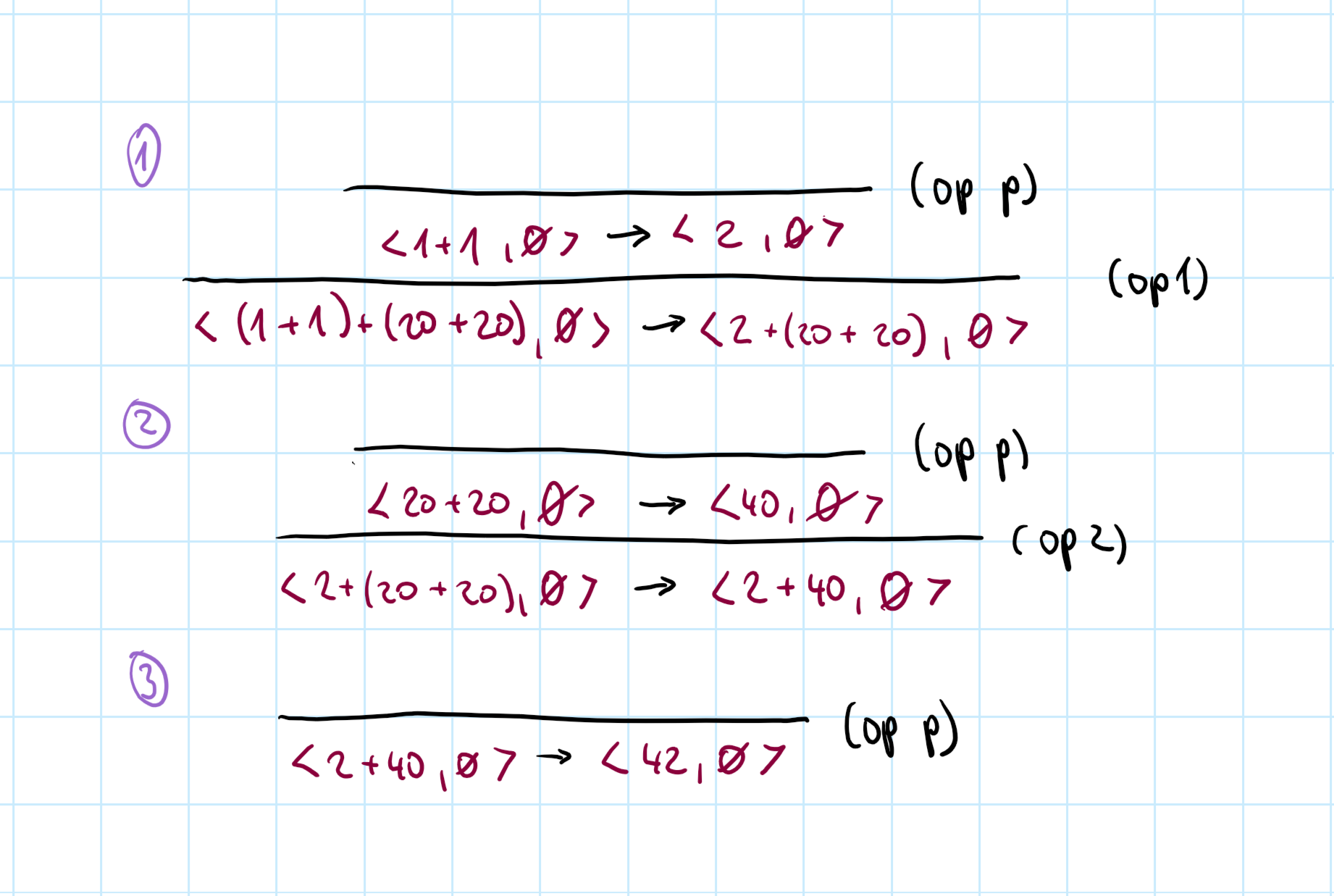

Reduction example

Proceeds step-by-step

Not how real programs run on a computer!

Formal model

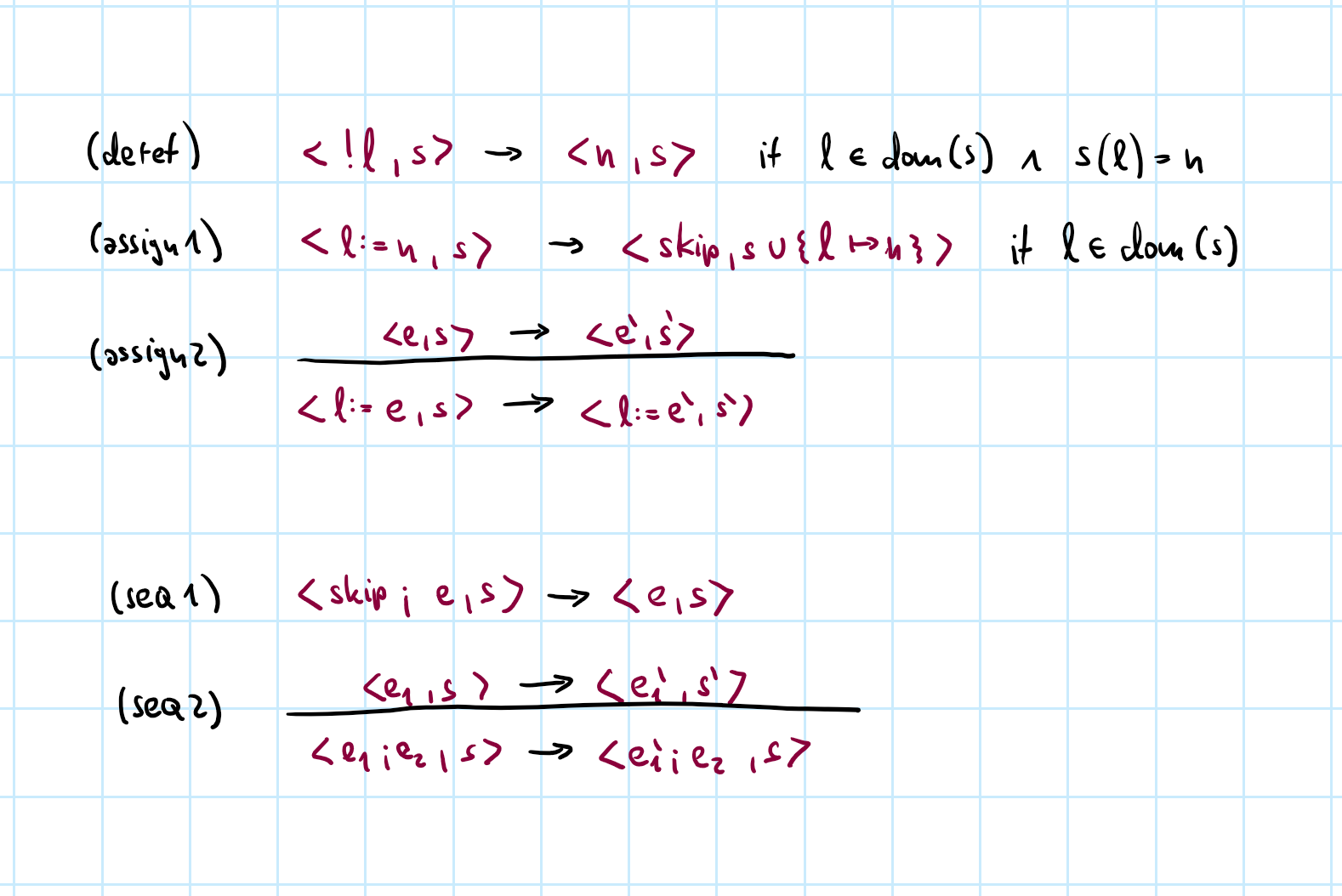

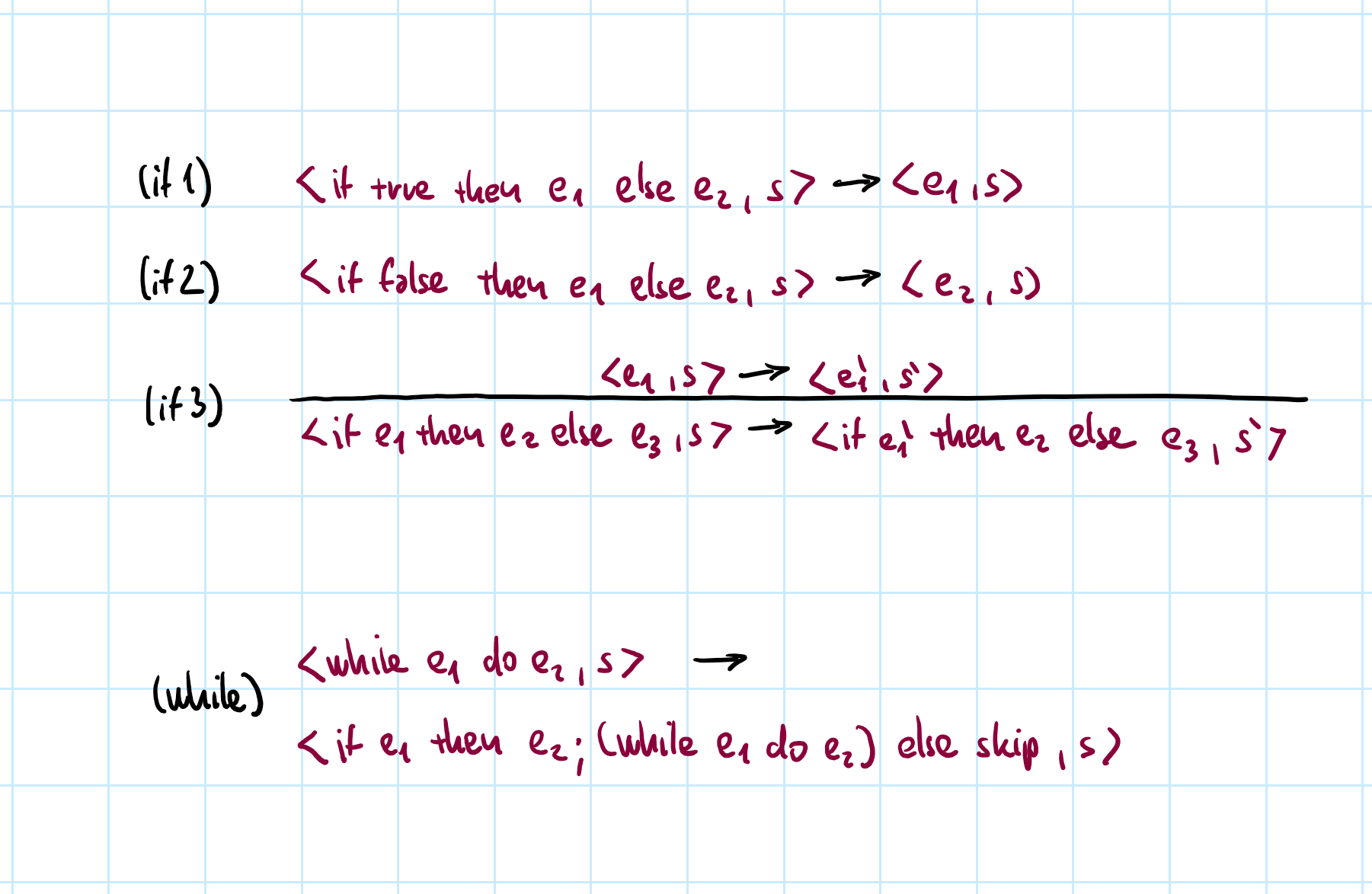

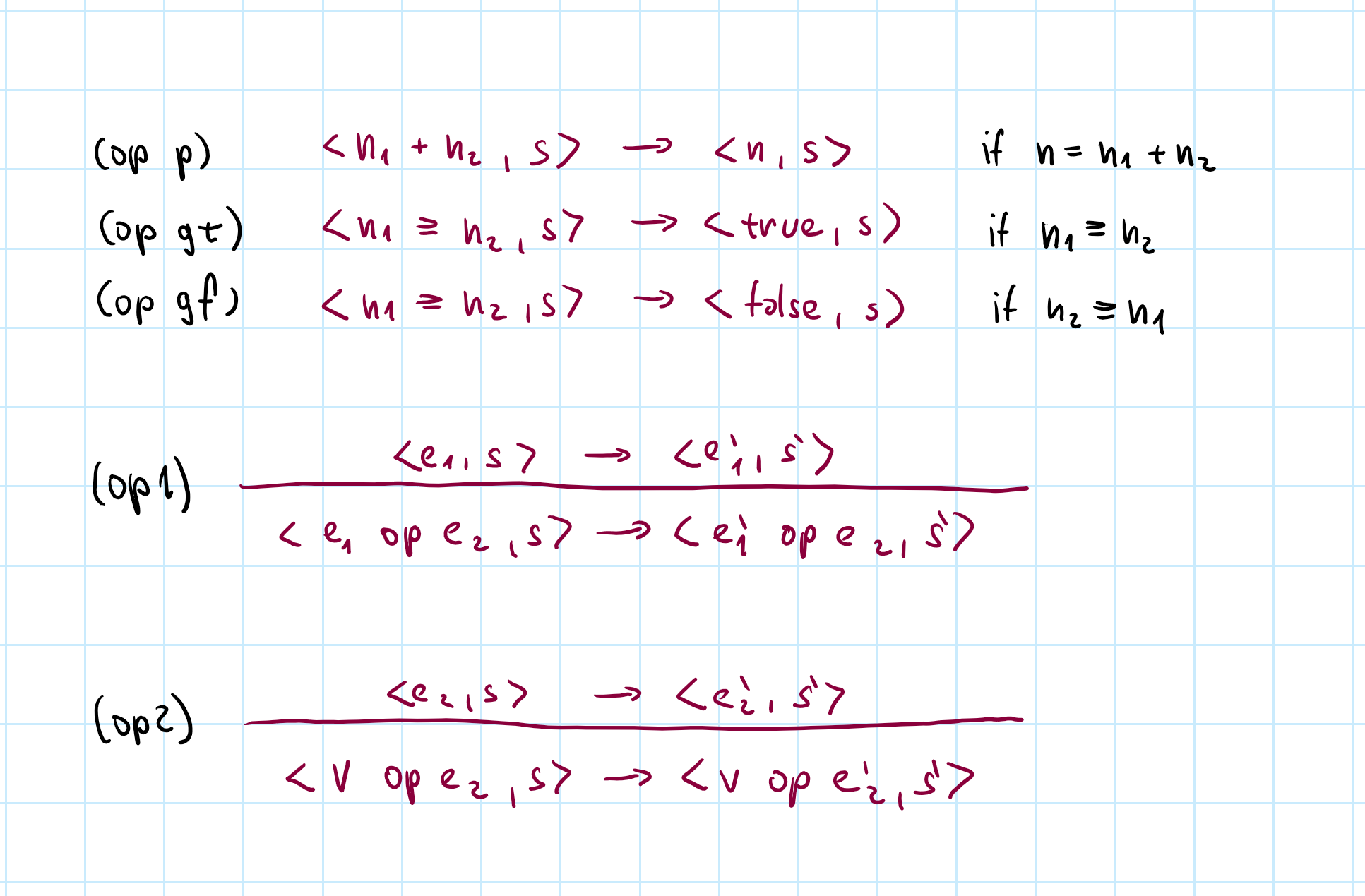

Defined by a set of reduction rules

More formally

Transition system

A set \(\textit{Config}\) and a binary relation \(\rightarrow\;\in\textit{Config}\times\!\textit{Config}\)
In our case \(\textit{Config}=\textit{Expr}\times(\mathbb{L}\rightarrow\mathbb{Z})\)

What can happen

Values represent results \(v \in V = \mathbb{Z} \;\cup\; \mathbb{B} \;\cup\; \{ \texttt{skip} \}\)
\(\langle e, s \rangle \not\rightarrow\) cannot be reduced, i.e.,
there is no \(\langle e', s' \rangle\) such that \(\langle e, s \rangle \rightarrow \langle e', s' \rangle\)
Expression is stuck if it cannot be reduced & is not a value
