NPRG085: Theory of Programming Languages

Types for imperative language

Tomáš Petříček and Vít Šefl

petricek@d3s.mff.cuni.cz | sefl@ksvi.mff.cuni.cz
@tomasp.net  |  https://tomasp.net

Reminder

Operational semantics

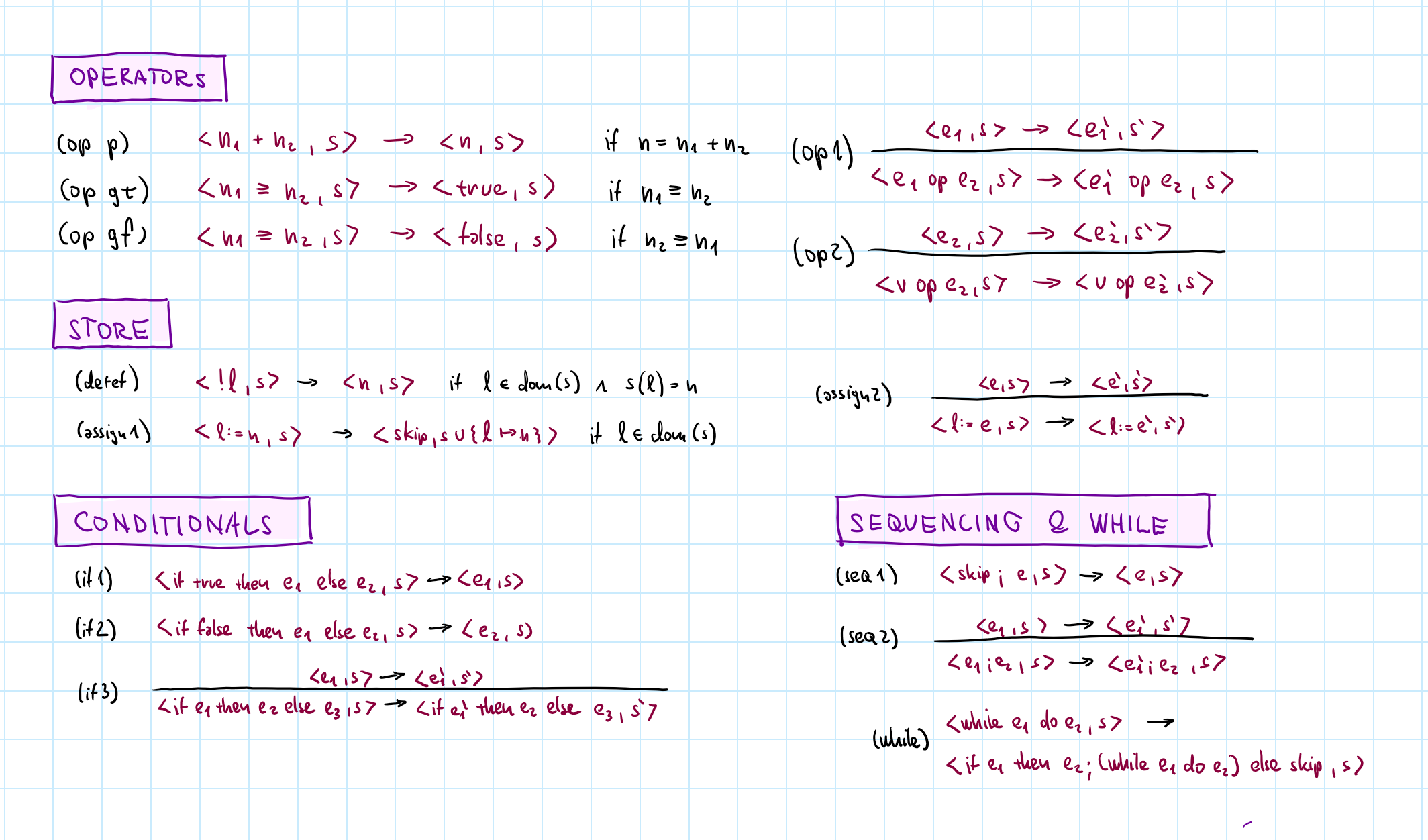

Derivation rules for the full L1 language

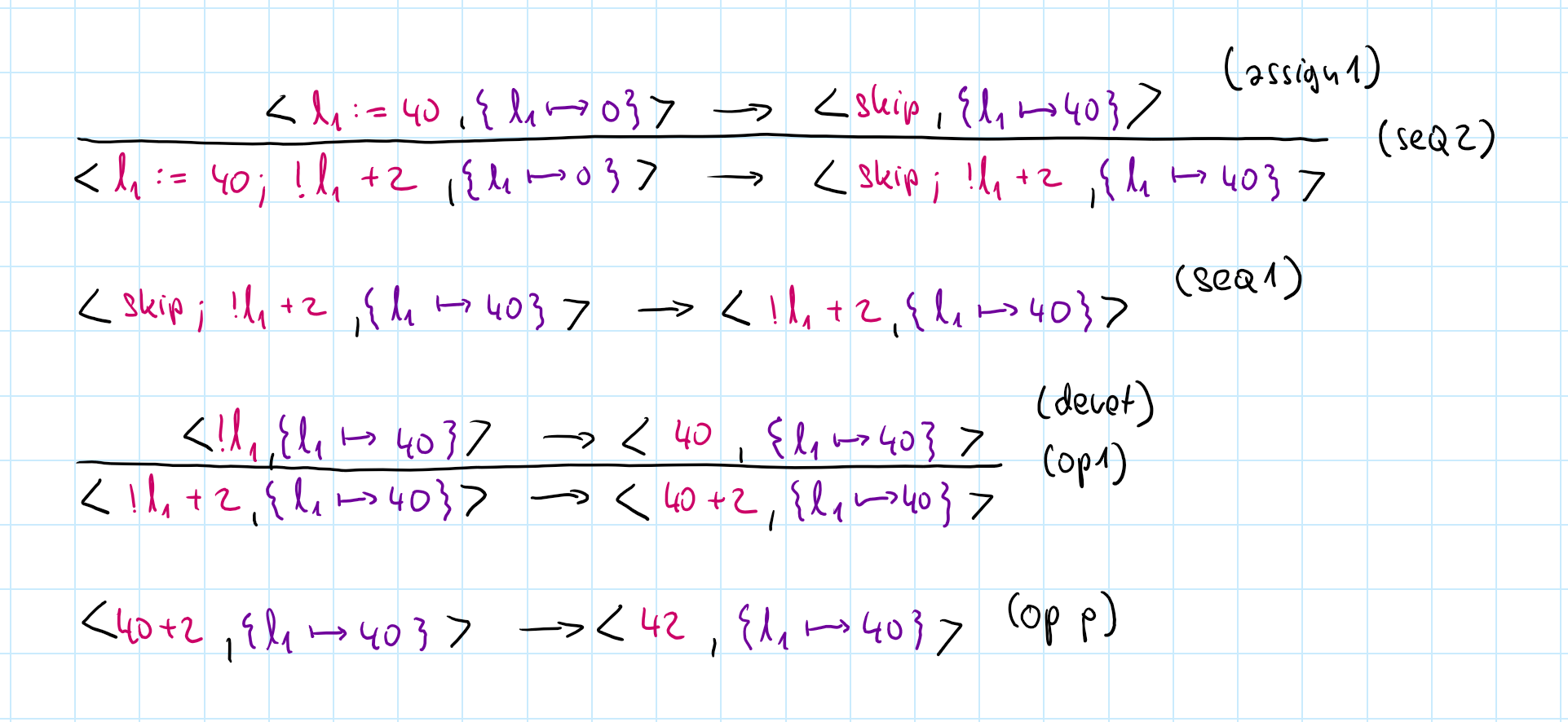

Step-by-step derivation example
Sequence using individual \(\rightarrow\) steps
Every \(\rightarrow\) justified using a rule name!

Types

Motivation and background

Types

Different uses of types

  • Define what programs make sense
  • Prevent errors before execution
  • Guarantee other program properties
  • Useful information for the programmer
  • Guide compiler optimizations

Types across languages

TypeScript

  • Editor tooling and documentation
  • No strict formal guarantees

OCaml

  • Guarantee safety properties
  • Allow efficient compilation

Agda, Idris, Lean

  • Use types to prove (program) properties!
$ cat test.c
#include <stdio.h>

int main(void) {
  char msg[] = "Hello world";
  char buf[4];

  buf[4] = 'J';
  printf("%s\n", msg);
  return 0;
}

What types guarantee?

No undefined behavior!

$ cat test.c
#include <stdio.h>

int main(void) {
  char msg[] = "Hello world";
  char buf[4];

  buf[4] = 'J';
  printf("%s\n", msg);
  return 0;
}

$ gcc test.c && ./test
Jello world

What types guarantee?

No undefined behavior!

Writing to a value out of array bounds

C does not specify how arrays are allocated

Types

What is correctness?

  • There is no undefined behavior
    Out of bounds access, reading non-existent field, etc.
  • Expressing undefined behavior formally
    It never happens that there is no reduction \(\langle e, s \rangle \not\rightarrow\)
  • Beware of non-termination
    There may be no \(v\) such that \(\langle e, s \rangle \rightarrow^{*} \langle v, s' \rangle\)
  • Beware of starting with valid \(s\)
    Even the \((\text{assign})\) rule requires that \(l \in \text{dom}(s)\)

Types

Defining type systems

Typing judgement

\(\boxed{\Gamma \vdash e : \tau}\)

Given a typing context \(\Gamma\), the
type of the expression \(e\) is \(\tau\).

  • \(\Gamma\) - locations in store, variables in scope
  • \(e\) - expression we want to type check
  • \(\tau\) - type that we want to verify
  • Relation defined using inference rules

Type checking only

  • Know the context \(\Gamma\), expression \(e\) and type \(\tau\)!
  • Looking for a derivation tree using typing rules
  • Type inference & program synthesis harder!

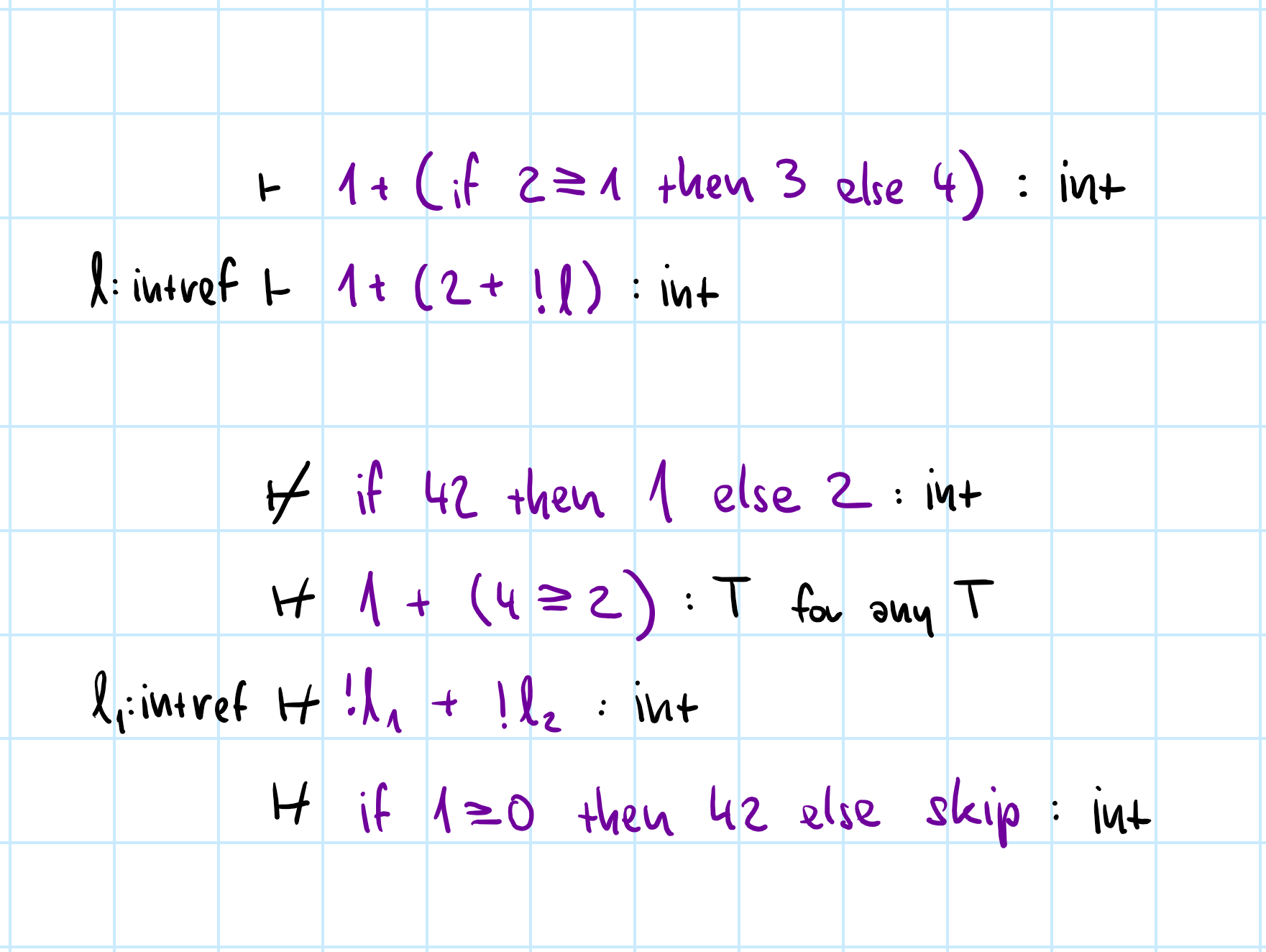

Examples

Arguments of correct types

References
are available

No mismatched return values

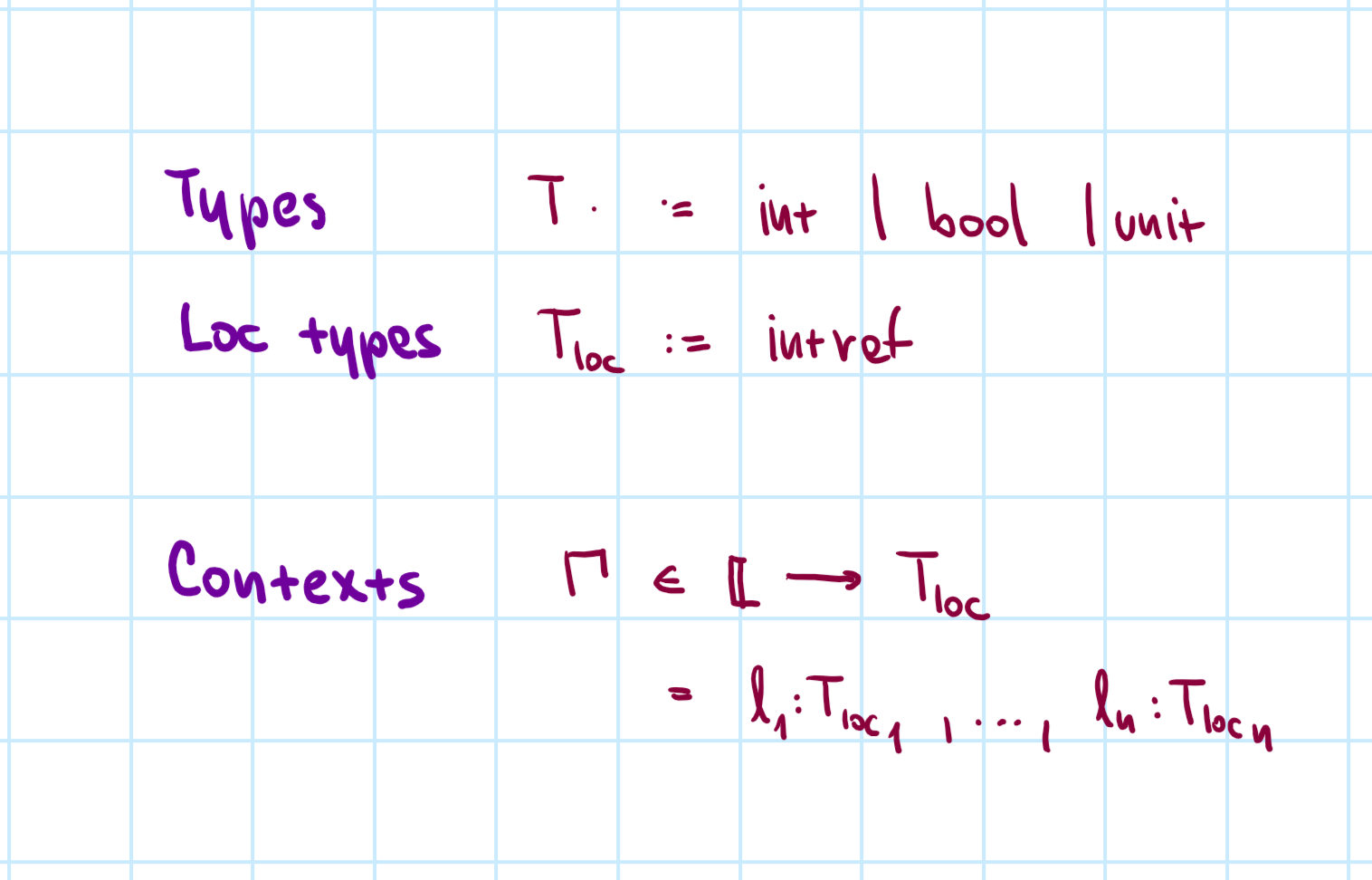

Syntax of types

Primitive types only

Contexts \(\Gamma\) are finite partial maps from location names \(\mathbb{L}\) to location types \(T_{loc}\)

Location types are
only ints (for now)

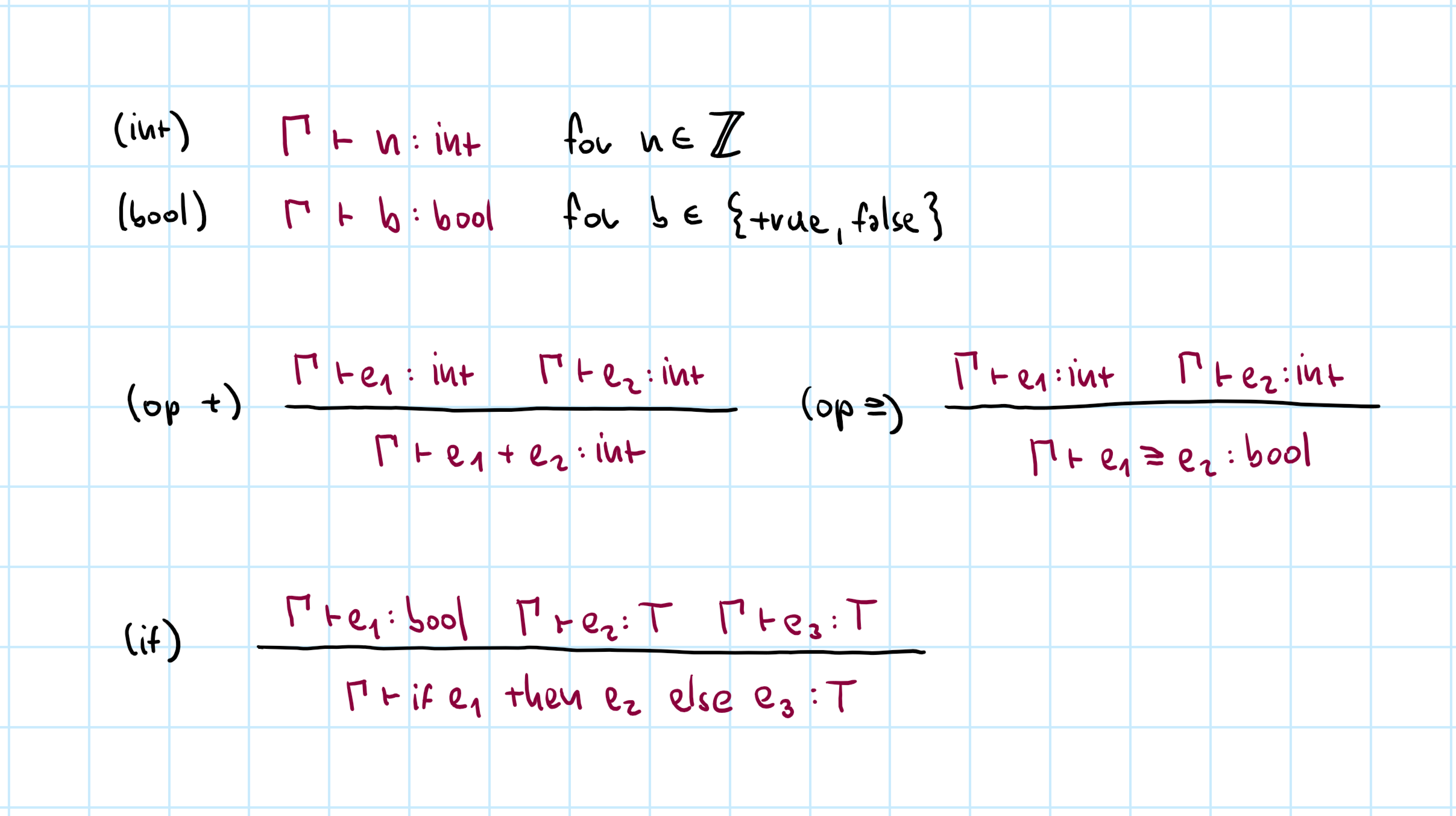

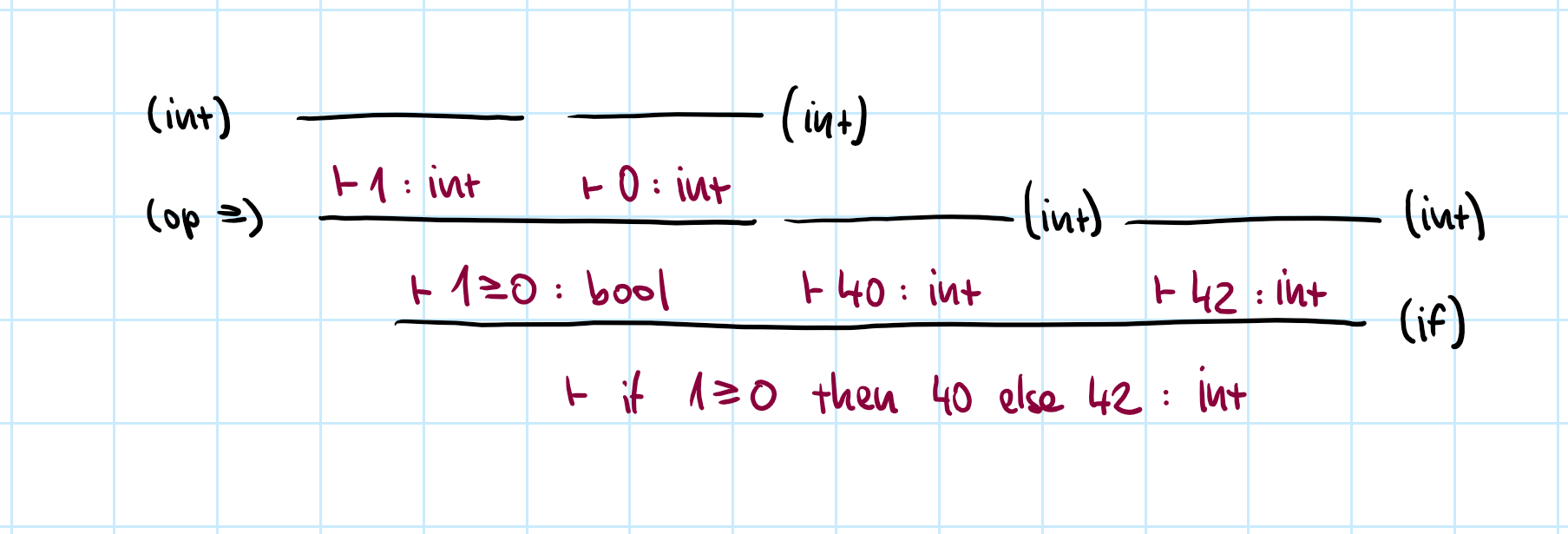

Example typing derivation

Look at the syntactic structure, choose a rule to apply
Repeat for all sub-expressions until done
Conditional expression can be of any type!

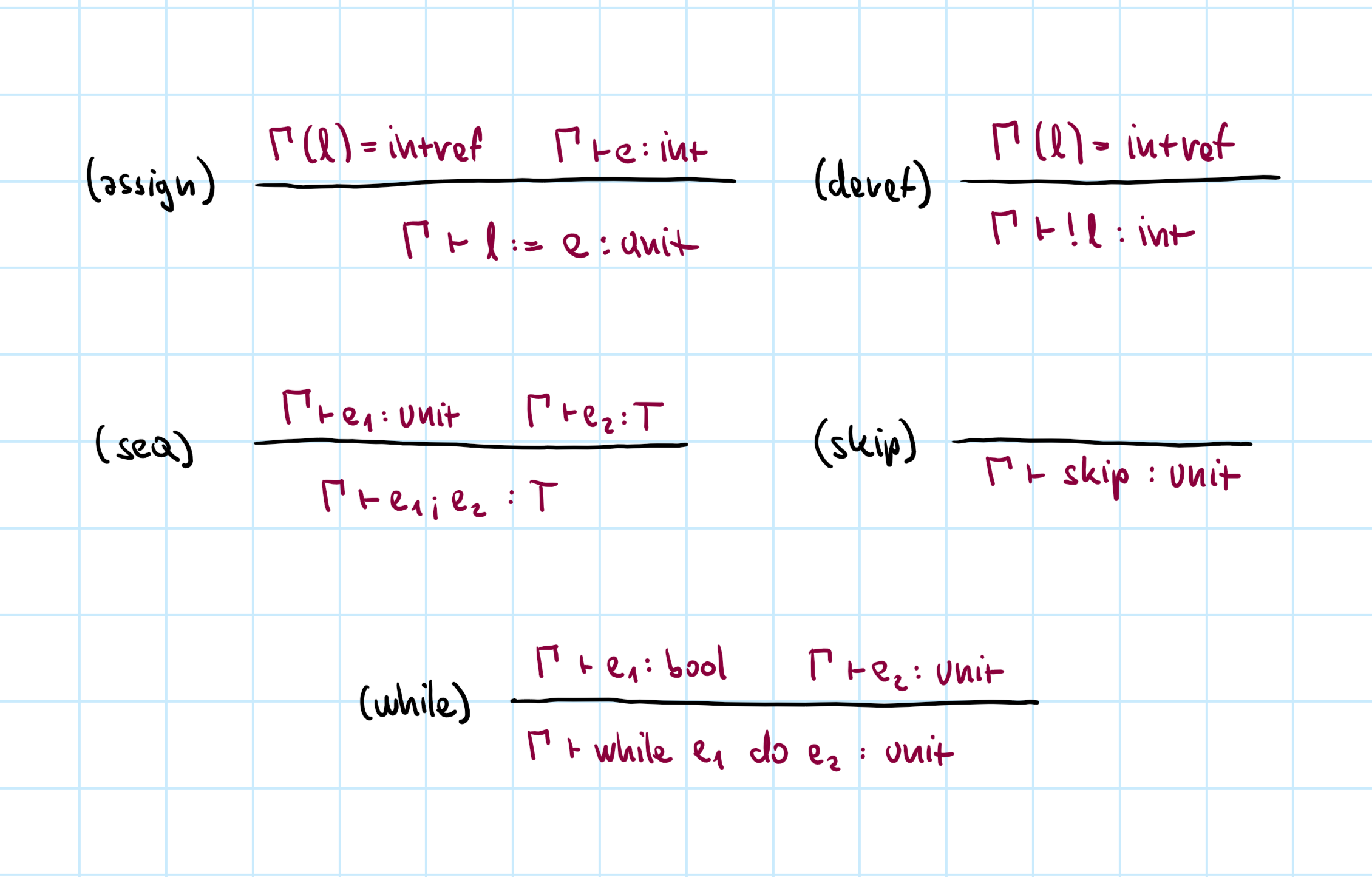

Store and sequencing

Store access requires \(l\) is in \(\Gamma\)

No construct modifies \(\Gamma\) (now)

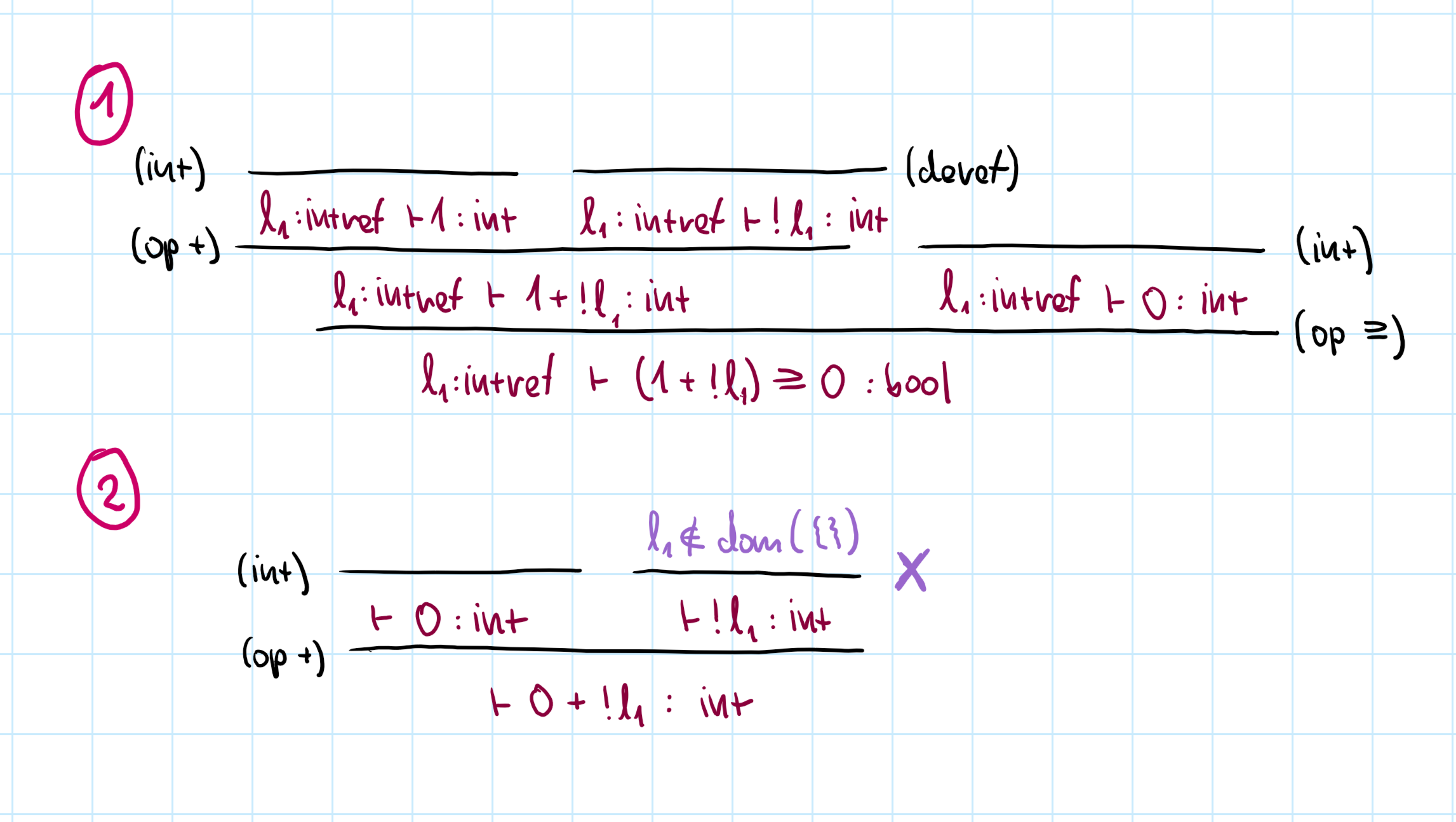

Example #1: Arguments match and \(l_1\) is in the context
Example #2: Accessing undefined location \(l_1\)

Typing rules

Interesting design alternatives

  • Syntax directed rules determined by structure
  • Context is a set, not ordered list
  • We never add to or remove from the store
  • Sequencing requires skip like the semantics

Properties

What is a good type system?

Well-typed programs do not go wrong

Well-typed programs do not get stuck

Theorem (Progress)

If \(\Gamma \vdash e : \tau\) and \(dom(\Gamma)\subseteq dom(s)\) then either \(e\) is a
value or there exist \(e', s'\) such that \(\langle e, s \rangle \rightarrow \langle e', s'\rangle\).


Theorem (Preservation)

If \(\Gamma \vdash e : \tau\) and \(dom(\Gamma) \subseteq dom(s)\) and \(\langle e, s \rangle \rightarrow \langle e', s'\rangle\)
then \(\Gamma \vdash e' : \tau\) and \(dom(\Gamma) \subseteq dom(s')\).

Well-typed programs do not get stuck

Theorem (Safety)

If \(\Gamma \vdash e : \tau\) and \(dom(\Gamma)\subseteq dom(s)\) and \(\langle e, s \rangle \rightarrow^{*} \langle e', s'\rangle\)
then either \(e'\) is a value or there exist \(e'', s''\) such
that \(\langle e', s' \rangle \rightarrow \langle e'', s''\rangle\).


What this means

  • Well-typed programs never get stuck
  • Well-typed programs never reach undefined behavior
  • They may still run forever

Conclusions

Types for imperative language

Conclusions

  • Types serve many purposes in practice
  • Our models are about type safety
  • No undefined behavior / no stuck state
  • Safety = Progress + Preservation
